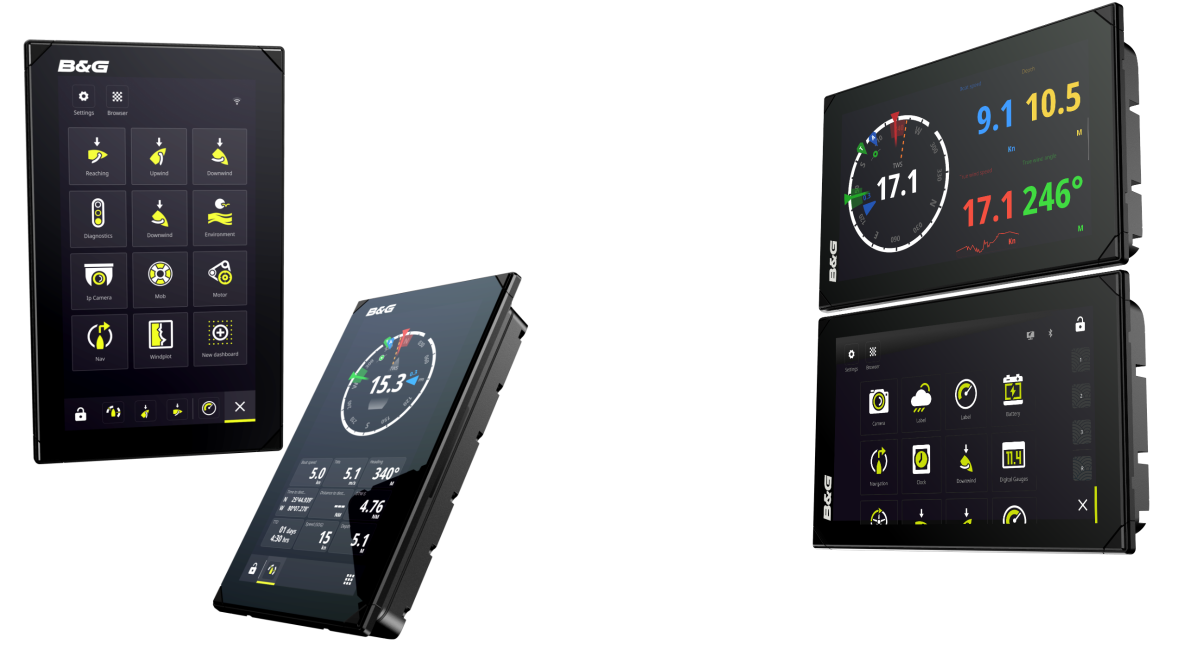

B&G Nemesis Display 12

  • Code: 000-15612-001
B&G
(0)
€ 3.099,00 € 3.658,78 -15%
add to favorites

Main functions

  • Preset dashboards or easy-to-use drag-and-drop editors for complete customization

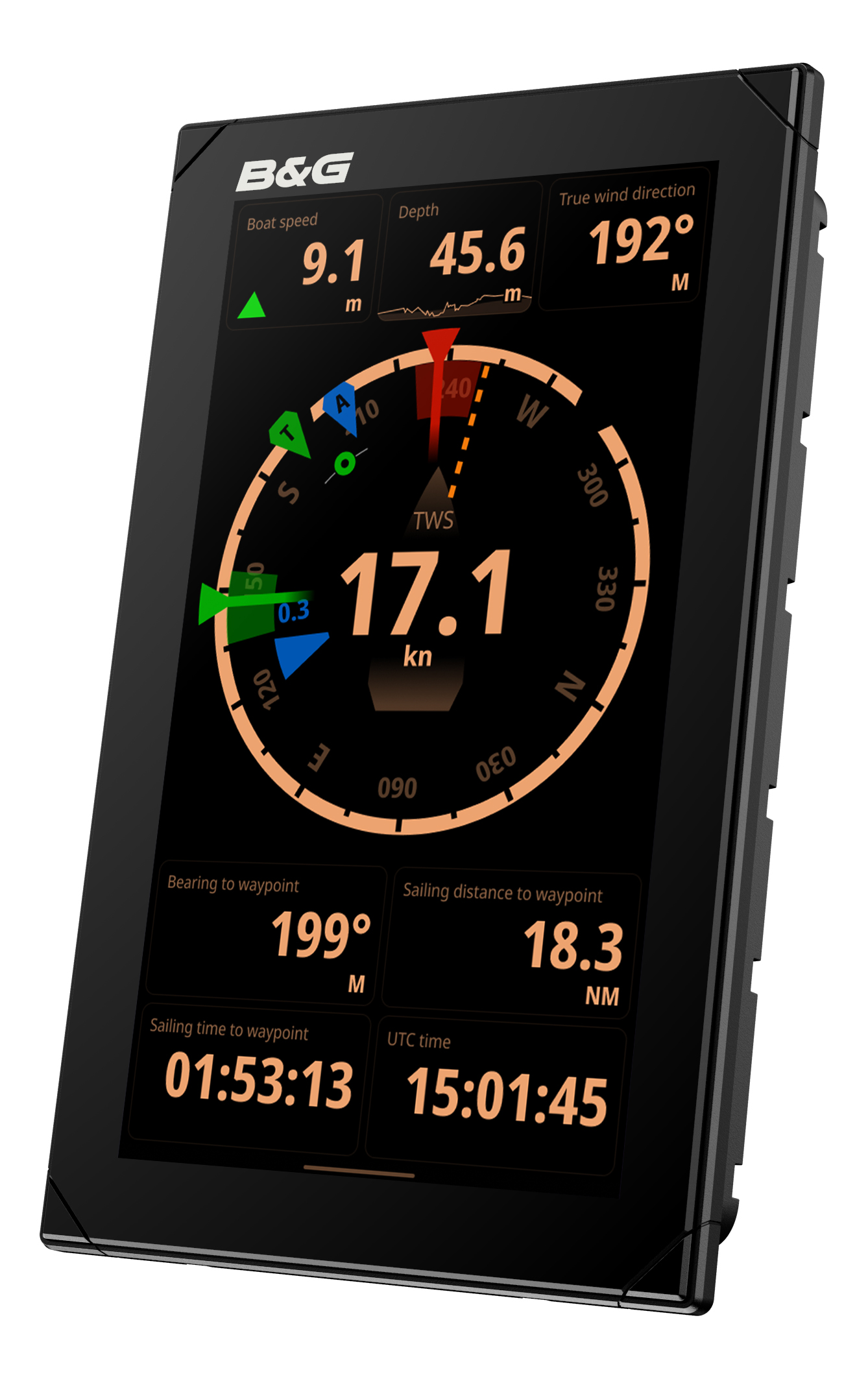

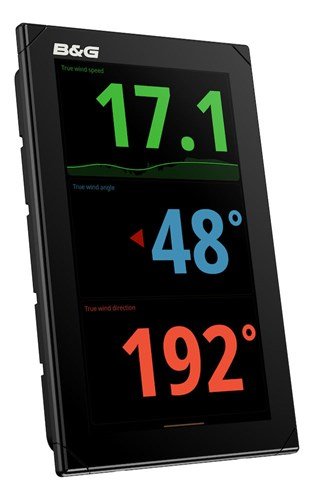

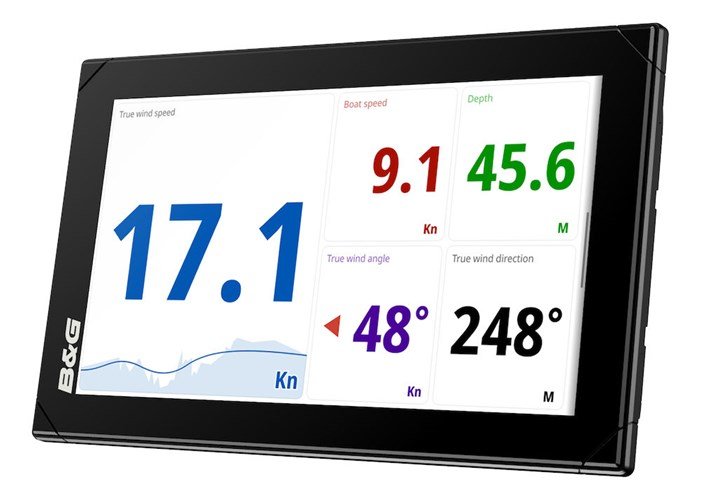

  • Wide choice of digital data views, including graphical gauges, SailSteer ™, tank levels, IP camera views, histograms and images

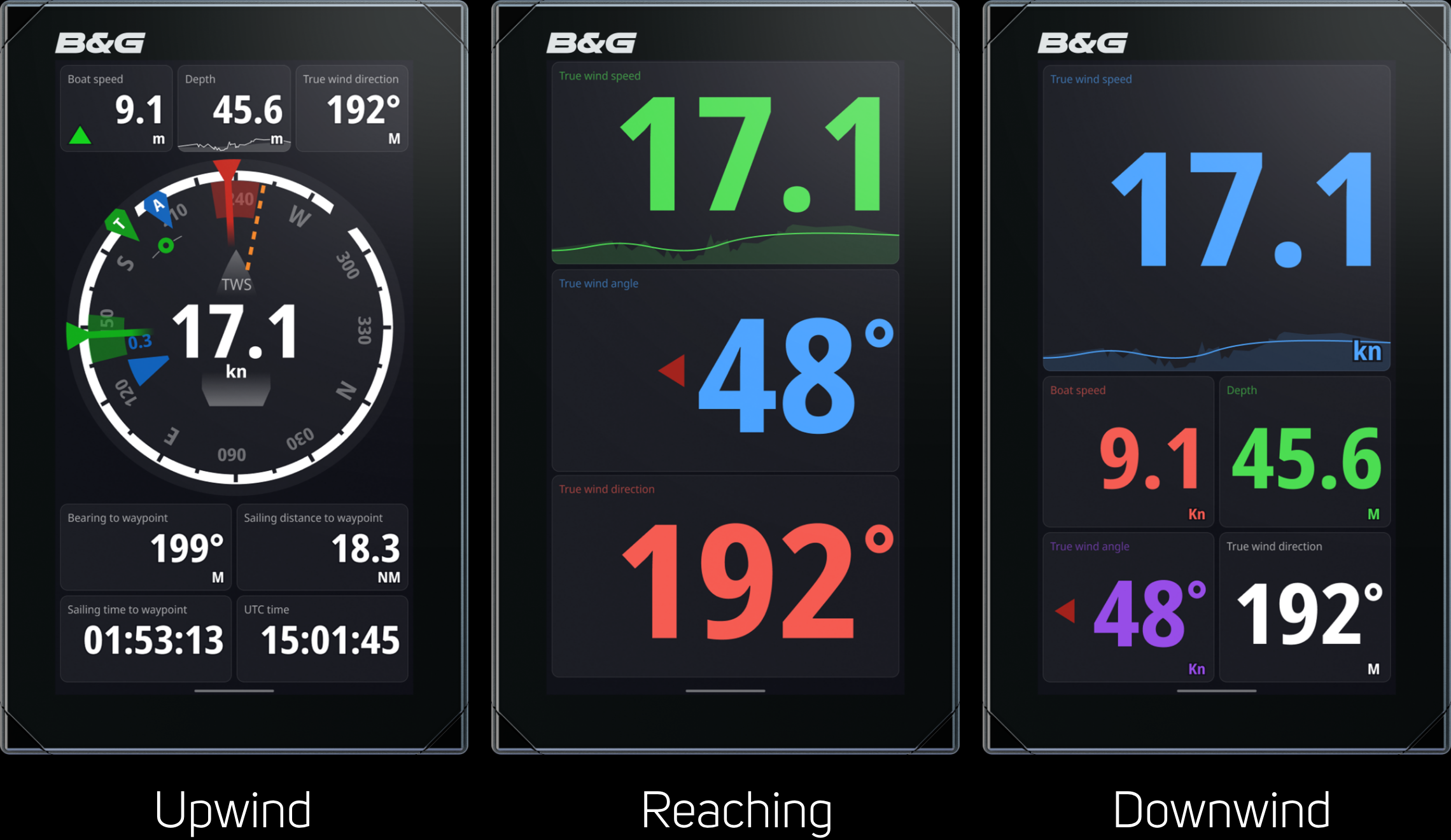

  • Contextual modes: upwind, sliding, leeward, pre-start, engine
  • Bright touch screen with extremely wide viewing angles
  • Adjustable palettes and backlighting for optimal viewing in all conditions
  • Horizontal and vertical mounting
  • Connecting multiple displays via Nemesis hub
  • Ethernet and / or NMEA2000

Specifications

Display resolution
1280 x 720
Screen brightness
1300 nits
Waterproof level
IP67
Ethernet ports
1 x 100 Mbit
NMEA 2000 connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
Supply voltage
10 - 32 V DC
Maximum energy consumption
13W
Operating temperature range
-15ºC to + 55ºC (-5ºF to 131ºF)
Recommended fuse rating
2 Amp
Warranty period
2 years
Storage temperature range
-20ºC to + 60ºC (-4ºF to 140ºF)
Dimensions (height x width x depth)
239 x 149 x 69mm (9.4 x 5.6 x 2.7 ")
Compass safety
300mm (12 ")
Viewing angles
80 top / bottom, + / 80 left / right
Wi-Fi connectivity element
802.11 b / g
Languages
Chinese [simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish
Mounting type
Flush, Panel
Interface
Touch screen
Display Resolution
1280 x 800
Screen Brightness
1500 nits
Waterproofrating
IP67
Ethernet Ports
1 x 100 Mbit
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C, 1 LEN
Supply Voltage
10 - 32 V DC
Operating Temperature Range
-15ºC to + 55ºC (-5ºF to 131ºF)
Power Consumption max
19W
Recommended Fuse Rating
2 Amp
Warranty Period
2 years
Storage Temperature Range
-20ºC to + 60ºC (-4ºF to 140ºF)
Compass Safe
300mm (12 ")
Dimensions W x H x D
310 x 208 x 72mm (12.2 x 8.2 x 2.8 ")
Viewing Angles
80 top / bottom, + / 80 left / right
Item Connectivity WiFi
802.11 b / g
Languages
Chinese [simplified], Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish
Mounting Type
Flush, Panel
Interface
Touch screen
