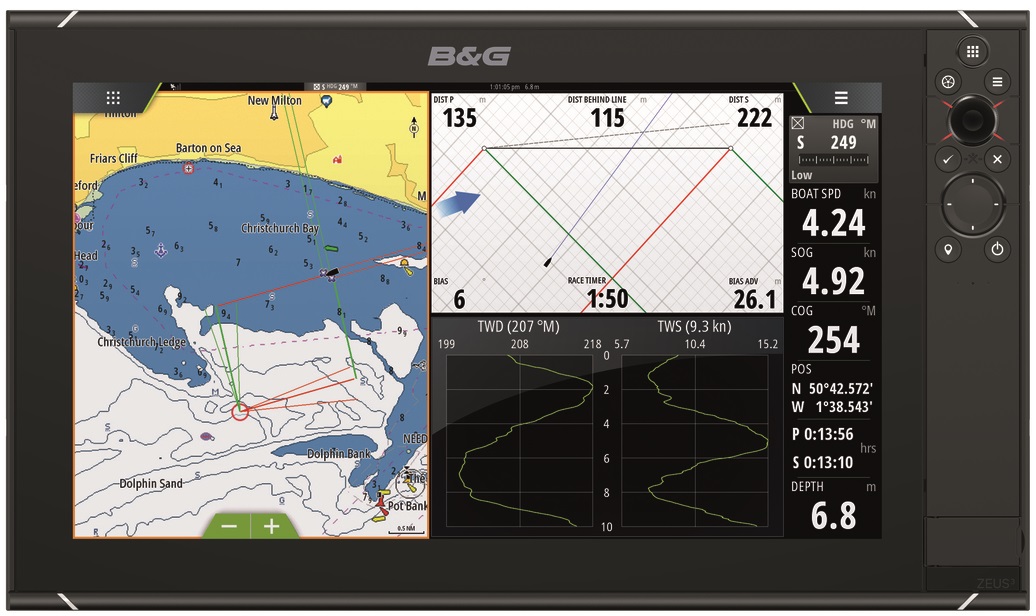

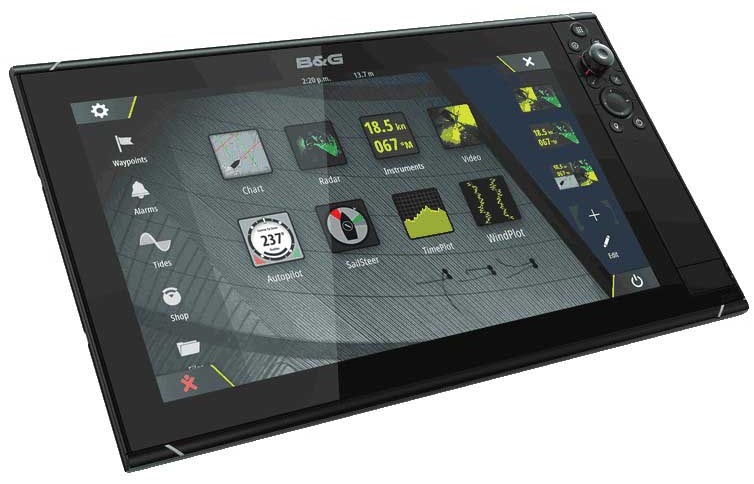

B&G Zeus³S 16 Multifunction display 16 "
New version S
Specially designed for sailing The new Zeus 3S chartplotters offer ultra-fast response times so you have all the information you need, when you need it. Easy to use, Zeus3S features B&G unique navigation features built in, which simplify navigation, calculate routes, add waypoints and display navigation and racing data at the touch of a button or screen.
Super fast processor for immediate response Improve your knowledge of your surroundings like never before thanks to the Zeus 3S high-performance processor. The processor power of this chartplotter allows you to manage charts, radar, ForwardScan and autopilot controls at the same time without compromising performance, and offers all the tools you need to navigate safely, with the certainty of being able to monitor your surroundings.
Navigate safely with B&G's award-winning navigation features for cruising and racing, including;
SailSteer, RacePanel, StartLine, Laylines, SailingTime, Advanced Windplot and Weather Routing with PredictWind integration.
Unbeatable clarity and control A multi-touch screen and dedicated keyboard combined with our ultra-bright IPS HD SolarMax screen, which supports multiple gestures and wide viewing angles in direct sunlight, offers maximum control and visibility from any angle, light or weather .
Easy network expansion
Just add power to use the Zeus 3S as a versatile standalone chartplotter with premium navigation features. However, for the best experience, it is easy to network the chartplotter with H5000 IP, AutoPilot, ForwardScan, FLIR IP cameras, NMEA2000 and 0183, plus the latest HALO and broadband radars, for optimal target detection, low power consumption of energy, immediate ignition and weather mode. Built-in WiFi allows you to connect and play or control the Zeus 3S screen from a smartphone or tablet.
Specifications
1920 x 1080 display resolution
1200 nits screen brightness
Waterproof level IPX6 and 7
NMEA 2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
Supply voltage 10 - 31.2 V DC
Refresh rate 10 Hz
Vibration shocks 100 000 cycles of 20 G
Operating temperature range -15 ° C to + 55 ° C (5 ° F to 131 ° F)
Internal memory 16 GB
SD card memory 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Ethernet ports 2 x 5 pin yellow connector x 10/100 Mbit
Video 2 x composite (RCA connectors) video inputs. Optional video / data cable required (P / N 000-00129-001). HDMI output
Warranty period 2 Years
Storage temperature range -20 ° C to + 60 ° C (4 ° F to 140 ° F)
Maximum power consumption 40W
Weight 4.65 kg (10.25lbs.)
GPS Receiver Channels 34 Channels
Dimensions 437 x 256 x 98 mm (117.19 x 10.08 x 3.82 ") with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80")
Compass safety 50 cm (1.7 ft)
Recommended fuse rating 5A
Waypoints, routes, tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing angles 80 ° top / bottom, 80 ° left / right
Steering Modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, * Wind, * Wind NAV. (* Boat type set to Sail)
Mount Type Bracket (Supplied) or panel mount
Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar compatibility
GPS Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
Approval compliance CE, C-Tick, HDMI, EN 60950-1: 2006, EN 60945: 2002 EN 300 440-2, V1.4.2
Cold start first repair time 50 sec, Satellite Reacquisition 5 sec
C-Zone digital switching, Naviop
Autopilot Full auto pilot control and commissioning
Full touch screen interface (multi-touch) and full keypad control, OP50 remote controllers
Position Accuracy Horizontal Accuracy 3 m (9.8 ft)
Supported Charts Insight, Navionics (Gold, NAV + Platinum +), C-MAP (MAX N, MAX N +) NV Digital (Raster US Charts)
Internal element Wi-Fi connectivity
Bluetooth Internal
PC connectivity No
AIS Receive AIS data over NMEA 2000 or * NMEA 0183 (* NMEA 0183 has to be wired to all NSS processors)
SiriusXM Weather via WM-3 / WM-4 (USA only), GRIB
Languages Standard Language Pack: English (US), English (UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish Other languages supported by Unlock: Japanese, Korean, Thai, Chinese , Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic, Farsi
Sonar compatibility Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Turn patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia via SonicHub2, FusionLink, * Sirius, ** JL Audio. * USA only, ** AUST. & NZ only)
WASS, MSAS, EGNOS, GLONASS correction Galileo, Beidou, QZSS.SBAS
Backlight color White
Cartography including World basemap
