Furuno NavNet TZtouch3 12" DFF3D B265 Pack

Furuno Display TZT12 Bundled with 1kw Chirp B265LH Thru-Hull Transducer, DFF3D Box with B54 Thru-Hull Transducer
  • Code: IMD034990AAPK1
Furuno
(0)
€ 9.399,00 € 12.000,00 -22%
add to favorites
Furuno Multi Function Display NavNet TZtouch3 12"

DESCRIPTION

HIGH PERFORMANCE QUAD CORE PROCESSOR

NavNet TZtouch3 offers three different types of monitors. The TZT12F 12-inch Hybrid touch has a touch screen display with integrated control keypad. The intuitive RotoKey and dedicated keys simplify the user's routine operations, completing the NavNet TZtouch3 line. The TZT16F models 16-inch and 19-inch TZT19F are all-glass, multi-touch and equipped with IPS technology capable of providing sharp and bright images from any angle. All models incorporate a quad-core processor that pushes TimeZero technology to its maximum potential, offering a monitor division into four portions with a response speed never seen before.


INTEGRATED TRUEECHO CHIRP™ MODULE & TRADITIONAL CONTINUOUS WAVE

Every NavNet TZtouch 3 includes a built-in 1kW TruEcho CHIRP™ sonar
(the equivalent of the DFF1-UHD Black Box 1 kW Fishfinder).
For those who want to have an even more powerful CHIRP sonar, FURUNO
designed a 2kW/3kW high power amplifier DI-FFAMP that connects
directly with the internal TruEcho CHIRP™ sonar.

HYBRID CONTROL

On small boats, when you hit the waves it is not easy to get a precise touch.
on the screen; that's why the TZT9F has hybrid touch+keypad controls to get the most out of it
from both worlds. Multi-touch and built-in keyboard
with Rotokey, cursor and dedicated buttons for total control and maximum comfort.












MODERN AND REFINED GRAPHICAL INTERFACE

Improved, easy and intuitive software allows immediate access to the main functions for easier use.
simple and effective thanks to the innovative access to functions with a single touch and swipe from the edges.
The size of the characters, icons and scale can be changed by the user to ensure maximum comfort of use.
Navigation data boxes are accessible from any page, while a data box is dedicated to the display in use.






RADAR - POWER AND RESOLUTION AT THE MAXIMUM LEVEL
Maximum power and incredible target detection offered by DRS-NXT (Solid State Drive) & DRS-X_CLASS (Magnetron) Radars.
Outstanding long-range performance combined with outstanding close-range detection and resolution.
For more information on the range, visit the dedicated pages:

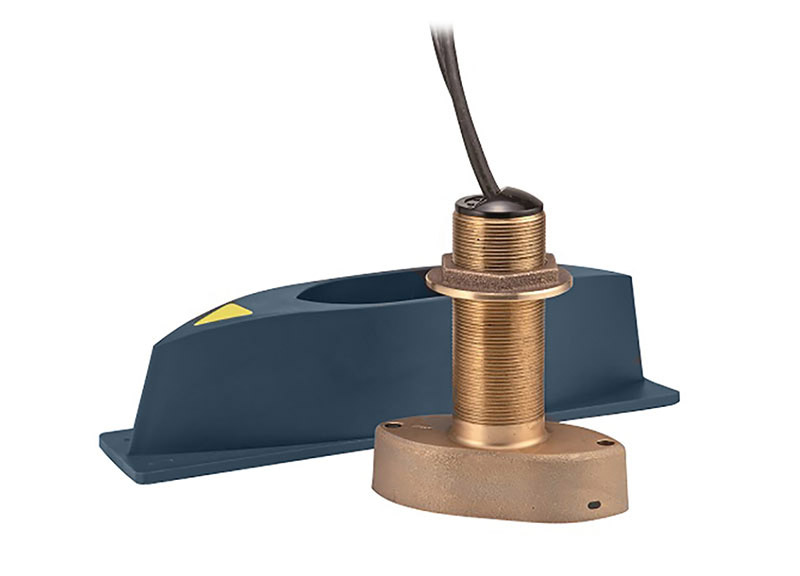

DFF3D - 120° PORT TO STARBOARD

All the detection power of the Multi Beam
DFF3D with 120° port to starboard at depth
up to 200m (300m directly under the boat) for
get a perfect fishing machine and find
the fish you would normally miss.

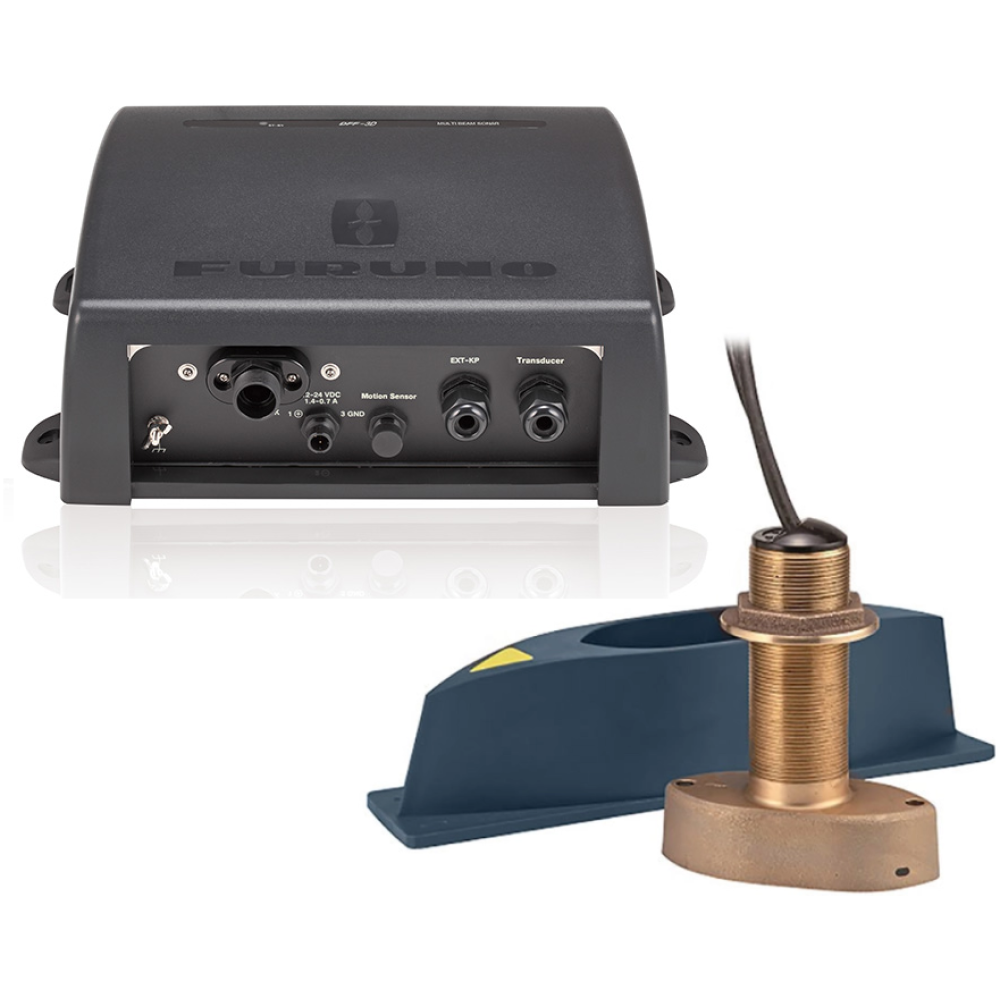

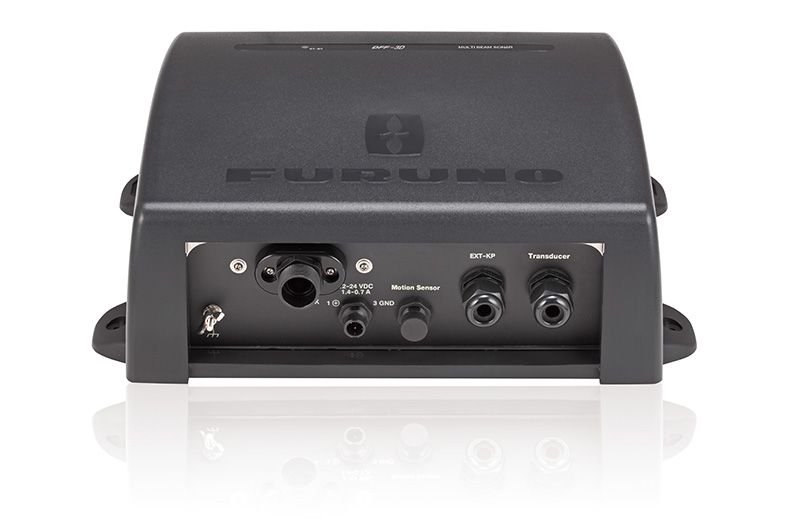

FURUNO DFF3D
Black Box Multi-Beam Depth Sounder 800 W 165 kHz

CUSTOM SCREENS
The multibeam echo sounder image can be displayed in customizable screens by connecting the DFF-3D to the NavNet TZT/TZT2 series multifunction displays. The screen can be divided into up to three portions in which the following modes can be displayed simultaneously: Cross Section, Triple Beam and 3D Mode. The choice is very flexible and can vary from user to user.

MULTIBEAM TECHNOLOGY
DFF-3D is equipped with MULTIBEAM technology. Inside the probe there are 41 elements capable of covering a surface of 120° from starboard to port of the vessel. This allows reaching targets that would be difficult to detect with a monotonous technology, scanning a much larger water surface area than traditional fishfinders.

CHARACTERISTICS

Display
Type: Color TFT IPS (In-Plane Switching) LCDScreen 12.1" wide
Resolution: FHD 1280 x 800
Brightness: 900 cd/m2
*Bracket for TZT12F (optional)


GPS/WAAS
Number of channels: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving frequency: L1 (1575.42 MHz)
Accuracy: 10m (GPS), 7m (MSAS), 3m (WAAS)
Position update interval: 0.1s

Map/Alarm
Map: MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory capacity: Track 30,000 points, Puto/MOB 30,000 points, Route 200 with 500 points per route
Alarm: Anchor, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*option)

RADAR
Orientation modes: Head-up*, North-up* (*compass data required).
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line

DEPTH SOUNDER
Frequency: Continuous Wave: 50/200 kHz and CHIRP: from 40 kHz to 225 kHz
Output power: 300/600 W or 1 kW* (*Requires Matching box MB1100).
Range: 2-1,200m, Travel: 0-1200m
Display Modes: ACCU-FISH?, A-Scope, Auto (Fishing/Cruising), RezBoost?, Bottom Discrimination, TruEcho CHIRP?

INTERFACES
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Output Port
Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0)
Video I/O

  • Video OUTPUT: 1 Port (HDMI 1280 x 720)
AUX I/O: 2 Ports and 1 Buzzer Output Port
SD Card Slot: 1 Micro SD Slot (SDXC, Rear), Dual SD Card Slot Unit: Model SDU-001 (Optional)
Wireless LAN: IEEE802.11b/g/n, Transmission frequency: 2.412 to 2.462 GHz, 11dBm max
Transducer: 1 Port

ENVIRONMENTAL CONDITIONS
Ambient temperature (IEC60945): -15°C to +55°C
Relative humidity: 93% or less at +40° C
Degree of protection: IP56

DIET
12-24VDC
2.5 - 1.3 A
