Furuno NavNet TZtouch3 12" USED

  • Code: RU-IMD034990AA
Furuno
(0)
€ 2.899,00 € 4.209,00 -31%
add to favorites

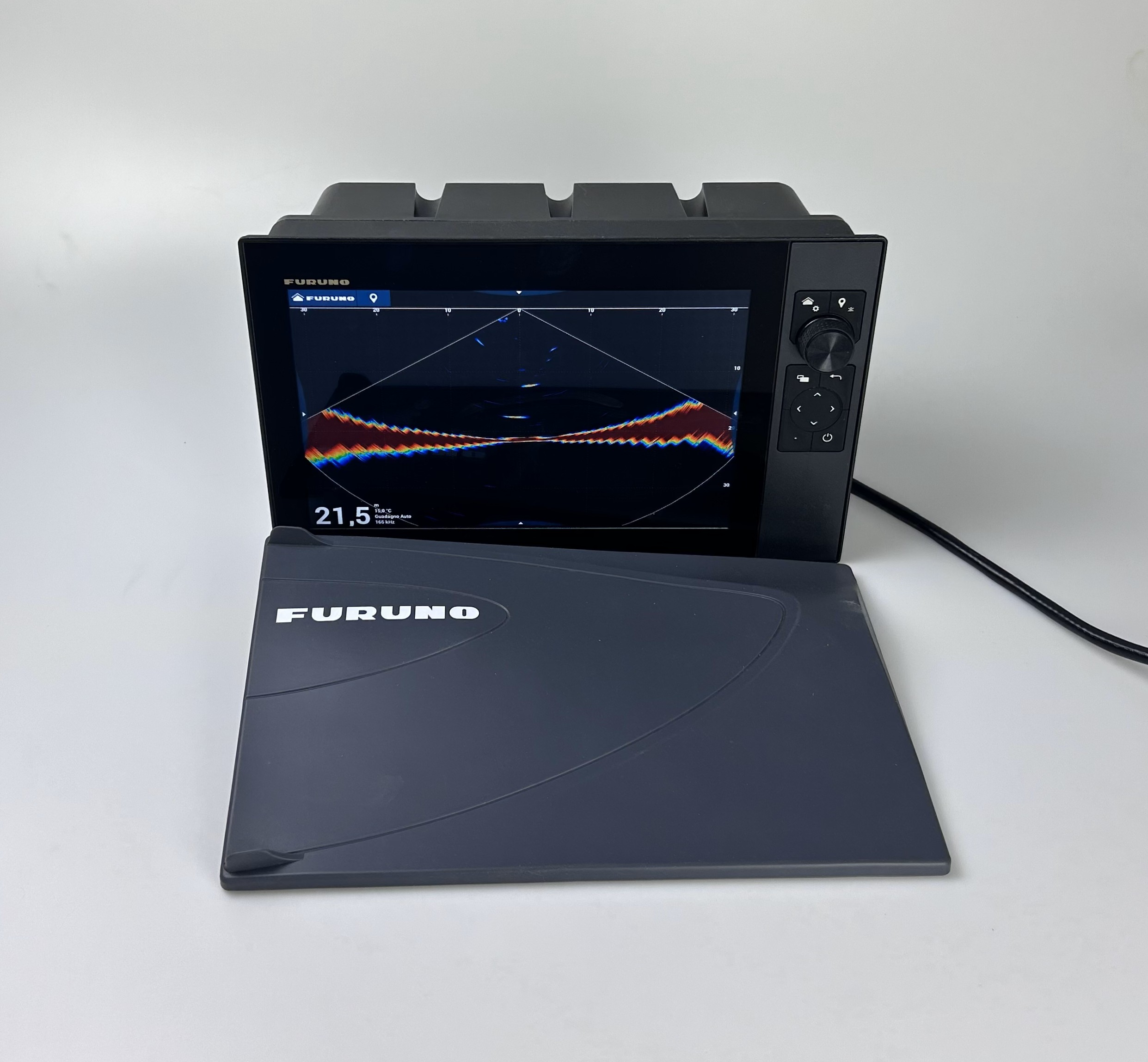

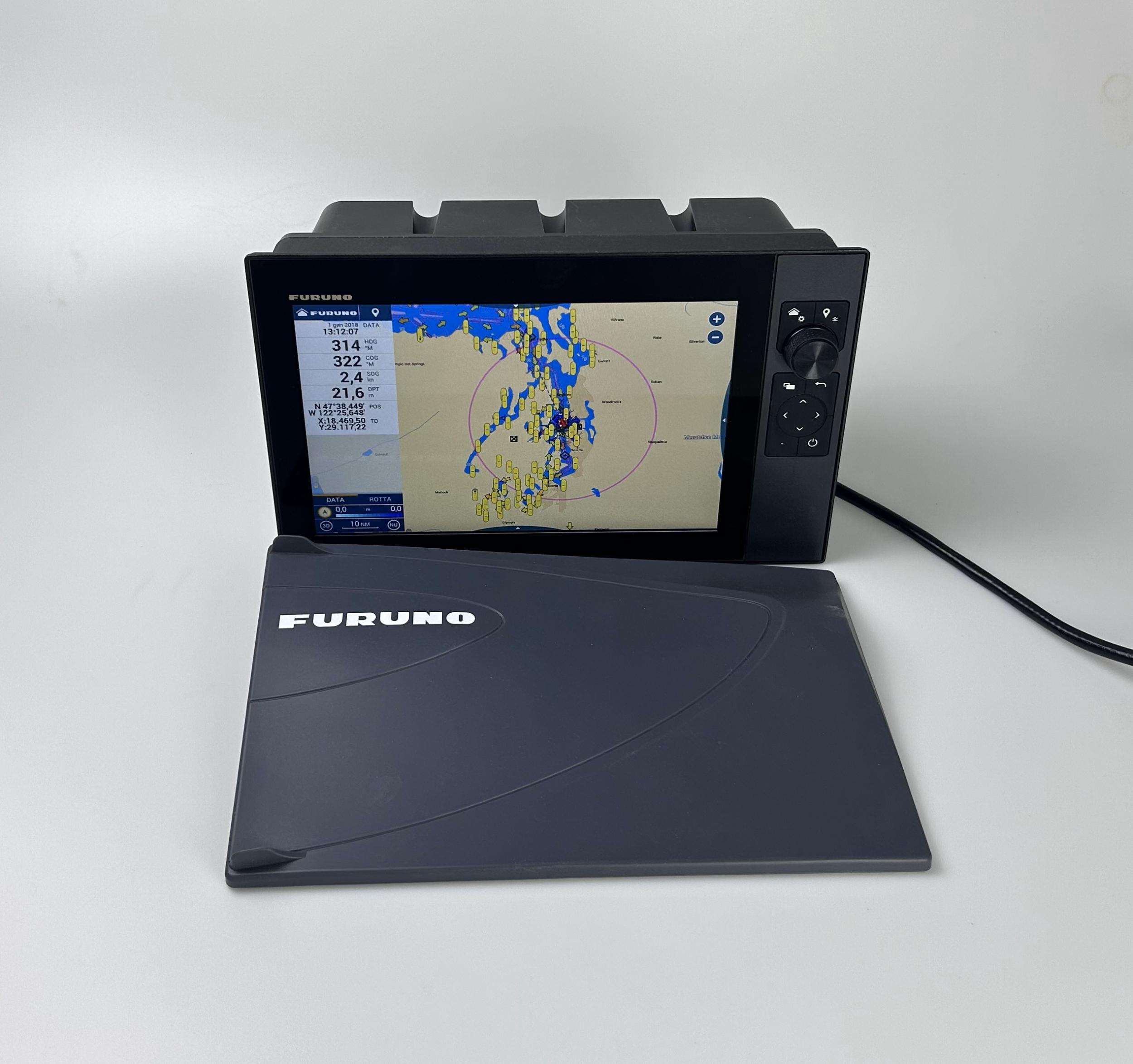

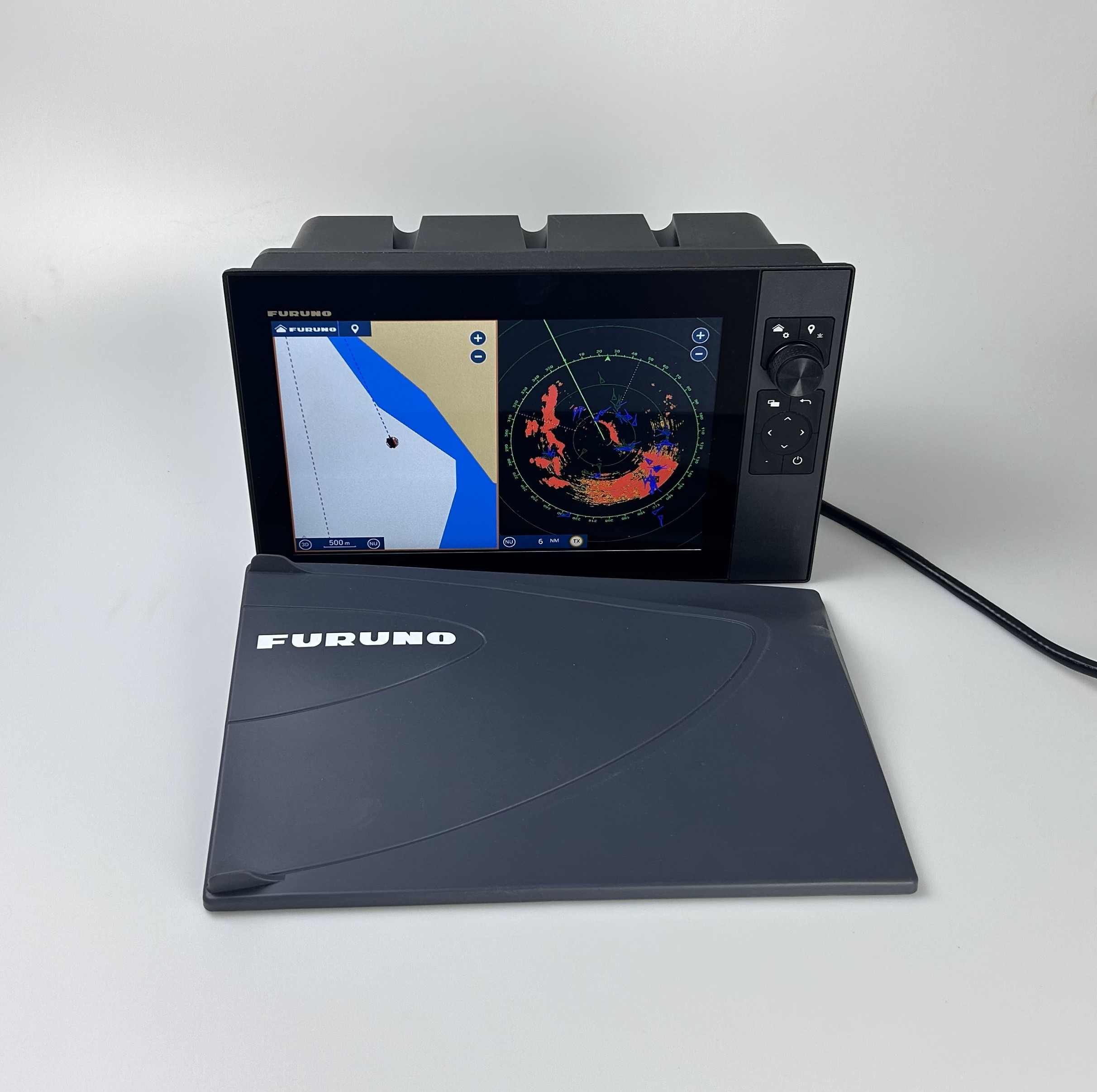

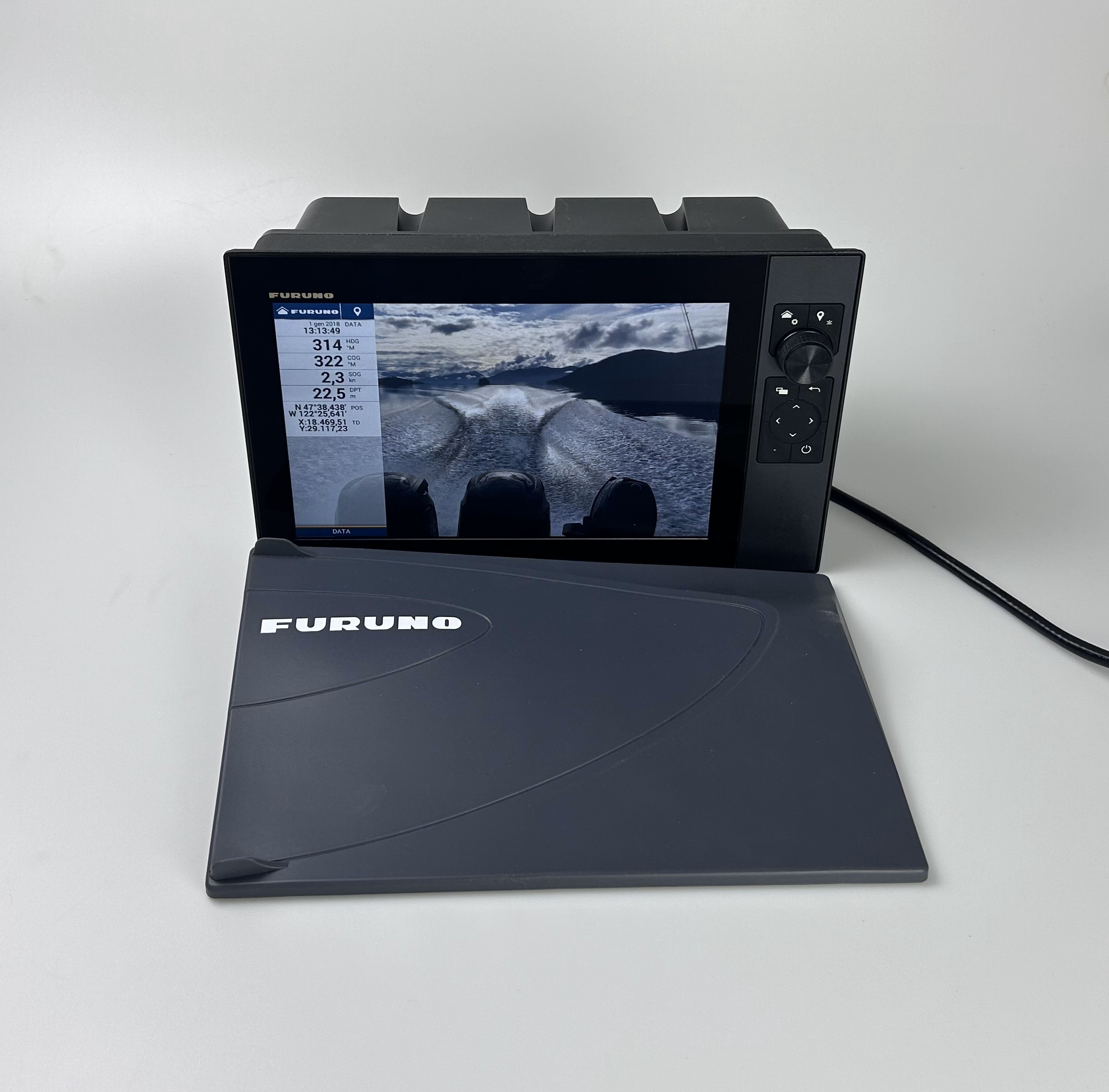

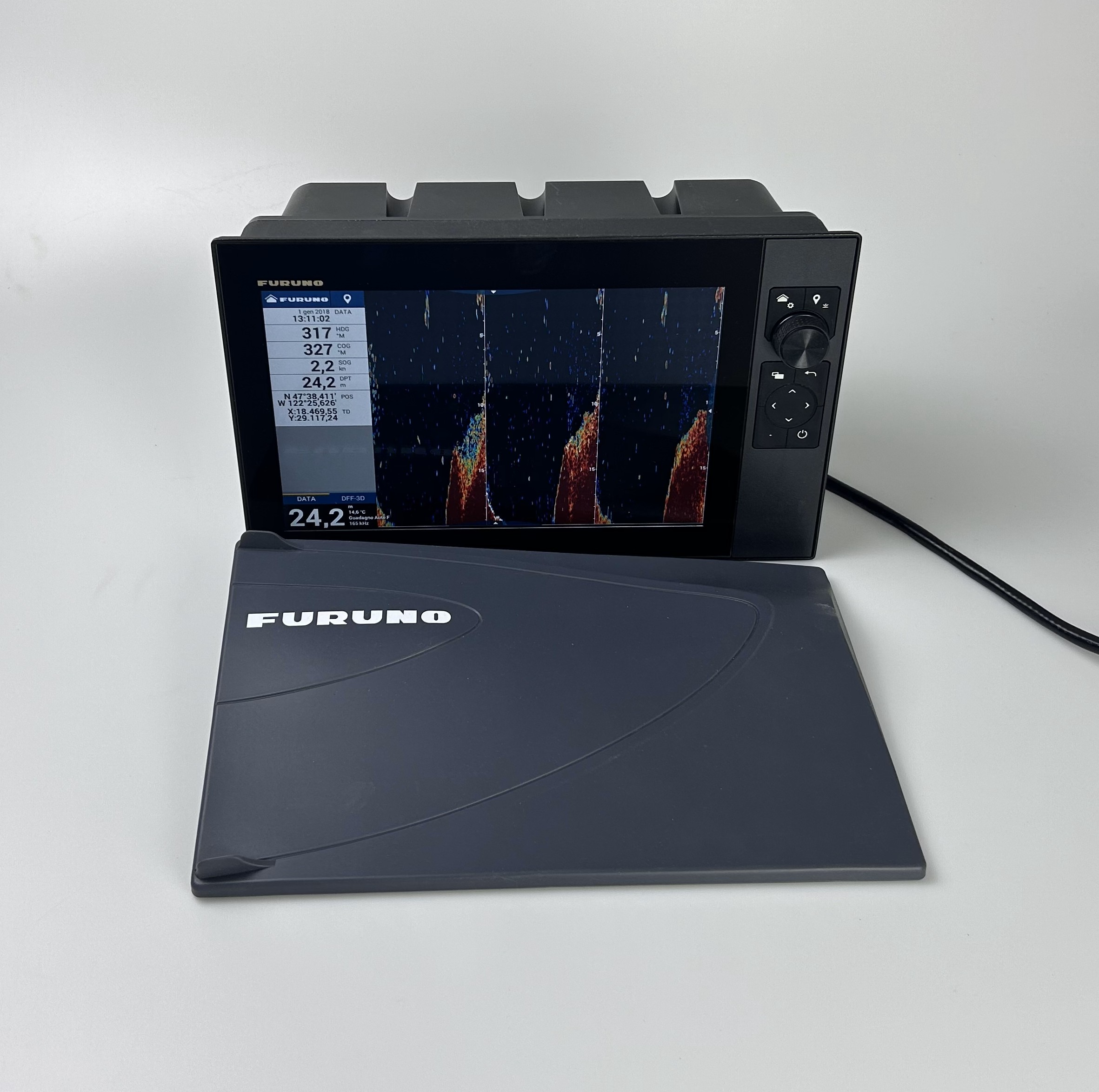

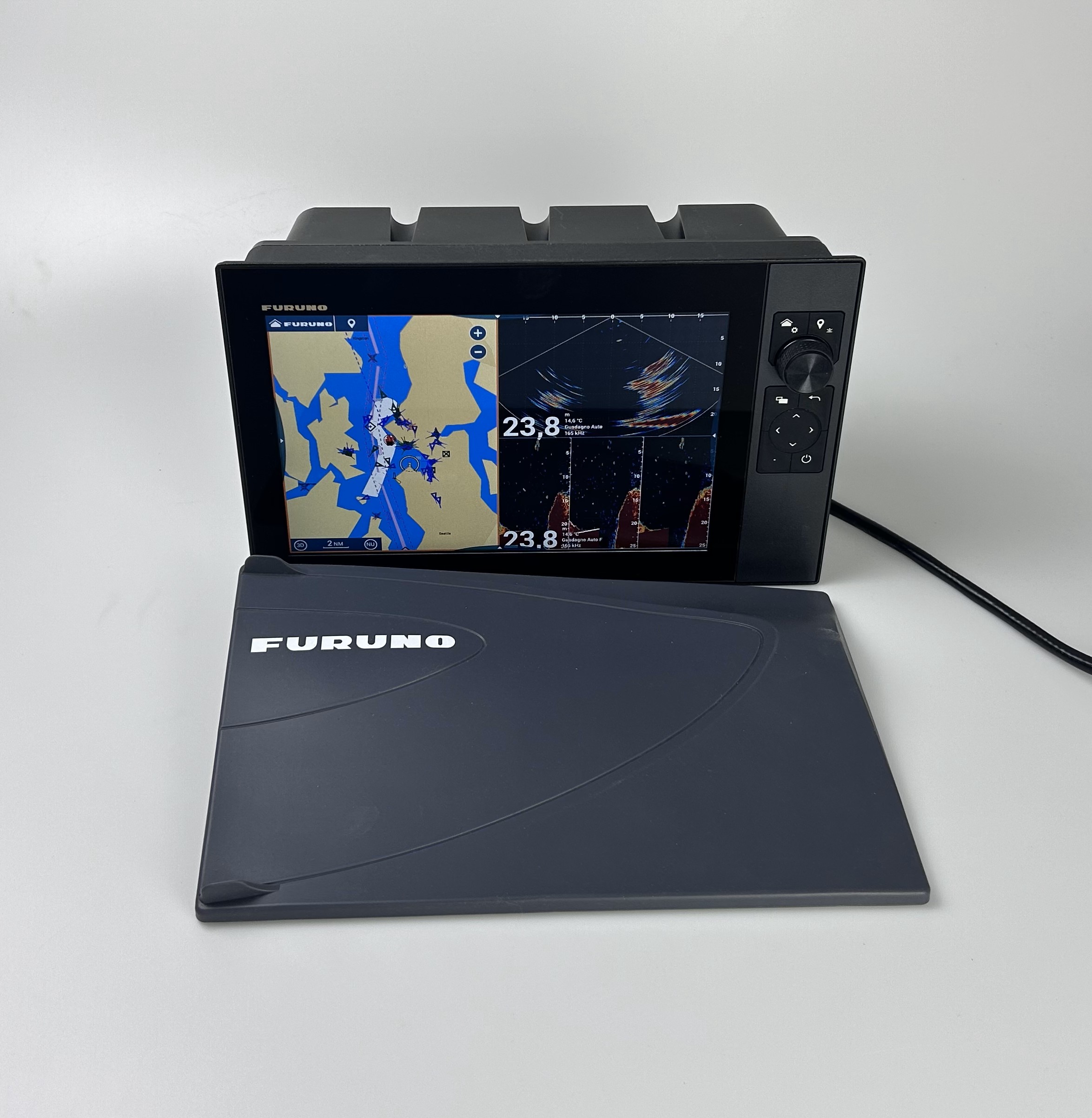

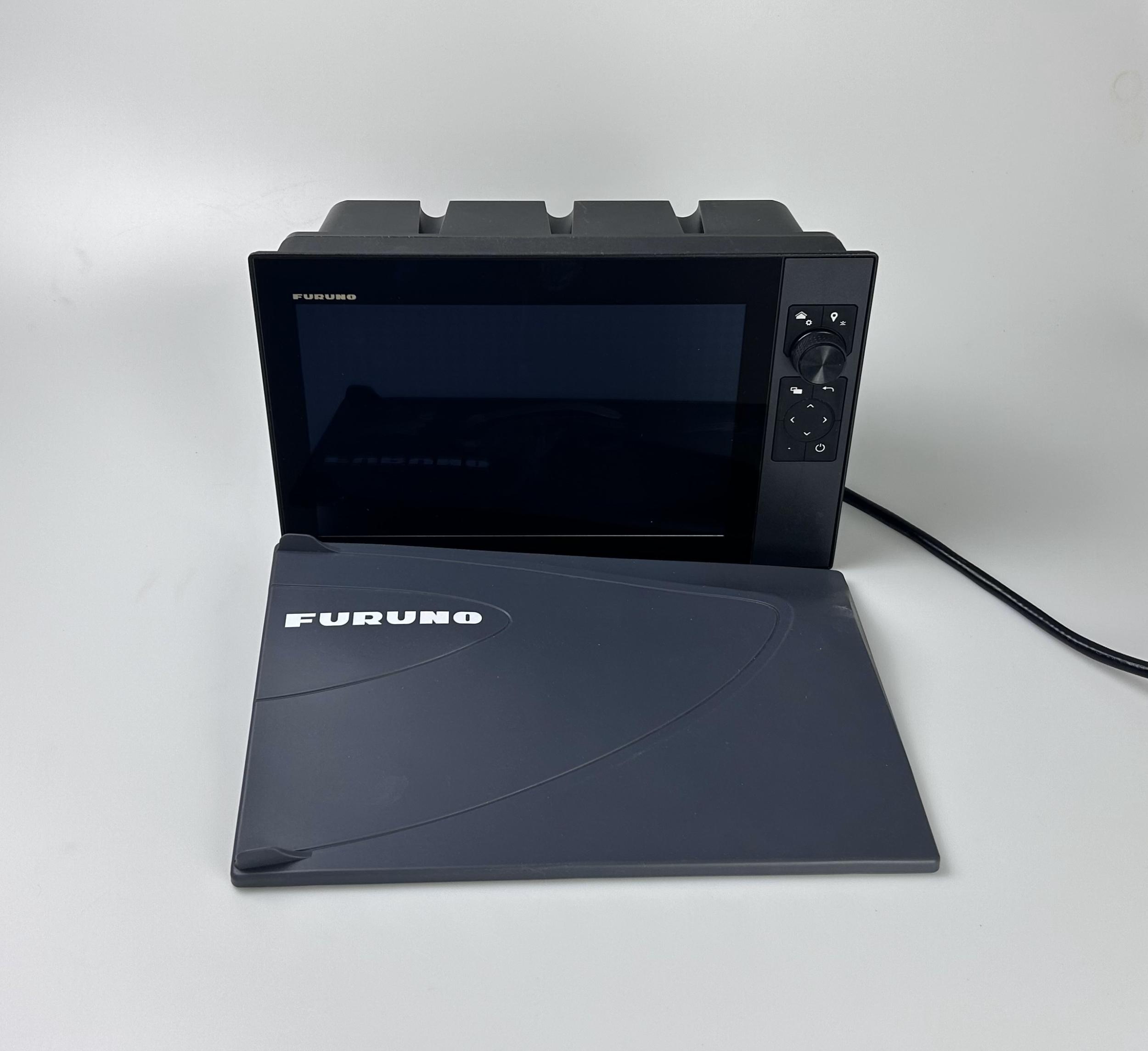

Furuno NavNet TZtouch3 12" USED

DESCRIPTION

HIGH PERFORMANCE QUAD CORE PROCESSOR

NavNet TZtouch3 offers three different types of monitors. The TZT12F 12-inch Hybrid touch has a touch screen display with integrated control keypad. The intuitive RotoKey and dedicated keys help the user with routine operations, completing the NavNet TZtouch3 line. The TZT16F 16-inch and TZT19F 19-inch models are all-glass, multi-touch and equipped with IPS technology capable of providing sharp and bright images from any angle. All models incorporate a quad-core processor that pushes the TimeZero technology to the maximum potential, offering a monitor division into four portions with a speed never seen before.


INTEGRATED TRUEECHO CHIRP™ MODULE & TRADITIONAL CONTINUOUS WAVE

Every NavNet TZtouch 3 includes a built-in 1kW TruEcho CHIRP™ sonar
(the equivalent of the DFF1-UHD Black Box 1 kW Fishfinder).
For those who want to have an even more powerful CHIRP sonar, FURUNO
designed a 2kW/3kW high power amplifier DI-FFAMP that connects
directly with the internal TruEcho CHIRP™ sonar.





HYBRID CONTROL

On small boats, when you hit the waves it is not easy to get a precise touch.
on the screen; that's why the TZT9F has hybrid touch+keypad controls to get the most out of it
from both worlds. Multi-touch and built-in keyboard
with Rotokey, cursor and dedicated buttons for total control and maximum comfort.












MODERN AND REFINED GRAPHICAL INTERFACE

Improved, easy and intuitive software allows immediate access to the main functions for easier use.
simple and effective thanks to the innovative access to functions with a single touch and swipe from the edges.
The size of the characters, icons and scale can be changed by the user to ensure maximum comfort of use.
Navigation data boxes are accessible from any page, while a data box is dedicated to the display in use.






RADAR - POWER AND RESOLUTION AT THE MAXIMUM LEVEL
Maximum power and incredible target detection offered by DRS-NXT (Solid State Drive) & DRS-X_CLASS (Magnetron) Radars.
Outstanding long-range performance combined with outstanding close-range detection and resolution.
For more information on the range, visit the dedicated pages:







DFF3D - 120° PORT TO STARBOARD

All the detection power of the Multi Beam
DFF3D with 120° port to starboard at depth
up to 200m (300m directly below the boat) for
get a perfect fishing machine and find
the fish you would normally miss.
















MARINE APPLICATIONS

NavNet TZT3 will be compatible with third-party marine applications, which
will be controllable from the MFD display on the main screen or in
one of the four portions of the screen.Examples of third-party applications
they are: QUICK, Lumishore, Skymate, Maretron, Seakeeper and others.





TZ ECOSYSTEM - APP

TZ Ecosystem is a smart solution to synchronize points, routes and photos via Cloud and share them
with other devices in the local network or with your own fleet.
It is bidirectional, meaning you can create events on the MFD and retrieve them at home and vice versa, because
are synchronized and saved on the My TimeZero cloud.
Among all, one of the most interesting is the TZ FIRST MATE App which allows you to monitor and save
the catches and fishing positions, complete with photos.



-

PRODUCT BENEFITS

Does it have all the power you wanted? and much more

• Powerful quad-core processor for lightning-fast command responses (INCLUDED)
• Integrated TrueEcho CHIRP Module Dual Channel, 1kW power & Continuous Wave Sonar (INCLUDED)
• 2/3/5kW* TruEcho DI-FFAMP high power amplifier (OPTION)
• NXT Full Power 100W & 200W Solid State Doppler Radar ( OPTION )
• Compatible with DFF3D Multi-Beam Sonar maximum depth 300m & Side Scan up to 200m (OPTION)
• Password Lock - A password is required to access your TZT3 at startup ( INCLUDED )

*Connection of a 5kW or 10kW transducer requires BT-5 (OPTION), otherwise the output power is 3kW

CHARACTERISTICS

Display
Type: Color TFT IPS (In-Plane Switching) LCDScreen 12.1" wide
Resolution: FHD 1280 x 800
Brightness: 900 cd/m2
*Bracket for TZT12F (optional)


GPS/WAAS
Number of channels: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
Receiving frequency: L1 (1575.42 MHz)
Accuracy: 10m (GPS), 7m (MSAS), 3m (WAAS)
Position update interval: 0.1s

Map/Alarm
Map: MapMedia mm3d chart (C-MAP/Navionics/NOAA)
Memory capacity: Track 30,000 points, Puto/MOB 30,000 points, Route 200 with 500 points per route
Alarm: Anchor, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*option)

RADAR
Orientation modes: Head-up*, North-up* (*compass data required).
Target Tracking: 30 ARPA Targets
Radar Alarms: Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line

DEPTH SOUNDER
Frequency: Continuous Wave: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Output power: 300/600 W or 1 kW* (*Requires Matching box MB1100).
Range: 2-1,200m, Travel: 0-1200m
Display Modes: ACCU-FISH?, A-Scope, Auto (Fishing/Cruising), RezBoost?, Bottom Discrimination, TruEcho CHIRP?

INTERFACES
CAN bus/NMEA2000: 1 Port
NMEA0183: 1 Output Port
Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
LAN: 2 Ports (100 BASE-TX)
USB: 1 Port (USB2.0)
Video I/O

  • Video OUTPUT: 1 Port (HDMI 1280 x 720)
AUX I/O: 2 Ports and 1 Buzzer Output Port
SD Card Slot: 1 Micro SD Slot (SDXC, Rear), Dual SD Card Slot Unit: Model SDU-001 (Optional)
Wireless LAN: IEEE802.11b/g/n, Transmission frequency: 2.412 to 2.462 GHz, 11dBm max
Transducer: 1 Port

ENVIRONMENTAL CONDITIONS
Ambient temperature (IEC60945): -15°C to +55°C
Relative humidity: 93% or less at +40° C
Degree of protection: IP56

DIET
12-24VDC
2.5 - 1.3 A
