Very high operating speed and top-level performance even in the presence of several sensors in the same network.
TimeZero technology is faster than ever. It is possible to pan, scroll the cartography, zoom without interruptions and hitches, even with a 3D perspective. , roll and pitch will be compensated by the satellite compass and the bottom will be more stable, for a more accurate reading.

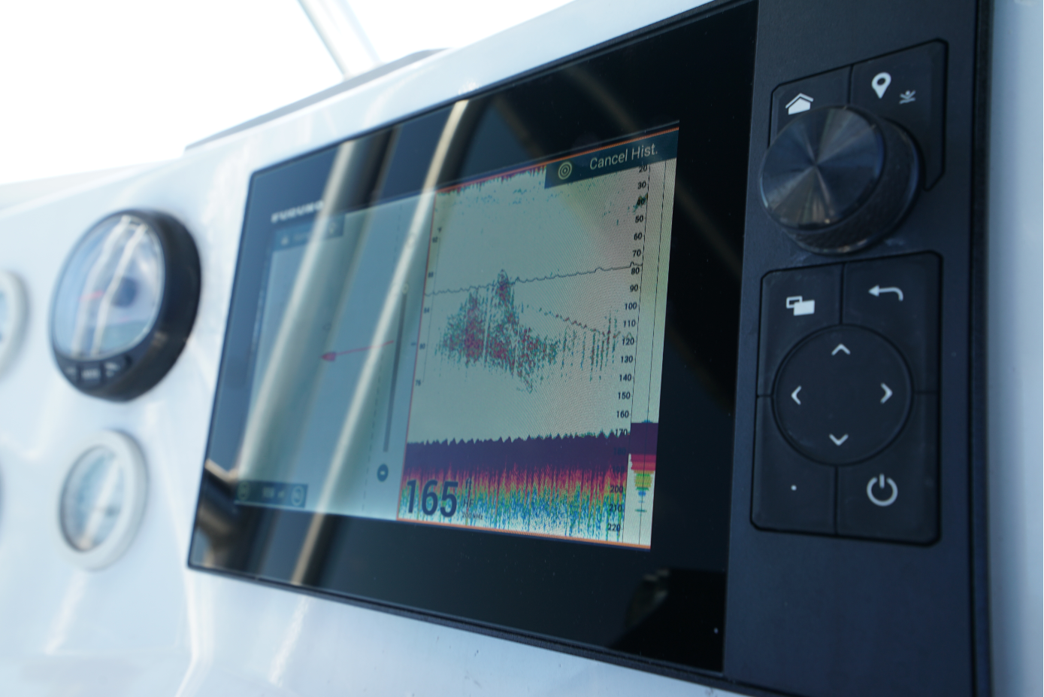

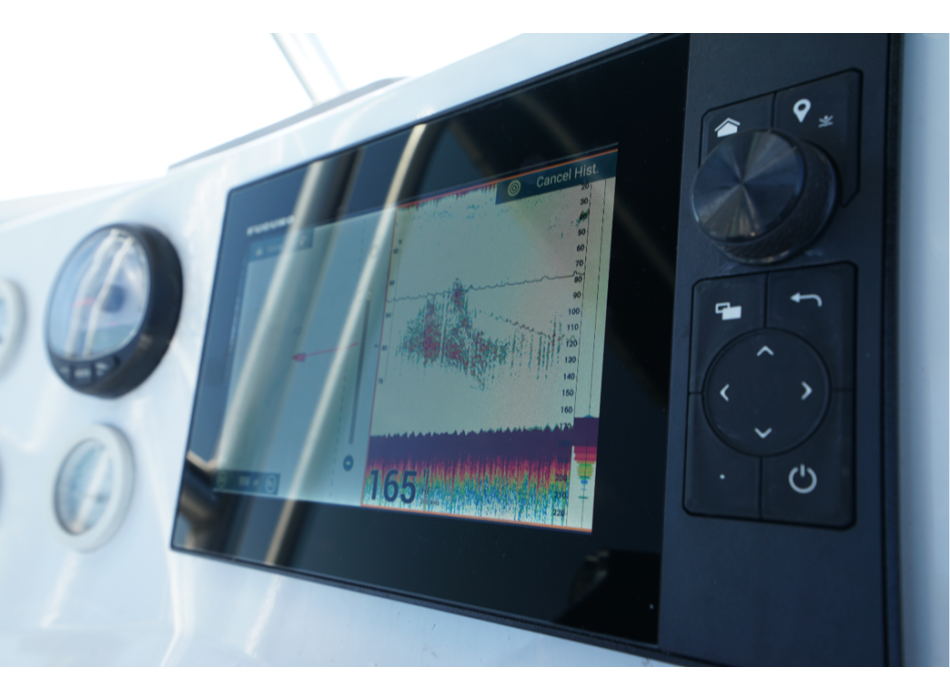

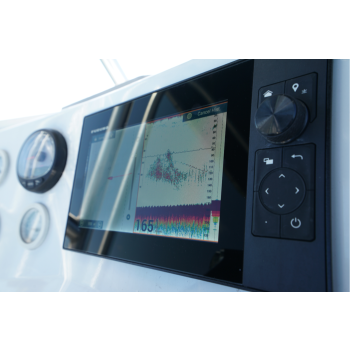

On small boats, when you hit the waves it is not easy to get a precise touch
on the screen; that's why the TZT9F has hybrid touch + keypad controls to get the most out of it
from both worlds. Multi-touch and built-in keyboard
with dedicated Rotokey, cursor and buttons for total control and maximum comfort.
COMPACT SYSTEM WITH INTEGRATED 1KW TRUECO CHIRP
Powerful TruEco CHIRP 1KW single band and integrated CW sonar module.
TZT9F offers a compact and affordable package thanks to the integrated GPS & sonar module.
However, it is possible to connect external GPS sensor and network sounder modules for more complex configurations, as needed.
Output power: 300W / 600W / 1kW
In combination with DSR radar and satellite compass, the Ferry function is available.
Specifically designed for two-way ferries, bow-stern, thanks to the drive
of a remote switch it is possible to give the Radar an offset of 180 °
TZ Ecosystem is an intelligent solution to synchronize points, routes and photos via the Cloud and share them
with other devices in the local network or with your own fleet.
It is bidirectional, that is, it is possible to create events on the MFD and retrieve them at home and vice versa, because
are synchronized and saved on the My TimeZero cloud.
Among all, one of the most interesting is the TZ FIRST MATE App which allows you to monitor and save
catches and fishing locations, complete with photos.
-
SCREEN
Type: Multi-touch color TFT LCD (IPS)
Screen size: 9 inches
Screen resolution: WXGA 1280 x 720
Screen brightness: 1000 cd / m2 (typical)
Display colors: 16,770,000 colors (chartplotter), 64 colors (radar / depth sounder)
Language: Bulgarian, Chinese, Danish, English (US / UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish
GPS / WAAS
Receiver type: GPS: 72 channels, SBAS: 1 channel (C / A mode, WAAS)
Receiving frequency: L1 (1575.42 MHz)
Time to first correction: 100 s (cold start)
Accuracy: 10m (GPS), 7m (MSAS), 3m (WAAS)
Position update: 0.1s interval

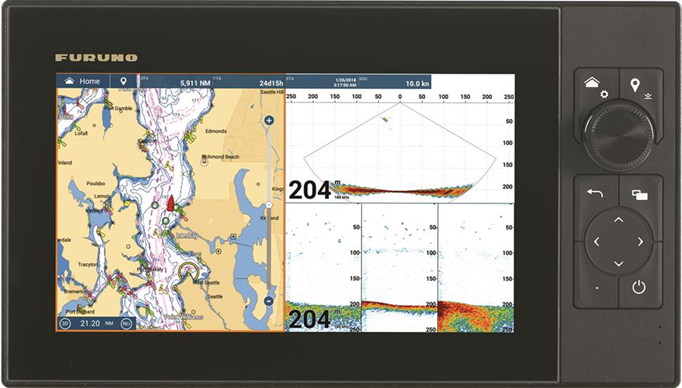

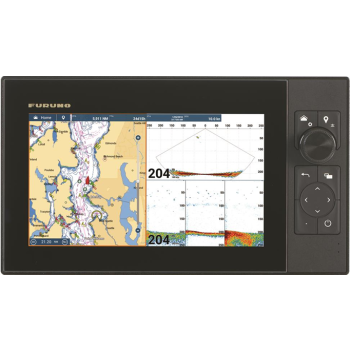

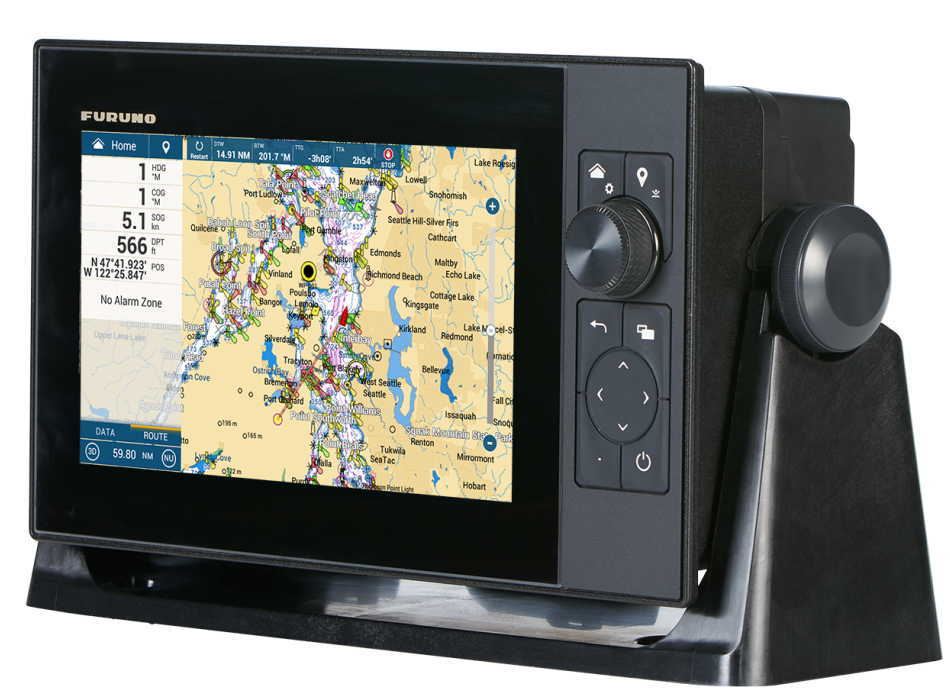

CHART-PLOTTER
Cartography: MapMedia mm3d (C-MAP / Navionics / NOAA)
Memory capacity: 30,000 user points, 30,000 points for ship tracks, 200 planned routes (500 points per route)
Alarms: Anchor, XTE, depth *, speed, water surface temperature *, distance traveled, fuel gauge * (* external data required)

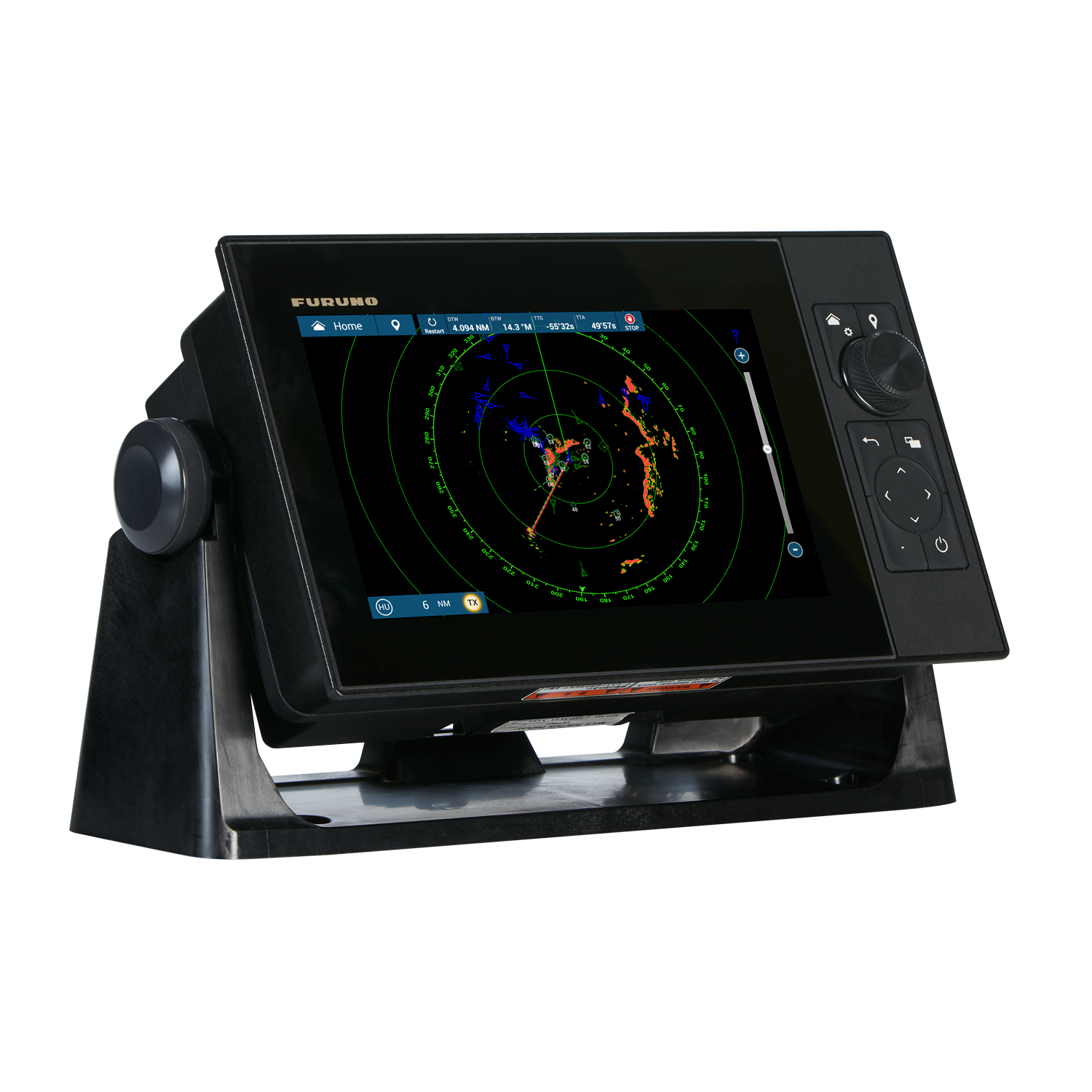

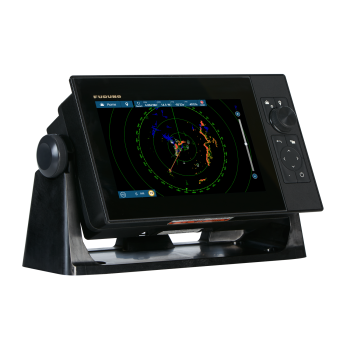

RADAR
Display modes: Head-up *, North-up * (* heading required).
Echo trace interval: 15 s, 30 s, 1 min, 3 min, 6 min, 15 min, 30 min and continuous
Target Tracking: 30 ARPA targets
Radar alarms: guard zone, CPA / TCPA, trigger, video, azimuth, heading line
DEPTH SOUNDER
Transmission frequency: CW: 50/200 kHz and CHIRP: 40 kHz to 225 kHz
Probe: 300/600 W or 1 kW * (* MB1100 box required for some FURUNO probes).
Display range: 2-1,200m, offset: 0-1200m
Modes: ACCU-FISH, A-Scope, Auto (fishing / cruising), RezBoost, bottom discrimination, TruEcho CHIRP
Frame advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
Siren alarms (optional): school of fish, school of fish for bottom locking

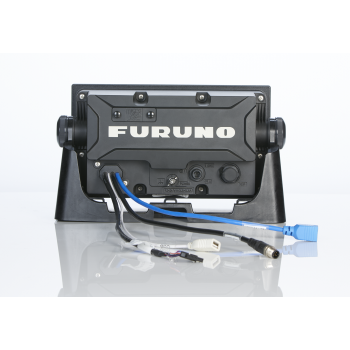

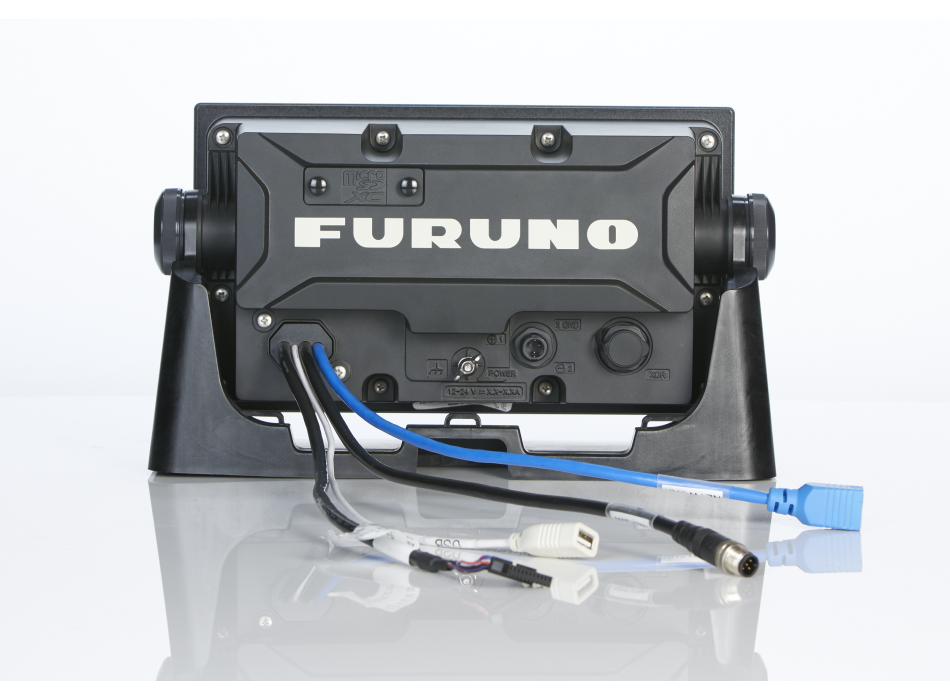

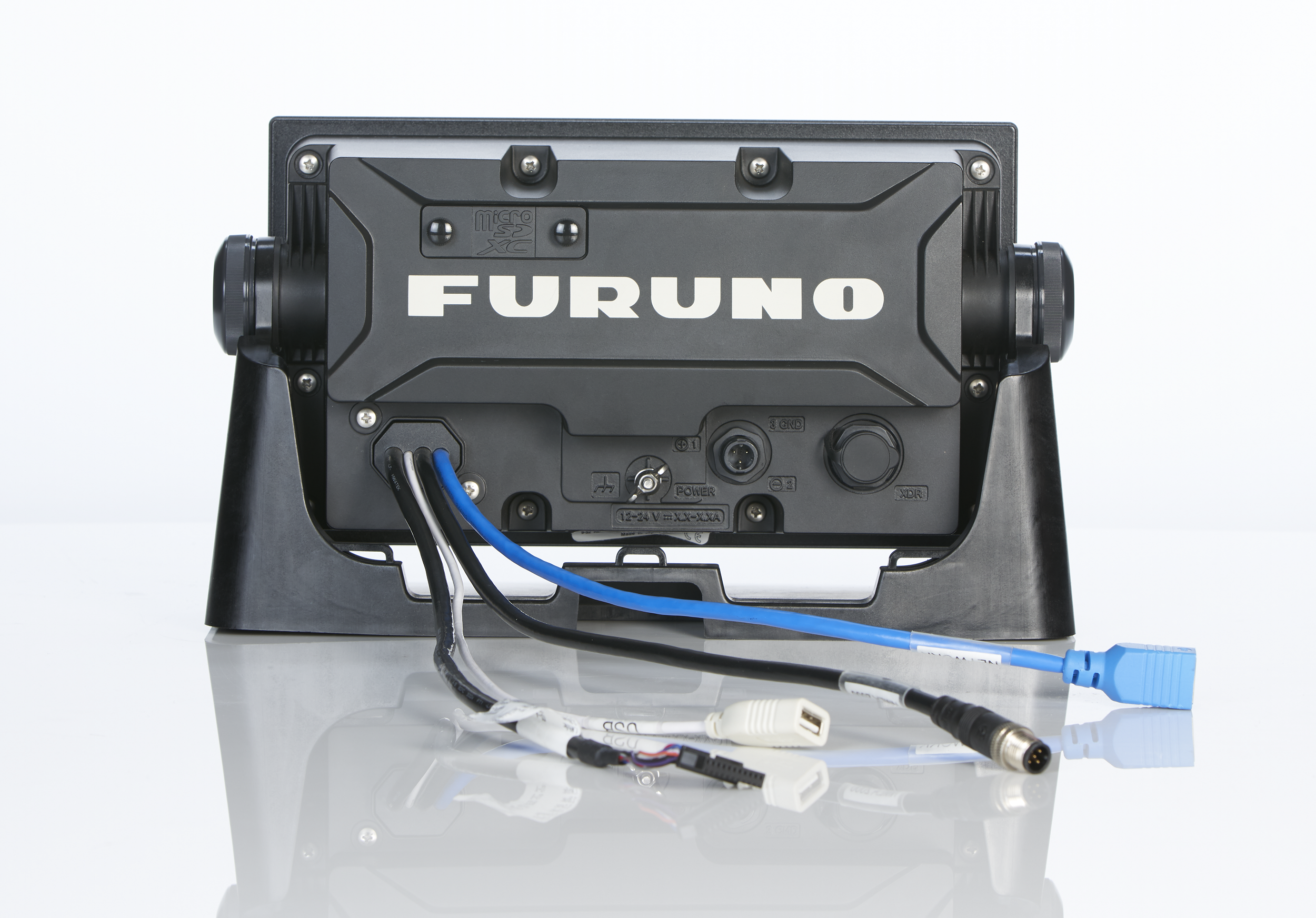

INTERFACE
CAN / NMEA2000 bus: 1 port
NMEA0183: 1 serial output port
LAN: 2 ports (100 BASE-TX)
USB: 1 port (USB 2.0) for touch monitor and control unit
SD card slot: 1 Micro SD card slot (Micro SDXC, rear), 2-slot card drive: Model SDU-001 (optional)
Wireless LAN: IEEE802.11b / g / n, transmission frequency: 2.412 to 2.462 GHz, 11 dBm max
Probe: 1 port (10 pin)
ENVIRONMENTAL SPECIFICATIONS
Temperature (IEC60945): from -15 ° C to + 55 ° C
Relative humidity: 93% or less at + 40 ° C
Waterproof: IP56
POWER SUPPLY
12-24 Vdc 2.3 - 1.2 A.
1 X TZT9F
1 X 3.5m Power Cable
1 X Mounting Bracket
Installation material
Accessories
|
