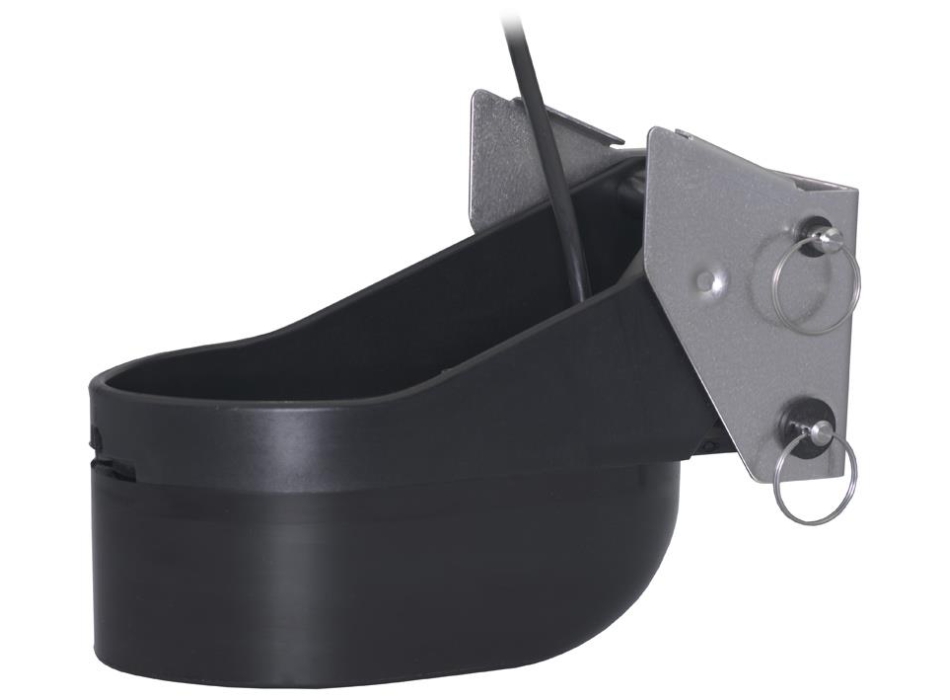

Furuno transducer TM185 Chirp 1kw stern

  • Code: 41-914-1-01
€ 1.339,00 € 1.525,00 -12%
CHOOSE THE TRANSDUCER
you chose:
Furuno transducer Chirp TM185 1kw stern
Choose the TM185M or TM185HW transducer from the drop-down menu


TM-185M - The TM185M is a transom-mounted Chirp-ready transducer designed for offshore fishing and freshwater anglers who spend their time in shallow to medium depths. The mid frequency offers the right combination of under-boat coverage, extended depth range, and the ability to produce clean, accurate target and structure returns in mid to deeper waters. Operating at a frequency range of 85 to 135 kHz, this transducer detects fish at medium depths up to 457 m (1,500 ') and provides extremely clear target resolution.

The TM185M transmits through the following bandwidth: Medium frequency 85 to 135 kHz

Features

  • Quick response depth and water temperature sensor
  • 1 kW with a maximum depth of 457 m (1,500 ')
  • Medium frequency: 85 to 135 kHz
    • Beam width from 16 ° to 11 °
  • 50 kHz of total bandwidth from one transducer
  • It covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • The mid frequency provides excellent shallow to medium depth performance, bottom detail and separation of fish from targets
  • Transom mounted urethane housing with stainless steel bracket for installation on outboard and motor I / O boats
  • Also available as thru-hull ( B285M , B175M ) and internal ( M135M ) model
  • Exclusive Xducer ID ® technology













TM185HW - Get more coverage under your boat with Airmar's unique wide beam, high frequency, and Chirp ready transducers. The high frequency band operates in a range of 150 to 250 kHz and has a fixed 25 ° beam. This results in a higher resolution. The consistently wide beam provides twice the coverage and excellent fish arches on the display than most high frequency narrow beam transducer options.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential up to 152 m (500 ').

Features

  • Quick response depth and water temperature sensor
  • 1 kW with a maximum depth of 152 m (500 ')
  • High frequency: 150 to 250 kHz
    • Constant beam width of 25 °
  • 100 kHz of total bandwidth from one transducer
  • It covers the popular fishing frequency of 200kHz plus everything else in the bandwidth
  • The high frequency band offers excellent shallow to medium depth performance, bottom detail and separation of fish from targets
  • The high beam width offers greater coverage to detect fish in the upper water column
  • Transom transducer in urethane
  • Stainless steel bracket for installation on outboards and I / O motor boats
  • Recommended for use on planing and displacement hulls
  • Also available as through ( B175HW ) and internal ( M285HW ) support
  • Exclusive Xducer ID ® technology

TM185M Specifications

  • Weight: 4.2kg (9.2lbs)
  • Recommended boat length: up to 10m (32 ')
  • Stern angle: 3 ° to 21 °
  • Acoustic window: urethane
  • Includes: Adjustable stainless steel bracket and mounting hardware
  • Transducer element: an internal broadband ceramic assembly




TM185HW Specifications

  • Weight: 4.2kg (9.2lbs)
  • Recommended boat length: up to 10m (32 ')
  • Stern angle: 3 ° to 21 °
  • Acoustic window: urethane
  • Includes: Adjustable stainless steel bracket and mounting hardware
  • Transducer element: an internal broadband ceramic assembly

D. Buongiorno, la sonda è compatibile anche con ecoscandagli non furuno? E' possibile avere una lista dei principali ecoscadagli compatibili? Grazie, cordiali saluti
R. 01-02-24<br /> Buonasera, purtroppo no, compatibile solo con Furuno. Diversamente quale ecoscandaglio vuole acquistare?<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno, e' possibile istallare la TM 185 su un humminbird helix 9 g3 grazie! Cordiali saluti
R. 13-12-23 Buonasera, non compatibile con Humminbird, solo con alcuni ecoscandagli Furuno. Cordiali saluti. Luigi Bianchi
D. buongiorno, chiedo se con questo trasduttore, essendo un chirp, è possibile fare la discriminazione fondale. Credo infatti di capire che quest'ultima è possibile averla solo con i trasduttori classici 50/200 non chirp. Grazie Francesco sferrazzo
R. 06-05-22 Buongiorno, per la discriminazione del fondale su apparati Furuno viene richiesta sempre una doppia frequenza, che sia chirp oppure monotono. Quindi con una sonda chirp mono frequenza la funzione BSD non utilizzabile come in questo caso specifico con la TM185. Cordiali saluti. Luigi Bianchi
D. Salve, avendo un furuno gp 1971f con p66 e volevo cambiare la sonda e volevo un vostro parere se montare una chirp (tm185 ) o tm 260 che qualcuno mi ha consigliato affermando che oltre una certa profondità il segnale chirp diventa monotono, pesco abitualmente su fondali da 20 a 50 metri però faccio poche volte all'anno bolentino profondo sui 300-350 metri. Già in passato posessore di una tm 150 e quindi conosco benissimo la definizione e quei target ben visibili del chirp rispetto alla monotono (p66), la mia incertezza è che la tm 260 sui bassi fondali mi faccia perdere di definizione. Vi ringrazio sempre della Vostra cortesia, grazie
R. 16-05-2021 Buongiorno, per fondali massimo sui 300mt, consiglio sempre un Chirp, avrà sempre dettagli ben definiti rispetto ai classici 50-200khz, diversamente se avesse avuto necessità di spingere oltre, avrei consigliato il TM260. Cordiali saluti. Luigi Bianchi
D. E' compatibile con il GP 1971, il connettore è a 10 pin?
R. 02-12-2020 Buonasera, sì confermo, connettore 10Pin Furuno. Cordiali saluti Luigi Bianchi
