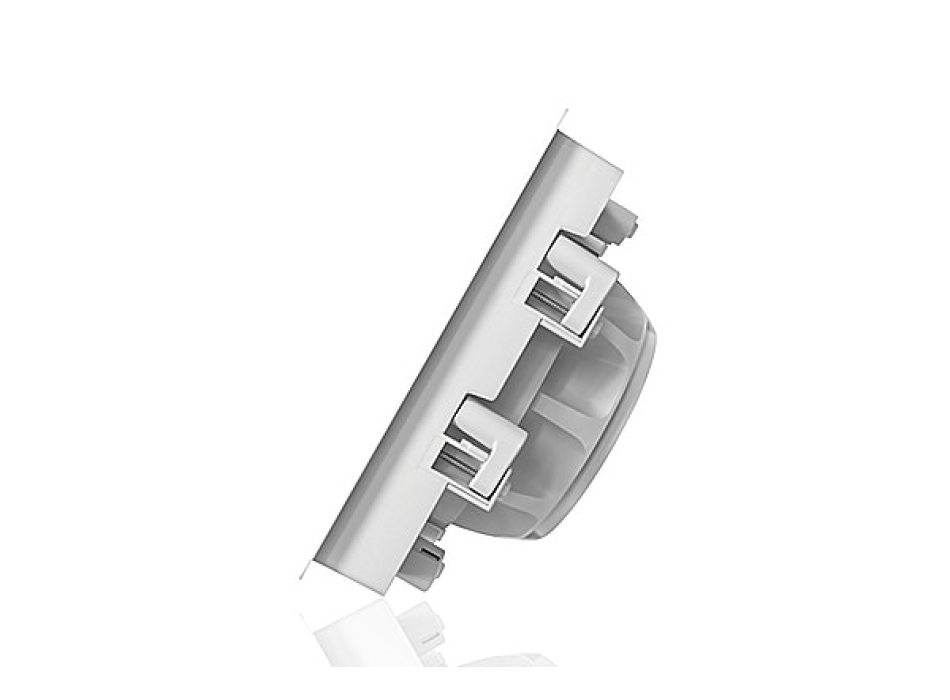

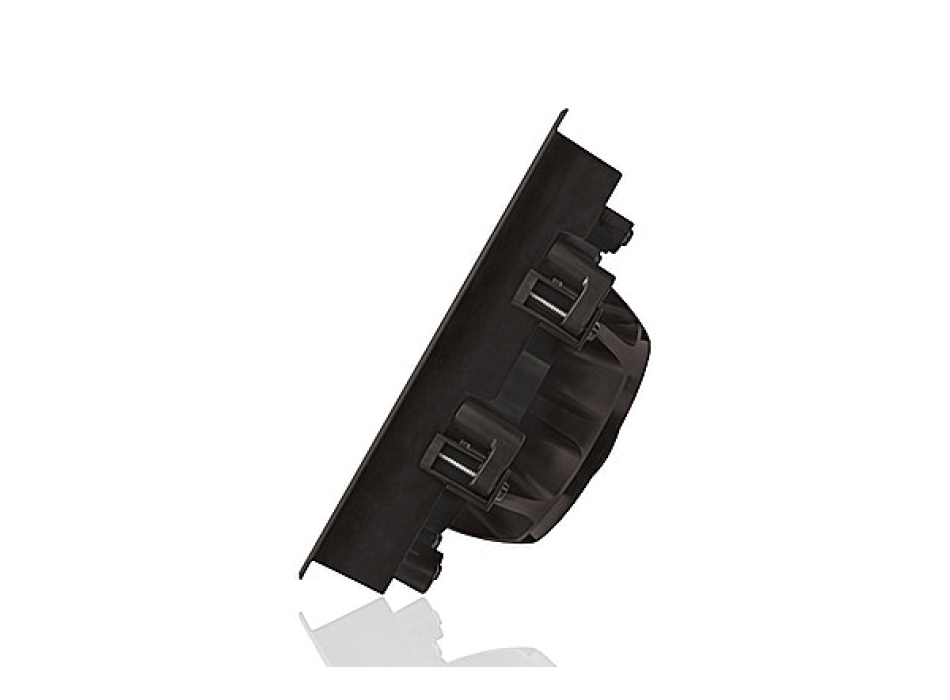

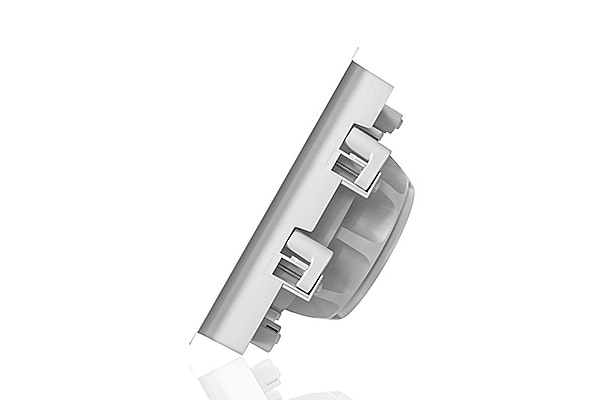

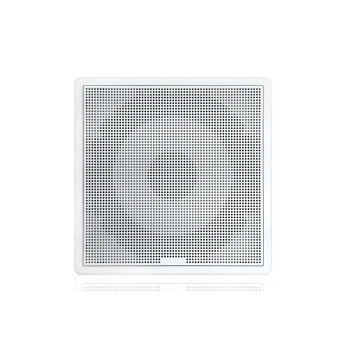

Fusion FM-S10SW Subwoofer 10 "square grid

  • Code: 010-02301-10
€ 169,00 € 199,00 -15%
CHOOSE THE COLOR
you chose:
FUSION FM-S10R 10 '' Subwoofer FM Series Square grid

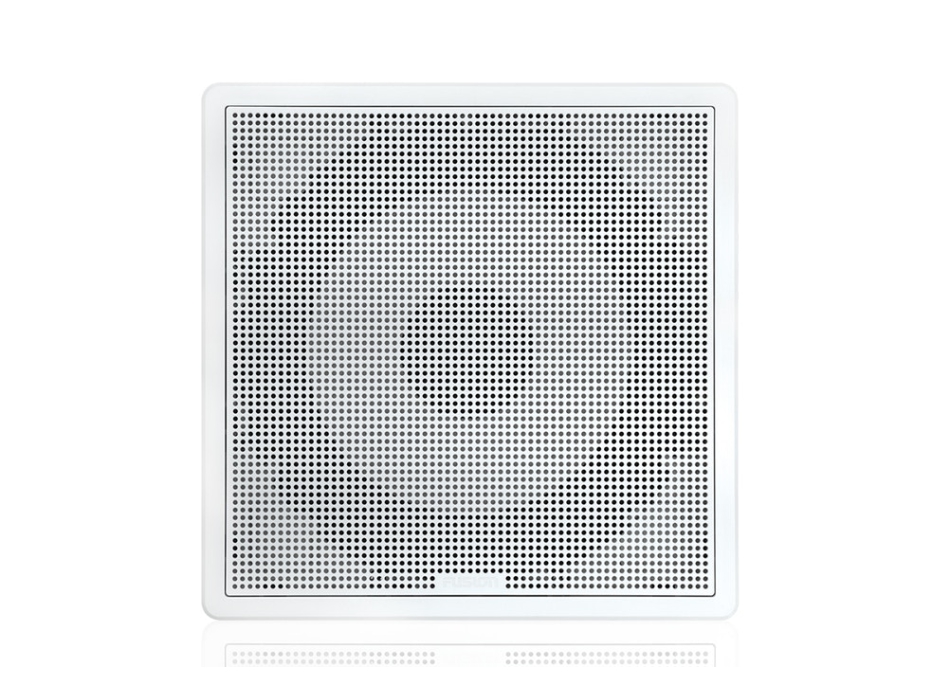

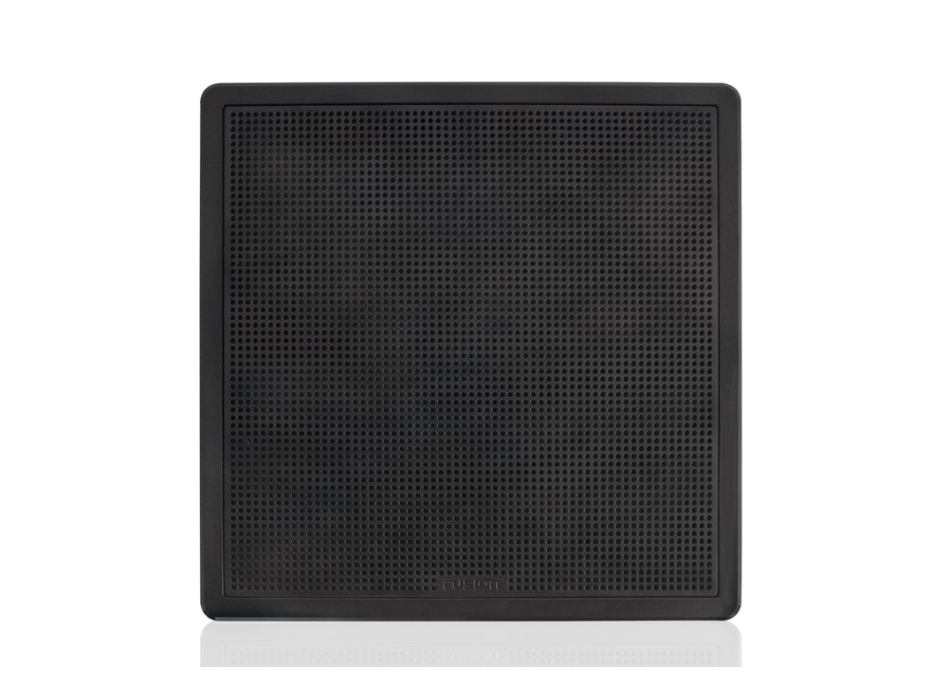

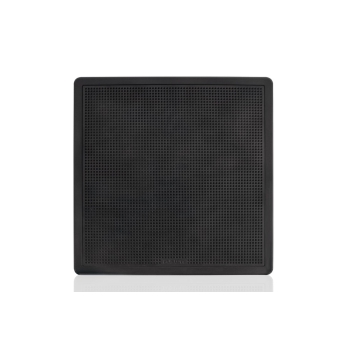

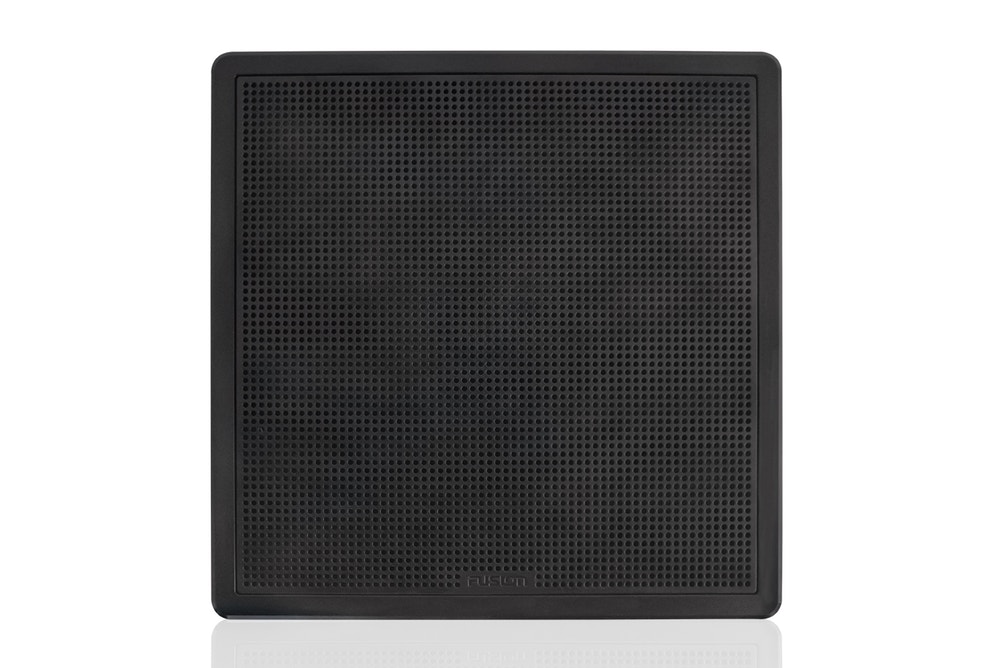

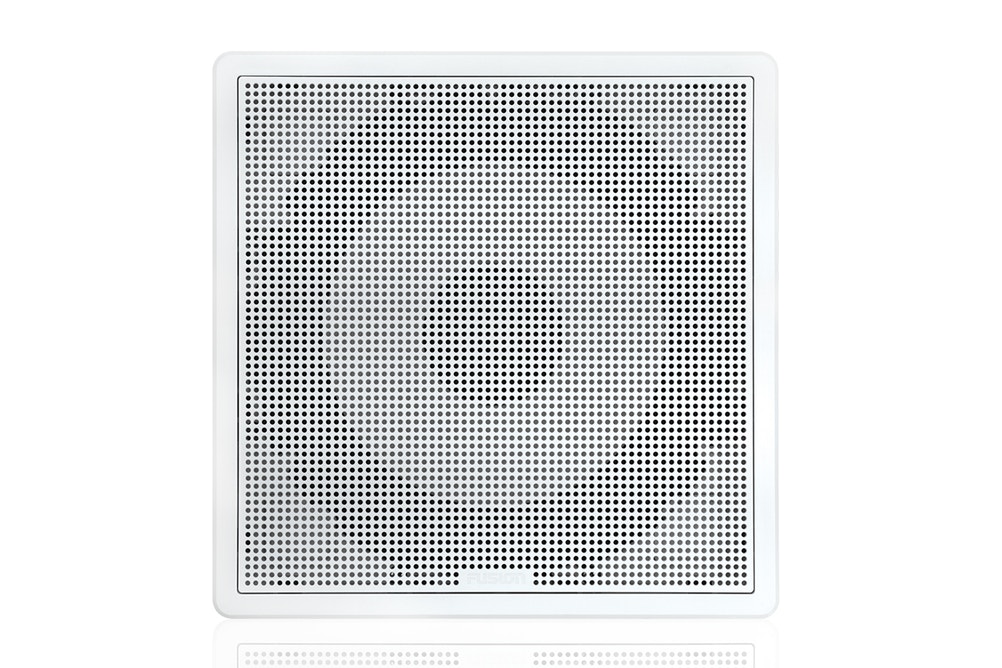

Choose the color white or black

Clear audio, clean, classy aesthetics.

Engineered for high quality audio reproduction with an innovative design aesthetic, the new FM Series Flush Mount Fusion Marine Subwoofers are designed to deliver high quality bass to your vessel in a sleek and minimalist form factor to meet the latest trends in boat design.
Featuring a smart mounting system for unobtrusive and simple installation, the FM Series subwoofers are designed to be flush mounted with a mounting flange no thicker than 3mm [1/8 "] for a premium finish, eye-catching and almost flat.
With a weatherproof IP65 rating, True-Marine ™ accreditation and an industry-leading 3-year warranty, you can rest assured that your FM Series subwoofers are built to last on board season after season.


Features:
Optimized 2.1 configuration: When connected with a pair of FM series speakers and a stable 2 Ohm stereo Fusion Multi-Zone ™ stereo with DSP, a 2.1 audio zone can be created to simplify installation and reduce system costs by adding bass without need for an external amplifier.
Quality Audio Playback: Enjoy quality low-frequency audio at any volume level.
Innovative Design Aesthetics: Designed with a low-profile, near-flat installation for a visually appealing finish, the FM Series will complement the aesthetic of any ship.

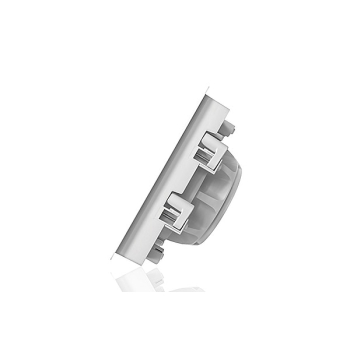

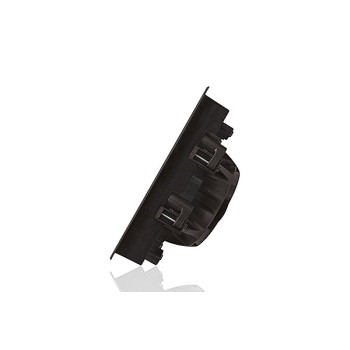

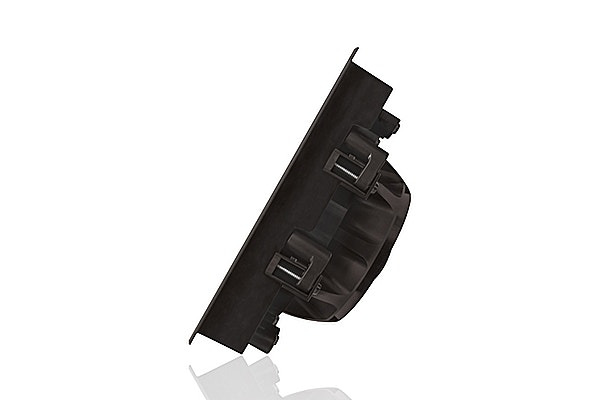

Non-Intrusive Mounting System: The FM series uses "speaker legs" that hold the subwoofer in place without the need to create screw holes in your boat.
True-Marine ™ Engineered and Engineered: Extensively tested to operate in harsh marine environments, the FM Series features a water resistant IP65 rating and True-Marine accreditation.
Designed to be ISO12216 compliant: Tested to international standards for pressure and watertightness, recognizes that the FM series are designed and built to the highest industry standards for quality and robustness.
Technical features
Subwoofer Size 10 "
Peak power 400 watts
120 watts RMS rated power
Efficiency (1 W / 1 M) 87 dB
Frequency response 30Hz - 2kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 40 - 300 W / Ch
Cone / surround material Polypropylene with rubber coating
Mounting clearance diameter 269mm x 269mm [10-9 / 16 "x 10-9 / 16"]
Mounting depth distance 140mm [5-1 / 2 "]
Optimal shell volume (sealed shell, filled with absorbent material) 40L
Operating temperature range 0 to 50 ° C (32 to 122 ° F)
Storage temperature range -20 to 70 ° C (-4 to 158 ° F)
Water and dust resistance (IP rating) IP65
Subwoofer Dimensions: Length x Height x Depth 284mm x 284mm x 137mm [11-3 / 16 "x 11-3 / 16" x 5-3 / 8 "]
3 years warranty
