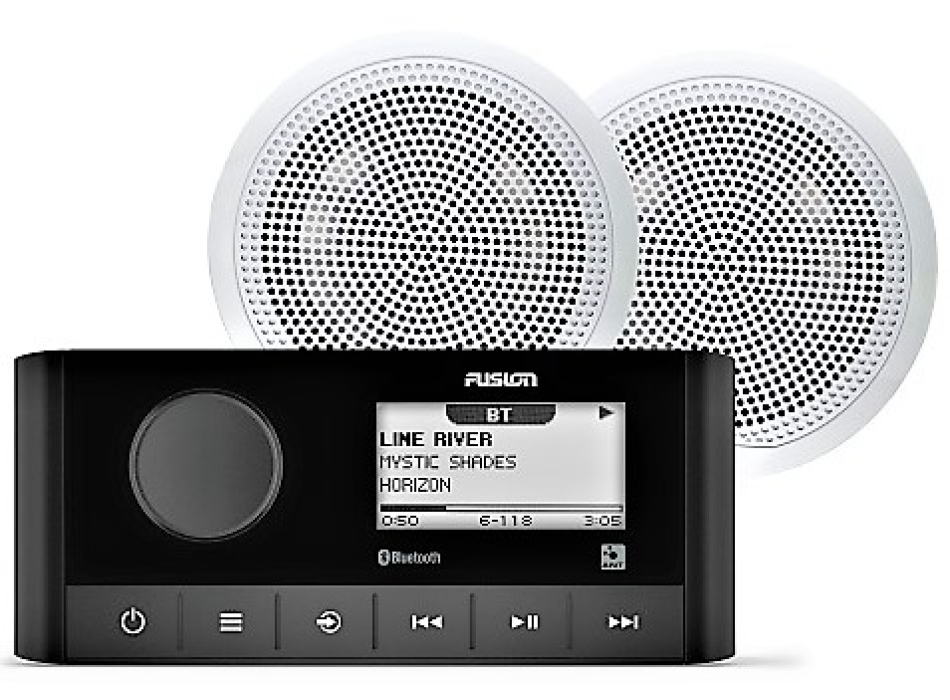

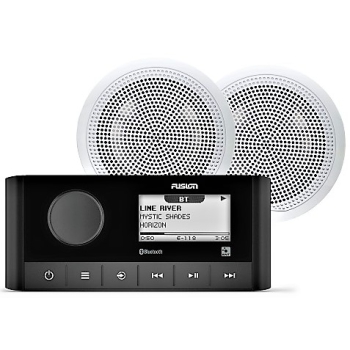

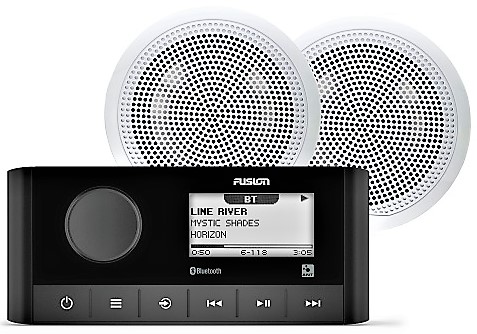

Fusion MS-RA60 Pack With EL Classic Cases

  • Code: 010-02405-50
€ 339,05 € 399,00 -15%

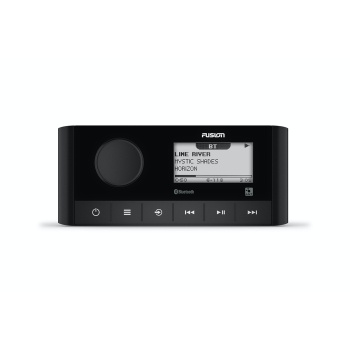

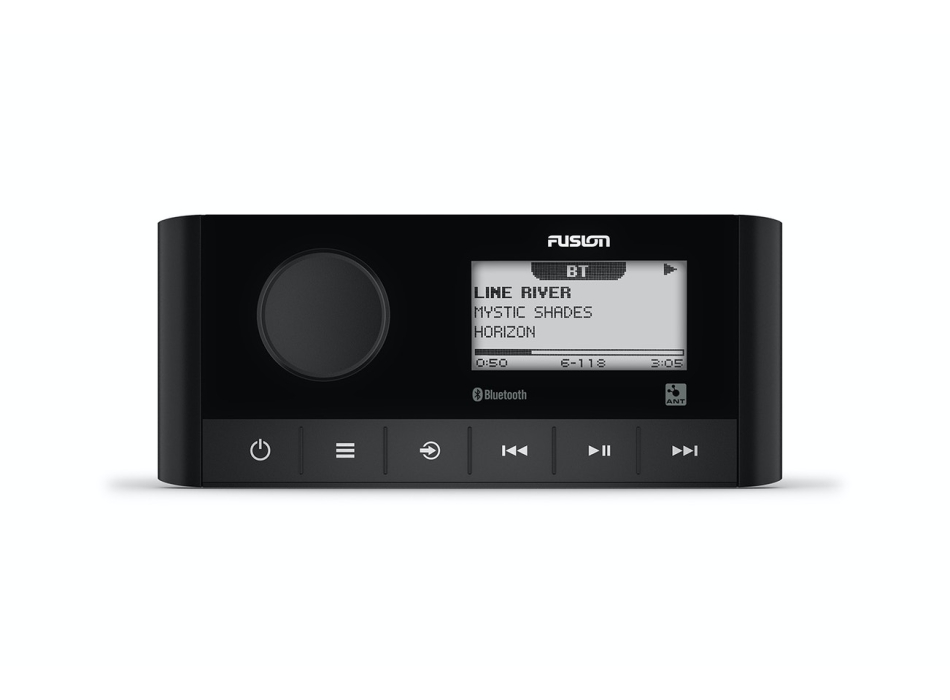

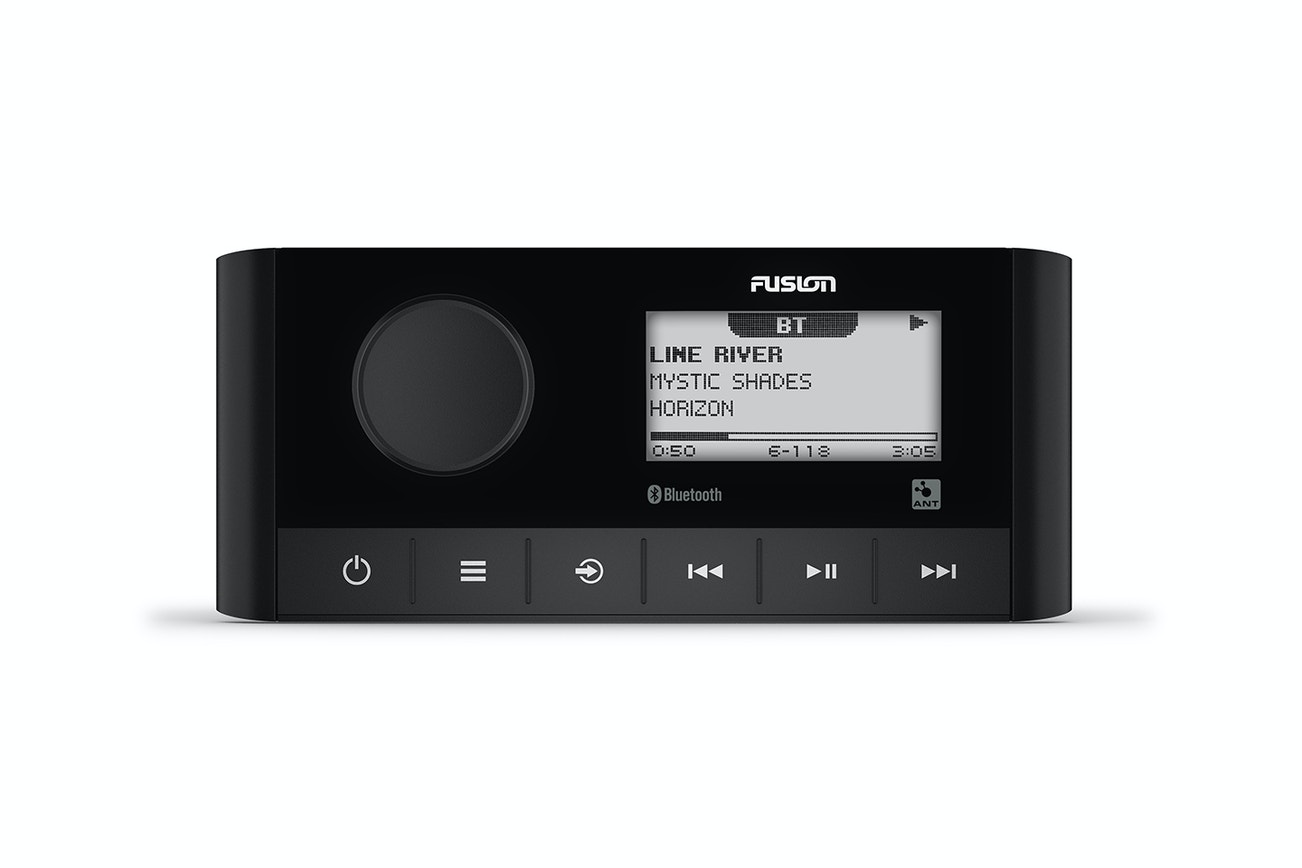

Fusion MS-RA60 Pack With EL Classic Cases

Sources: AM / FM / Bluetooth / AUX / DAB +
The MS-RA60 is our most affordable marine stereo ever, featuring modern aesthetics, two-zone Multi-Zon technology, and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, an anti-fog perimeter LCD is integrated into the front, black IPX6 and IPX7 water resistant, making the MS-RA60 an attractive addition to your wheelhouse.

Features:
Multi-Zone Technology: Up to two independent audio zones are available for a personalized listening experience throughout the vessel, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.

IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international standards IPX6 and IPX7 Water Ingress Protection, ensuring that the product will perform and last in the harsh marine / outdoor environment when installed correctly (refer to installation instructions for details specific).

Retrofit: MS-RA60 is designed to fit the MS-RA55 mounting profile, eliminating the need to modify the existing cutout, reducing complexity when upgrading the stereo system.
Class D Amplifier Design: The integrated Class D amplifier provides more power while drawing less current than a standard Class AB amplifier. The amplifier design offers greater efficiency and power, allowing you to enjoy your music at higher volumes for longer.

Wireless Software Updates: Over-the-air software updates are now available from your compatible device via BLUETOOTH with the free Fusion-Link app, making it easy to update the MS-RA60.

Fusion-Link (Wireless) Control via BLUETOOTH and ANT: Download the free Fusion-Link remote control app for BLUETOOTH from the Apple App Store or Google Play and enjoy the freedom of wireless control from your compatible device. Download the free Fusion-Link Lite app from the Connect IQ app to enable wireless control via ANT technology from your compatible Garmin watch.

2.3 "Bonded Monochrome LCD: The monochrome LCD screen is perimeter fixed to improve durability and protection against condensation and fogging and is optimized for daylight viewing.

Modern Design Aesthetics: The monochrome LCD display is embedded in a black front for greater visibility and better style. The black front blends seamlessly with your dashboard, integrating other electronics and MFDs for a tidy, smooth and elegant installation.

Built-in DAB Module: The built-in DAB module supports the latest DAB and DAB + broadcasts, allowing you to enjoy high quality digital radio streaming wherever DAB and DAB + are supported

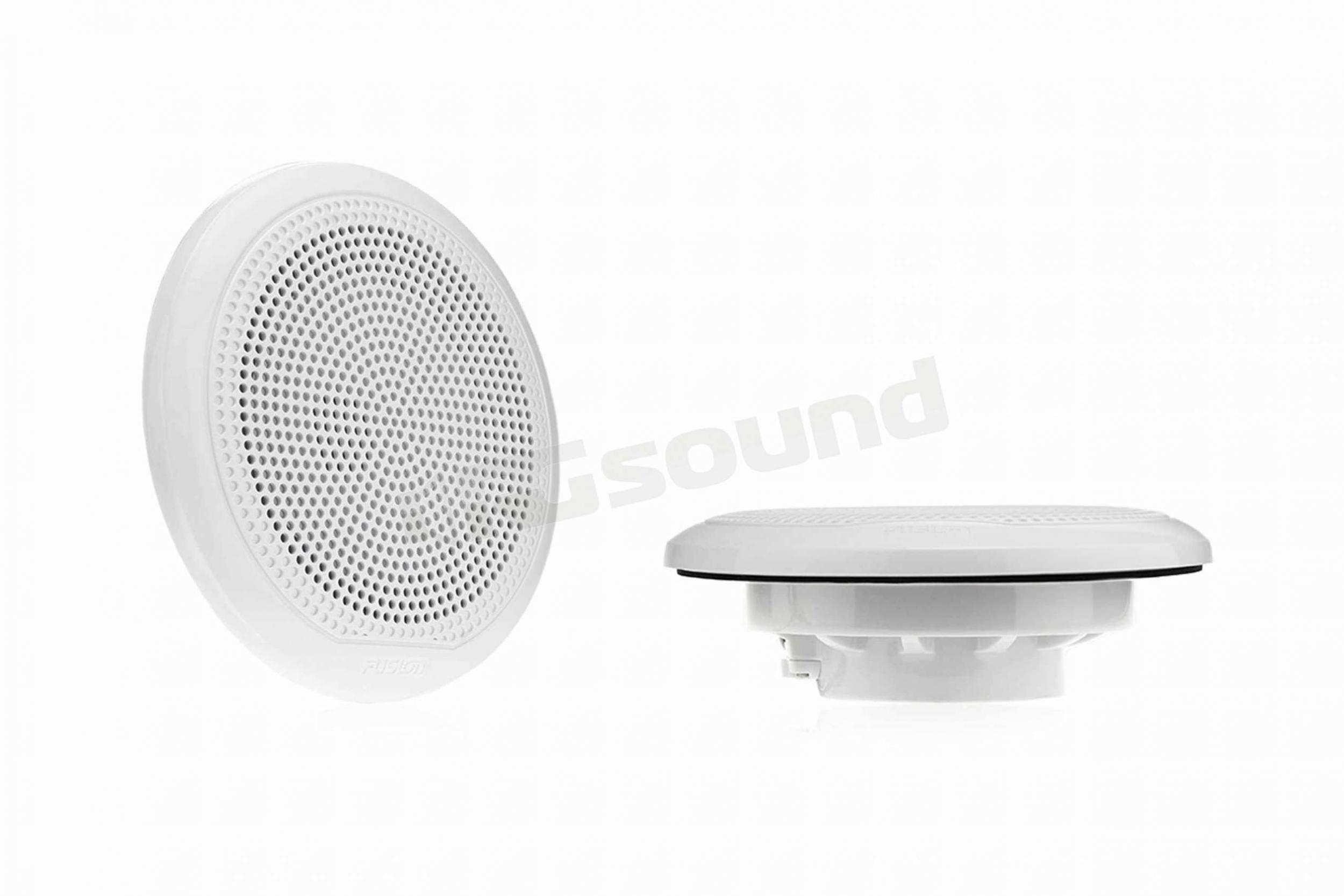

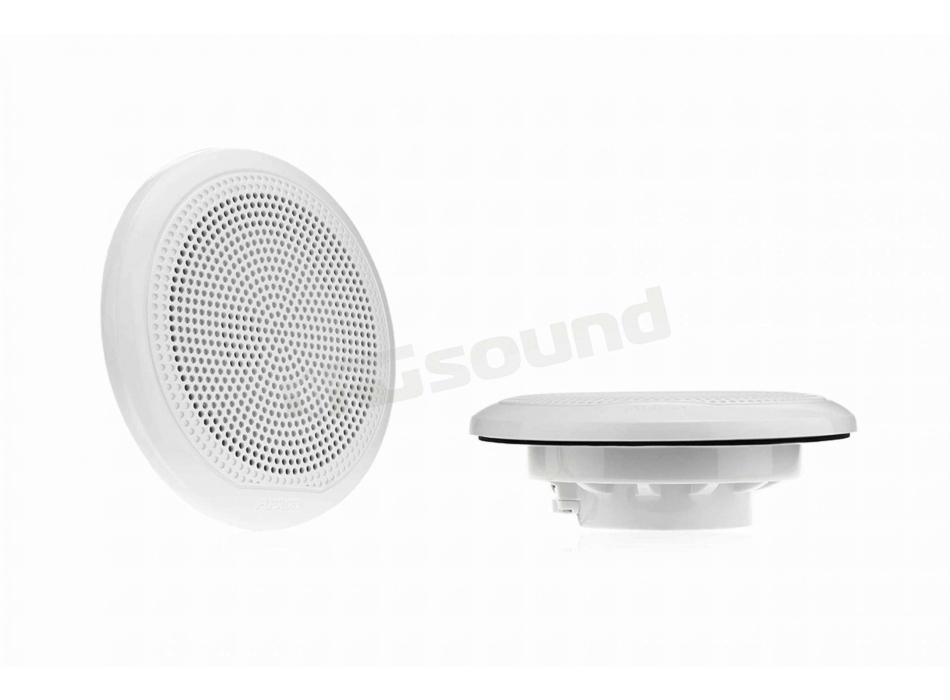

Energize your boating experience with entry-level EL speakers.
Designed for quality audio reproduction in a marine environment, the redesigned EL Series Full Range speakers feature a shallow basket design to offer versatility in mounting options.

Shallow basket design
Making the EL Series speakers ideal for installation where mounting depth is limited, the shallow basket design ensures that the speakers fit into thinner wall cavities than traditional speakers.

Designed for the marine environment
Perfect for both indoor and outdoor installation, the EL Series is designed to withstand the elements in harsh outdoor and marine environments. Meeting industry standards for UV and salt spray protection, along with a weatherproof IP65 rating, your speakers are protected from damage from sun, salt, water and dust from the front when mounted correctly, allowing you to enjoy the peace of mind that your speakers will last the test of time on board.
MS-RA60 RADIO TECHNICAL SPECIFICATIONS:
  • Physical Dimensions (WxHxD) 156.9 x 68 x 103.2 mm (6.18 x 2.68 x 4.06 inches)
  • Weight 11.1 ounces (316 g)
  • IPX6 and IPX7 water rating (front panel only, if installed correctly)
  • Power input 10.8-16V DC
  • Operating temperature range 32 ° to 122 ° F (0 ° to 50 ° C)
  • Current (maximum) 15 A
  • BLUETOOTH® wireless range Up to 30 feet (10m)
  • ANT® wireless range Up to 3m (10ft)
  • Wireless frequencies / protocols BLUETOOTH 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal
  • Safe distance from compass 5.9 "(150 mm)
  • 2.3 "perimeter monochrome dot matrix LCD screen
  • Integrated Class D amplifier (minimum impedance 4 ohms)
  • 180 W peak power
  • Rated output power (4 ohms) 22W rms x 4 @ 14.4V input, 4 ohms, 10% THD
  • Fusion-Link Control Yes (with compatible Apple® and Android devices)
  • Fusion-Link Lite Control Yes (with compatible Garmin watch)
  • 2-zone multizone technology
  • BLUETOOTH wireless technology yes
  • ANT wireless technology yes
  • DAB + Yes (built-in DAB tuner)
  • Multilingual Dutch / English / French / German / Italian / Spanish interface
  • Software updates Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
  • AM / FM / BLUETOOTH / AUX x1 / DAB + sources (only available in Europe and Australia)
  • Auxiliary input One RCA (AUX) input
  • AM / FM radio One port for the Motorola antenna connector
  • Speaker 4 x speaker connections (2 powered zones)
  • RCA pre-out (left, right and subwoofer) 1 zone (requires external amplification)
  • Zone 1 Line Out: L + R (requires external amplification)
  • Zone 1 subwoofer output (requires external amplification)
EL-F651W CASE TECHNICAL SPECIFICATIONS
  • Speaker Size 6.5 "
  • 80W peak power
  • Efficiency (1W / 1M) 88dB
  • Frequency response 45Hz - 16kHz
  • Impedance 4 ohms
  • Cone material polypropylene
  • Clearance mounting diameter 130mm (5-1 / 8 ")
  • Mounting depth distance 43mm (1-11 / 16 ")
  • Speaker dimensions: length x height x depth Ø 176mm x 57.5mm [Ø 6-15 / 16 "x 2-1 / 4"]
  • 1 year warranty

Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno Io ho sulla barca una radio del tipo auto classiche rettangolari, la vostra radio si adatta al profilo classico o è necessario allargare la sede ? Grazie
R. 12-11-23 Buongiorno, al contrario, penso sia necessaria la mascherina di adattamento: https://www.painestore.it/fusion_kit_retrofit_per_serie_600_e_650_e_700 In ogni caso nella sezione Documenti, potrà scaricare il manuale installazione con le dimensioni della Radio. Cordiali saluti. Luigi Bianchi
