Fusion MS-RA60 Pack With EL Sport Gray Speakers

  • Code: 010-02405-60
€ 359,00 € 399,00 -10%

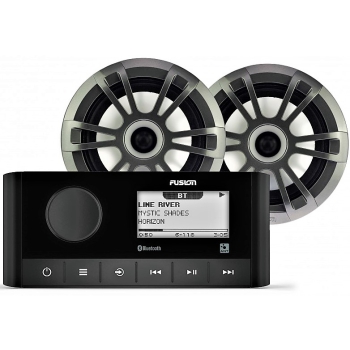

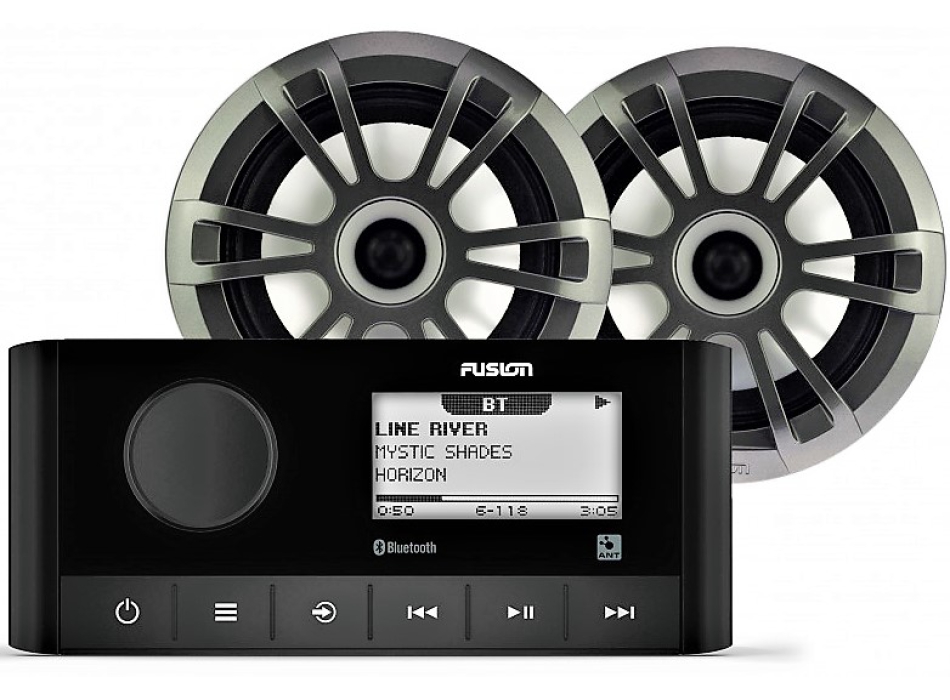

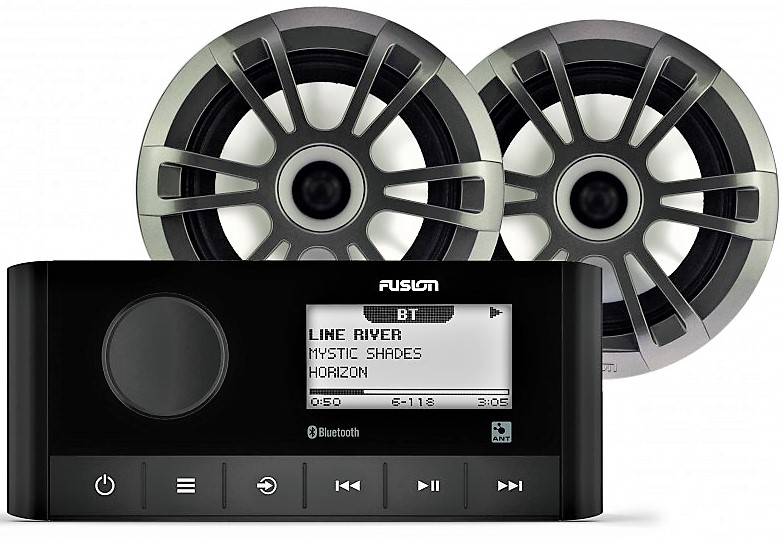

Fusion MS-RA60 Pack with EL Sport Gray Speakers

Sources: AM/FM/Bluetooth/AUX/DAB+

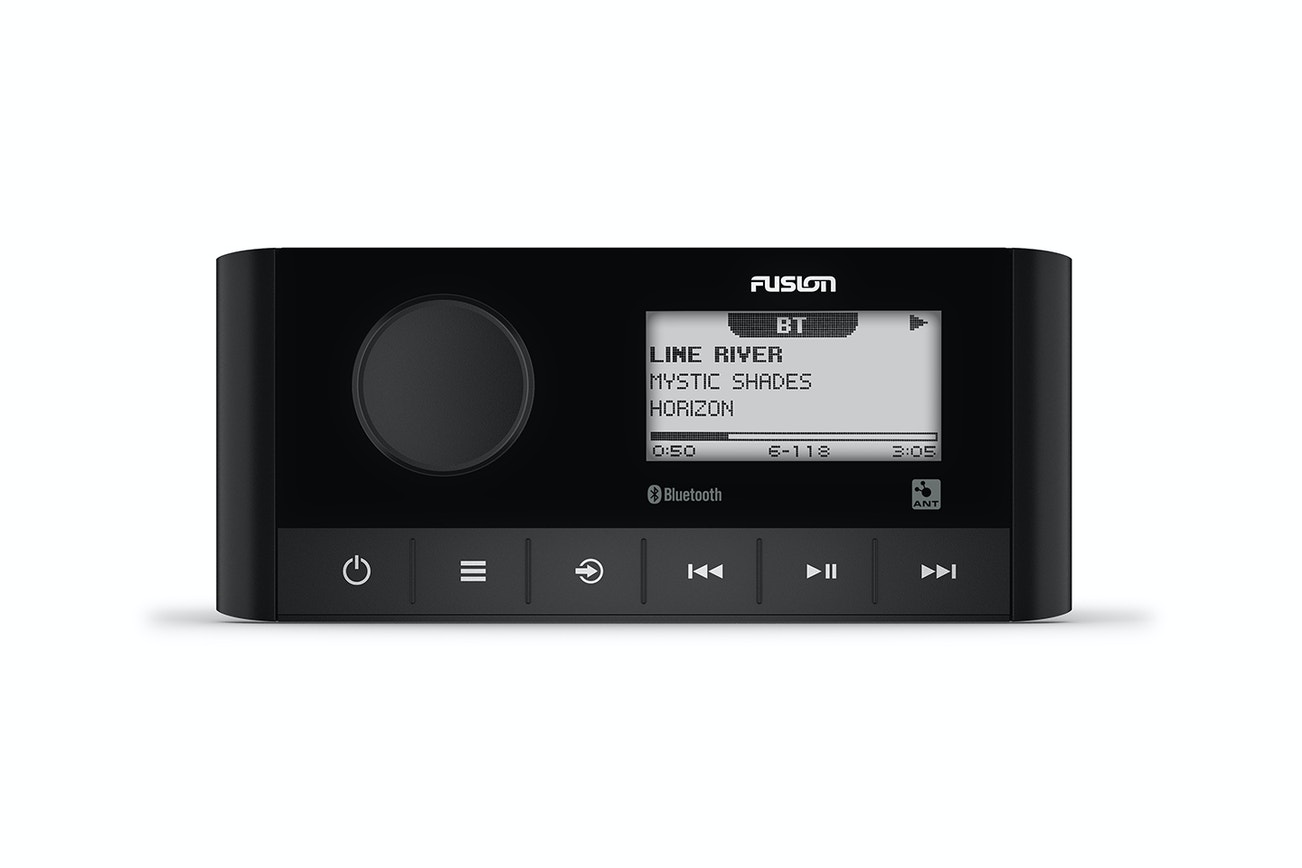

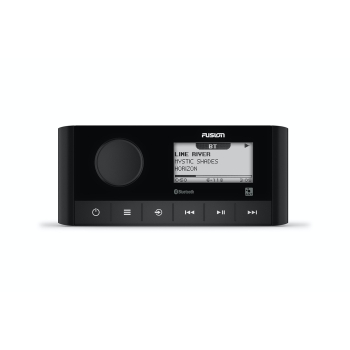

The MS-RA60 is our most affordable marine stereo yet, featuring modern aesthetics, Multi-Zon technology with two zones and advanced connectivity options in a compact form factor. Designed for quality audio entertainment in the harsh marine environment, a fog-free perimeter LCD is integrated into the IPX6 and IPX7 water-resistant black front, making the MS-RA60 an attractive addition to your wheelhouse.

Characteristics:
Multi-Zone Technology: Up to two independent audio zones are available for a personalized listening experience throughout your vessel, each with advanced localized audio options, including volume limits, zone naming, tone control, balance and more.

IPX6 and IPX7 Ingress Protection: The front panel of the MS-RA60 meets international IPX6 and IPX7 Water Ingress Protection standards, ensuring that the product will perform and last in the harsh marine/outdoor environment if installed correctly (refer to installation instructions for details specific).

Retrofit: The MS-RA60 is designed to match the MS-RA55 mounting profile, eliminating the need to modify the existing cutout, reducing complexity when upgrading your stereo system.
Class D Amplifier Design: The integrated Class D amplifier provides more power while drawing less current than a standard Class AB amplifier. The amplifier design offers greater efficiency and power, allowing you to enjoy your music at higher volumes for longer.

Wireless Software Updates: Over-the-air software updates are now available from your compatible device via BLUETOOTH with the free Fusion-Link app, making it easy to update your MS-RA60.

Fusion-Link Control (Wireless) via BLUETOOTH and ANT: Download the free Fusion-Link remote control app for BLUETOOTH from the Apple App Store or Google Play and enjoy the freedom of wireless control from your compatible device. Download the free Fusion-Link Lite app from the Connect IQ app to enable wireless control via ANT technology from your compatible Garmin watch.

2.3" Bonded Monochrome LCD: The monochrome LCD screen is bonded around the edges for improved durability and protection against condensation and fogging, and is optimized for daylight viewing.

Modern Design Aesthetics: The monochrome LCD display is embedded in a black front for increased visibility and enhanced style. The black front blends seamlessly into your dashboard, complementing other electronics and MFDs for a neat, seamless and elegant installation.

Built-in DAB Module: The built-in DAB module supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ is supported

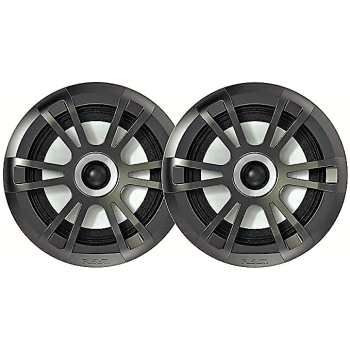

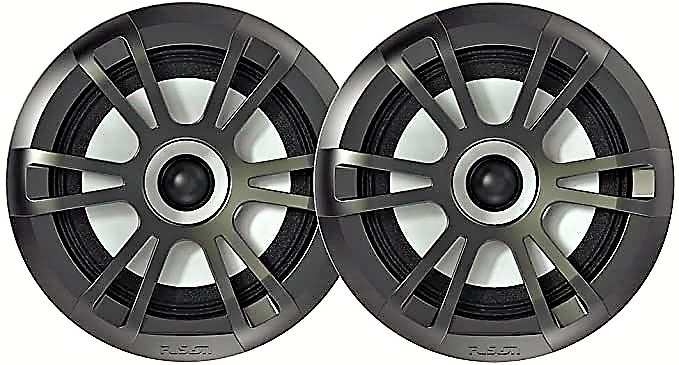

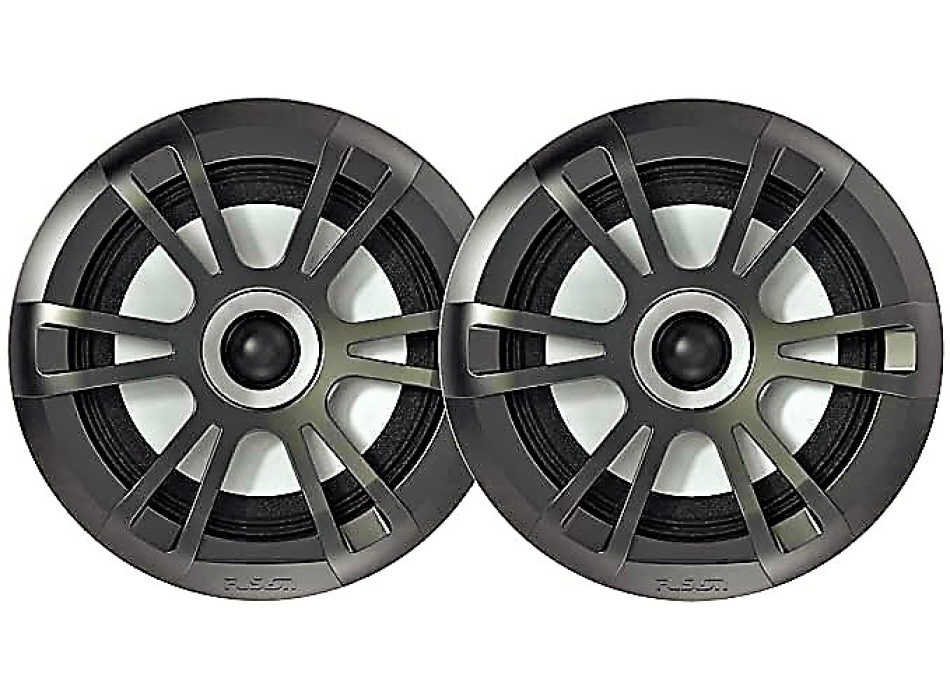

Energize your boating experience with the new entry-level EL speakers.
Designed for quality audio reproduction in a marine environment, the redesigned EL Series Full Range speakers feature a shallow basket design to provide versatility in mounting options.

Shallow basket design
Making the EL Series speakers ideal for installation where mounting depth is limited, the shallow basket design ensures the speakers fit into thinner wall cavities than traditional speakers.


Designed for the marine environment
Perfect for both indoor and outdoor installation, the EL Series is designed to withstand the elements in harsh outdoor and marine environments. Meeting industry standards for UV and salt spray protection, along with a weatherproof IP65 rating, your speakers are protected from sun, salt, water and dust damage from the front when mounted correctly, allowing you to enjoy peace of mind that your speakers will last the test of time on board.
MS-RA60 RADIO TECHNICAL SPECIFICATIONS:
  • Physical dimensions (WxHxD) 156.9 x 68 x 103.2 mm (6.18 x 2.68 x 4.06 inches)
  • Weight 11.1 oz (316 g)
  • IPX6 and IPX7 water rating (front panel only, if installed correctly)
  • Power input 10.8-16V DC
  • Operating Temperature Range 32° to 122° F (0° to 50° C)
  • Current (maximum) 15A
  • BLUETOOTH® wireless range Up to 30 feet (10 m)
  • ANT® wireless range Up to 3 m (10 ft)
  • Wireless frequencies/protocols BLUETOOTH 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal
  • Compass safe distance 5.9" (150 mm)
  • 2.3" perimeter monochrome dot matrix LCD screen
  • Class D integrated amplifier (minimum impedance 4 ohms)
  • Peak power 180W
  • Rated Output Power (4 ohms) 22W rms x 4 @ 14.4V input, 4 ohms, 10% THD
  • Fusion-Link Control Yes (with compatible Apple® and Android devices)
  • Fusion-Link Lite Control Yes (with compatible Garmin watch)
  • Multizone technology 2 zones
  • BLUETOOTH wireless technology yes
  • ANT wireless technology yes
  • DAB+ Yes (built-in DAB tuner)
  • Multilingual interface Dutch/English/French/German/Italian/Spanish
  • Software Updates Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app
  • AM / FM / BLUETOOTH / AUX x1 / DAB+ sources (only available in Europe and Australia)
  • Auxiliary input One RCA input (AUX)
  • AM/FM Radio One port for the Motorola antenna connector
  • Speaker 4 x speaker connections (2 amplified zones)
  • RCA pre-out (left, right and subwoofer) 1 zone (requires external amplification)
  • Line Out Zone 1: L + R (requires external amplification)
  • Zone 1 subwoofer output (requires external amplification)
TECHNICAL SPECIFICATIONS OF EL SPORT GRAY CASES
  • Speaker Size 6.5"
  • Peak power 150W
  • Efficiency (1W/1M) 84dB
  • Frequency response 100Hz - 15kHz
  • Impedance 4 ohms
  • Cone material polypropylene
  • Clearance mounting diameter 130mm (5-1/8")
  • Mounting depth distance 43mm (1-11/16")
  • Speaker dimensions: length x height x depth Ø 176mm x 59mm [Ø 6-15/16" x 2-5/16"]

Caratteristiche

Sei interessato ad una offerta privata?
D. Mi interessa radio per barca
R. 12-11-24<br /> Buongiorno, ok, ne abbiamo diversi modelli:<br /> https://www.painestore.it/boat_entertainment<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Salve, se possibile vorrei sapere se , la radio fusion ms-ra 60 può essere gestita anche da uno strumento garmin il1223sxv? grazie Pierluigi
R. 30-06-23 Buonasera, purtroppo no perchè la RA60 non ha porte di comunicazione NMEA 2000, può farlo solo con le Apollo 670,770 e le Radio RA70N e RA210. Cordiali saluti. Luigi Bianchi
D. Buongiorno, avrei bisogno di sapere quale modello di coppia casse fusion con la massima prestazione posso accoppiare al modello della radio ms-ra60, possibilmente con griglia in plastica bianca rotonda o quadrata. Distinti saluti
R. 22-11-22 Buonasera, tutte le casse serie XS o serie FM di Fusion: https://www.painestore.it/cerca?keywords=xs- https://www.painestore.it/cerca?keywords=fm-f Cordiali saluti. Luigi Bianchi
D. Chiedo se possibile avere la griglia esterna delle casse, di colore bianco
R. 29-10-22 Buon pomeriggio, non è previsto da Fusion il pacchetto con casse Sport bianche. Può però acquistare il ricambio insieme allo Stereo: https://www.painestore.it/fusion_griglie_casse_el_series Ricordo la promo Piesse7 per sconto extra del 7%. Cordiali saluti. Luigi Bianchi
