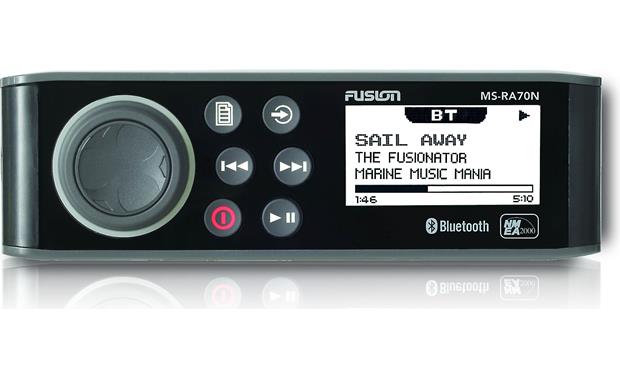

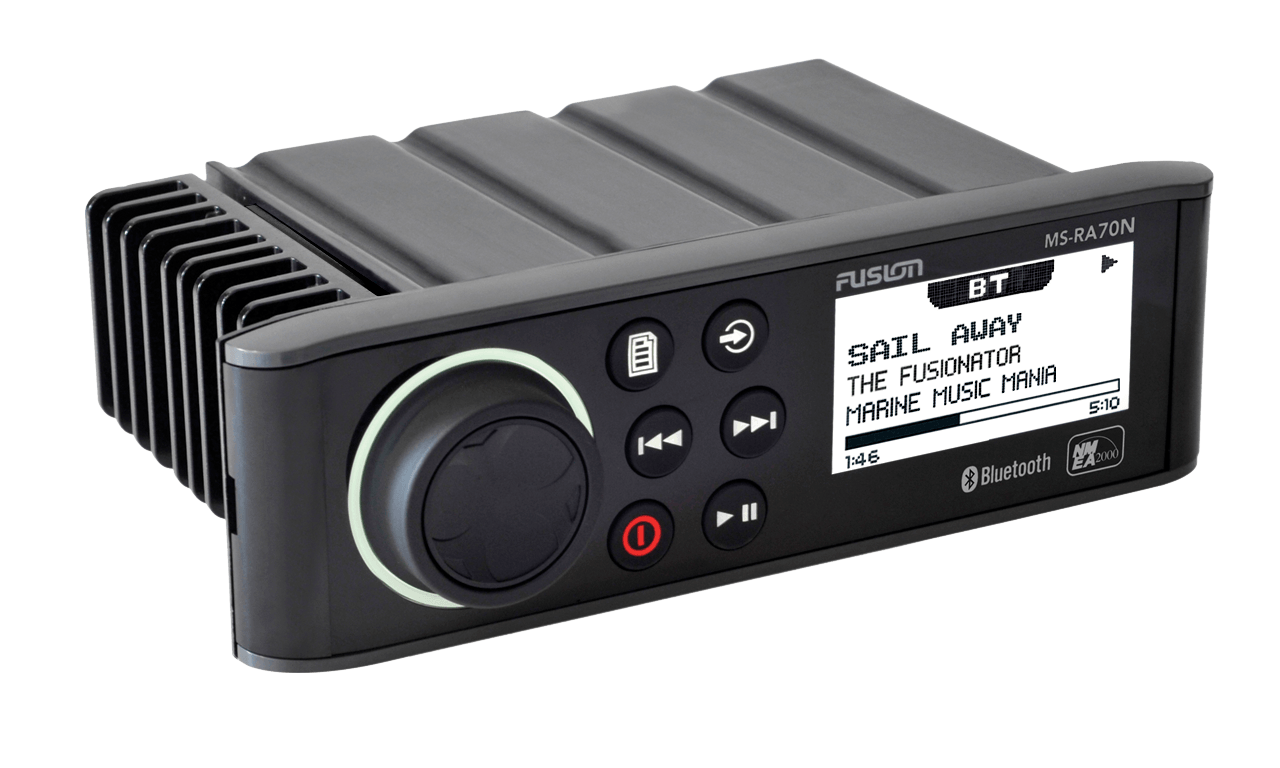

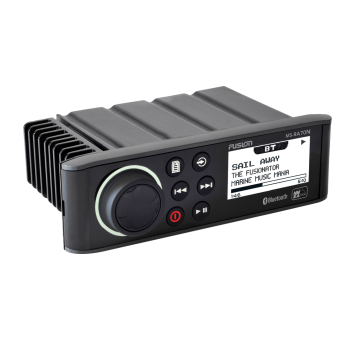

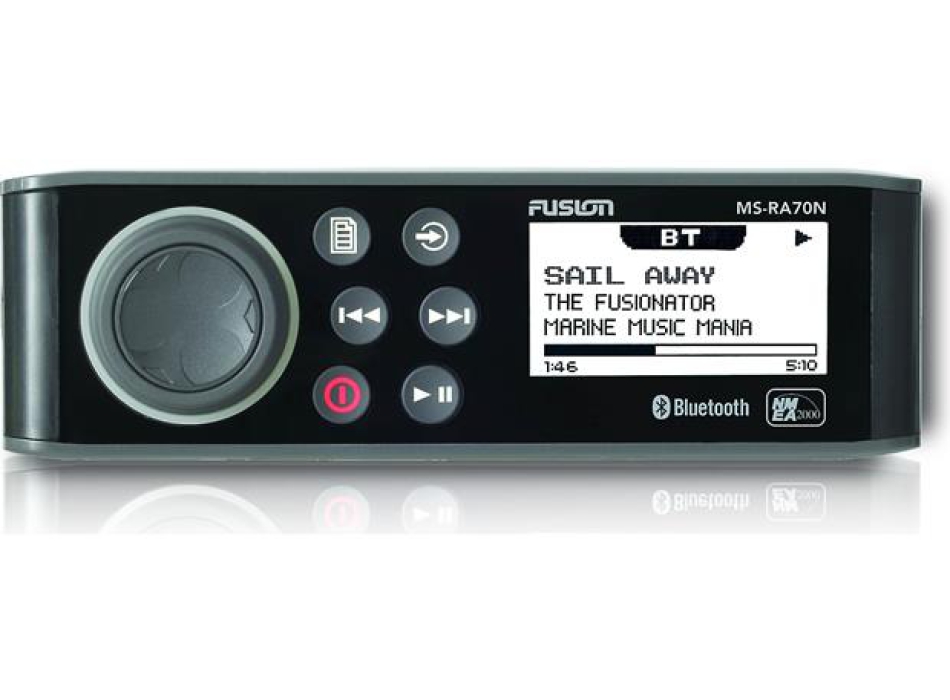

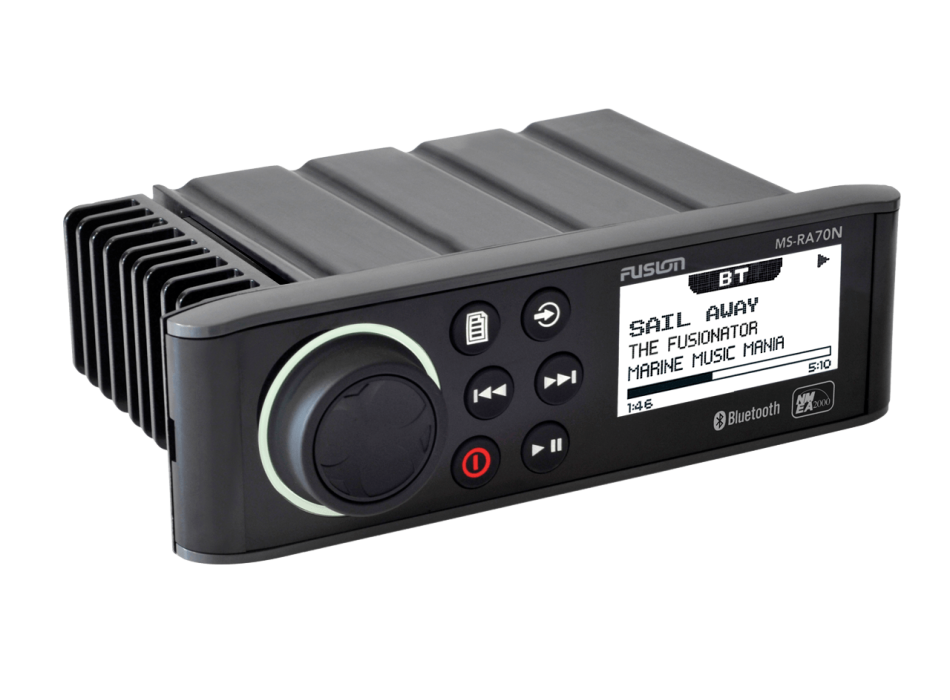

Fusion MS-RA70N Radio / Stereo Marine BT

Code: 010-01516-11

(2)

€ 376,00 € 419,00 -10%

quantity

add to favorites

FUSION MS-RA70N Radio / stereo with Bluetooth
NMEA 2000 compatible

Marine entertainment system with Bluetooth

Marine entertainment system with Bluetooth and NMEA 2000
Sources: AM / FM / USB / iPhone / iPod / Android AOA / Bluetooth / ANT / DAB + Ready (Requires MS-DAB100A)

Introducing MS-RA70N, FUSION's compact and refined marine stereo design, designed to deliver a quality on-water entertainment experience by incorporating some of the latest marine technologies. The MS-RA70N is designed to seamlessly replace any DIN standard non-marinized stereo without the need to reconfigure the space. The clever styling gives the installer the ability to mount the stereo with a conventional dash finish or integrate it into a glass wheelhouse with a flush surface, ensuring a high-end finish to the installation.

Features:
A2DP Bluetooth audio streaming with remote control of the FUSION-Link app available - Play your favorite soundtrack from any compatible device with control * available from the stereo or your connected Apple or Android device via the FUSION-Link Bluetooth app. Just download the FUSION-Link Apple or Android remote control app from the Apple App Store or the Google Play Store and enjoy localized zone control, source navigation, track selection.

The FUSION-Link wireless remote control app for iPad or iPhone is available for FREE download from the Apple app store.
The FUSION-Link wireless remote control app for Android is available for FREE download from Google Play.
You can download the free FUSION-Link Lite app from Garmin Connect IQ Store to enable wireless control via ANT technology from your compatible Garmin watch.

Various sources available, including USB MP3 playback and AM / FM radio - Listen to USB MP3 audio, connect supported smartphone or relax with your local AM / FM station; the MS-RA70N offers marine-grade entertainment to those who would normally have to resort to installing rust-prone car audio systems. Rest assured, let FUSION entertain you in the water. DAB radio is accessible with the MS-DAB100A module and antenna package (sold separately).

IPX7 Water Resistant Front with Fitted LCD Display - The MS-RA70N is designed specifically for the marine environment, with an IPX7 front panel (when properly mounted) to withstand the environment like no other, perfectly matched to an LCD display optical.

Flush or Dash Mount Installation Options: Two installation options are available, offering the option to mount a conventional dashboard or integration into a flush-finish glass wheelhouse for a high-end aesthetic.

Multi-Zone Control (2-Zone System) - With two independent audio zones available, each with advanced localized menu controls, including zone naming, you can easily customize and control your listening experience in each zone. Note: Line Out / Sub Out requires additional amplification.

FUSION-Link NMEA 2000 ready to connect and control from any supported multifunction display - MS-RA70N is a NMEA 2000 certified product with FUSION-Link connection and is compatible with a range of world-leading multifunction displays for audio control from the screen . When you pair the MS-RA70N with a supported Chartplotter or Fish Finder, you bring your music to the big screen, allowing you to keep an eye on the charts or fish while you skip tracks or adjust the volume at the same time. In addition to MFD control, the MS-RA70N will connect to any FUSION NRX series remote connected to the same powered NMEA 2000 network for localized control of audio zones.

TECHNICAL SPECIFICATIONS:

AM / FM tuner with RDS (where available)
Tuner Region USA, Australasia, Europe and Japan
Multilingual user interface English, French, German, Spanish, Dutch and Italian
Audio zones 2 amplified zones on board
Named zones Up to 10 characters
Line Out 1 x L + R connected to zone 1 (requires amplification)
Subwoofer Output 1 x Sub Out connected to zone 1 (requires amplification)
Auxiliary Inputs 1 x stereo RCA input (AUX)
iPod / iPhone Made for iPod and iPhone - only supports IAP 2 protocol
Android Open Accessory (AOA) Android support is limited to devices that support AOA protocol, please see the supported device list for details
DAB + ready MS-DAB100A is required for DAB support, available only when DAB and DAB + are broadcast
Monochromatic LCD display with 128x64 optical optics
Garmin Smartwatch App via ANT VivoActive / HR, Fenix 3 / HR, Fenix 5 / S / X, Quatix 3, D2 Bravo / Titanium, Fenix Chronos, Forerunner 935 - App FUSION-Link via Garmin Connect IQ
FUSION-Link Wireless The Bluetooth remote control is available with the FUSION-Link remote control app available for download from the Apple app store or Google Play. The FUSION-Link Lite app is available in the Garmin Connect IQ repository to enable wireless control from a compatible Garmin smartwatch.
FUSION-Link Wired Compatible with a FUSION NMEA 2000 wired remote control and any supported FUSION-Link MFD. An electrical network is required for remote support
NMEA 2000 LEN Certificate: 1
Bluetooth A2DP Bluetooth audio streaming with AVRCP
USB 1 x USB connector on the back of the unit, supports 1 charge charge
USB MP3 audio format
IPx7 waterproof water resistance from the front panel when properly mounted. The back of the unit has IPx3
Chassis Electrically insulated glass filled composite chassis with aluminum side fin heat sink with VCT

TECHNICAL SPECIFICATIONS OF THE AMPLIFIER

Class AB amplifier 4 x 50 W (@ 4 Ohm)

INSTALLATION MANUAL ENG (825,68 KB)
USER MANUAL ENG (1,33 MB)

D. Buongiorno sono interessato alla radio Fusio RA70 N e desidero sapere se è compatibile con gli strumenti Lowrance HDS 16 Live che ho installati a bordo. Grazie Salvo Spina

R. 10-06-22 Buon pomeriggio, confermo la piena compatibilità mediante collegamento in NMEA 2000. Cordiali saluti. Luigi Bianchi

D. Buongiorno, vi ho già contattati stamattina per chiedere circa l'acquisto di una radio Fusion in sostituzione di quella in mio possesso danneggiata. Ho un impianto Fusion completo: - FUSION MS-RA205 (*** DA SOSTITUIRE ***) - FUSION MS-NRX3000 Remote Control - FUSION MS-BT200 Bluetooth - FUSION MS-DA51600 Amplifier - FUSION 260W 2-WAY Speakers - FUSION 200W 2-WAY Speakers - FUSION MS-SW10 400W Subwoofer Volevo sapere se la radio MS-RA70N, o altro modelli, fosse compatibile con tutto il resto dell'impianto, ossia con il controllo remoto e l'amplificatore. Grazie e saluti.

R. 31-05-22 Buongiorno, confermo la compatibilità della RA70N, oltre eventualmente anche la RA210 così non dovrà adattare il foro. Cordiali saluti. Luigi Bianchi

D. Buongiorno, devo sostituire un Boss Marine con un Fusion MS - RA 70 N, casse e amplificatore sono già tutto fusion, i collegamenti sono gli stessi o devo sostituire i connettori. Inoltre, è possibile collegare un Rayanmarine ES78? Grazie in anticipo. Cordialmente Cosimo

R. 07-03-22 Buonasera sì certo, compatibile. Consiglio comunque di aggiornare il software dell'eS78 all'ultima versione, necessari anche i cavi di collegamento NMEA 2000 / STNG, è già presente a bordo una rete? Cordiali saluti. Luigi Bianchi

D. BUONGIORNO DEVO ACQUISTARE QUESTO ARTICOLO Fusion MS-RA70N Radio/Stereo Marino BT, VOLEVO SAPERE,POSSO ACQUISTARE SE COMPATIBILI QUESTI ARTICOLI:Fusion presa stagna USB/AUX MS-CBUSB3.5 CON Codice : 010-12381-00; Fusion Modulo DAB con antenna DAB100 CON Codice : 010-01953-10; Fusion Comando remoto Wireless ARX70 CON Codice prodotto: 010-02167-01. IN ATTESA DI UNA VS RISPOSTA. RINGRAZIO ANTICIPATAMENTE

R. 05-11-2021 Buongiorno, confermo, tutti articoli compatibili con RA70N. Cordiali saluti. Luigi Bianchi

D. BUONGIORNO COMPATIBILE CON RAYMARINE A68. GRAZIE

R. 04-11-2021 Buongiorno, sì certo, compatibile mediante starter kit STNG e cavo adattatore A06045: https://www.painestore.it/raymarine_stng_starter_kit_cod_t70134 https://www.painestore.it/raymarine_stng/nmea_2000f_cavo_spur_400_mm Cordiali saluti. Luigi Bianchi

D. Buongiorno volevo sapere se è possibile collegarlo al sistema raymarine, per poter comandare la radio dall'axiom 9 tramite il software lighthouse. Grazie

R. 11-05-2021 Buonasera, sì certo, confermo la compatibilità. Necessario però il collegamento in NMEA 2000, quindi serve lo Starterkit: https://www.painestore.it/garmin_nmea_2000_starter_kit Cordiali saluti. Luigi Bianchi

D. Buongiorno, avrei cortesemente bisogno del cavo cablato per collegare : stereo FUSION MS-RA70N amplificatore FUSION MS-AM504 4 Channel Marine acquistato recentemente da Voi potreste darmi qualche indicazione Attendo risposta grazie Paolo

R. 20-05-2020 Buonasera, basta un comune cavo RCA stereo connettore maschio/maschio. Buona serata. Luigi Bianchi

D. È possibile sintonizzare la radio e regolare il volume tramite Bluetooth da smartphone? Grazie

R. Buongiorno, sì è possibile tramite App Fusion Link. Cordiali saluti. Luigi Bianchi

customer opinion

You must sign in to write your review

04/02/2021 Alberto

interfacciata in nmea2000 con altra strumentazione , ottimo prodotto.

Tutto perfetto, dalla consulenza pre acquisto alla consegna.

Sig. Bianchi davvero professionale e gentile.

05/12/2020 Alberto

Prodotto di comprovata e nota qualità acquistato su sito che, evidentemente, rappresenta un reale negozio ben gestito, con un grande assortimento e prezzi veramente concorrenziali.
