-10%

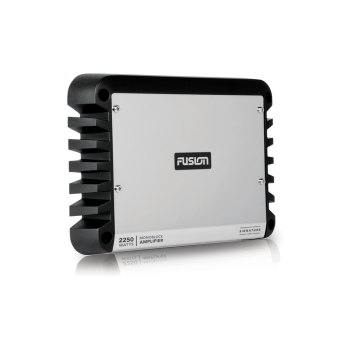

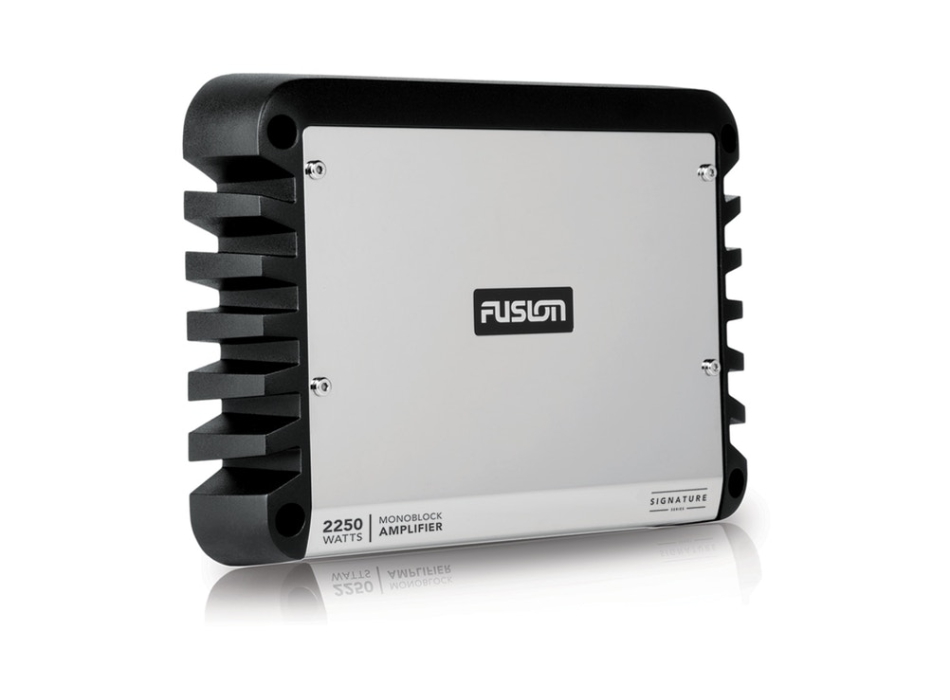

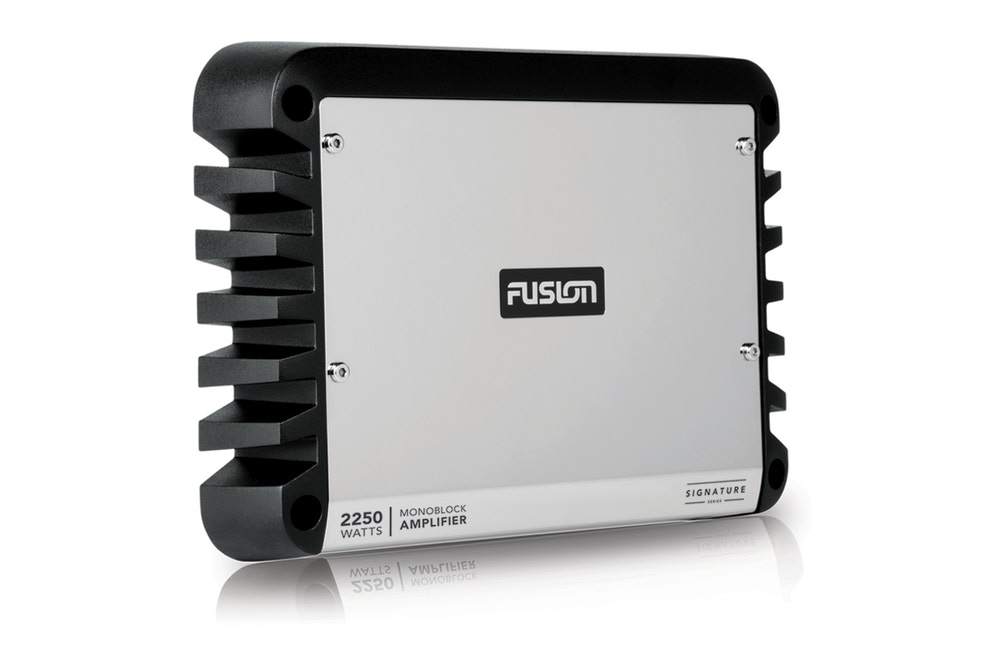

Fusion SG-DA12250 Amplifier for Subwoofer

  • Code: 010-01970-00
€ 449,00 € 499,00 -10%
FUSION SG-DA12250 Subwoofer Amplifier

Our most amazing, efficient and powerful marine amplifiers for the ultimate audio experience.

Fusion Signature Series marine amplifiers are specially designed for the marine environment. Boasting some of the most impressive environmental protection available, they deliver signature performance on the water like never before.

Introducing one of our most amazing and efficient marine amplifiers, the SG-DA12250. Its True-Marine design resists corrosion and the incredible 2250 Watt peak power is configurable to 1 Ohm impedance, providing enough power to bring the Signature Series subwoofer components to life.

The SG-DA12250 has a highly efficient monobloc Class D amplifier design. The main advantage of a Class D amplifier is that it has low battery drain with high power, making it the perfect amplifier for the marine environment. SG-DA12250 also has compliant coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component internal temperature and increase efficiency.

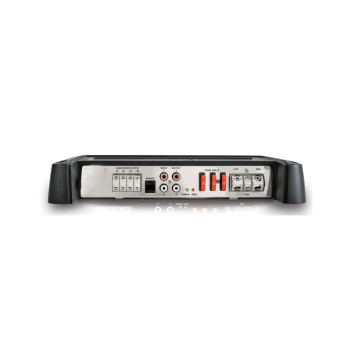

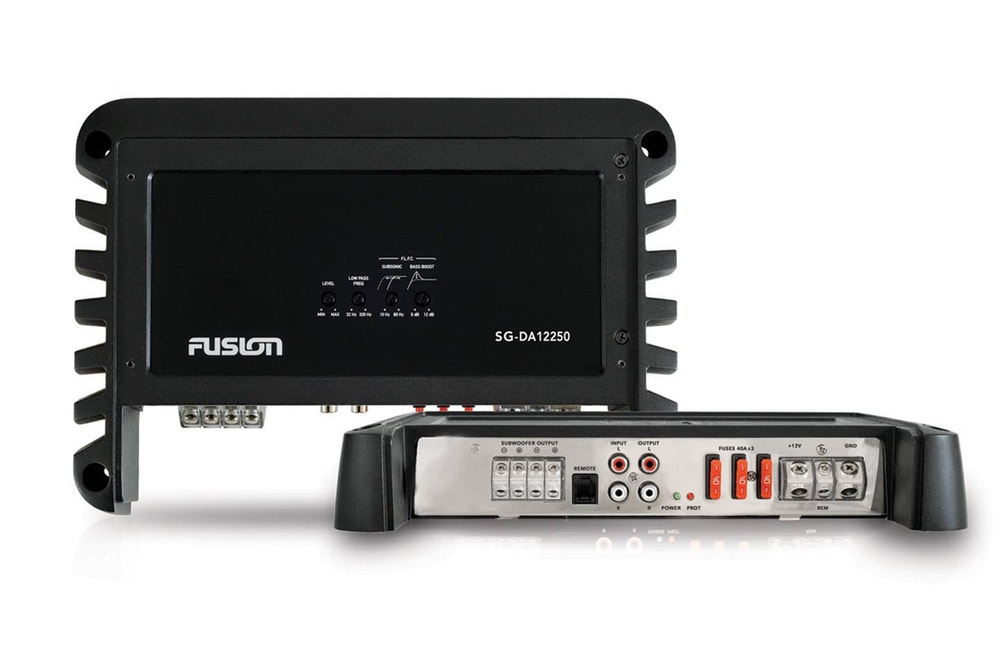

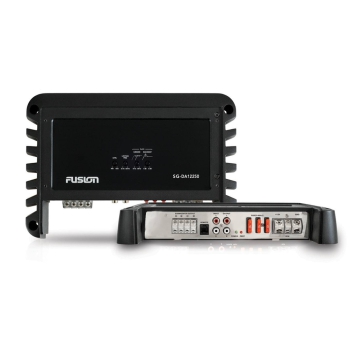

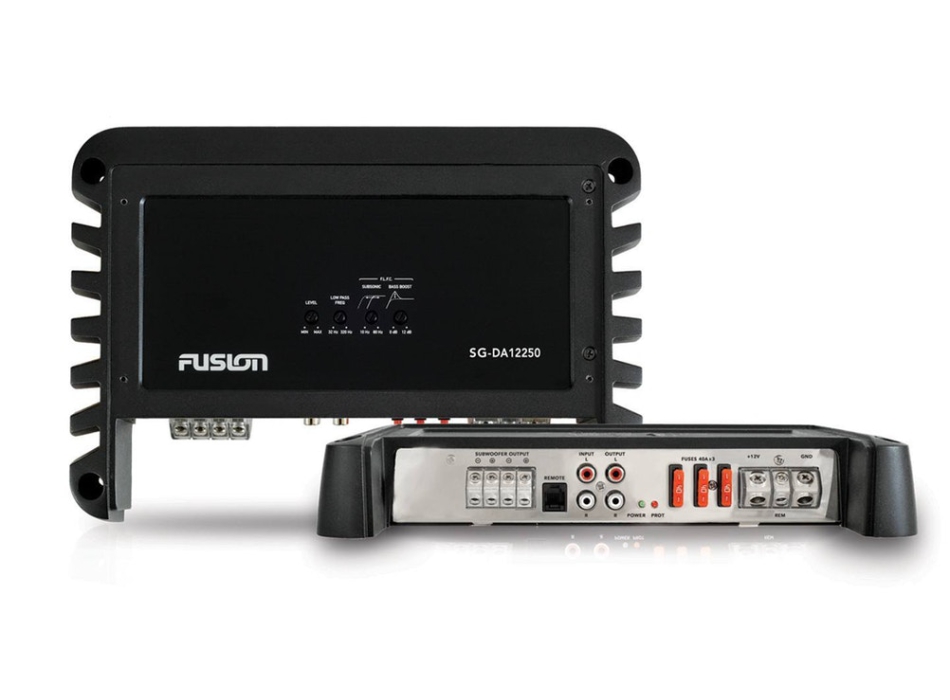

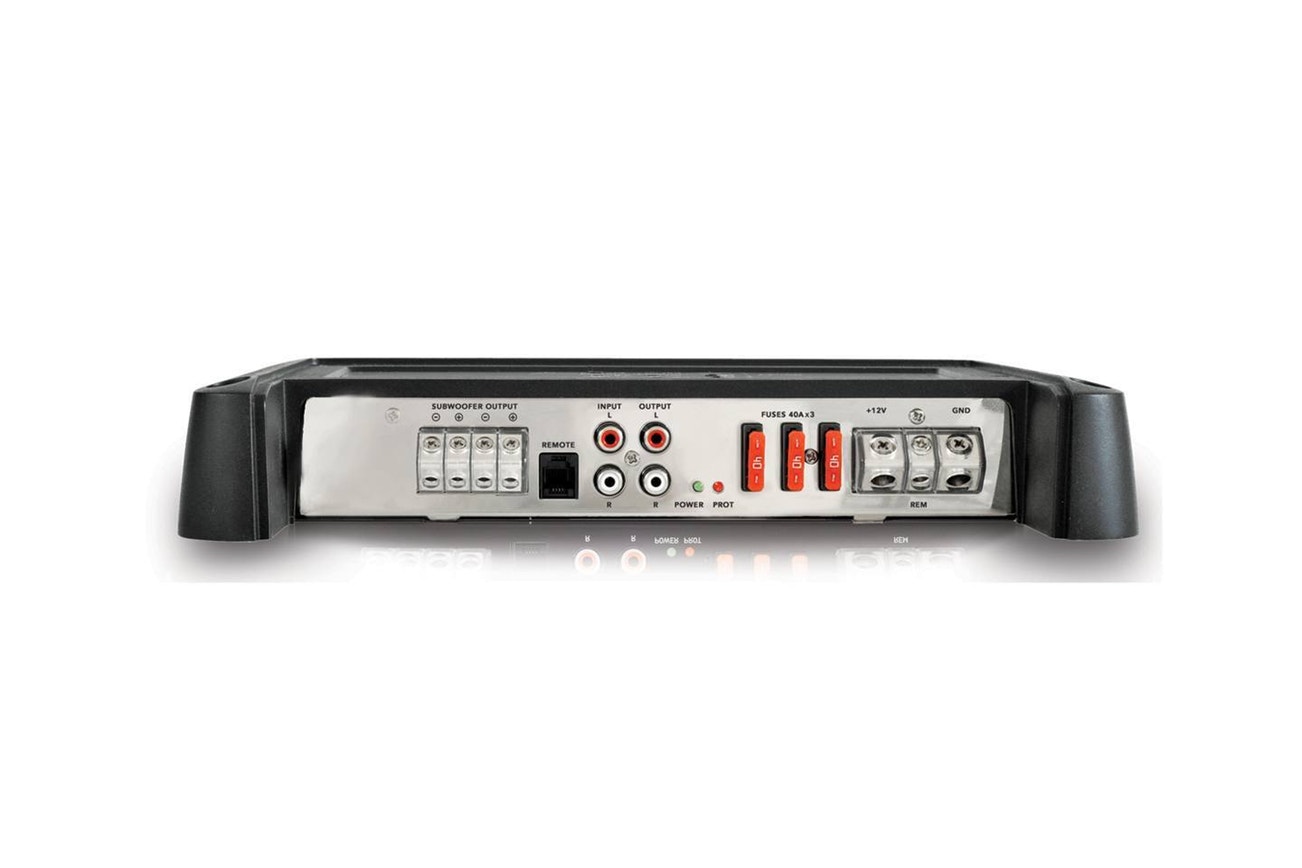

Undeniably a standout piece, the stunning stainless steel mirror control panel cover hides and protects all cable connections and setting controls, with an eye-catching finish to complement any installation.
Product Specifications
Class-D amplification class
Frequency response of the subwoofer 10Hz - 320Hz
2250 Watt peak power
Rated power (4 ohms) 500 Watts RMS x 1 @ 14.4V - 4 ohms 1% THD
Rated power (2 ohms) 850 Watts RMS x 1 @ 14.4V - 2 ohms 1% THD
Rated power (1 Ohm) 1100 Watts RMS x 1 @ 14.4 V - 1 Ohm 1% THD

Mounting dimensions

Length 300mm [11-13 / 16 "]
Depth 210mm [8-1 / 4 "]
Height 50mm [2 "]

D. Buonasera, ho comprato da voi anno scorso stereo fusion MS-AV755 con 4 casse MS-FR6021 (260w)+ ho altre due MS-BX402 (100w) e vorrei comprare e collegare il tutto sotto amplificatore oltre ad inserire anche un Subwoofer proporzionato all’impianto. Mi serve capire quale/i amplificatore comprare e quale subwoofer prendere. Il tutto anche per gestire 3 zone. Inoltre se volessi cambiare le 2 casse MS-FR6021 con altre leggermente più potenti ma con lo stesso ingombro c’è qualcosa ? Grazie per le info e supporto in anticipo Cordiali saluti
R. 19-01-2021 Buongiorno, in realtà se vuole gestire tutte le casse separatamente, Le servirà un ampli con quattro zone quindi a 7 canali, per cui il DA82000: https://www.painestore.it/fusion_amplificatore_sg-da82000_8_canali_classe_d Infine, se Le serve anche un Sub e se intende sostituire anche le casse, consiglierei prodotti della linea Signature: https://www.painestore.it/fusion_sg-f652w_altoparlanti_signature dovrà però allargare un pelo il foro perchè le 652 necessitano di 133m, mentre le 6021 hanno un foro da 130mm. Di seguito link del sub sempre stessa estetica: https://www.painestore.it/fusion_sg-s102w_subwoofer_signature_3_10_griglia_classic_bianca Cordiali saluti. Luigi Bianchi
