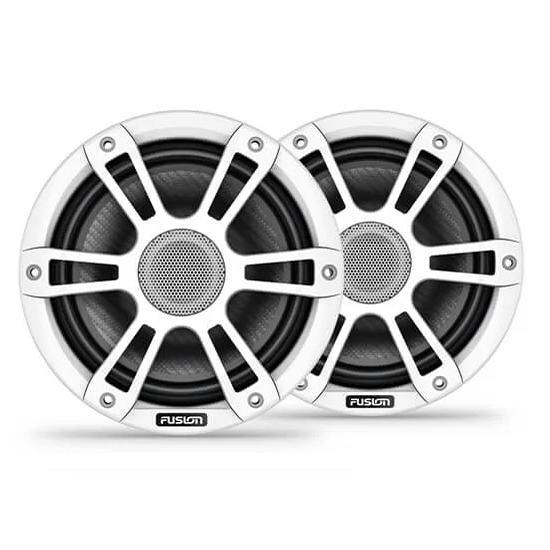

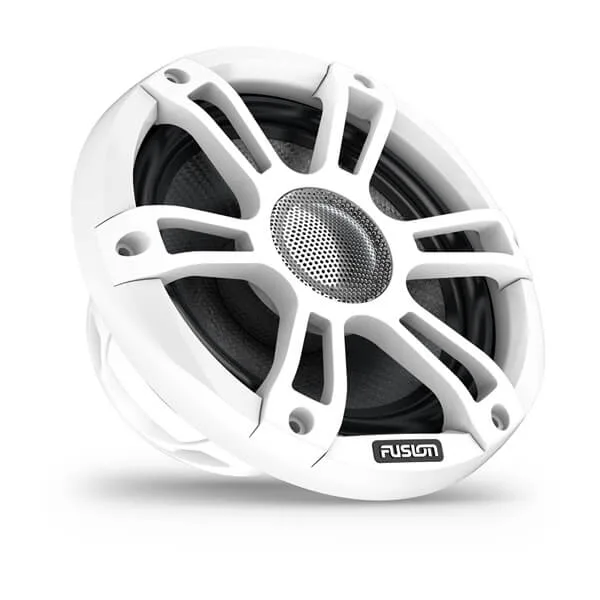

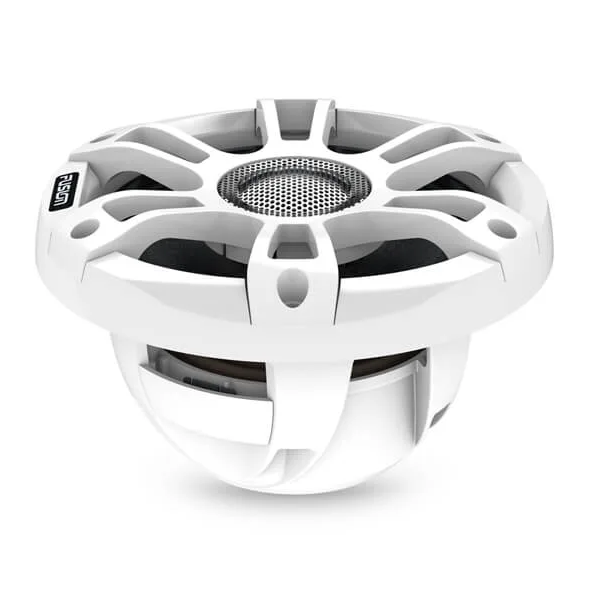

Fusion SG-F773SPW Signature 3 White WITHOUT LED

  • Code: 010-02772-20
€ 342,55 € 429,00 -20%
FUSION NEW SIGNATURE 3i SERIES SG-F773SPW 7.7 "SPEAKERS
Version WITHOUT LED

Extraordinary unique acoustic performance

Pushing the boundaries of what's possible on the water even further, the new revamped Fusion Signature Series 3i marine speakers deliver unprecedented performance even when exposed to the harshest marine conditions.
Incorporating the finest materials and the latest acoustic technologies, we have combined "CURV" cone composite technology with a silk dome tweeter and fully sealed crossover components to create a speaker system with extraordinary sound for listening on the water of quality.

Features:

CURV Cone Technology: Incorporates a CURV woven fiber composite that is hot pressed to form a lighter and stronger cone that offers better sound definition and greater power, while also providing greater protection from marine conditions.
Fully Sealed Crossover Components: Provides complete protection from the harsh marine environment, delivering improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.
Sport Style Grille: A structurally rigid True-Marine ™ design offers maximum cone protection, with a great look to complement any boat. Aesthetically designed for both your cabin and deck.
Silk Dome Tweeter: Creates smooth higher frequency response with greater efficiency and delivers crystal clear music reproduction.
Large Diameter Voice Coil: Offering a true increase in power and efficiency, the voice coil provides a distinctive sound unique to 7.7 "speakers.
Engineered to be ISO12216 Compliant: Tested to international pressure and waterproofing standards, recognizes Signature Series 3i speakers are designed and built to the highest
These 7.7 "Signature Series 3i speakers are capable of handling up to a thunderous 280 Watt peak power, so you can truly experience" The Power Of Music ".
Product Specifications

Coaxial configuration
Speaker size 7.7 "
Power peak 280 Watts
RMS rated power 100 Watts
Efficiency (1W / 1M) 91 dB
Frequency response 60Hz - 22kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 25-120 W / Ch
Tweeter type Silk dome
CURV cone material
Voice coil diameter 1.4 "
Water and dust resistance (IP rating) IP65
Mounting diameter clearance 156 mm [6-1 / 8 "]
Space for mounting depth 86 mm [3-3 / 8 "]
Speaker dimensions: length x height x depth (basket) Ø 196 mm x 82.5 mm [Ø 7-3 / 4 "x 3-1 / 4"]
