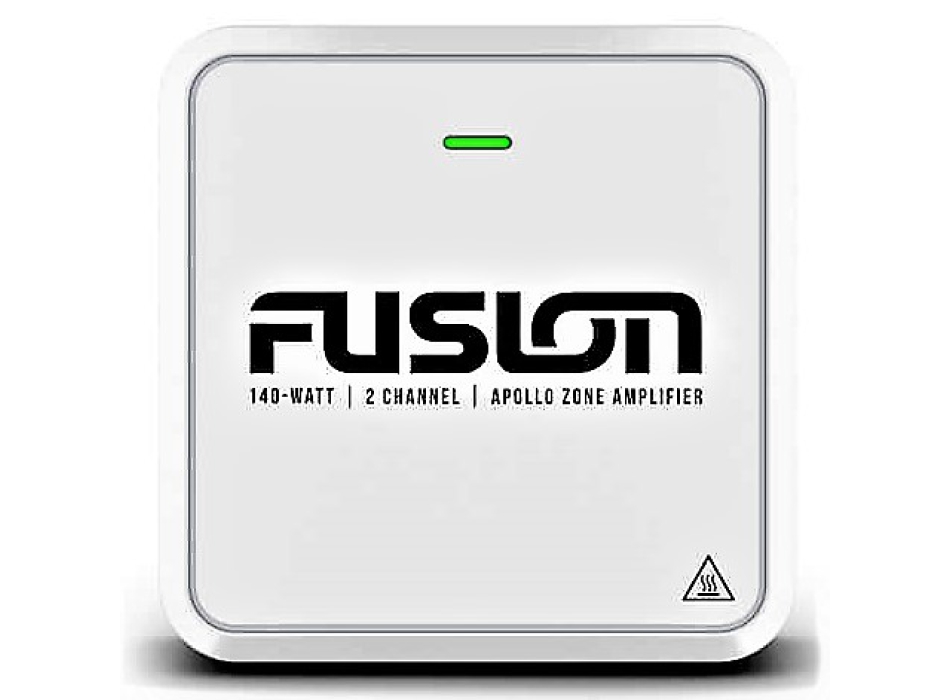

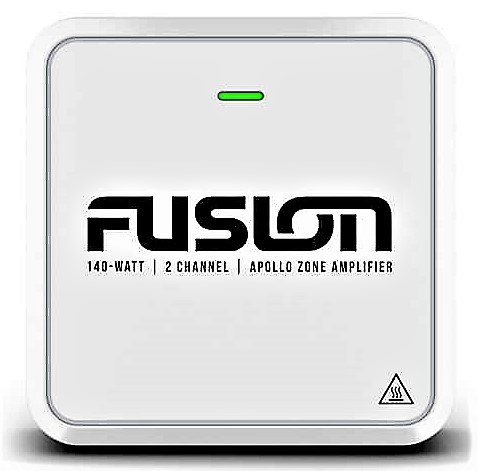

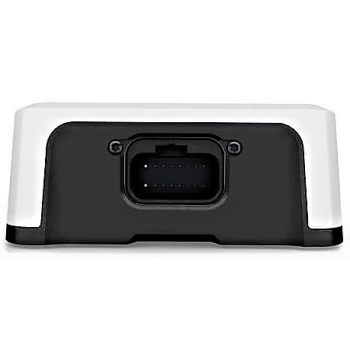

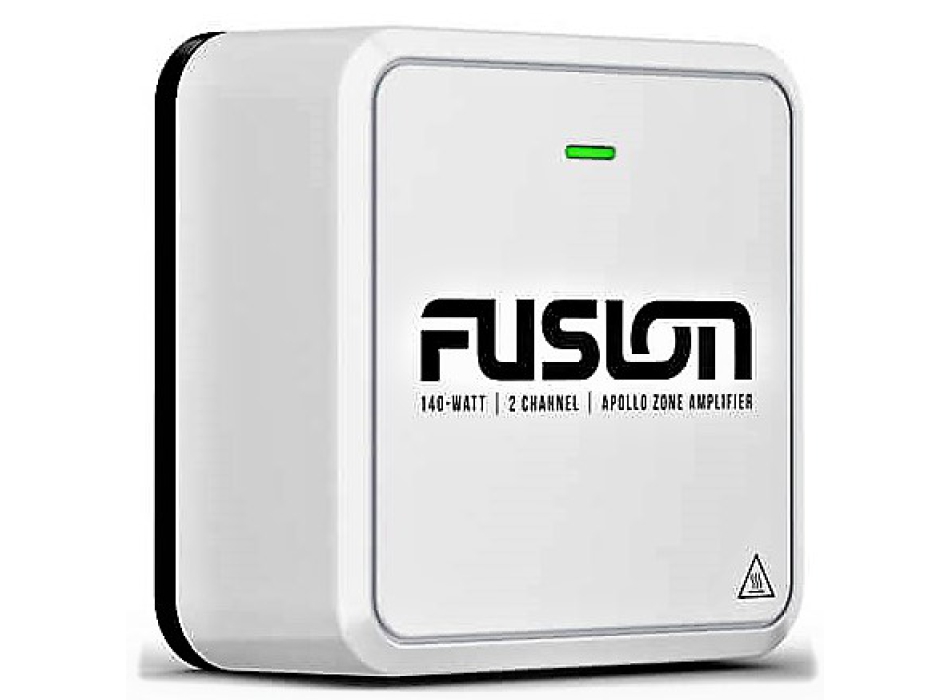

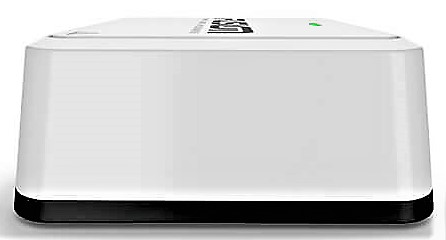

Fusion Zone Amplifier AP-DA214 2 Channels 140 W

  • Code: 010-02569-00
€ 179,00 € 199,00 -10%

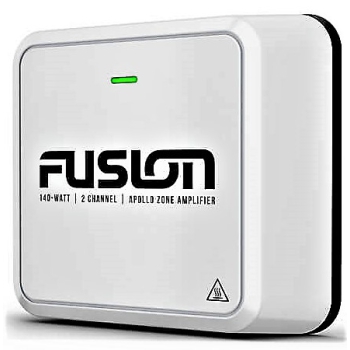

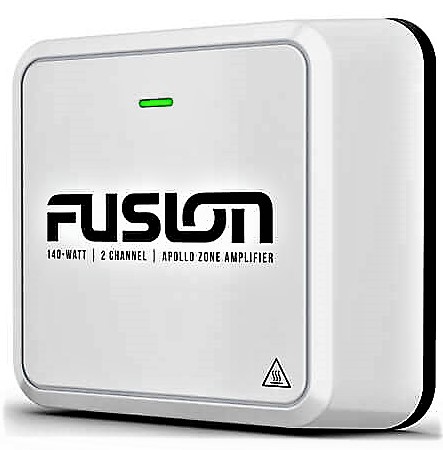

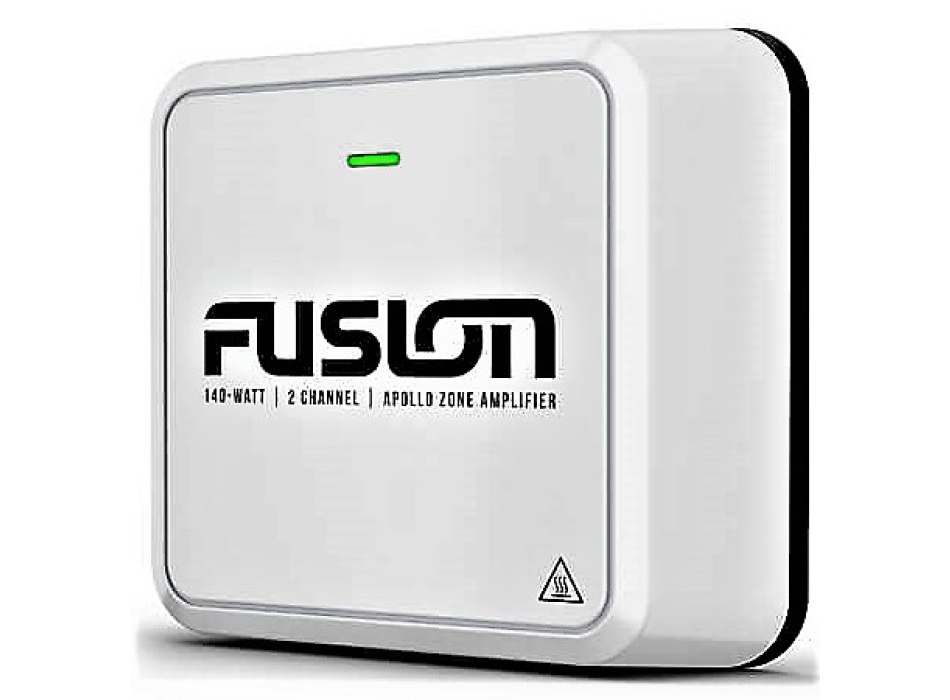

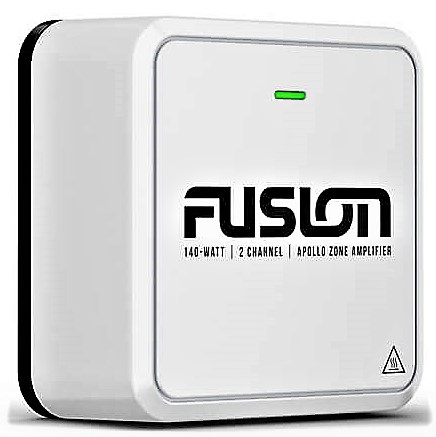

FUSION AP-DA214 Zone Amplifier 2 Channels 140 W

It is the difference between listening to music and hearing it.

Compatible with apollo series stereos only , designed specifically for use with your Fusion DSP-equipped marine stereo and Fusion speakers .

140 WATT ZONE AMPLIFIER The compact zone amplifier expands the audio for high quality sound throughout the boat. It is compatible with electrical systems from 12 to 24 volts.

POWER AND EFFICIENCY Apollo amps are designed to produce impressive power with less battery consumption. The monoblock model produces 650 watts RMS while the 4/6/8 channel amplifiers produce 150 watts RMS per channel.

EASY TUNING The Easy Tuning function automatically adjusts the audio settings of these amplifiers. Thus, you can get the best audio quality without making manual adjustments.

LESS DISTORTION In some amplifiers, adding power produces audio distortion. Ours are specially designed to minimize distortion and noise, so you can enjoy high quality audio even at higher volumes.

LED INDICATORS One glance is enough to identify any electrical problems. These lights indicate problems with electrical current, shorts and temperature.

MOUNTING BRACKETS Included mounting brackets simplify installation of onboard amplifiers.

IGNITION PROTECTED Ignition protection design helps prevent potential damage from overheating.

COVERED PCB The amplifier's printed circuit board has a special coating that provides additional protection in marine environments.

2 OHM STABILITY Connect up to two speakers per channel, increasing configuration options.

TRUE-MARINE FUSION DESIGN Amplifiers are designed to last season after season. They have been tested to ensure a high level of protection against salt spray, temperature variations, vibrations and UV rays.

TECHNICAL SPECIFICATIONS
  • Physical dimensions without personnel (WxDxH): 100 x 100 x 40 mm (3.94 ″ x 3.94 ″ x 1.57 ″)
  • Physical dimensions with brackets (WxDxH): 100 x 115 x 48 mm (3.94 ″ x 4.53 ″ x 1.89 ″)
  • Weight: 460g (1.01lb)
  • Waterproof classification: IPX7
  • Class D amplifier class
  • CEA-2006 Power Rating: 20 Watts RMS x 2 @ 14.4V Input - 4 Ohms <1% THD
  • Total Rated Output Power: 30 watts RMS x 2 @ 14.4V input - 2 Ohms <1% THD
  • Total rated output power: 140 watts
  • Monoblock input sensitivity: 0.45V RMS
  • Input Impedance: 9k Ohm
  • Operating voltage: 10.8V - 32V DC
  • Power Consumption (Standby): <1mA @ 14.4V input
  • Power Consumption (Idle): <0.04A @ 14.4V input
  • Power Consumption (max): 10A
  • Fuse: 16A electronic fuse (no need needed)
  • Safe Power On (SAE J1171)
  • Protection circuits: Reverse voltage, Undervoltage / Overvoltage in input, Over temperature, Short circuit in output
  • Operating temperature range 0 ° to 50 ° C
  • 3 years warranty

D. Salve, è compatibile con questi prodotti? Fusion MS-RA210 Pack con Casse XS Classic Fusion FM-S10R Subwoofer 10" griglia tonda
R. 10-06-24<br /> Buongiorno, sì certo confermo la compatibilità.<br /> Cordiali saluti.<br /> Luigi Bianchi
