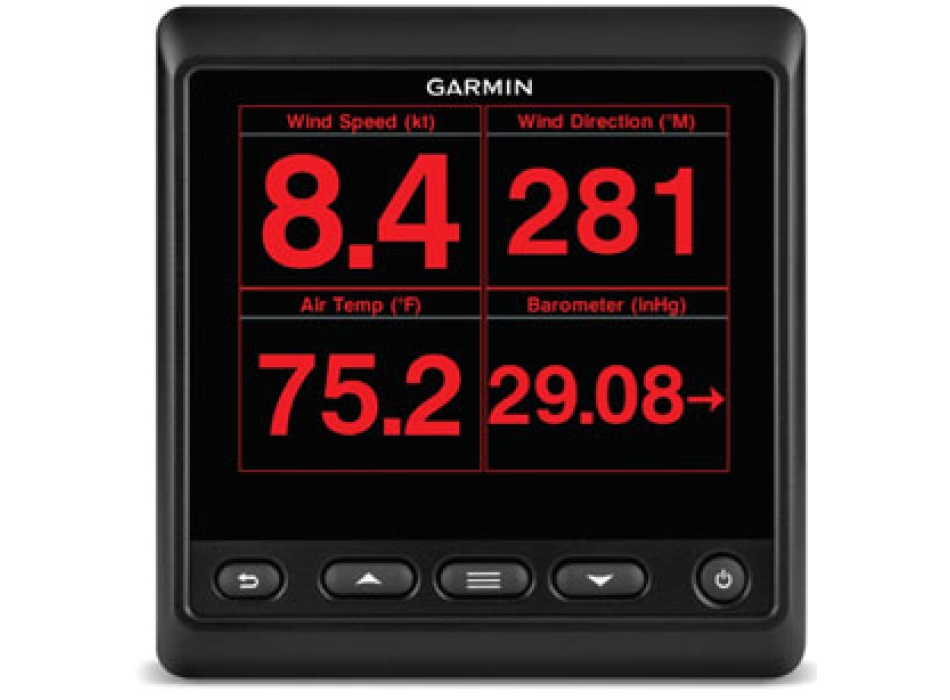

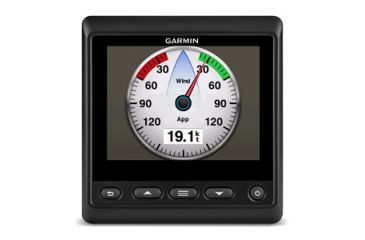

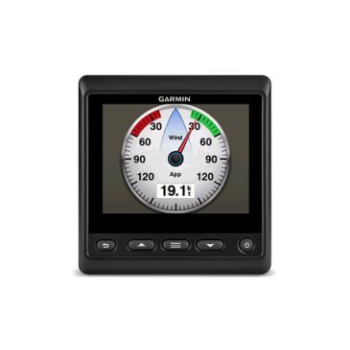

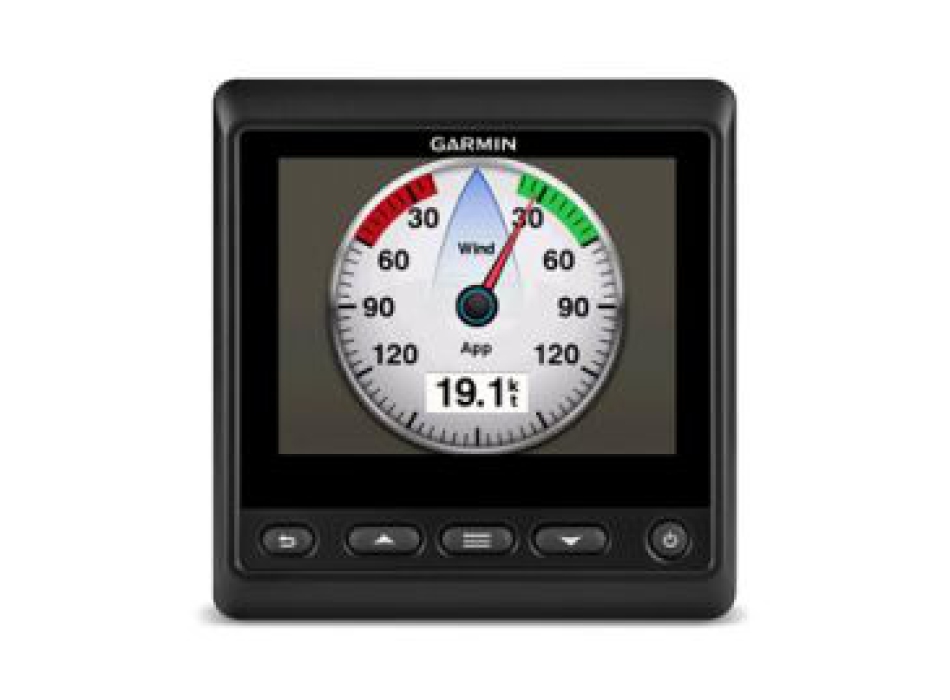

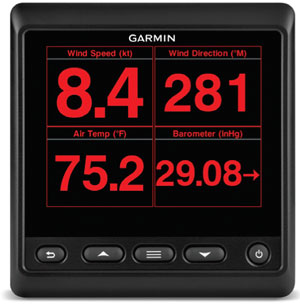

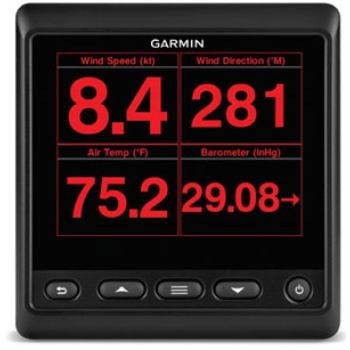

Garmin Display GMI 20
Innovative control unit Large and bright 4 "color LCD display
Very high contrast and anti-reflective treatment for the best possible daytime visibility
Maximum night visibility with red / black and green / black colors
Auto-scroll function of navigation data
Recessed or flush installation
Featuring a large, bright 4 ”display and large LCD characters, the GMI 20 is easy to get to and from any angle. This new multifunction display is equipped with the best possible night visibility, with three different color combinations (full color, red / black, green / black) and is perfectly visible in sunlight thanks to the high contrast of its latest generation LCD. .
Thanks to its technological design, the GMI 20 harmonizes and characterizes any dashboard. The GMI 20 allows the display of over 100 navigation data, including: speed, depth, wind, GPS, engine data and much more. Inside the GHC 20 package there are two bezels: “black” for installations with Glass Helm chartplotters and “silver” for installations with 4000/5000/6000/7000 series chartplotters.
Specifications Dimensions: (H × W × D): 110 x 115 x 30 mm
Weight: 247g
Temperature range: -15 ° to 70 ° C
Waterproof: IPX7
Power Consumption: Maximum 2.5W
Maximum unit voltage: 32 Vdc
NMEA 2000® input voltage: 9-16 Vdc
LEN NMEA 2000: 6 (300 mA at 9 Vdc)
Packaging GMI ™ 20
Black mask
Silver mask
Protective cover
Recessed installation kit
NMEA 2000 power cable
NMEA 2000 drop cable
"T" connectors
NMEA 2000 Terminals
Documentation
