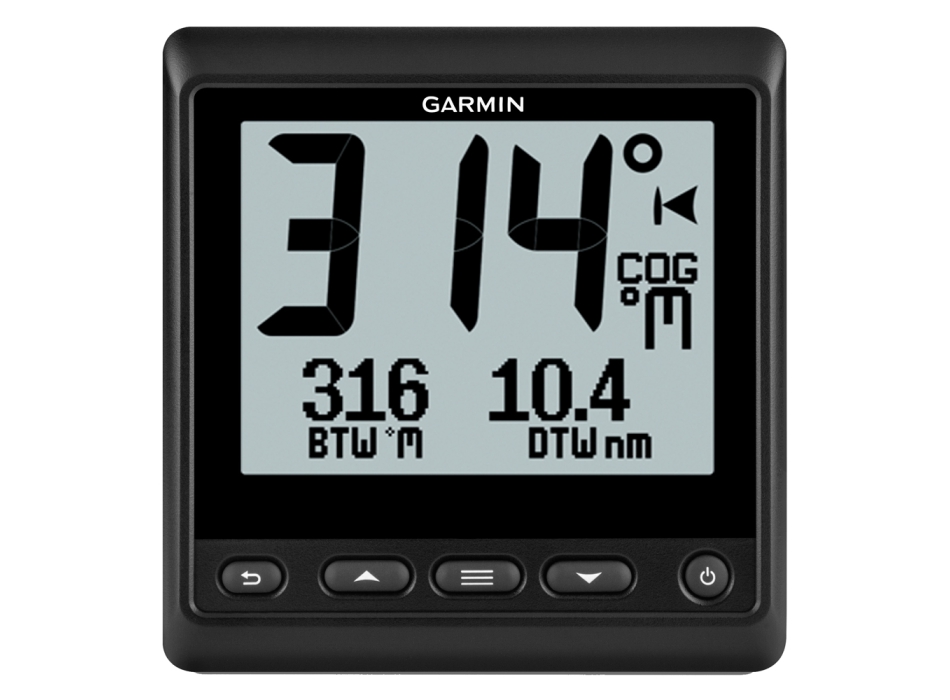

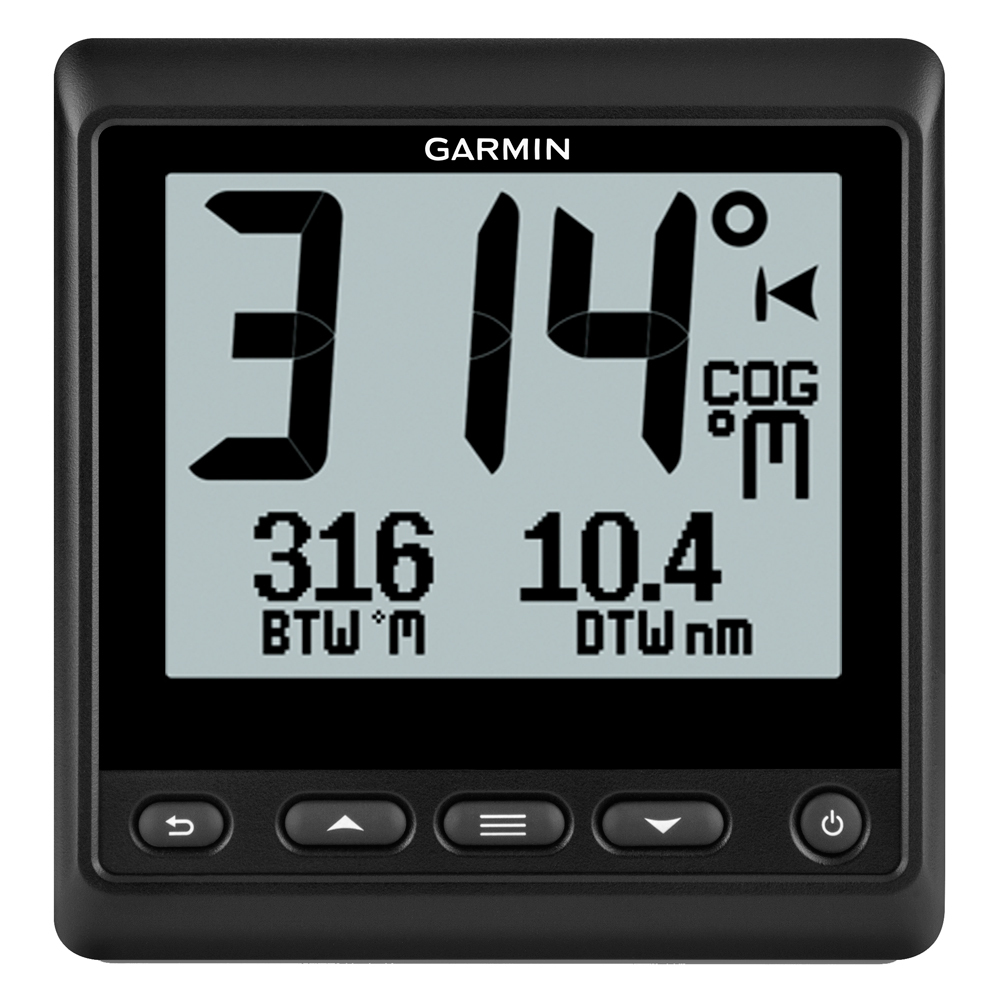

Garmin Display GNX 20 4" b/w
Large, easy-to-read black digits and graphs on a white background provide high contrast and excellent visibility.
Backlighting with 7 different customizable colors
Glass-bonded LCD and anti-glare display
Fully customizable user profiles to view the most important data
Low power consumption (25 mA) with 350 mW (no backlight)/400 mW (mid-level backlight)
GNX 20 4" monochrome display overlays black digits on a white background, with high contrast for clear visibility in any light condition and any reading angle. The GNX 20 is the first glass-bonded LCD display with three different data fields and thanks to fully customizable profiles, it is possible to view and customize the layout of over 50 data pages. The Auto-scroll function, on the other hand, allows you to rotate only the data of interest to you.
If you want a different backlight color, the display can be customized by choosing between 7 different colors: red, orange, yellow, green, blue or purple. Based on these colors the user can also create a customized one for optimal data visualization.
Specifications
Appearance and performance
Physical dimensions 110 x 115 x 30 mm (4.33" x 4.53" x 1.18")
Weight 230 g (8 oz)
Screen size, WxH 4" diagonal
Screen type Standard LCD, monochrome
IPX7 waterproof rating
Glass screen Yes
Operating temperature 9-16 V (from NMEA 2000)
Compass safe distance 209 mm (8.25 in.)
Operating voltage 9-16 V (from NMEA 2000)
Energy consumption
0.35W (day); 0.4W (night)
Flat or Flush mounting options
Features and benefits
NMEA 2000® certified Yes
NMEA 0183 compatible Yes
Automatic activation Yes
User profiles Yes
Packaging
GNX display
Protective cover
2 m NMEA 2000 cable
T-connector
Installation kit
User Manual
