Garmin echoMAP UHD 92SV Livescope Pack

The Package we offer you is a unique opportunity for your fishing trips in lakes and rivers, thanks to Garmin's LIVESCOPE function.
  • Code: 010-02522-01+010-02706-00
Garmin
(0)
€ 2.899,00 € 3.778,00 -23%
add to favorites

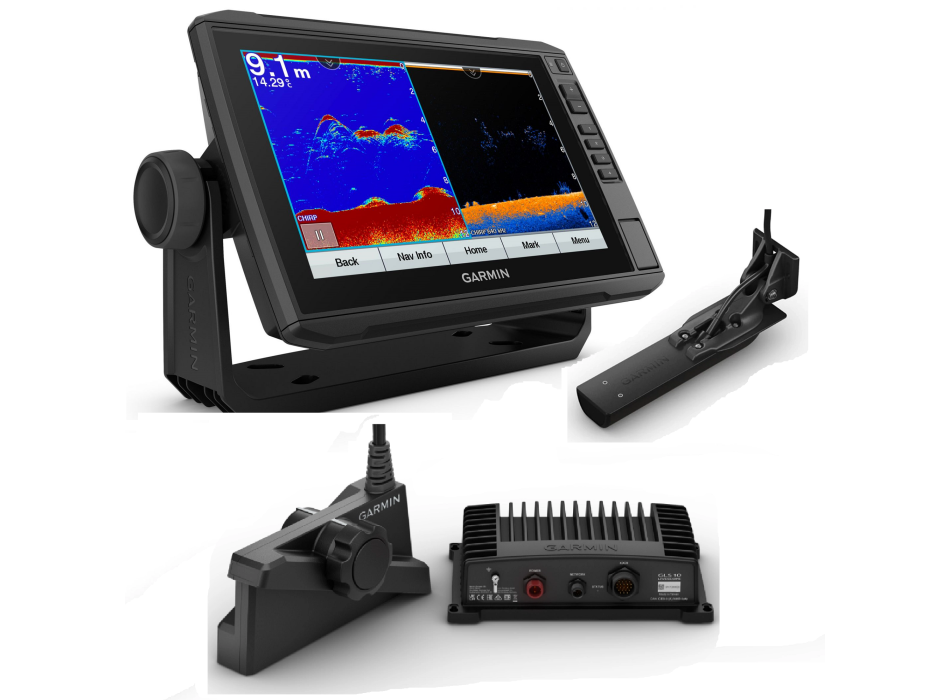

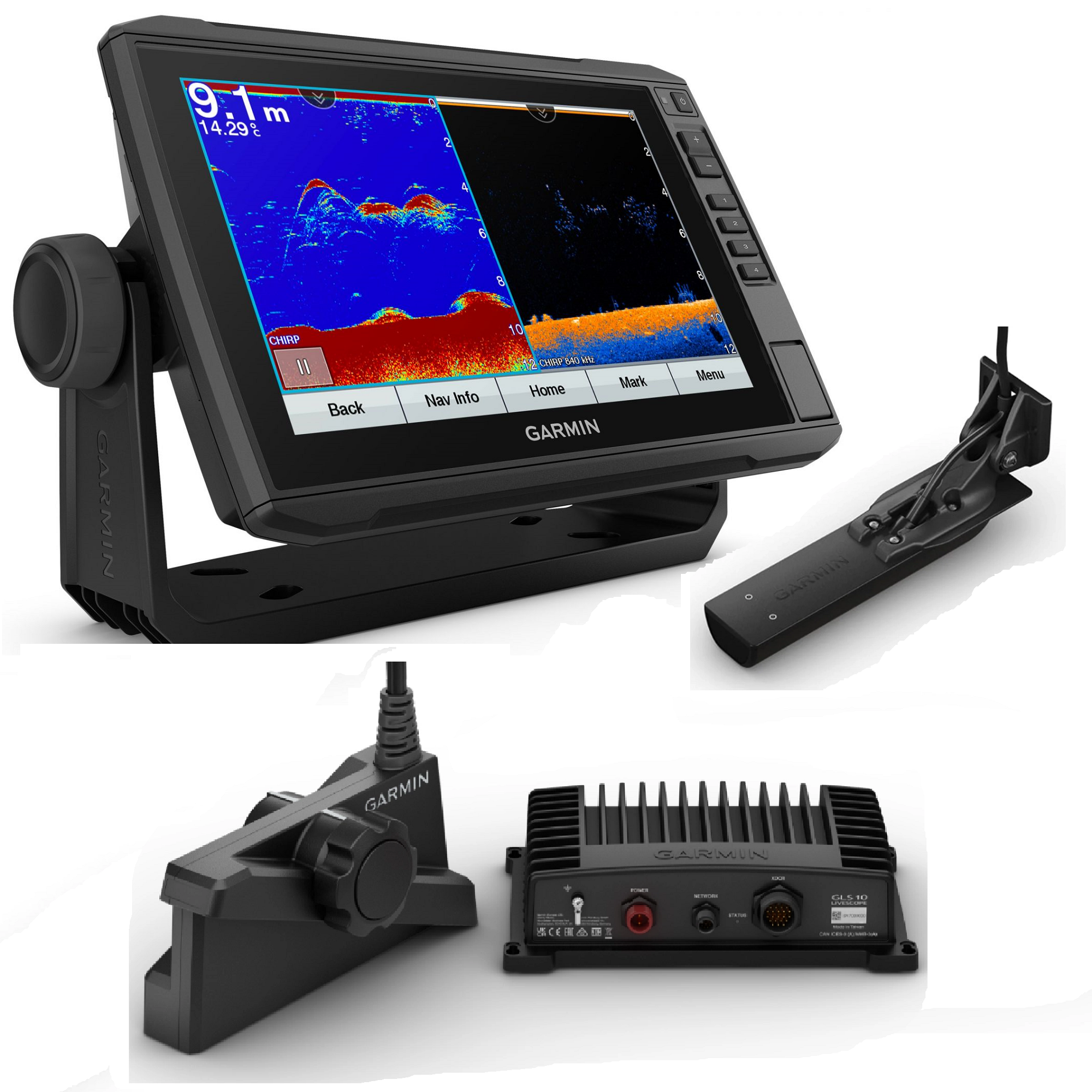

Garmin echoMAP UHD 92SV Chirp Livescope Pack
With GT56-TM Transducer and Livescope with Box and LVS34


ENTER THE GARMIN WORLD

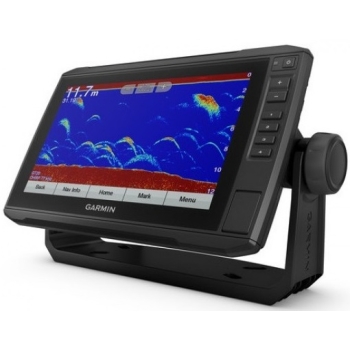

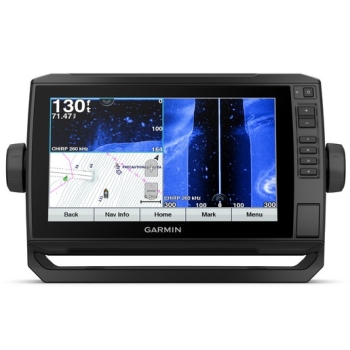

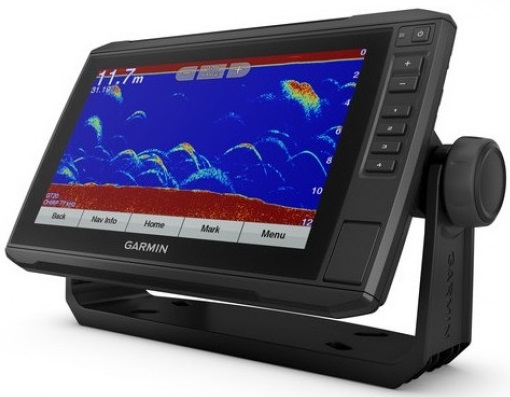

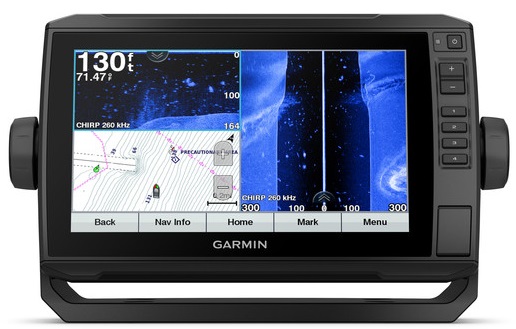

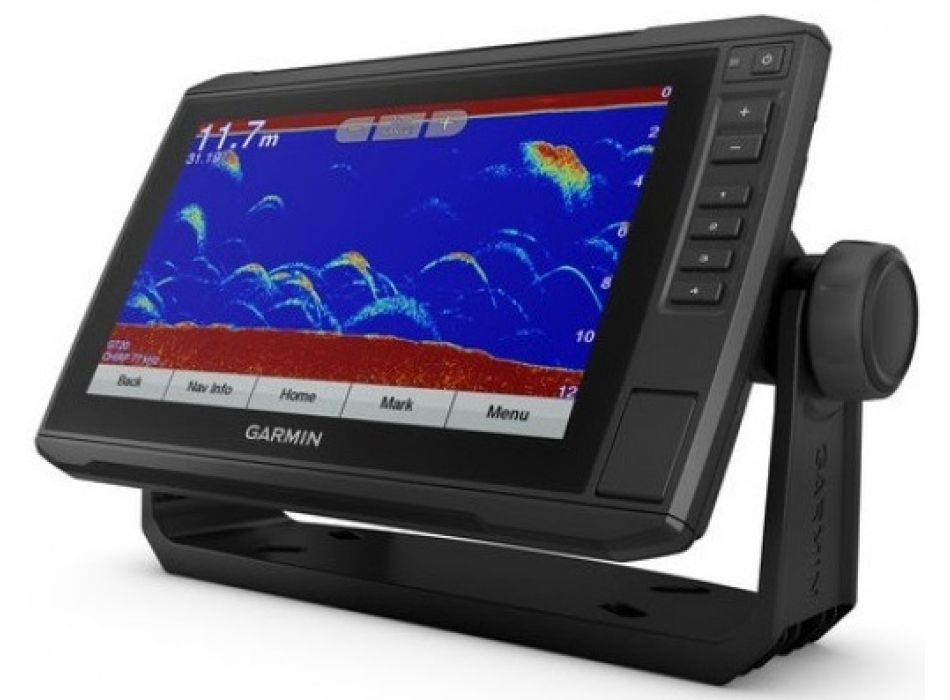

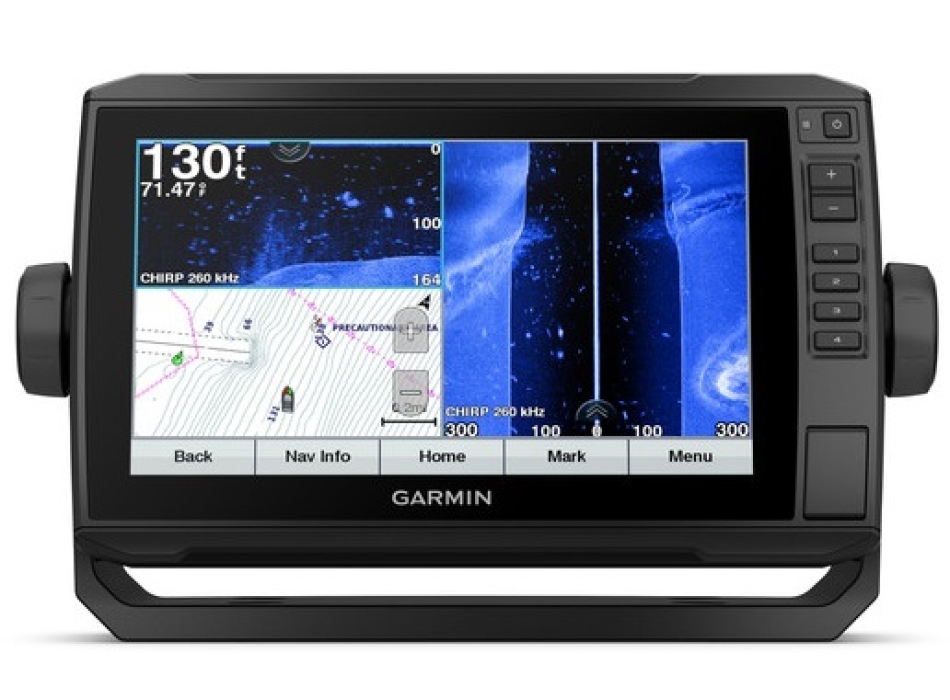

The new combined chartplotter of the ECHOMAP™ UHD series, available with a bright 9” color display, is equipped with Ultra High-Definition technology, traditional CHIRP, CHIRP SideVü™.
View what's around and beneath your vessel in incredible detail with an optional transducer
Compatible with BlueChart® g3 & g3 Vision® HD, Garmin Navionics Plus and Vision and AutoGuidance features
The 7" and 9" displays share data such as routes, waypoints and data with ECHOMAP™ Plus, ECHOMAP UHD and ECHOMAP Ultra
Manage your browsing experience wherever you are
Total management of the new Force and Kraken electric motors.

DEPTH SOUNDER SUPPORT
The 7” and 9” displays support Panoptix all-seeing sonar and Panoptix LiveScope™ systems, which allow you to view what is around your vessel in real time.

OPTIONAL TRANSDUCER BUNDLE
GT56 transducer included with Ultra High-Definition ClearVü and SideVü scanning, showing clear images of what's underneath and around your vessel. You can also use the traditional wide-range CHIRP sonar for perfect obstacle distinction.

The high definition Panoptix™ even more defined with the new LVS34!

View structure and fish under or around your boat in real time, even when the boat is stationary with high definition technology
View extremely clear real-time images of the seabed, structures and fish under and around your boat in detail never seen before
The integrated AHRS sensor allows you to compensate for the movement of the vessel, ensuring a stable image and offering a clear and precise visual result
The simple plug-and-play connector allows for quick and easy installation with your Garmin chartplotter.


Packaging
echoMAP UHD 92SV
GT56 UHD transom transducer
LiveScope GLS 10 sonar black box
Panoptix LVS34 transducer
Data/power cable
Quick release mount
Flush mounting kit
Brackets for installation on the stern or on an electric motor
Fast guide
General
Dimensions 28.2 x 16.4 x 6.0 cm
Weight 1.0kg
IPX7 waterproof rating
Screen type WVGA display
Screen size, WxH 9"
Screen resolution, WxH 400 x 800 pixels
Power consumption 18W
GPS antenna Internal_or_external_over_NMEA_2000
Mounting options Bracket or flush mounted
5 Hz receiver
Garmin Marine Network™ ports 1 Panoptix™ port

Maps and memory
External storage 1 microSD™ card; with maximum capacity 32 GB
Waypoints 5
100 memorized routes
Track log 50,000 points; 50 saved tracks
Preloaded cartography None
Functions for outdoor activities
Tide data
Chartplotter functions
Compatible with Garmin black boxes yes
Compatible with AIS function
Compatible with DSC function
Fusion Lync

Depth sounder functions and specifications
Dual frequency
Double cone
Supported frequencies
CHIRP (low, medium, high)
Traditional: 50/77/83/200 kHz
ClearVü: 260/455/800 kHz
SideVü: 260/455/800 kHz
Transmit power 500W (RMS) / 4,000W (peak to peak)
CHIRP Yes (built-in)
ClearVü Yes with CHIRP (built-in)
SideVü Yes with CHIRP
Maximum depth
2,300 ft @ 77 kHz, freshwater
1,100 ft @ 77 kHz, saltwater
(depth capacity is dependent on water bottom type and other water conditions)
Zoom
Water temperature data and graph
Registration
Historic

Connections
NMEA 2000®
Number of transducer pins 12
NMEA 0183 input 1
NMEA 0183 output 1
Video input None
Video output None
Wireless Connectivity Yes

Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno volevo sapere cortesemente se il giorno 24 novembre black friday fate sconto per un ecoscandaglio Garmin uhd 9 pollici quelli con trasduttore di poppa incluso che in questo momento lo vendete a 1099€ Grazie per l attenzione Distinti saluti
R. 21-09-24<br /> Buon pomeriggio, diciamo che l'articolo echoMAP 92sv UHD, è già proposto in promo Black Friday. Si tratta di uno stock limitato fino ad esaurimento scorte. Non posso nemmeno garantire che per il BF li possa proporre ancora a questo prezzo.<br /> Cordiali saluti. <br /> Luigi Bianchi
D. Buongiorno Quindi su ECHOMAP UHD2 92sv è possibile montare contemporaneamente il trasduttore GT56 e la sonda live LVS 34…intendo insieme contemporaneamente Vi ringrazio in anticipo per la risposta
R. 04-06-24<br /> Buongiorno, sì certo è possibile perchè il GT56 si collega direttamente al display echoMAP, mentre il trasduttore LVS34 si collega alla box GLS10 che, a sua volta, si collega all'echoMAP 92SV tramite cavo ethernet in dotazione.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buonasera Possibile inserire in questo pacchetto la versione UHD2 delll ECOSCANDAGLIO
R. 25-05-24<br /> Buongiorno, nel caso del 92SV UHD2, dovrà acquistare i due componenti separati:<br /> https://www.painestore.it/garmin_echomap_uhd2_92sv_eco/plotter_9_<br /> https://www.painestore.it/garmin_panoptix_live_scope_con_lvs34<br /> Consiglio di approfittare vista la promo weekend a sconto 15%.<br /> Cordiali saluti. <br /> Luigi Bianchi
D. Buonasera, perchè il Package Garmin echoMAP UHD 92SV Livescope Pack lo consigliate solo per l'acqua dolce? non si può usare anche in acqua salata? in caso quale sarebbe il prodotto compatibile per l'acqua salata quindi sonda per i tipi di pesca costieri più phanoptix per il drifting. grazie
R. 23-04-24<br /> Buonasera, esattamente, il kit in oggetto è per uso esclusivamente in acqua dolce. Per l'acqua salata abbiamo appunto creato questa versione:<br /> https://www.painestore.it/garmin_echomap_uhd_92sv_panoptix_pack<br /> Trasduttore eco standard non incluso, solo trasduttore PS31 Panoptix.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno, ho visto la possibilità di rateizzare il pagamento del pacchetto livescope...è possibile farlo più lungo di 4 rate??
R. 03-01-24 Buon pomeriggio, sì certo è possibile, può inviar l'ordine con pagamento mediante finanziamento, mi dovrà indicare il numero di rate, poi Le invieremo un preventivo tramite finanziaria Santander. L'ordine non è vincolante. Cordiali saluti. Luigi Bianchi
