Garmin echoMAP Ultra 102SV Livescope Pack

The Package we offer you is a unique opportunity for your fishing trips in lakes and rivers, thanks to the Garmin LIVESCOPE function.
  • Code: 010-02526-01+010-02706-00
€ 3.399,00 € 4.668,00 -27%

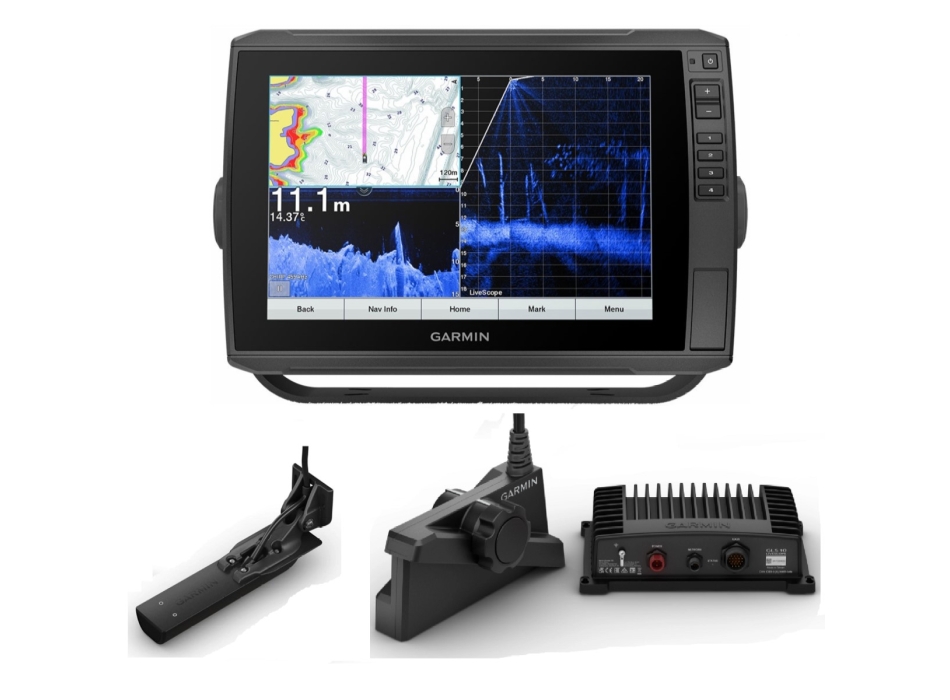

Garmin echoMAP ULTRA 102SV Livescope Pack
With GT56-TM Transducer and Livescope with Box and LVS34


ENTER THE WORLD OF GARMIN LIVESCOPE
Combination chartplotter with bright 10" display and equipped with keyed-assist touchscreen, an innovative keyboard-assisted touchscreen system
Compatible with Panoptix LiveScope™ sonar technology and the Panoptix LiveScope LVS12 transducer
Share sonar data, waypoints and routes with other 10" and 12" ECHOMAP Ultra and 7" and 9" ECHOMAP Plus units
Completely free Quickdraw Contours feature that allows you to independently trace your own HD bathymetric contours every 30 cm
Integrated Wi-Fi® connectivity allows access to the world of ActiveCaptain™, the new completely free application that allows you to have a unique experience with the Garmin Marine instruments installed on board
NMEA 2000® Connectivity

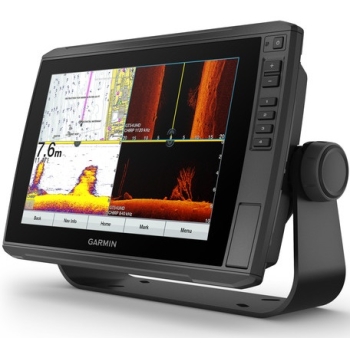

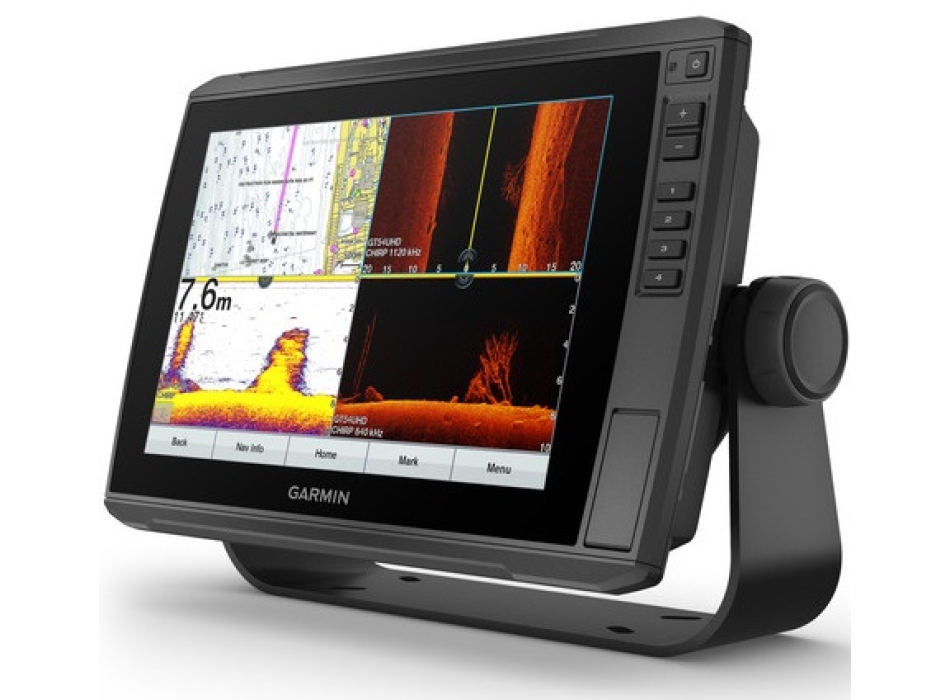

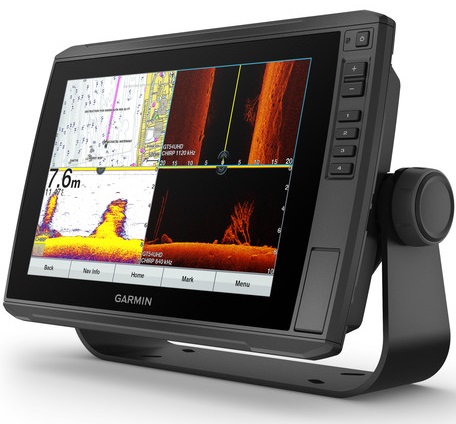

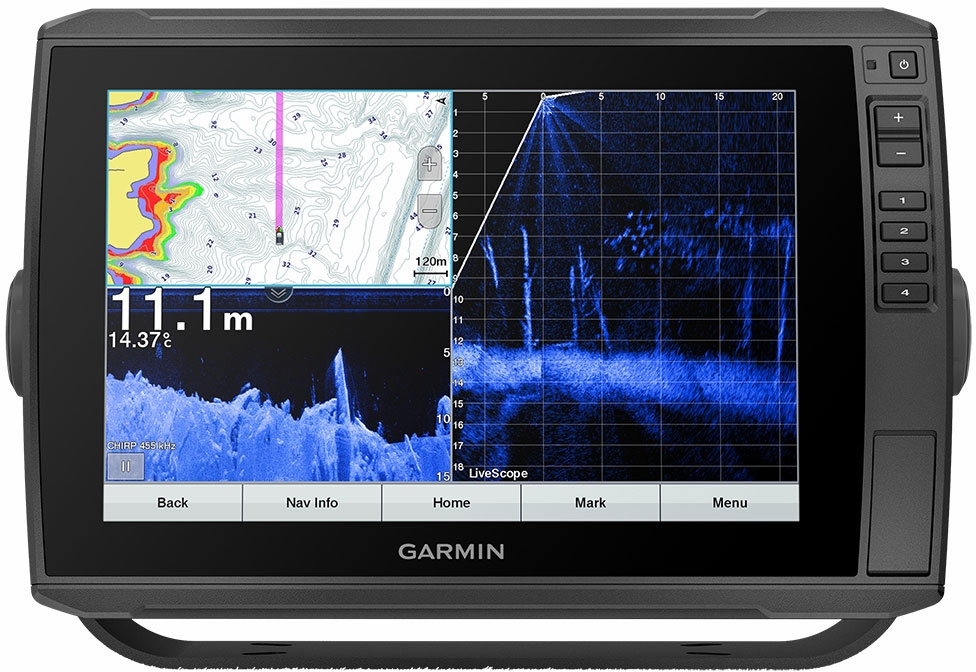

The new ECHOMAP Ultra 102sv offers the convenience of a touchscreen with keypad, thanks to the bright, sunlight-readable 10" display. It includes support for the clear, crisp images of traditional Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and It is compatible with the Panoptix 360° view sounder. It is compatible with BlueChart® g3 cartography, as well as the new Garmin Navionics that integrates the best of Navionics® data.
Full management of the new Force and Kraken electric motors.

The new ECHOMAP Ultra 102sv with GT56UHD-TM supports the latest generation Panoptix LiveScope transducers as well as the entire line of Panoptix™ transducers that allow you to scan and display in real time everything that is happening in front of and below your vessel, ensuring an exact perception and extremely realistic.
The integrated module features CHIRP technology, which simultaneously sends a signal on multiple frequencies, from high to low, then interprets the echo of each individual frequency. This continuous spectrum provides a greater amount of information to the CHIRP sonar, which uses to process sharper, higher-resolution images.
CHIRP ClearVü technology enables higher resolution for better target discrimination and superior detail.
CHIRP SideVü technology is the innovative feature for viewing bottom compliance and underwater structure to the sides of your vessel.

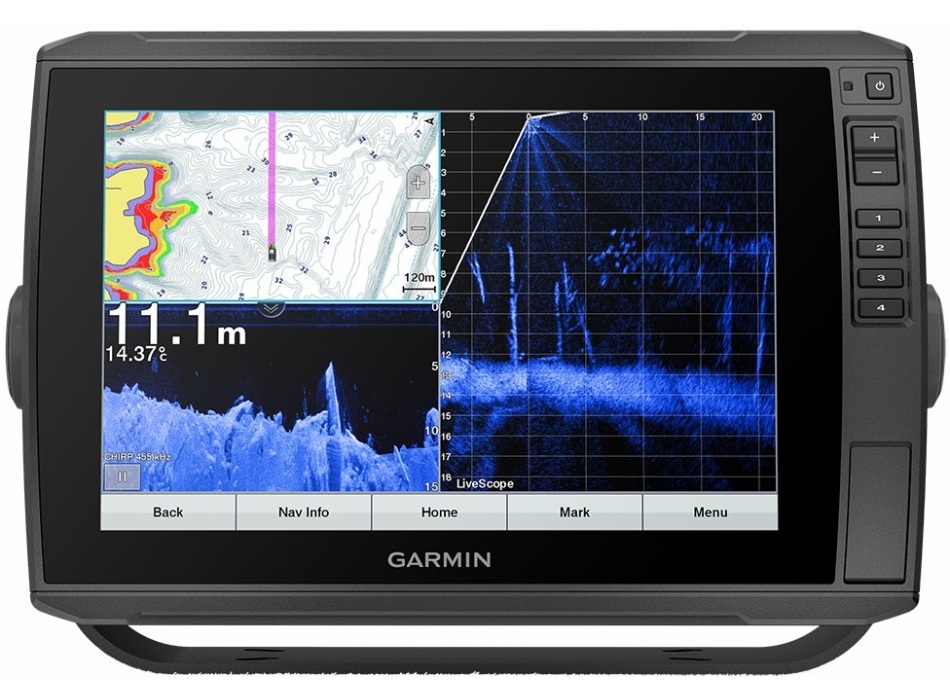

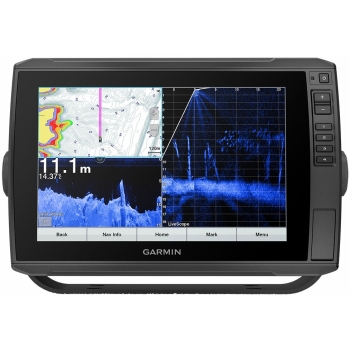

echoMAP Ultra displays support Panoptix all-seeing sonar and Panoptix LiveScope™ systems, which give you a real-time view of what's around your vessel.

OPTIONAL TRANSDUCERS BUNDLE
GT56 transducer included with Ultra High-Definition ClearVü and SideVü scanning sonar, which provide a clear image of what is below and around your boat. You can also use traditional wide-range CHIRP sonar for superior obstacle separation.

The High Definition Panoptix™ just got even sharper with the new LVS34!

View structure and fish beneath or around your boat in real time, even when your boat is stationary with high-definition technology.
View razor-sharp, real-time images of the bottom, structure and fish beneath and around your vessel in unprecedented detail.
The integrated AHRS sensor allows to compensate for the movement of the vessel ensuring a stable image and offering a clear and precise visual result.
The simple plug-and-play connector allows for quick and easy installation with your Garmin chartplotter.

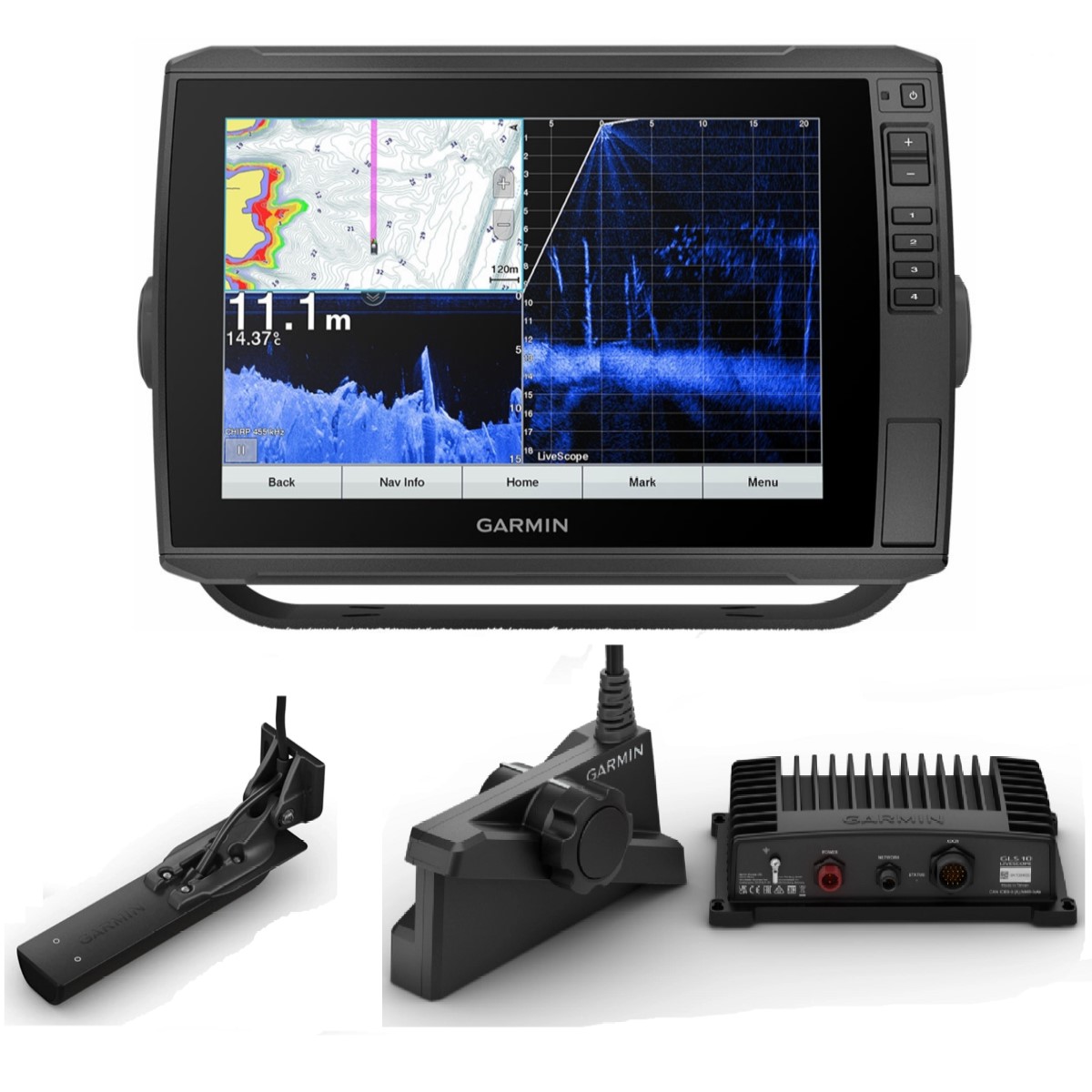

Packaging
echoMAP Ultra 102SV
GT56 UHD Transom Transducer

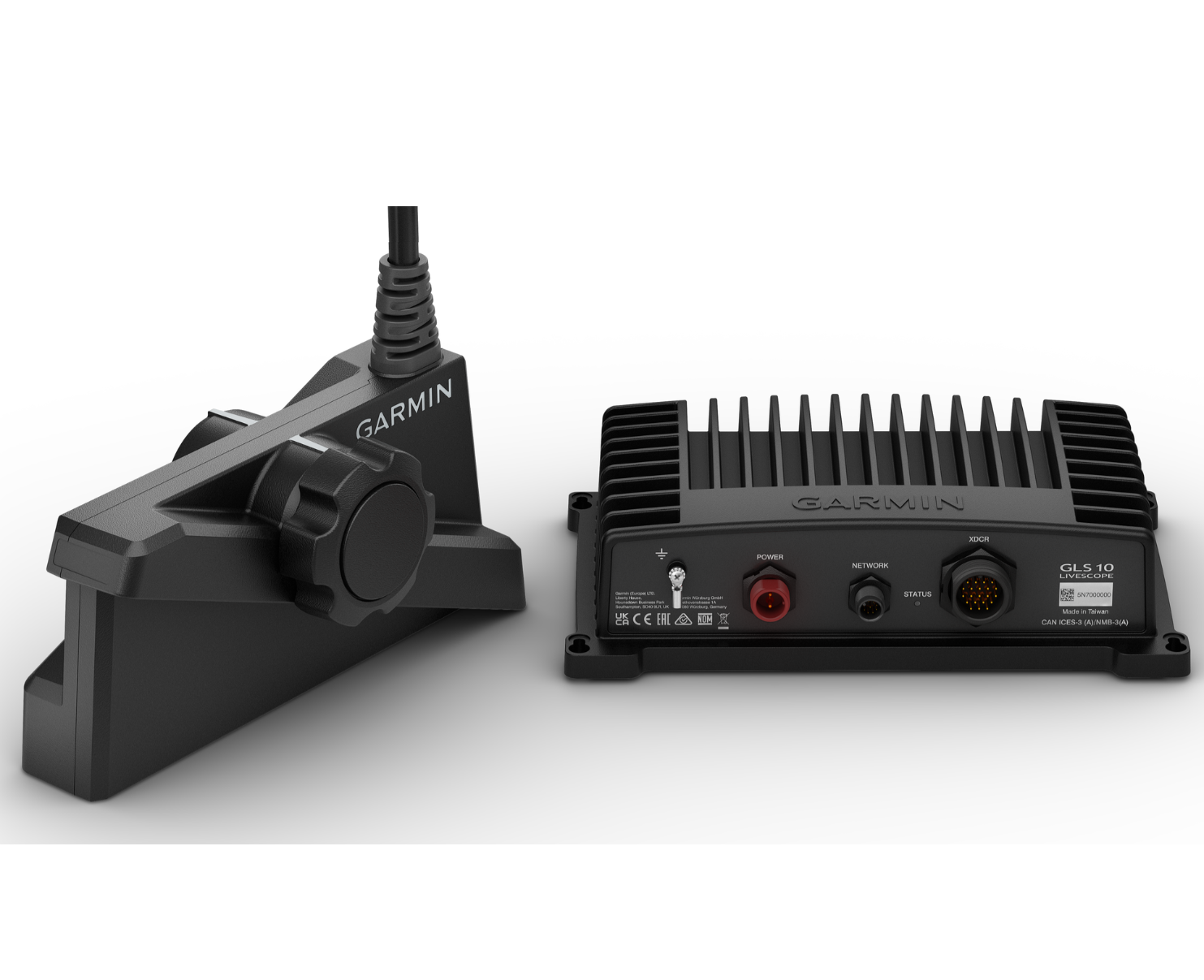

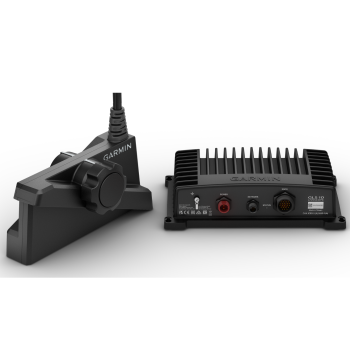

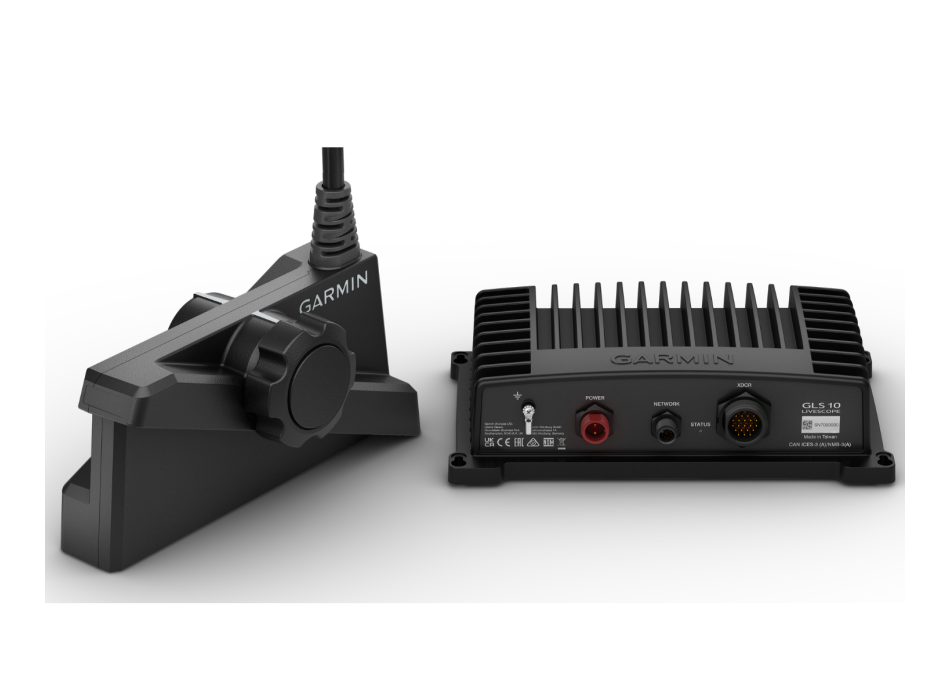

LiveScope GLS 10 sonar black box
Panoptix LVS34 Transducer
Data/Power Cable
Quick release mount
Flush Mount Kit
Brackets for installation on the stern or on an electric motor
Quick Guide
Ultra 102SV Technical Specifications
Dimensions 295 x 195 x 98 mm
Screen size, WxH 21.7 cm x 13.6 cm; 10" diagonal
Screen resolution, WxH 1280 x 800 pixels
Screen type WXGA screen
Weight 1.8 kg
IPX7 waterproof rating
Polarized Support
Power consumption 26W
Internal or external GPS antenna on NMEA 2000 network
Mounting options: Bracket or flush mount
Receiver 10Hz
Garmin Marine Network™ 2 ports (large connector)

Maps and Memory
External memory 2 microSD™ cards
Waypoints 5,000
Memorable routes 100
Track log 50,000 points; 50 tracks

Functions for outdoor activities
Tide data

Chartplotter Functions
Compatible with Garmin black boxes Yes
Compatible with AIS function
Compatible with DSC function
Supports FUSION-Link™ compatible radios
GCV™ Black Box Sonar Support
ActiveCaptain compatible Yes
Sailing functions

Fishfinder Features and Specifications
Dual frequency
Double cone
Frequencies supported CHIRP High-Wide: 150-240 kHz
Ultra High-definition ClearVü: 800 kHz (760-880 kHz)
CHIRP ClearVü: 455 kHz (425-845 kHz)
Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz)
Transmit power 500 W (RMS) / 4,000 W (peak-peak)
CHIRP Yes (built-in)
ClearVü Yes
SideVü Yes
Maximum depth 600 in fresh water
350 in salt water (the maximum approximate range depends on factors such as the type of seabed and other water conditions)
Zoom
Water temperature data and graph
Registration
Historical

Connections
NMEA 2000® compatible
Transducer pin number 12
NMEA 0183 Input Ports 1
NMEA 0183 Output Ports 1
Wireless Connectivity Yes
