Garmin Force 50 "Electric Trolling Motor

  • Code: 010-02024-00
€ 3.849,00 € 4.049,00 -5%

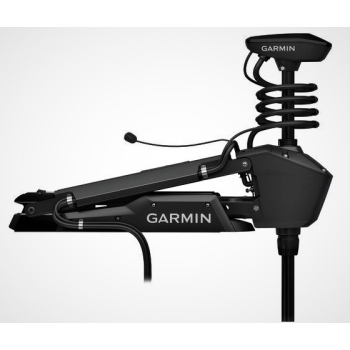

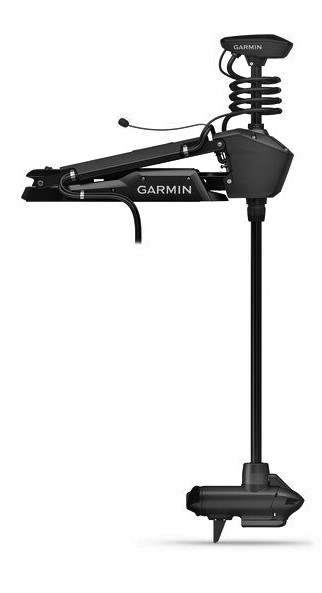

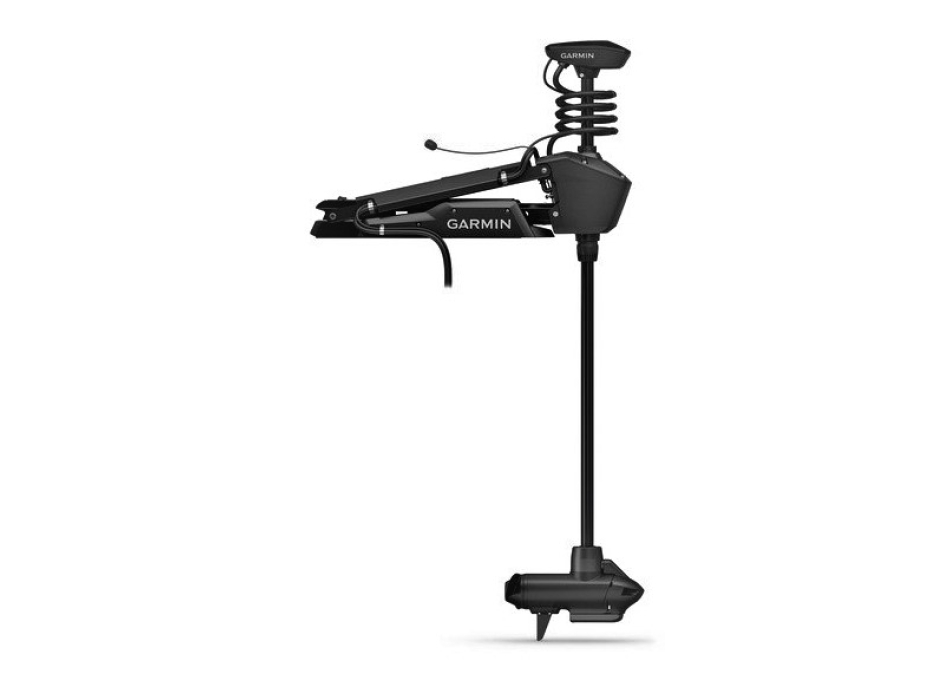

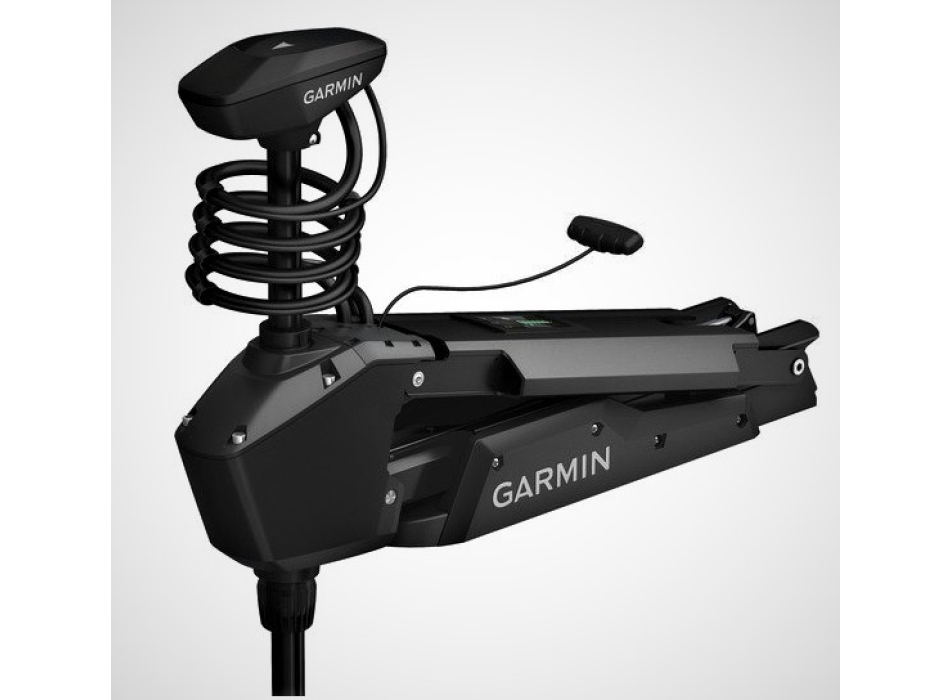

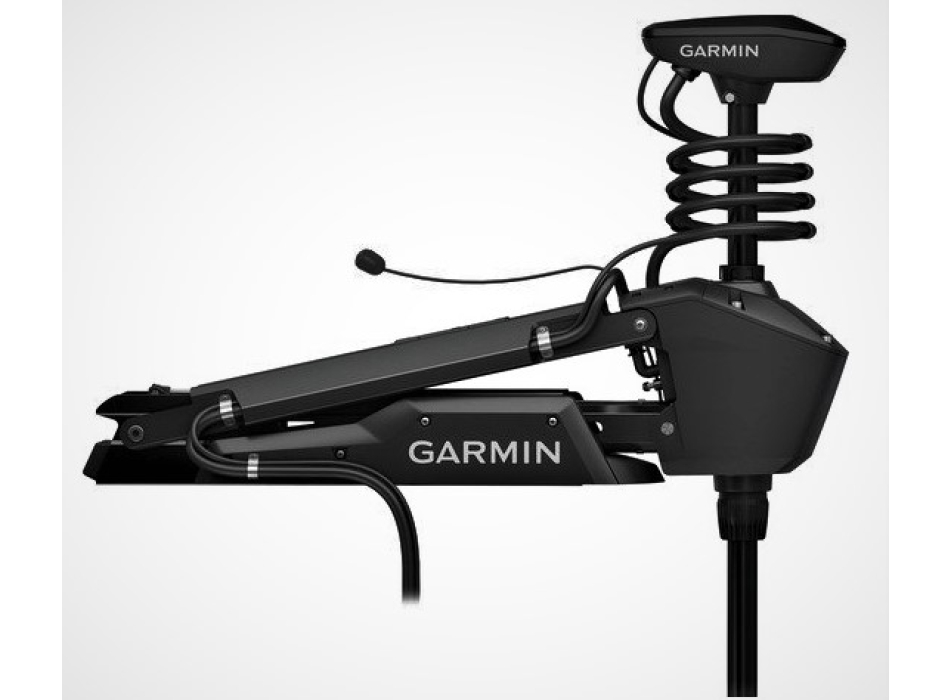

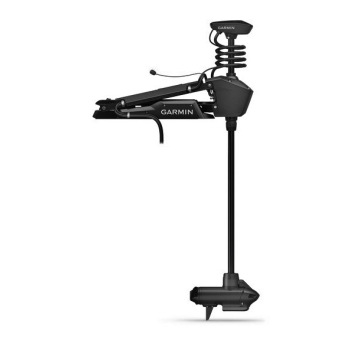

Garmin ForceTrolling Motor 50 "Electric Motor
Catch your prey faster and dominate the waters with the most powerful and efficient electric motor available on the market. Incredibly quiet, this motor does not scare fish and is almost inaudible to the depth sounder, so as not to interfere with static data reading.
Use the wireless connection to connect Force to your Garmin chartplotter, so you can create routes to your favorite waypoints and follow the tracks as you fish.

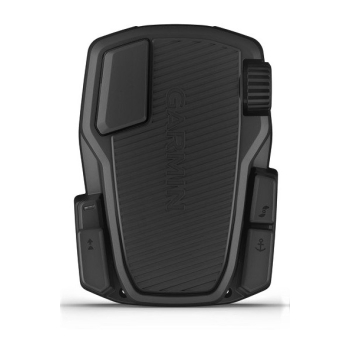

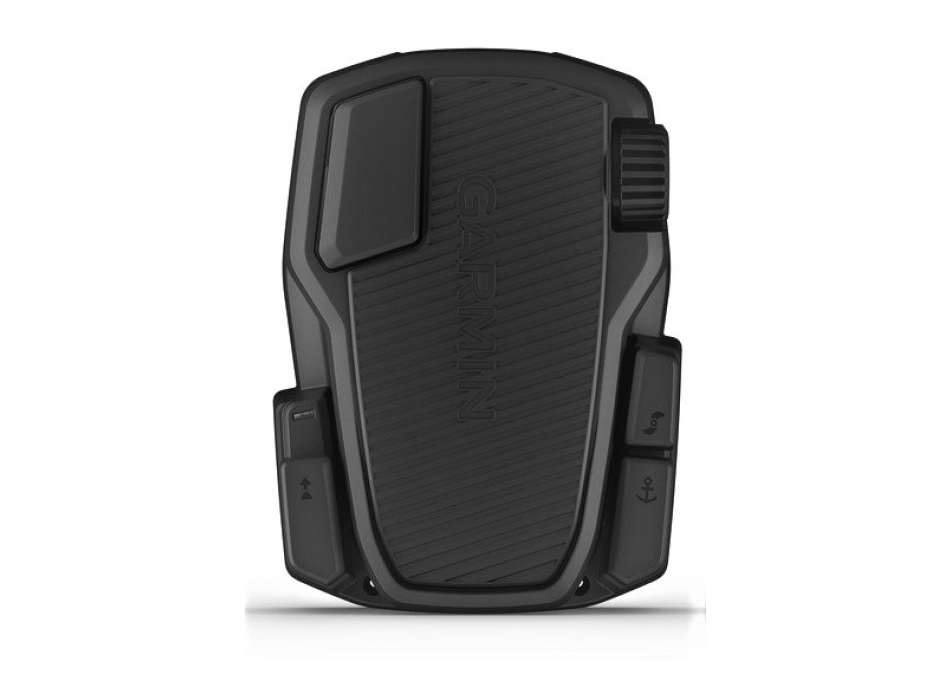

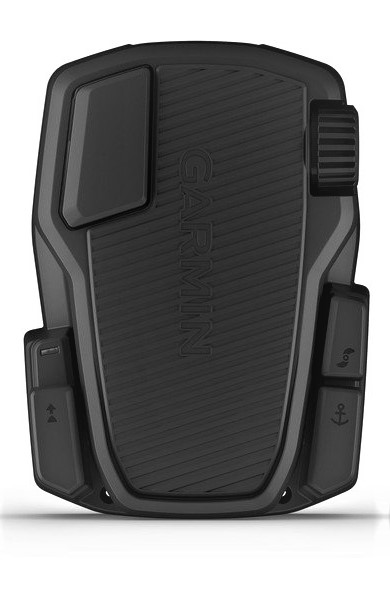

WIRELESS PEDAL

The practical pedal offers with the same immediate responsiveness as a pedal with a steering cable. It works wirelessly powered by AA batteries, or by cable.

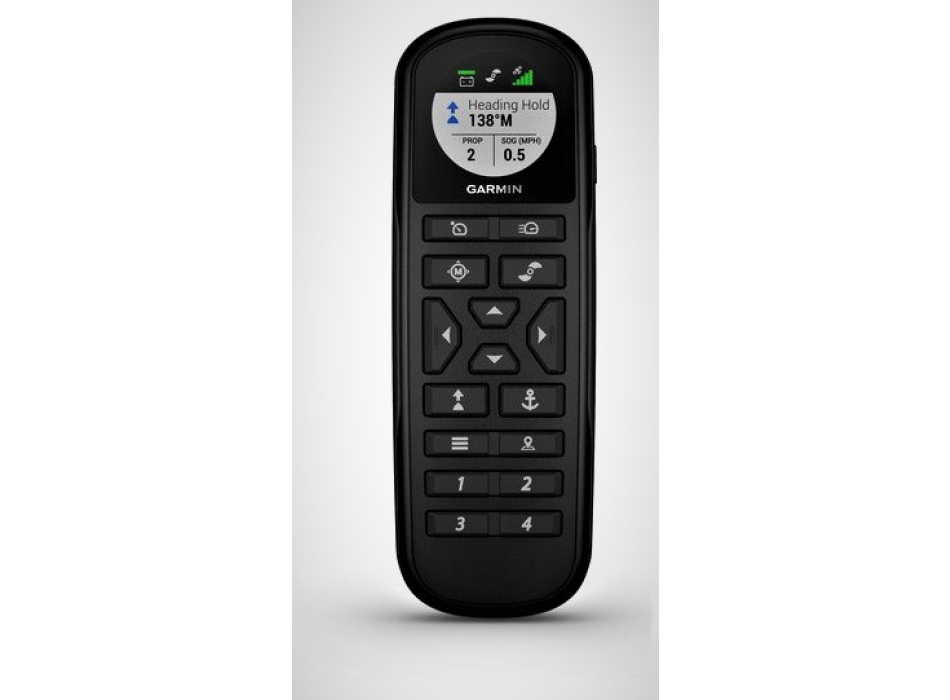

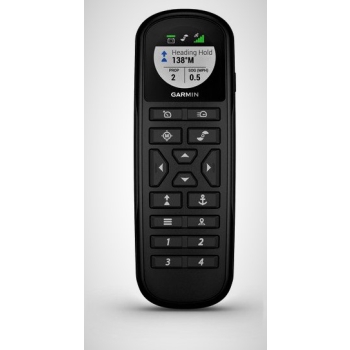

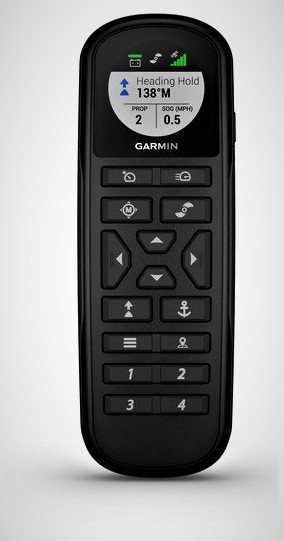

WATERPROOF AND FLOATING REMOTE CONTROL

The included portable remote control with anti-glare screen allows you to control the electric motor and offers the ability to turn with the simple “point and go” movement. Use the user programmable keys to control your chartplotter.

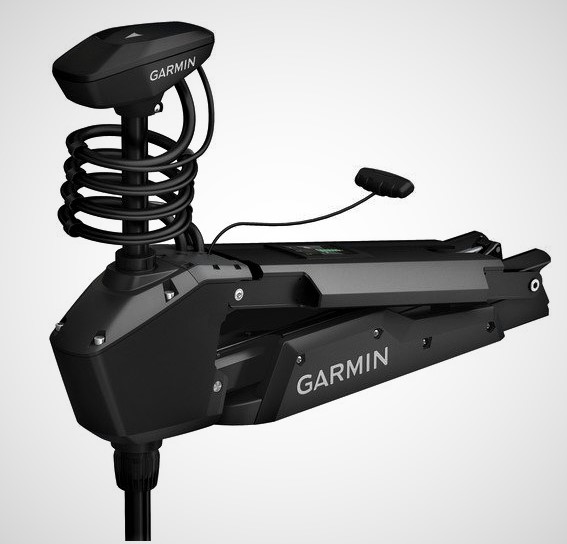

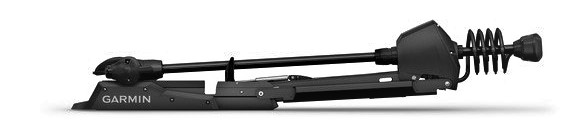

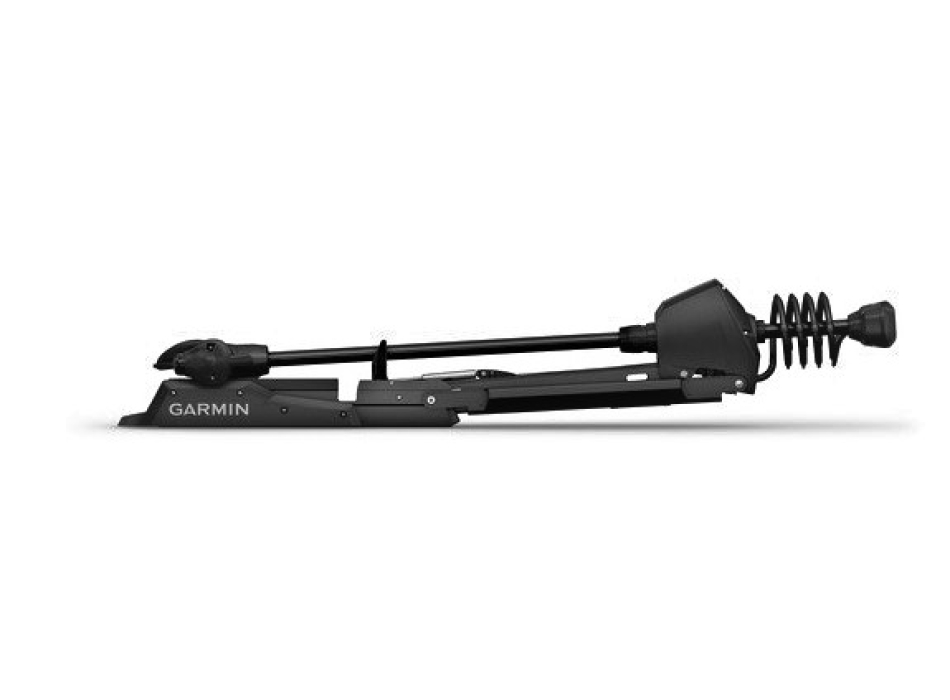

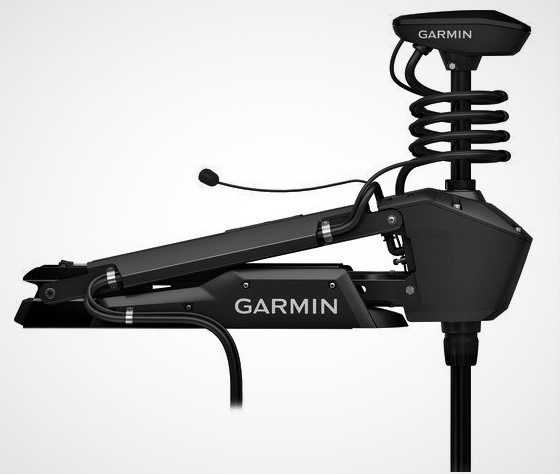

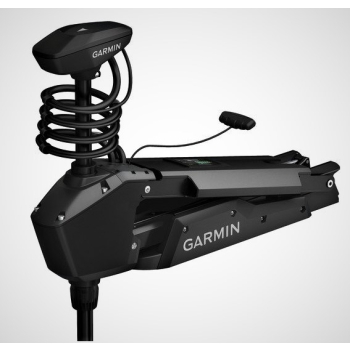

RESISTANT AND EASY TO USE

The Force electric motor is robust and durable, easy to extract, retract and store, thanks to the two pneumatic springs. It is covered by a 3-year warranty and a limited lifetime warranty for the tree. The high-efficiency brushless motor operates on 36V or 24V. With 24V power supply, it offers performance comparable to competing 36V motors.

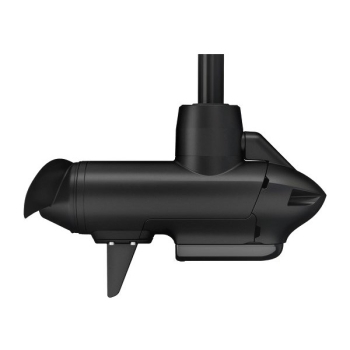

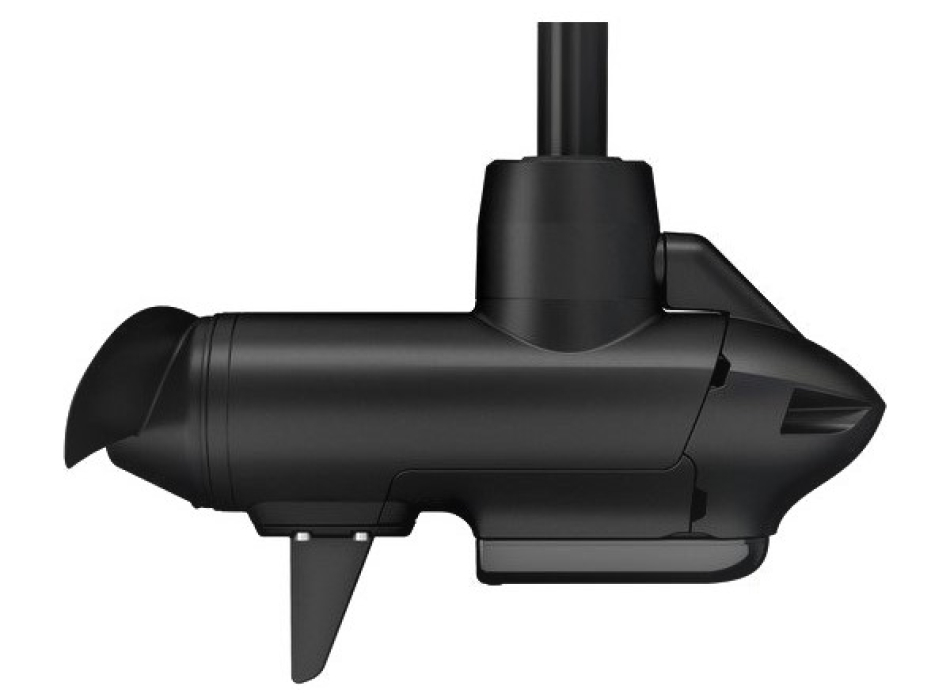

INTEGRATED SOUNDER

Force features a built-in transducer for traditional CHIRP sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. For more information on additional sonar support, see the specifications sheet.

INTEGRATED AUTOPILOT

The integrated autopilot, with heading sensor and GPS, provides mooring point, heading hold and cruise control. Just set up the track and you will be guided along the route.

TECHNICAL FEATURES

Shaft length 127 cm (57 ")
Use Fresh water, brackish water and salt water
Installation position Bow
Mounting Style Scissor Mount
Maximum displacement 45.3 kg at 36V with high performance propeller 36.2 at 36V with high performance propeller
Operating voltage 24 V or 36 V
Electric driving
Mechanical lifting system, double gas spring
Integrated compass sensor
Integrated GPS (High Sensitivity GPS)
3 years warranty
IPX7 waterproof

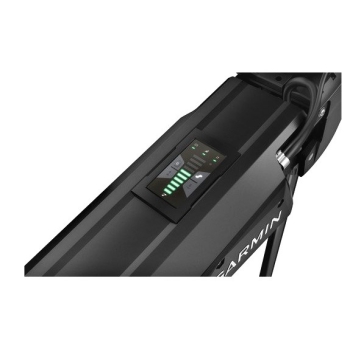

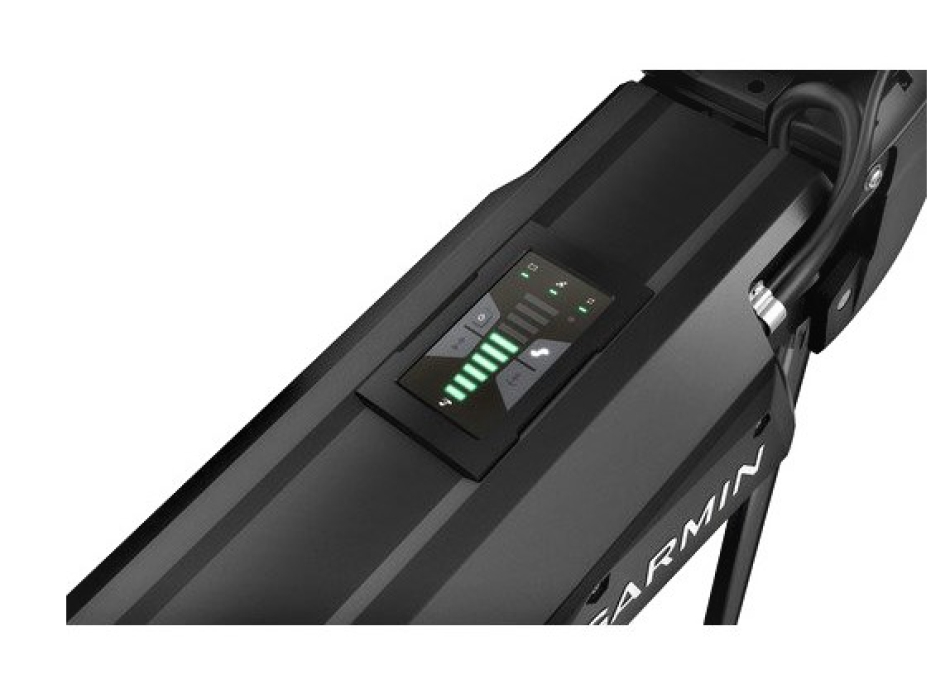

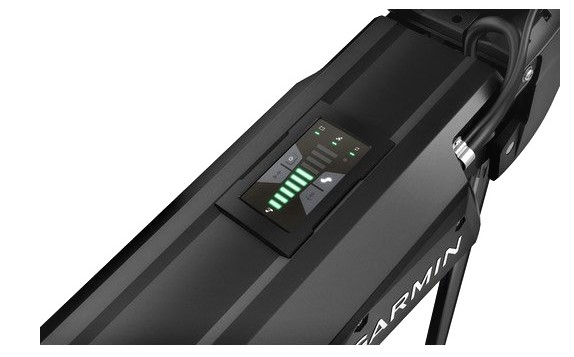

Battery indicator
Speed control (10 steps)

Remote control included (supplied)
  • Screen size 30.4 mm in diameter
  • Screen resolution 240 x 240 pixels
  • Display type Color, anti-glare, transflective memory-in-pixel (MIP)
  • Programmable Keys on the Chartplotter Yes
  • Control of autopilot functions Yes
  • IPX7 waterproof rating
  • Battery Life Typical use with idle backlight, 43.2 weeks
  • Floating
Control pedal included (supplied)
  • Dimensions 30.48cm W x 22.86cm D x 11.43cm H
  • Wireless communication
  • Installing the power supply Powered by cable or 12 V battery (2 AA)
  • AA battery life One season
  • IPX7 waterproof
  • Pedal sensitivity

Depth Sounder
  • Supported Frequencies CHIRP Sonar: Wide-range CHIRP (150-240kHz)
  • ClearVü: Ultra-high definition 800 kHz
  • SideVü: very high definition 1,200 kHz and 455 kHz
  • Managed Frequencies CHIRP Sonar: Wide-range CHIRP (150-240kHz)
  • ClearVü: 800 kHz
  • SideVü: 455 kHz
  • Power 350 W
  • Maximum depth CHIRP Sonar: 244 m (800 ')
  • ClearVü: 61 m (200 ')
  • Ultra High Definition SideVü: 38m (125 ') on each side; 250 total at a maximum depth of 9 m (30 ')
  • SideVü at 455 kHz: 152 m (500 ') on each side; 305 m (1000 ') in total
  • Depth / Speed / Temperature Depth and temperature
  • Number of pins 12 pins (orange connector)
Autopilot functions
  • Completion of the route
  • Mooring point
  • Maintaining direction
  • Cruise control
  • Gesture functions (manual +, heading hold +, slow forward +)
