Garmin GC 100 wireless camera

  • Code: 010-01865-31
€ 377,00 € 419,00 -10%

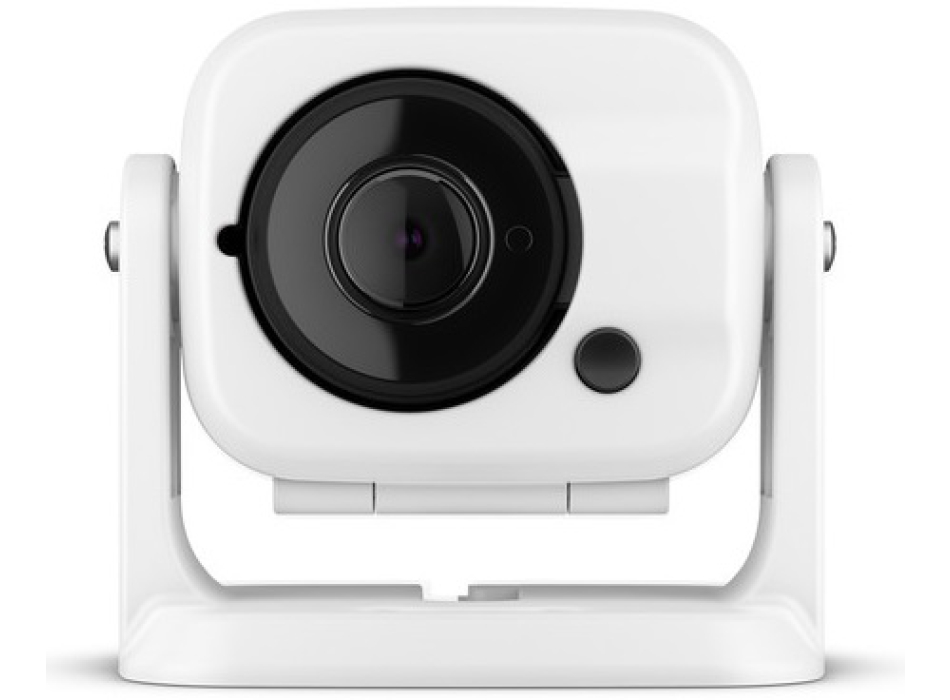

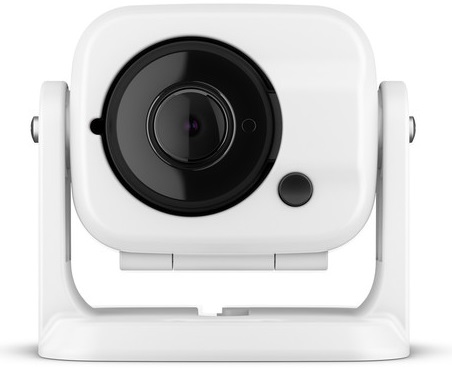

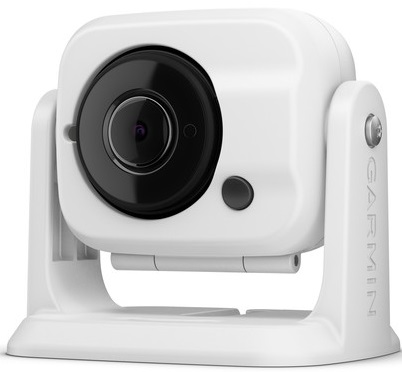

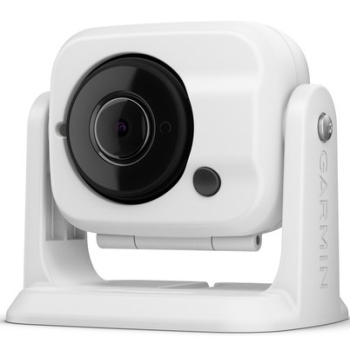

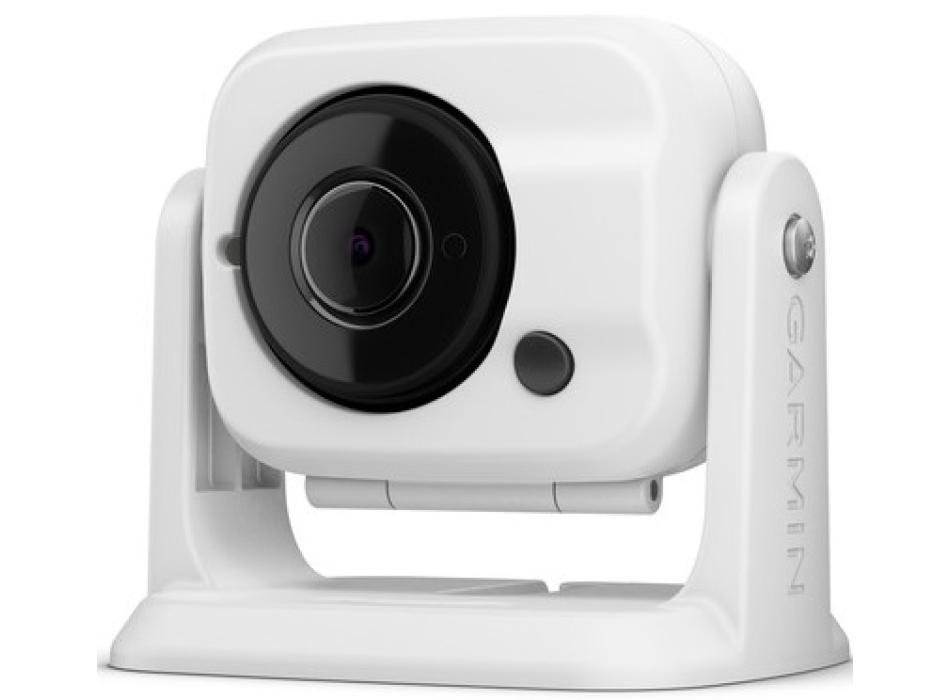

Garmin GC 100 Wireless camera

Your boat under control
Compact camera to monitor spaces in and around the boat
Wireless connectivity with compatible chartplotters for high quality images directly on the display
Share video on any chartplotter connected to the same network
High sensitivity sensor for clear images even in total darkness; the engine compartment is perfect
Easy to install and use, also thanks to immediate ignition

Resistant, compact and extremely versatile camera, indispensable both for increasing the safety of maneuvers in port and for monitoring the engine compartment, on-board activities and areas outside the boat. The images can be viewed in real time on compatible displays or chartplotters, in both high and low light conditions.
It is possible to associate up to 7 cameras to the on-board system and view the contents of up to 4 cameras simultaneously.

Versatile and simplified installation
Easy to install and use, also thanks to the immediate ignition that makes it immediately available in case of need.
The rugged and compact design, construction technology and secure mounting bracket allow for flexible installation aboard your vessel.

Packaging
GC 100 wireless camera
Installation cover
Installation kit
IPX7 power cable of 10 meters
Manuals
Technical features
Wi-Fi®: integrated
Connectivity: Wireless
Power supply: wired (10-30Vdc)
Images: standard and upside down
Night Vision: Integrated IR LED Illumination (940nm)
Night vision distance: up to 3 meters
Viewing angle: 183 ° (diagonal) / 160 ° (horizontal) / 90 ° (vertical)
Image sensor: High sensitivity 4.5mm CMOS
Effective Pixels: 1280 x 720 (720p HD)
Scanning system: rolling shutter
Resolution: 1280 x 720 (720p HD)
Video output: H.264 streaming via Wi-Fi
Operating temperature: -20 ° C to + 60 ° C
Infrared spectrum: 940 nm
Gain correction: automatic
White balance: automatic
Electronic shutter: automatic
Backlight compensation: automatic
Day / night operation: full-time RGB mode
Waterproof classification: IPX7

D. Salve, é possibile avere le dimensioni? Grazie
R. 24-03-2020 Buongiorno, mi scuso per il ritardo: Dimensioni (base L X A) 87mm x 79mm Cordiali saluti. Luigi Bianchi
