Garmin GC 200 IP camera

  • Code: 010-02164-00
€ 490,05 € 579,00 -15%

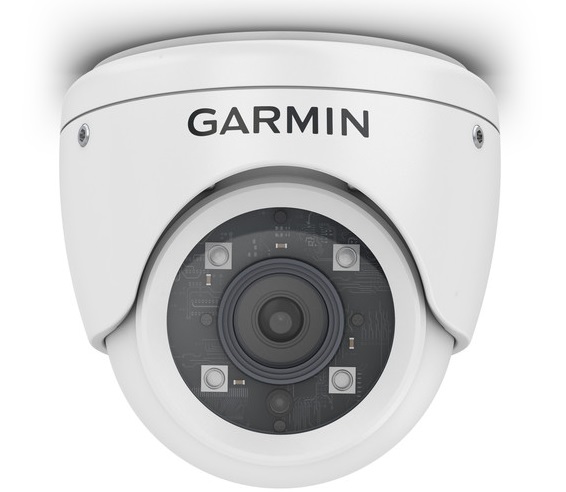

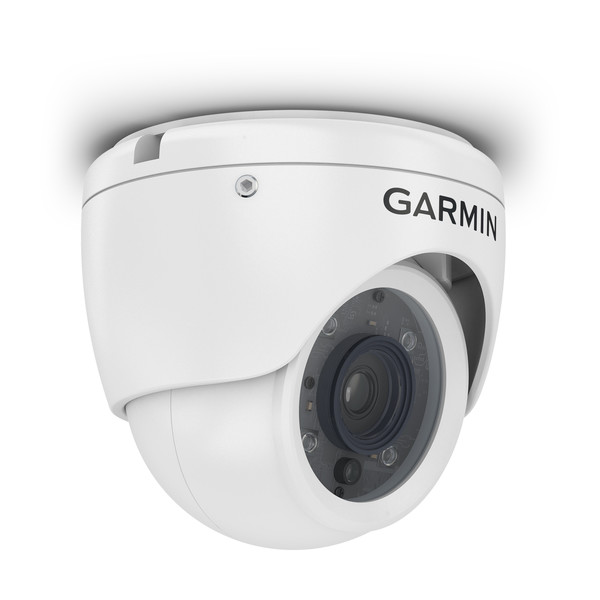

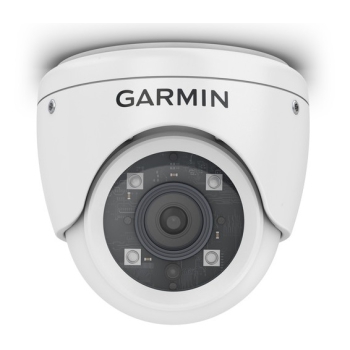

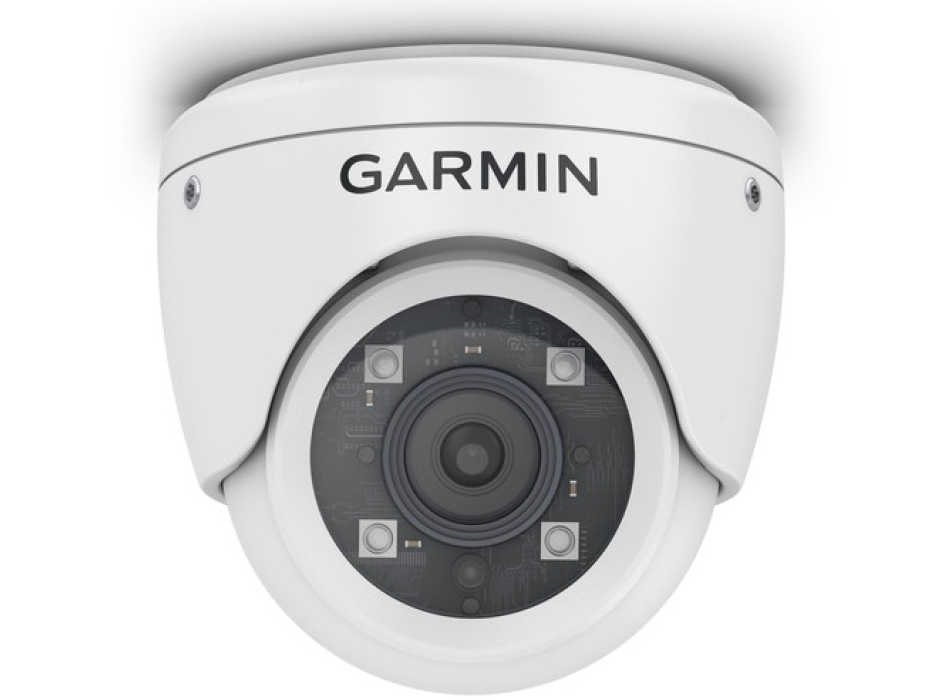

Garmin GC 200 IP Camera

Browse in total safety
Compact camera to monitor spaces in and around the boat
HD resolution for excellent picture quality, even in low light conditions
Simultaneously displays the contents of up to 5 cameras on a single chartplotter
Use the 'reverse' setting on compatible chartplotters to get out of tight moorings
Share video on any chartplotter connected to the network

Our GC 200 marine IP camera offers even more security for you and your boat. Use multiple cameras to monitor areas above and below the deck in crisp, real-time HD video. Connect up to 16 cameras on the Garmin Marine Network and share data between compatible chartplotters or stream video from 5 cameras at a time to a single chartplotter. Use the reverse setting on compatible chartplotters to get out of confined spaces, such as busy ports.

Install it wherever you want
GC 200 offers a practical installation solution that aids in maneuvering in confined spaces, such as in a busy port. It also provides sharp images in low light conditions, an ideal feature for installation in the engine room. Easy to install, it is compact, robust and waterproof allowing for flexible installation.

Packaging
GC 200 marine IP camera
Garmin Marine Network 6m cable (small connector)
Garmin Marine Network Adapter Cable (Small Connector to Large Connector)
Installation kit
Documentation
Technical features
Power supply: wired (10V DC to 16V DC or via Garmin power and audio module)
Camera Connection: Garmin Marine Network
Images: standard and inverted; rotated 90, 180 or 270
Night Vision: Integrated IR LEDs
Night vision distance: up to 30 meters
Viewing angle: 99 degrees horizontal / 74 degrees vertical
Image sensor: 2.0 megapixel SONY STARVIS CMOS
Scanning system: progressive scan
White balance: automatic
Shutter speed: automatic
Resolution: up to 1920 x 1080 pixels *
Video output: H.264 over GMN
Operating temperature: -20 ° C to 60 ° C
Waterproof classification: IPX7
Power Consumption: Maximum 5W with IR LEDs on
12 V DC operating current: 210mA

D. Con nebbia fitta si riesce a vedere?
R. 02-11-24<br /> Buongiorno, assolutamente no, questa telecamera è consigliata per utilizzo come telecamera di manovra per ormeggio.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buonasera, è compatibile con il display GPSMAP 923? Grazie Giuseppe
R. 14-03-24<br /> Buongiorno, sì confermo la compatibilità.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. spett.le Garmin vorrei sapere se questa telecamera GC 200 IP è compatibile con GPSMAP 722xs. Distinti saluti Umberto Pollio
R. 29-12-2020 Buonasera, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D. Cortesemente vorrei sapere il diametro della base di appoggio. Grazie e cordiali saluti
R. Buongiorno, diametro esterno 87mm. Cordiali saluti. Luigi Bianchi
