TOTAL INTEGRATION DURING NAVIGATION
With 60% more display pixels and nearly double the processing power of previous generation 7-inch GPSMAP devices, this crisp, high-resolution chartplotter integrates seamlessly into your Garmin marine system.
See below your boat with built-in sonar capabilities.
Easily integrates with multiple engines.
Connect to third party devices compatible with OneHelm ™ digital switching .
Easily build your marine system using the best of network connectivity.
Compatible with 1 premium maps and charts for the best in Garmin navigation.
Sailboat management with clear laylines and more, right on the screen.
Manage your boating experience from anywhere. 2
HIGH DEFINITION SCANNING SOUNDER

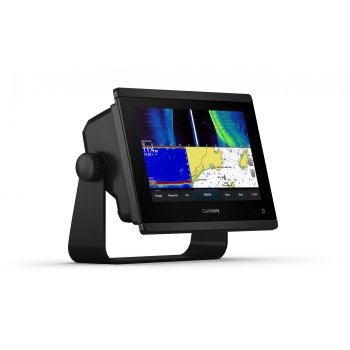

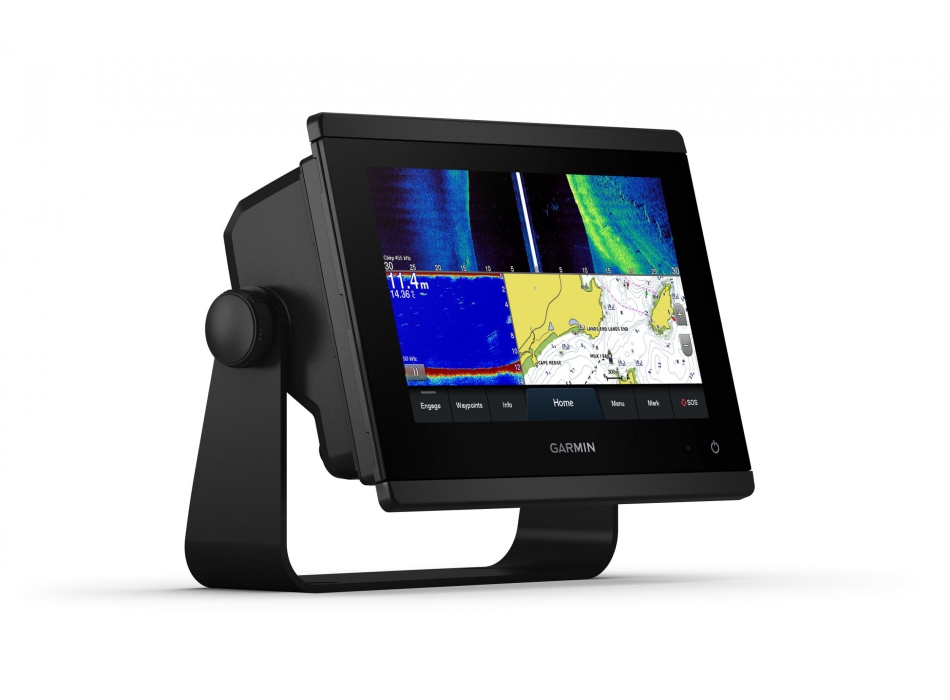

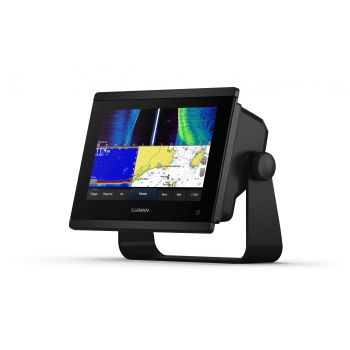

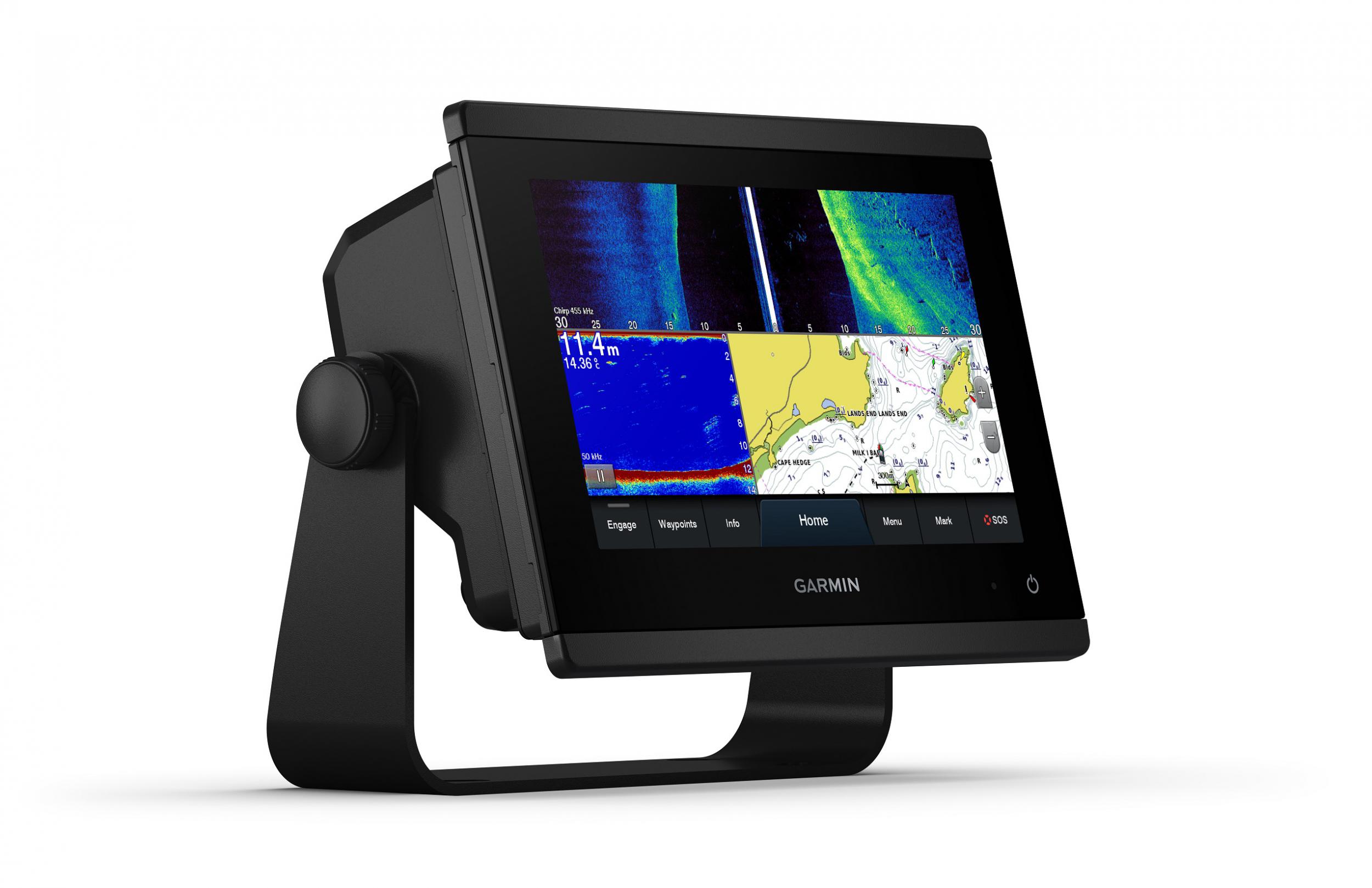

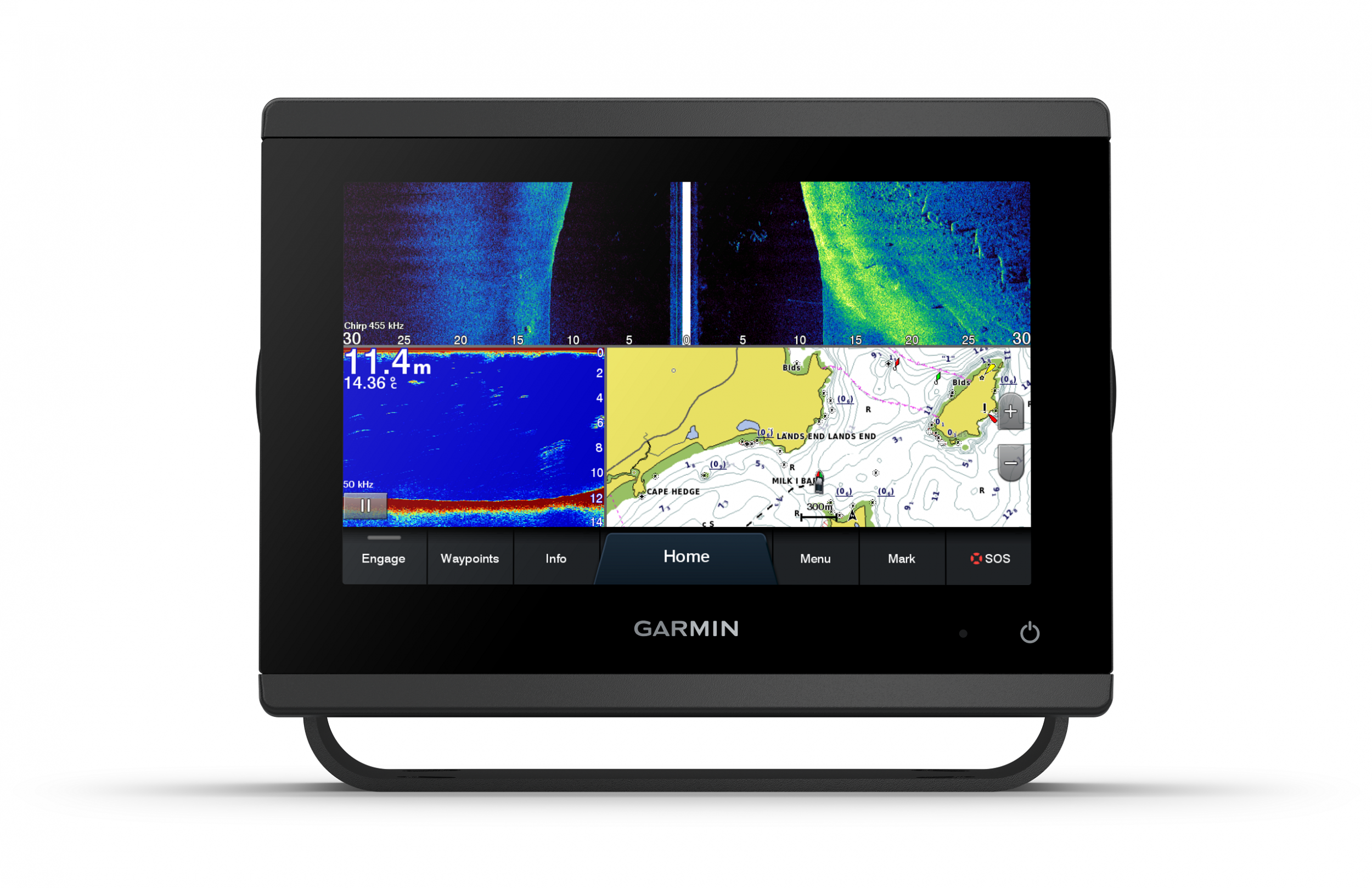

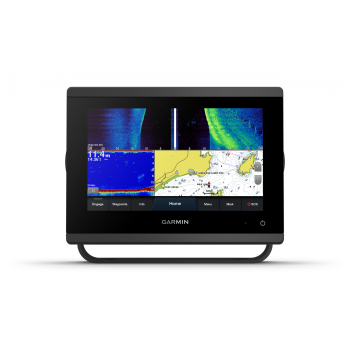

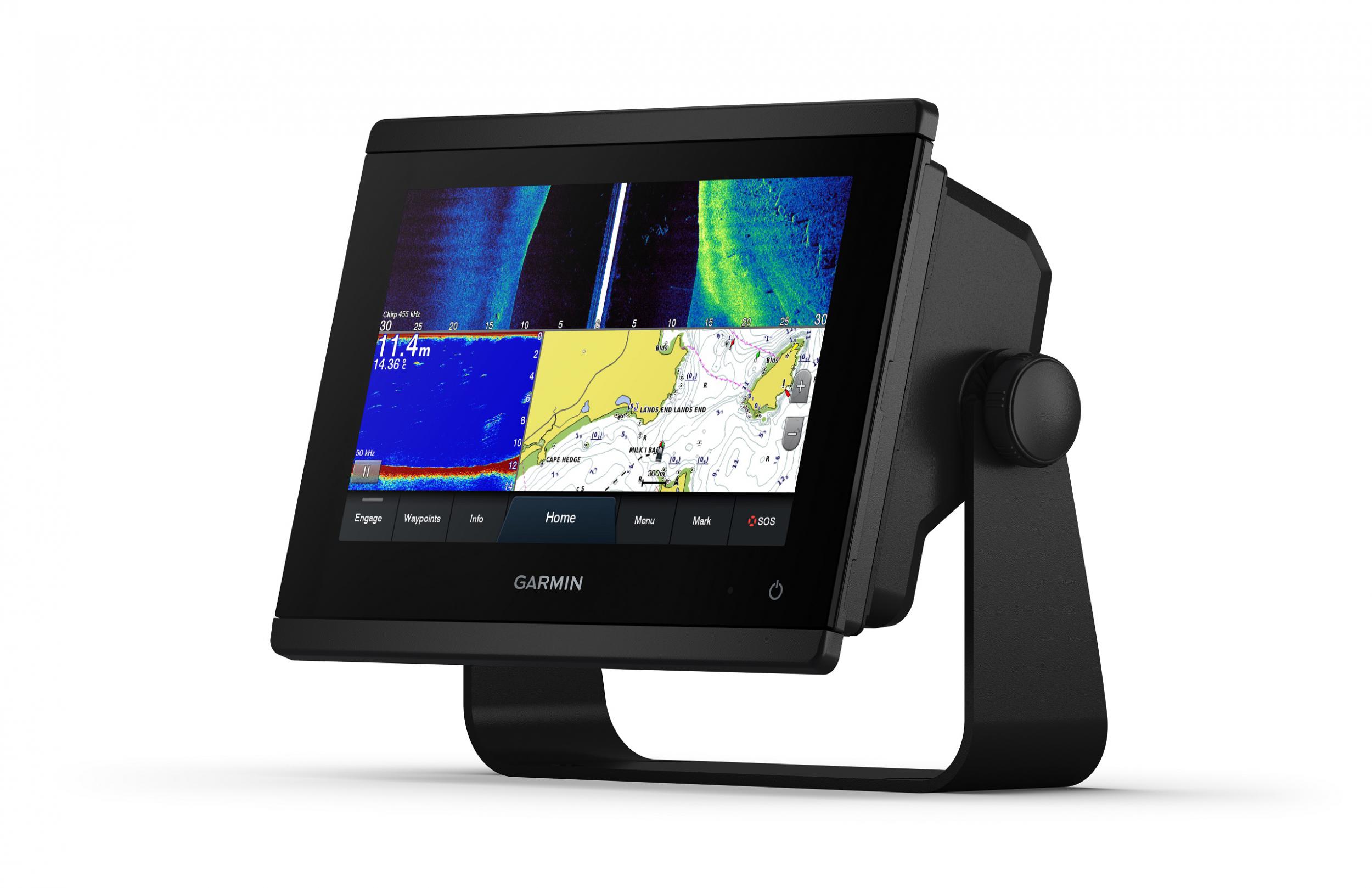

Get built-in ultra-high definition SideVü and ClearVü scan sonars with vibrant, high-contrast color palettes to distinguish fish from tree. GPSMAP® 723xsv also supports traditional 1 kW CHIRP sonar capabilities.
FASTER, MORE ATTRACTIVE, MORE INTELLIGENT
With its additional processing power and new slim all-glass design and a small unit footprint, it's easy to upgrade this 7-inch plotter to a wider range of dashboard configurations.
IMPROVED DISPLAY OPTICS
The new, higher resolution 7-inch displays offer better sunlight readability with 60% more pixels than previous generation 7-inch GPSMAP devices.

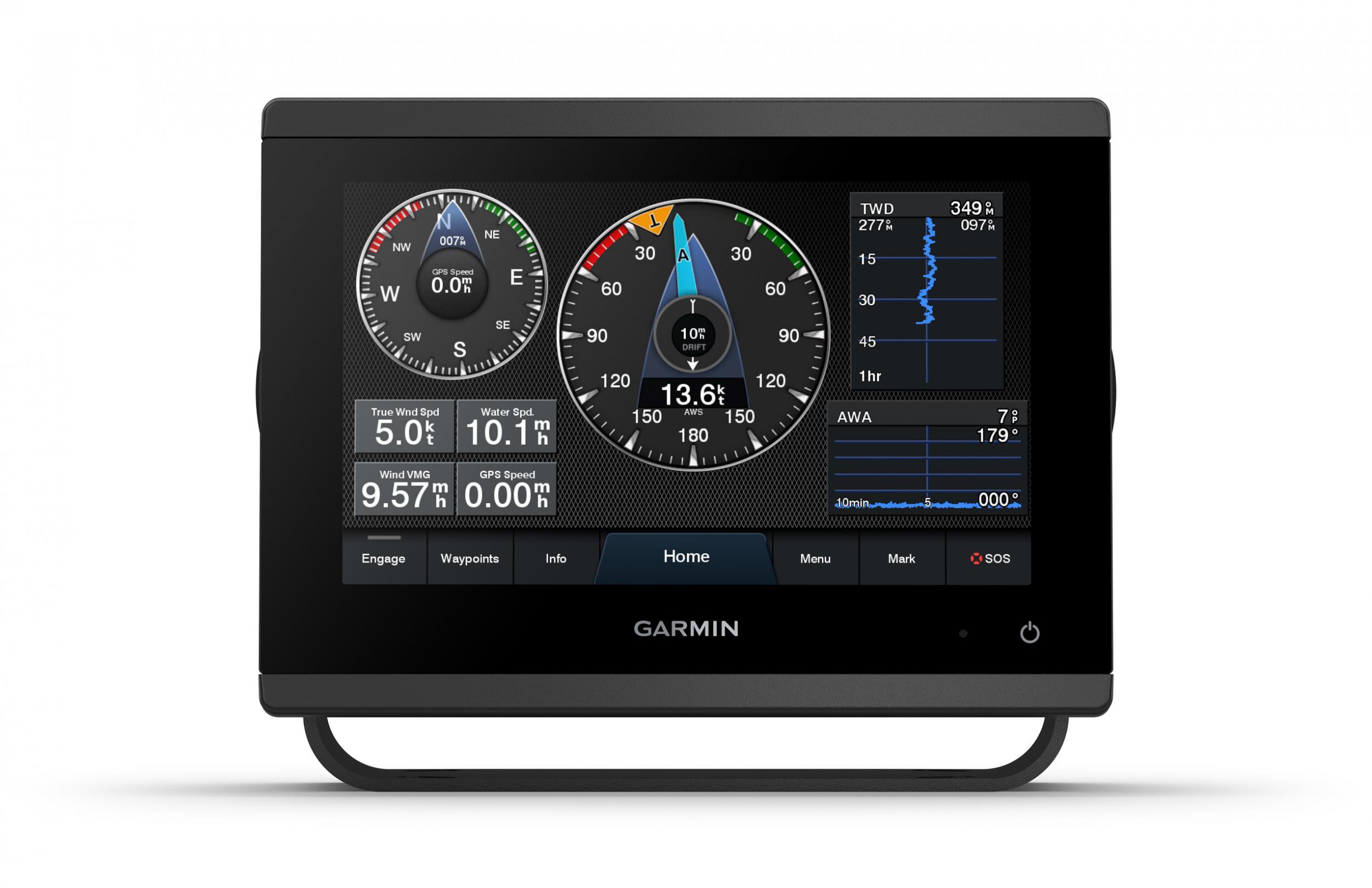

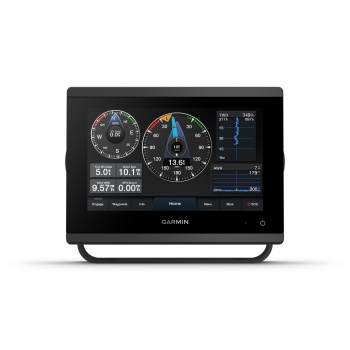

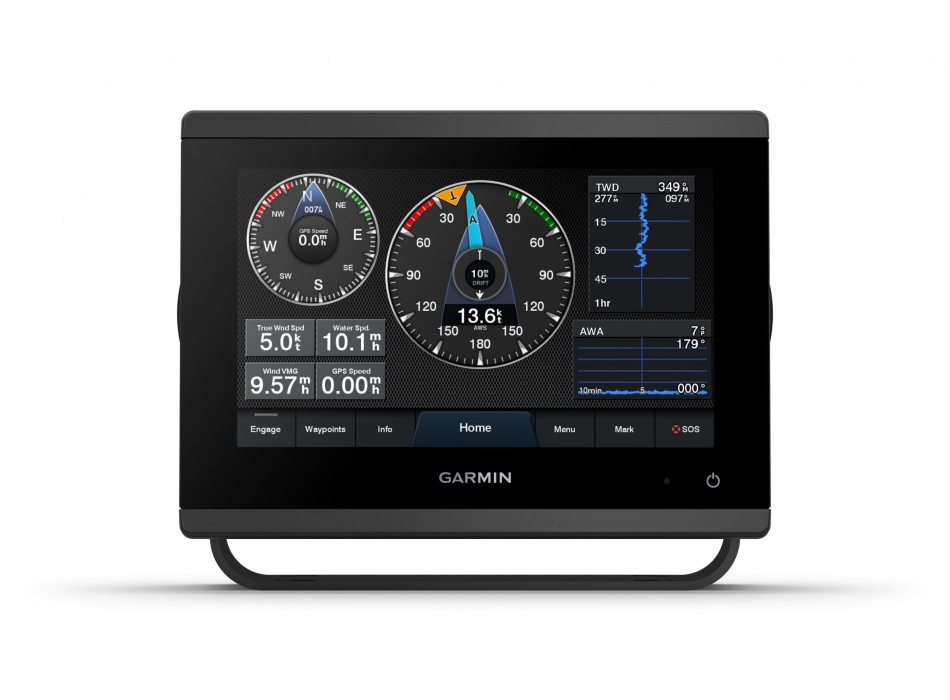

GARMIN SAILASSIST ™ SAILING FEATURES
View laylines, race start line guidance, improved wind rose, course and heading lines, true wind data fields and tide / current / time cursor, wind angle, setting and drift, wind speed and more.
OPTIONAL BLUECHART ® G3 VISION ® SHAFT
These optional maps offer the best of Garmin and Navionics® data, Auto Guidance 4 technology and other premium navigation features.
GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information with each other, such as maps, user data, radar, and IP camera video.
NMEA 2000 ® AND NMEA 0183 NETWORKS

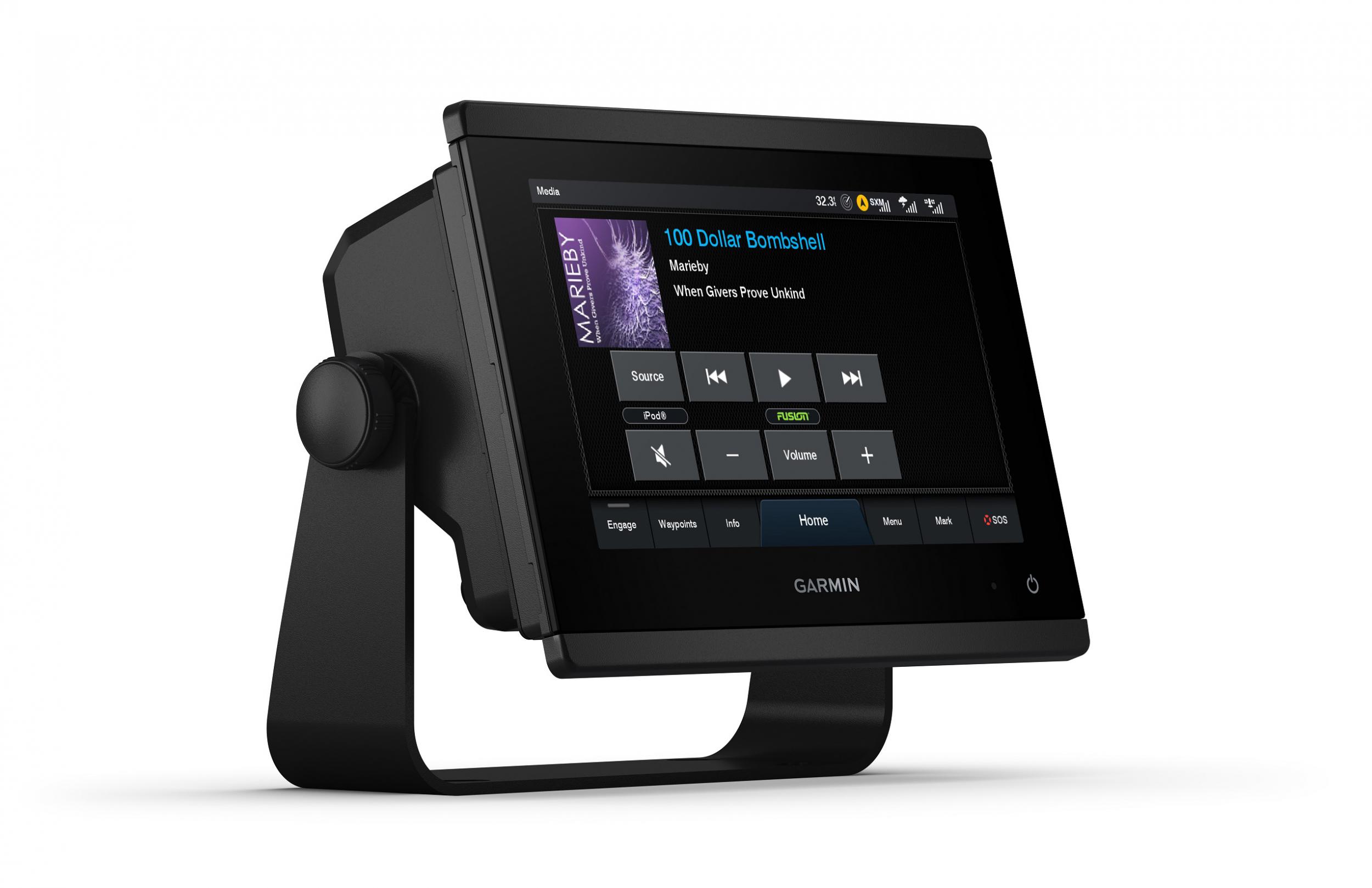

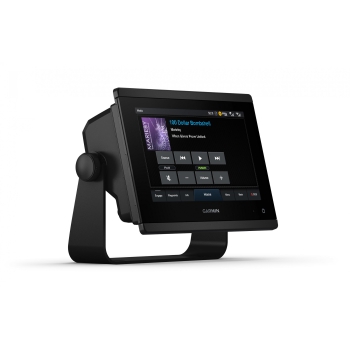

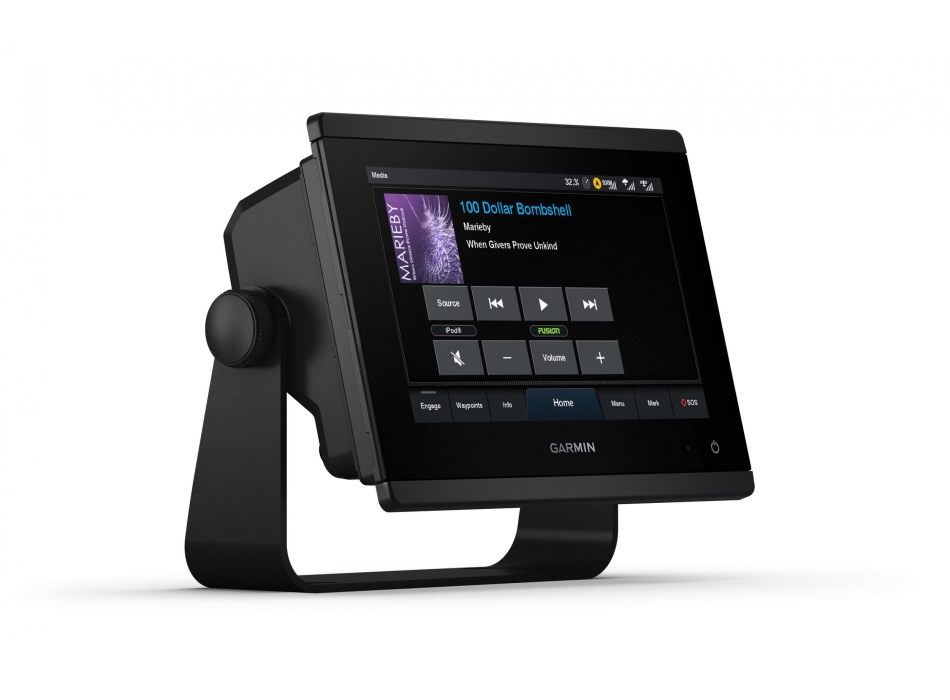

Connect to compatible autopilots, digital switching, weather, Fusion-Link ™ audio system, media, VHF, AIS and more from a single screen.
ACTIVECAPTAIN ® APP
Built-in Wi-Fi ® connectivity pairs with the free all-in-one mobile app for access to the OneChart ™ feature, smart notifications, software updates, Garmin Helm ™ digital switching, Garmin Quickdraw ™ community data and more. 5
INTEGRATED ANT ® TECHNOLOGY
Connect with some of your favorite devices, such as quatix ® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.
CONNECTIVITY J1939

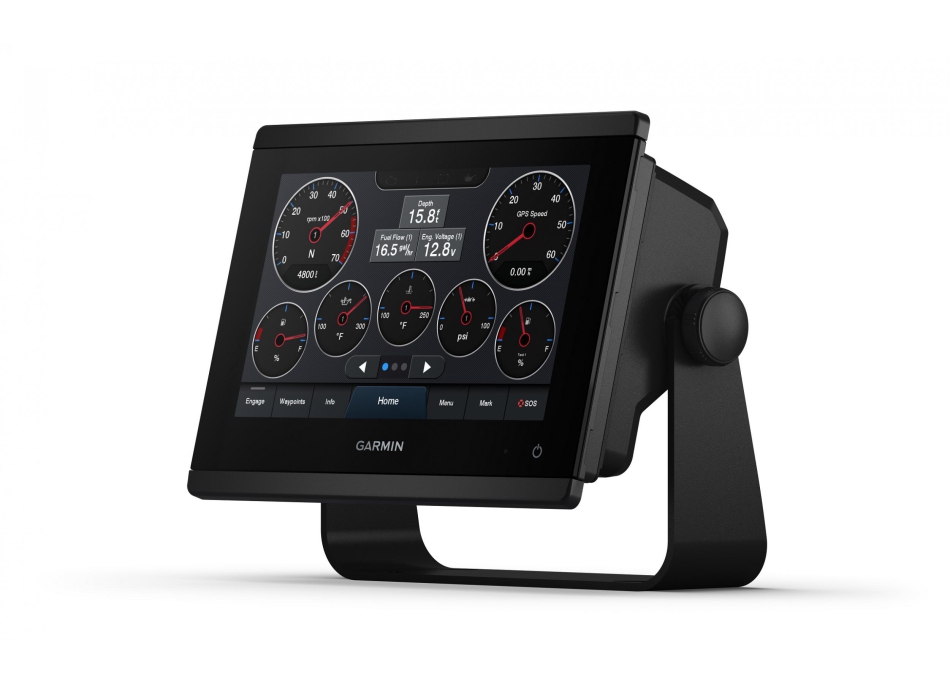

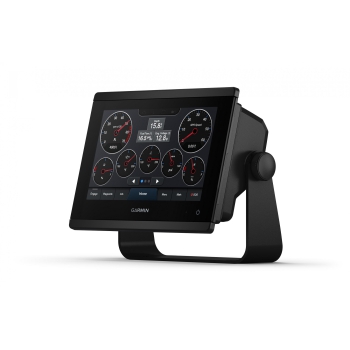

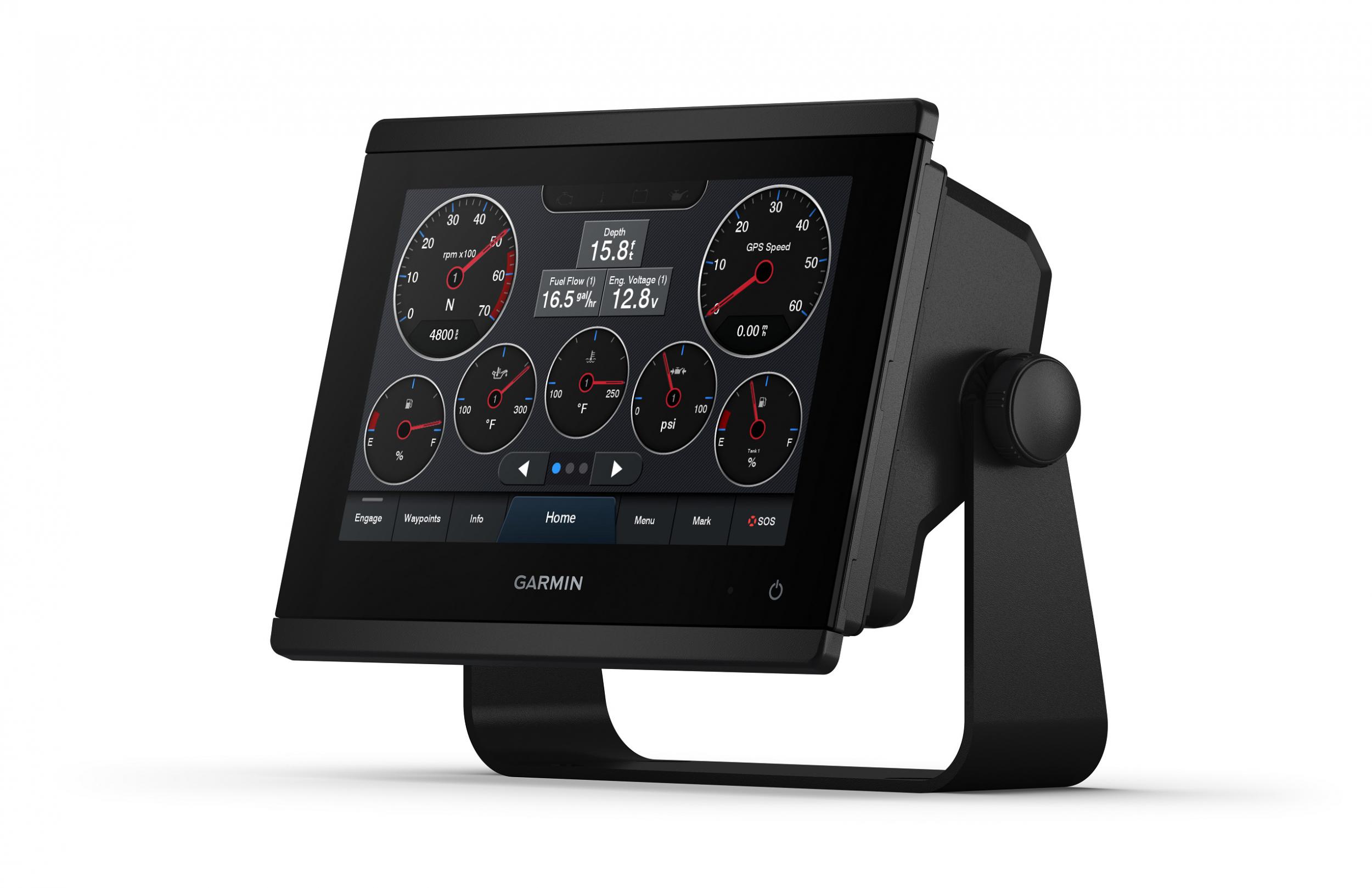

You can now connect your chartplotter to various types of engines, including select Yamaha engines.
ONEHELM ™ FUNCTION
This unique feature brings together all the operations and capabilities of selected third party devices, such as EmpirBus ™ digital switching, on a single screen.
Package contents:

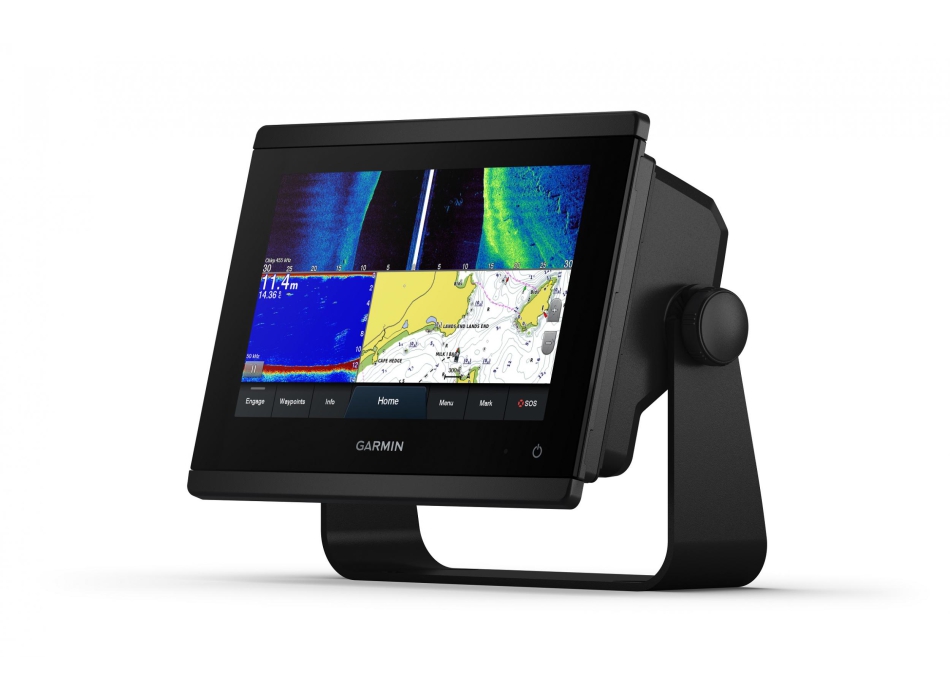

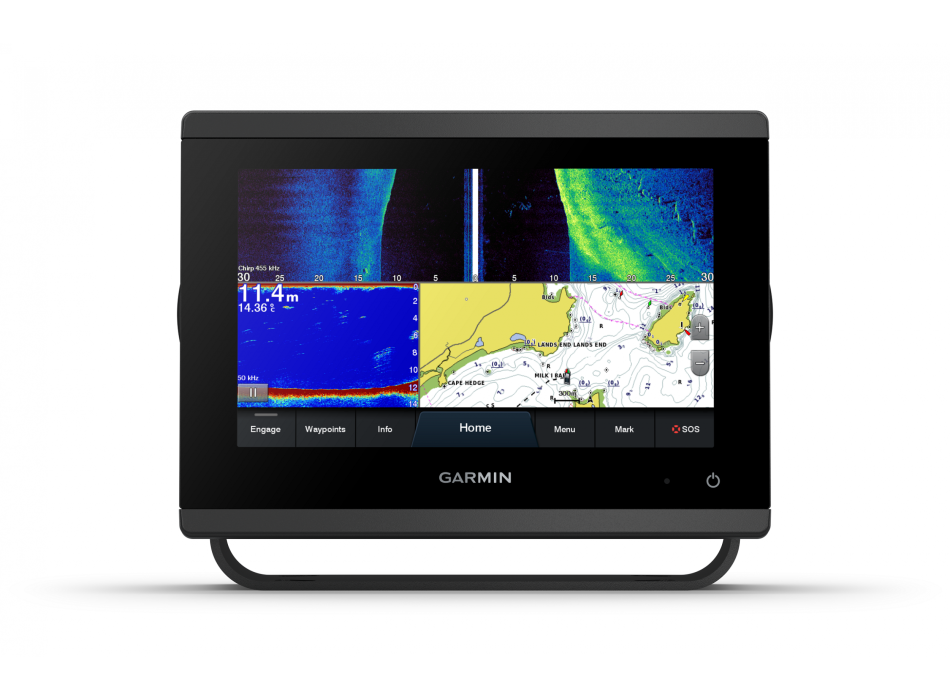

GPSMAP 723xsv chartplotter
Power cord
Bracket mounting kit with knobs
Flush mounting kit with gasket
Protective cover
Interlocking protections for dashboard finishing
Documentation
General |
|
DIMENSIONS | 19.2 x 14.0 x 7.4 cm (7.6 "x 5.5" x 2.9 ") |
---|---|
SCREEN SIZE, WXH | 6.1 "x 3.5"; 7.0 "diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
SCREEN RESOLUTION, LXH | 1024 x 600 pixels |
TYPE OF SCREEN | WSVGA display |
WEIGHT | 2.8 lbs (1.3 kg) |
WATERPROOF CLASSIFICATION | IPX7 |
POLARIZED SUPPORT | |
ENERGY CONSUMPTION | Maximum power consumption at 10VDC: 17.6W Typical current draw at 12 VDC: 1.1 A. Maximum current draw at 12 Vdc: 1.5 A. |
GPS ANTENNA | Internal or external on the NMEA 2000 network |
MOUNTING OPTIONS | Bail, flush or flat |
RECEIVER | High sensitivity 10 Hz |
GARMIN MARINE NETWORK ™ DOORS | 1 |
TRANSMISSION POWER | 1 kW traditional; 1 kW CHIRP |
Maps and memory |
|
PRELOADED CARTOGRAPHY | World base map |
---|---|
EXTERNAL MEMORY | 2 microSD ™ cards (rear of unit) |
WAYPOINT | 5,000 |
TRACK LOG | 50,000 points; 50 saved tracks |
ROUTES THAT CAN BE STORED | 100 |
Functions for outdoor activities |
|
TIDAL DATA |
---|
Functions of the chartplotter |
|
COMPATIBLE WITH GARMIN RADARS | |
---|---|
COMPATIBLE WITH GARMIN BLACK-BOXES | Yes (integrated) |
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR DEFAULTS) | |
COMPATIBLE WITH AIS FUNCTION | |
COMPATIBLE WITH DSC FUNCTION | |
SUPPORTS FUSION-LINK ™ COMPATIBLE RADIO | |
BLACK BOX GSD ™ SOUNDER SUPPORT | |
BLACK BOX GCV ™ SOUNDER SUPPORT | |
COMPATIBLE WITH ACTIVECAPTAIN | |
GRID ™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | |
WIRELESS CONNECTIVITY | |
SAILING FUNCTIONS |
Echosounder features and specifications |
|
DOUBLE FREQUENCY | |
---|---|
DOUBLE CONE | |
SUPPORTED FREQUENCIES | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü (260/455/800 kHz) (depending on the transducer) |
CHIRP | Yes (integrated) |
CLEARVÜ | Yes with CHIRP (integrated) |
SIDEVÜ | Yes with CHIRP (integrated) |
MAXIMUM DEPTH | 5,000 feet at 1 kW (depth capability depends on bottom type and other water conditions) |
ZOOM | |
DATA AND WATER TEMPERATURE GRAPH | |
REGISTRATION | |
HISTORICAL |
Connections |
|
NMEA 2000 ® COMPATIBLE | |
---|---|
NUMBER OF TRANSDUCER PINS | 12 pin (orange) |
NMEA 0183 INPUT PORTS | 1 (differential) |
NMEA 0183 OUTPUT PORTS | 1 (differential) |
VIDEO INPUT PORTS | 1 BNC |
WIRELESS CONNECTIVITY | |
COMPATIBLE J1939 |
|
