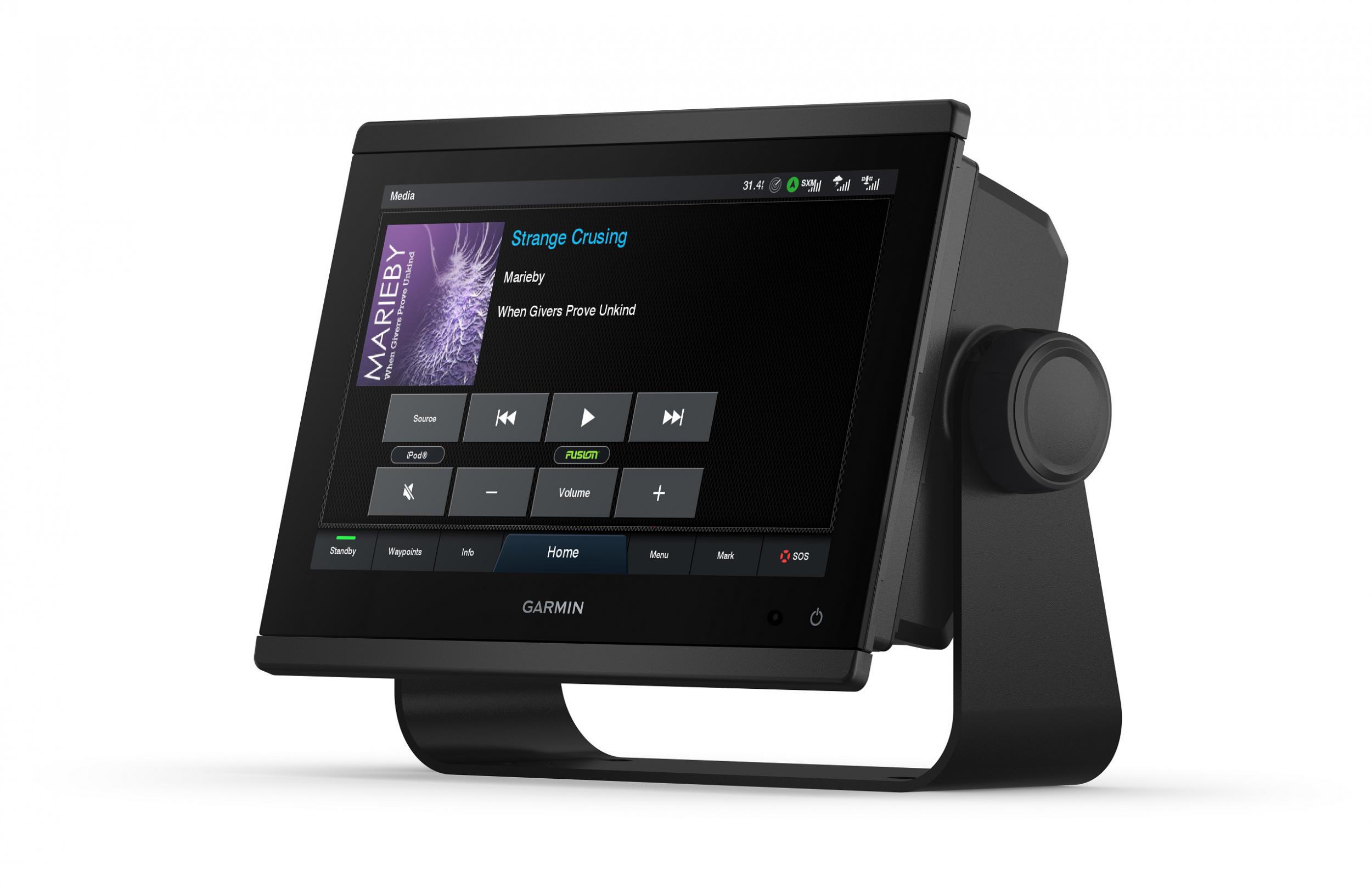

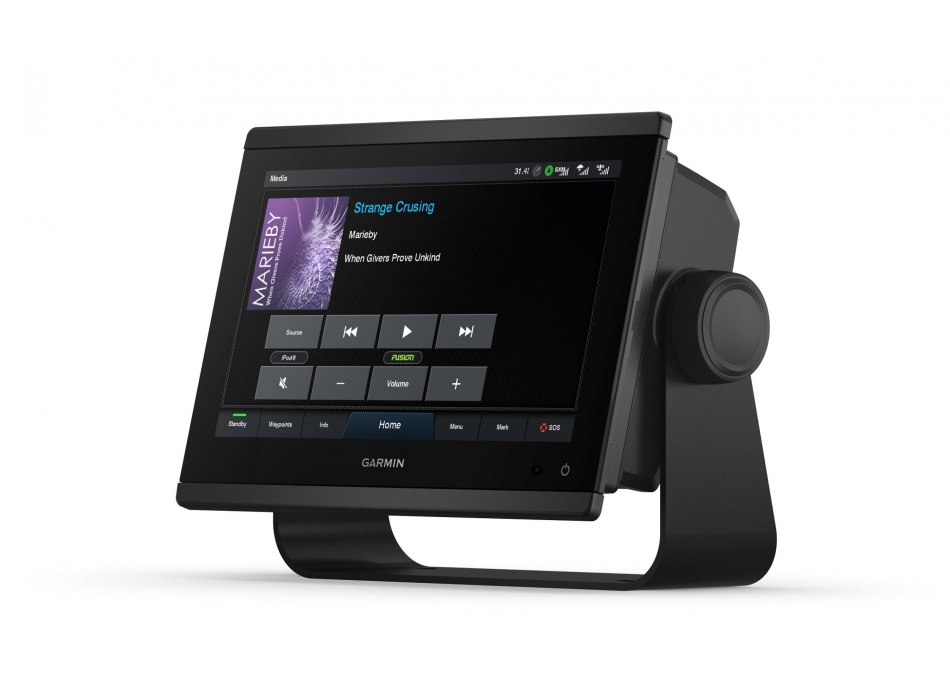

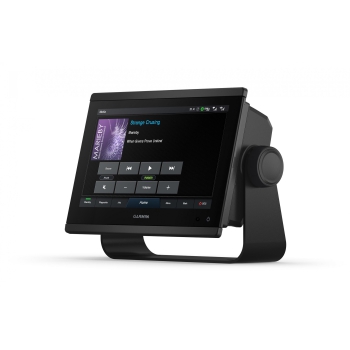

TOTAL INTEGRATION DURING NAVIGATION
With 60% more display pixels and nearly double the processing power of previous generation 9-inch GPSMAP devices, this crisp, high-resolution chartplotter integrates seamlessly into your Garmin marine system.

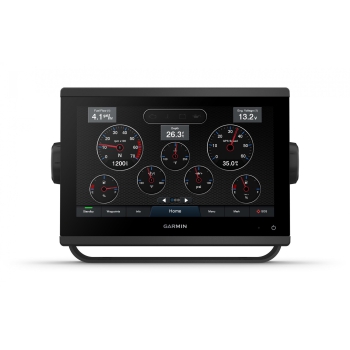

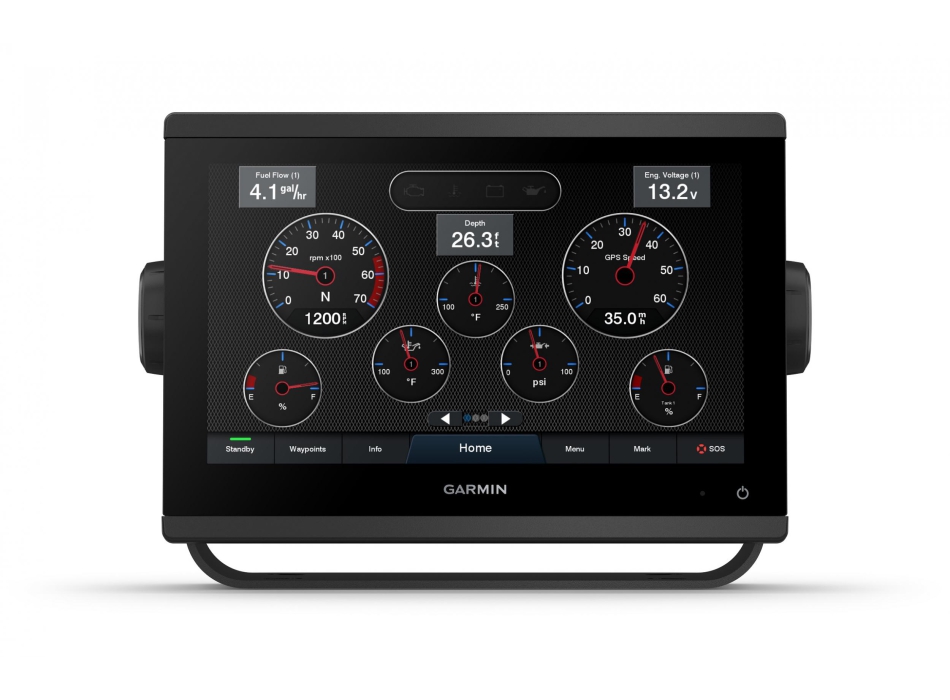

Easily integrates with multiple engines.
Connect to third party devices compatible with OneHelm ™ digital switching .
Easily build your marine system using the best of network connectivity.

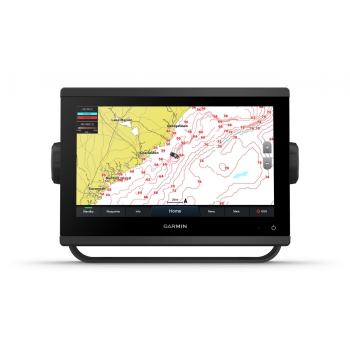

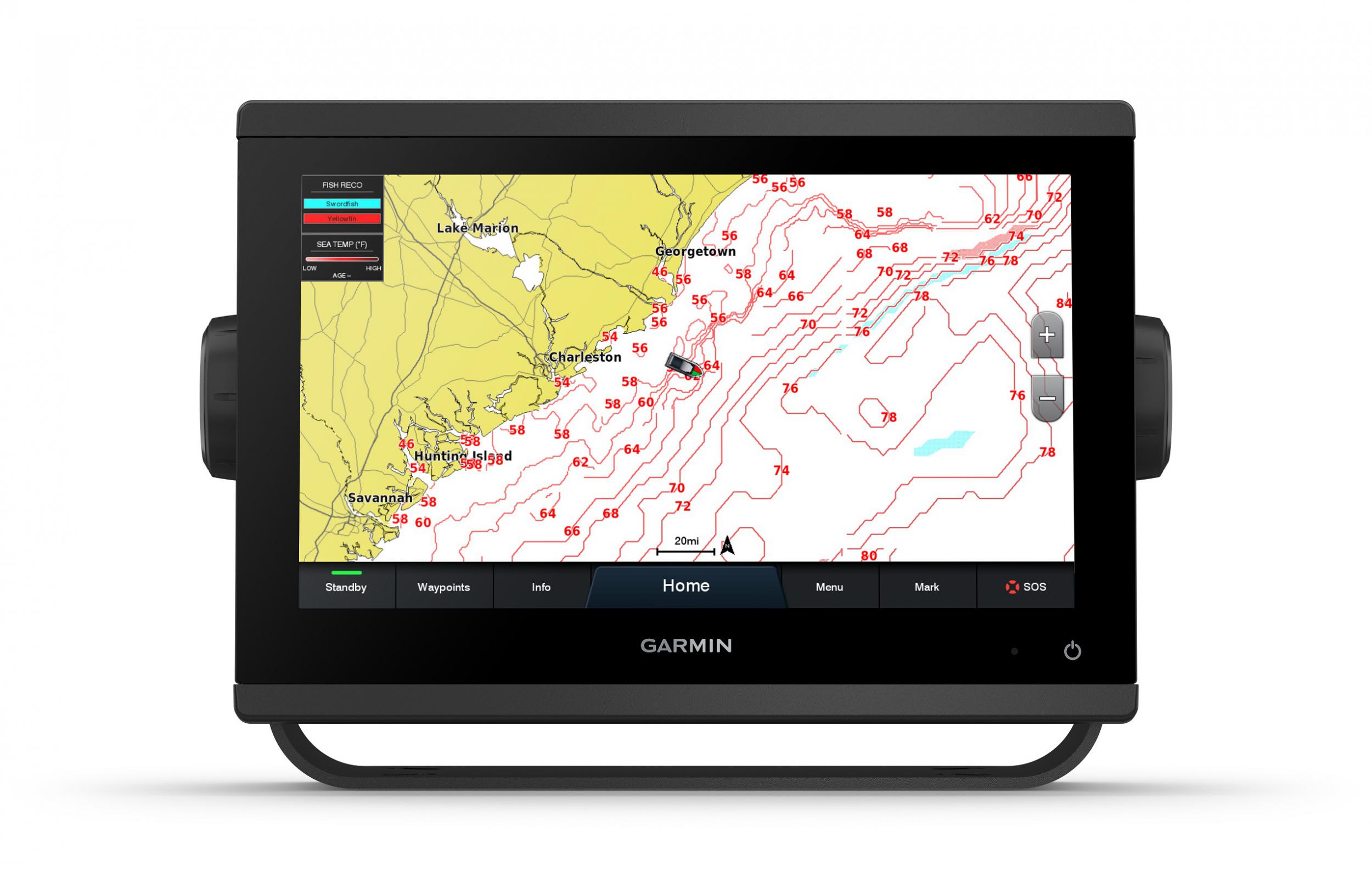

Compatible with 1 premium maps and charts for the best in Garmin navigation.
Sailboat management with clear laylines and more, right on the screen.
Manage your boating experience from anywhere. 2
FASTER, MORE ATTRACTIVE, MORE INTELLIGENT
With its additional processing power and new slim all-glass design and a small unit footprint, it's easy to upgrade this 7-inch plotter to a wider range of dashboard configurations.
IMPROVED DISPLAY OPTICS
The new higher resolution 9-inch displays offer better sunlight readability with 60% more pixels than previous generation 9-inch GPSMAP devices.
GARMIN SAILASSIST ™ SAILING FEATURES
View laylines, race start line guidance, improved wind rose, course and heading lines, true wind data fields and tide / current / time cursor, wind angle, setting and drift, wind speed and more.
OPTIONAL BLUECHART ® G3 VISION ® SHAFT

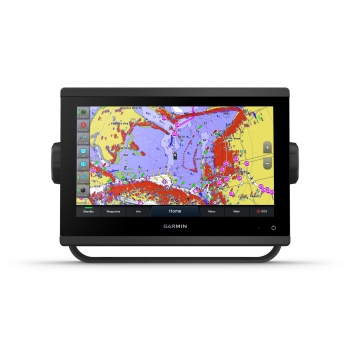

These optional maps offer the best of Garmin and Navionics® data, Auto Guidance 4 technology and other premium navigation features.
NMEA 2000 ® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link ™ audio system, media, VHF, AIS and more from a single screen.
ACTIVECAPTAIN ® APP
Built-in Wi-Fi ® connectivity pairs with the free all-in-one mobile app for access to the OneChart ™ feature, smart notifications, software updates, Garmin Helm ™ digital switching, Garmin Quickdraw ™ community data and more. 5
INTEGRATED ANT ® TECHNOLOGY
Connect with some of your favorite devices, such as quatix ® marine watches, gWind ™ Wireless 2 transducers, GNX ™ Wind marine instruments and wireless remote controls.
CONNECTIVITY J1939
You can now connect your chartplotter to various types of engines, including select Yamaha engines.
ONEHELM ™ FUNCTION This unique feature brings together all the operations and capabilities of selected third party devices, such as EmpirBus ™ digital switching, on a single screen.
General |
|
DIMENSIONS | 9.2 "x 6.4" x 3 "(23.3 x 16.2 x 7.6 cm) |
---|---|
SCREEN SIZE, WXH |
7.8 "x 4.4"; 9.0 "diagonal (19.9 x 11.2 cm; 22.9 cm diagonal) |
SCREEN RESOLUTION, LXH | 1280 x 720 pixels |
TYPE OF SCREEN | WXGA display |
WEIGHT | 3.6 lbs (1.6 kg) |
WATERPROOF CLASSIFICATION | IPX7 |
POLARIZED SUPPORT | |
ENERGY CONSUMPTION |
Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A |
GPS ANTENNA | Internal or external on the NMEA 2000 network |
MOUNTING OPTIONS | Bail, flush or flat |
RECEIVER | 10 Hz high sensitivity |
GARMIN MARINE NETWORK ™ DOORS | 1 |
Maps and memory |
|
PRELOADED CARTOGRAPHY | Worldwide basemap |
---|---|
EXTERNAL MEMORY | 2 microSD ™ cards (back of unit) |
WAYPOINTS | 5,000 |
TRACK LOG | 50,000 points; 50 saved tracks |
ROUTES THAT CAN BE STORED | 100 |
Functions for outdoor activities |
|
TIDAL DATA |
---|
Functions of the chartplotter |
|
COMPATIBLE WITH GARMIN RADARS | |
---|---|
COMPATIBLE WITH GARMIN BLACK-BOXES | Yes (with external black box, sold separately) |
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR DEFAULTS) | |
COMPATIBLE WITH AIS FUNCTION | |
COMPATIBLE WITH DSC FUNCTION | |
SUPPORTS FUSION-LINK ™ COMPATIBLE RADIO | |
BLACK BOX GSD ™ SOUNDER SUPPORT | |
BLACK BOX GCV ™ SOUNDER SUPPORT | |
ACTIVECAPTAIN COMPATIBLE | |
GRID ™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE | |
WIRELESS CONNECTIVITY | |
SAILING FUNCTIONS |
Echosounder features and specifications |
|
CHIRP | Yes (with external black box) |
---|---|
CLEARVÜ | Yes (with external black box, sold separately) |
SIDEVÜ | Yes (with external black box, sold separately) |
Connections |
|
NMEA 2000 ® COMPATIBLE | |
---|---|
NMEA 0183 INPUT PORTS | 1 (Differential) |
NMEA 0183 OUTPUT PORTS | 1 (Differential) |
VIDEO INPUT PORTS | 1 BNC |
WIRELESS CONNECTIVITY | |
J1939 COMPATIBLE |
|
