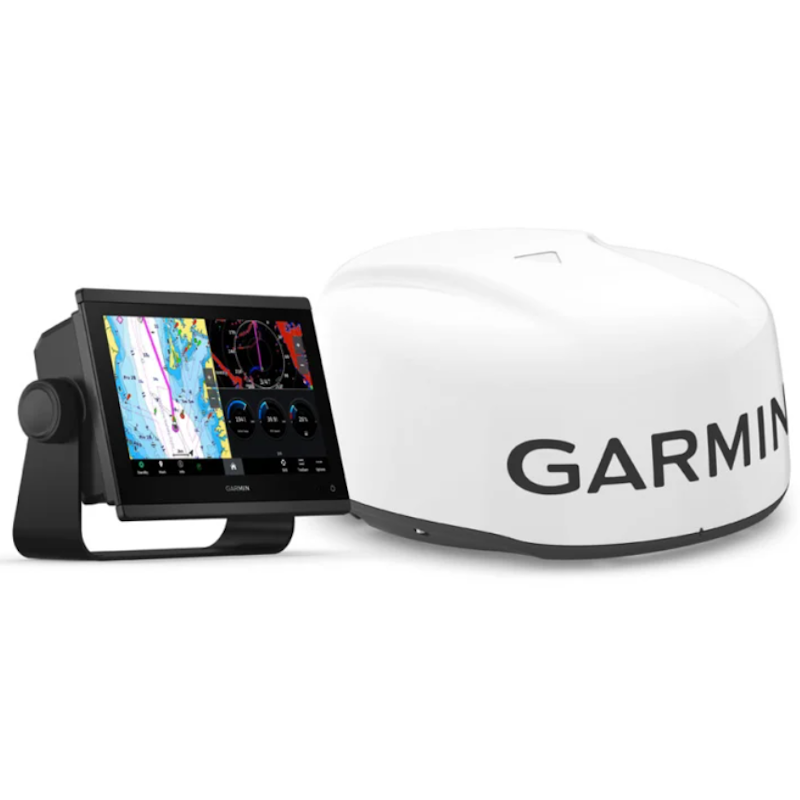

Garmin gpsmap 923xsv Radar Pack Display 9 "
GMR 18HD + radar antenna included

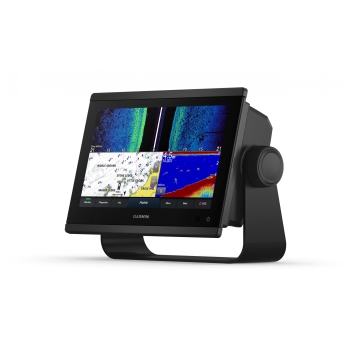

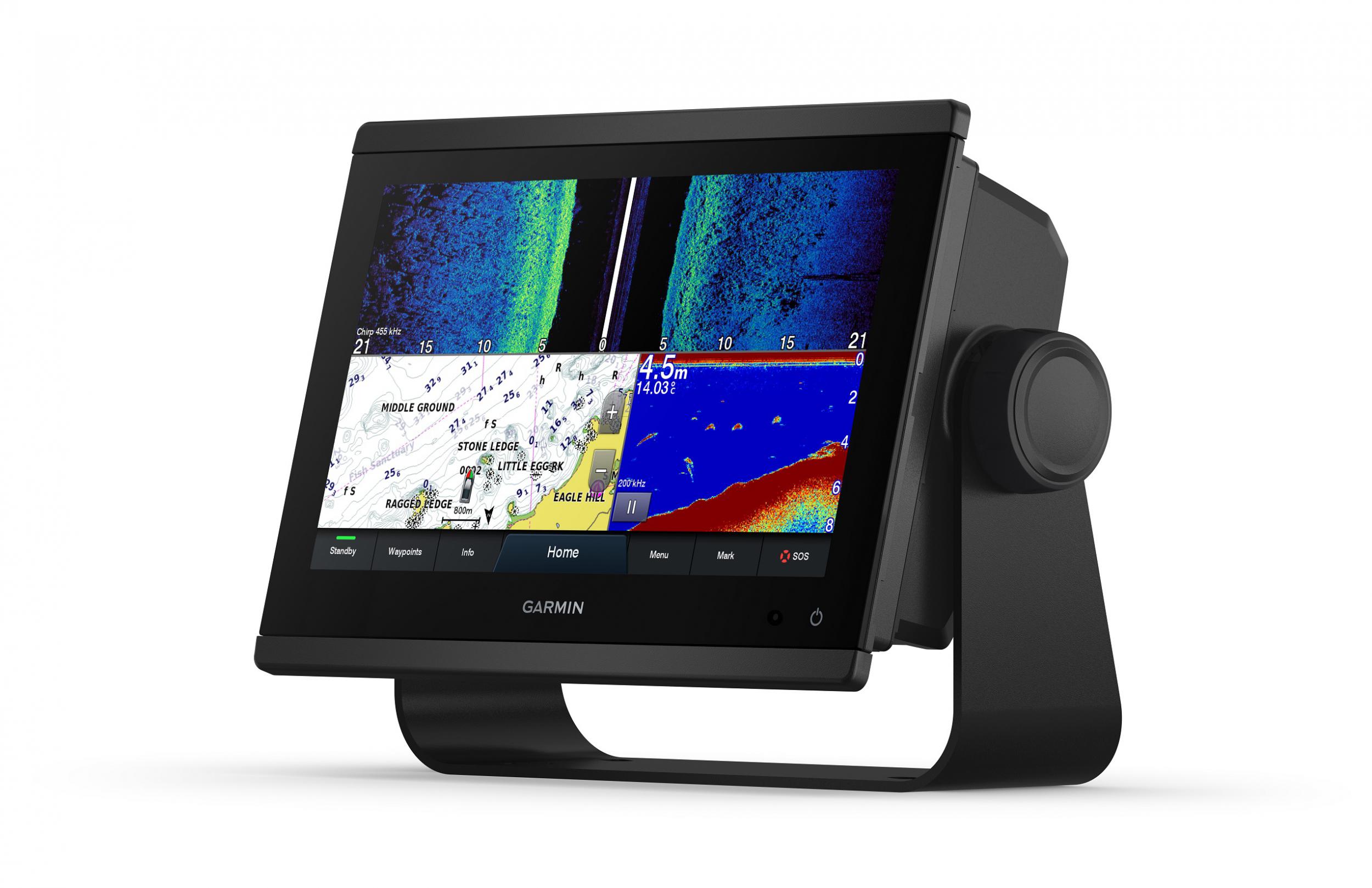

9-inch touchscreen chartplotter / depth sounder combo
High resolution 9 ”touchscreen display
1 kW CHIRP sonar module supports CHIRP ClearVù and SideVù transducers
NMEA 2000® and NMEA 0183 network connectivity
Garmin Marine Network for sharing sonar data, including Panoptix ™, maps, user data, radar and IP cameras between the different units installed
Supports BlueChart® g2 Vision® HD cartography with Auto Guidance 3.0 technology for automatic route calculation
Functions dedicated to sailing: Race timer, Start Guidance, Laylines, Wind-rose, Heading & COG vectors and much more

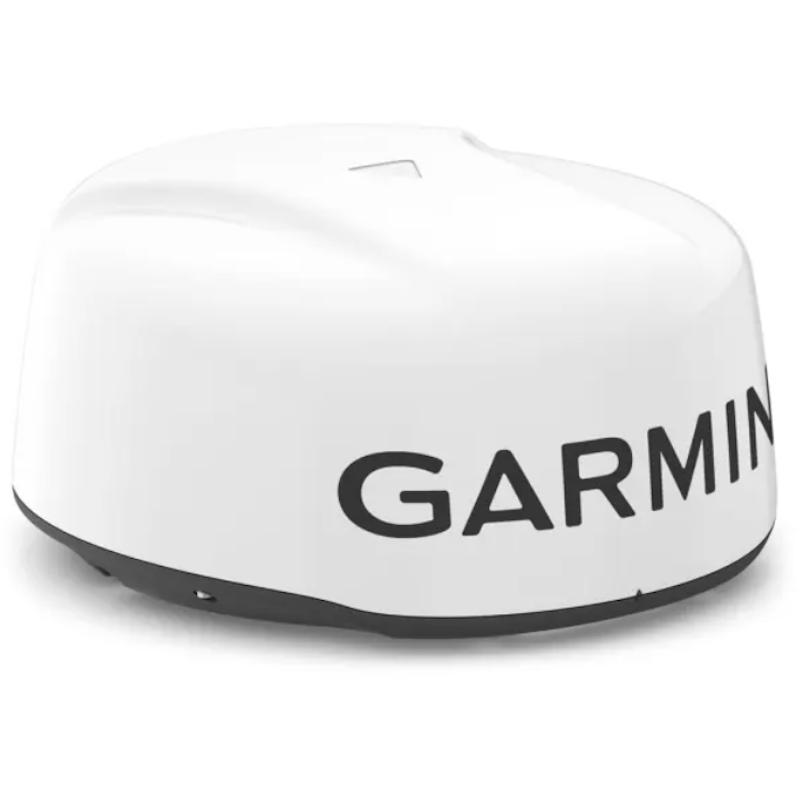

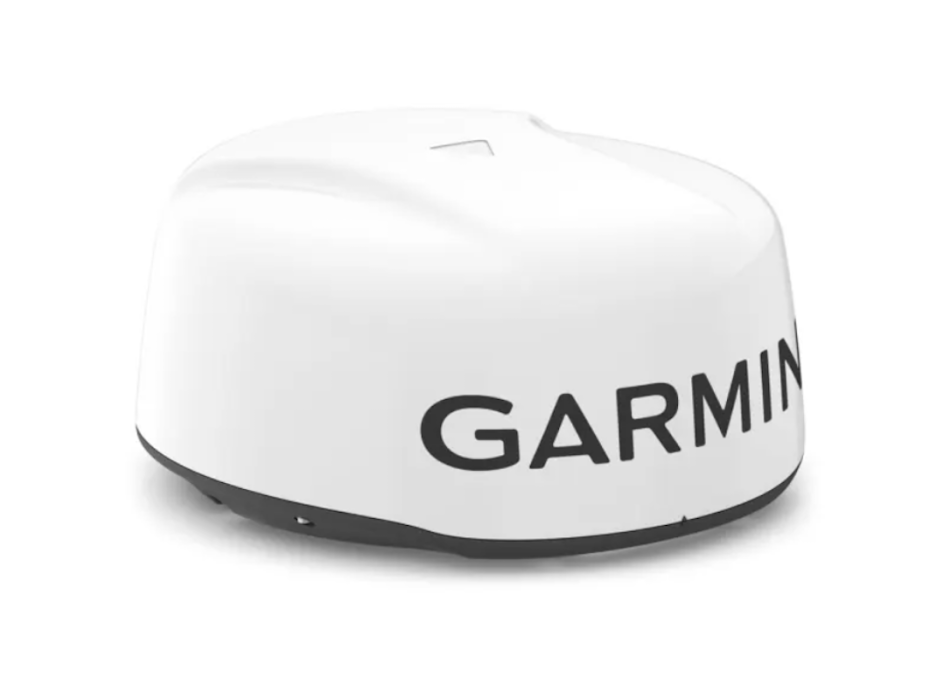

RADAR GMR 18HD +
18 "high definition xHD 4 kW radome
New design for a more attractive appearance
Simple to use and install
Dynamic Auto Gain automatically adjusts to the surrounding environment to optimize performance in all conditions
Dynamic Sea Filter automatically adjusts to sea conditions
The new touchscreen chartplotter is easy to read both day and night thanks to the large 9 ”bright display.
It features wireless connectivity to use Garmin apps and interface with VIRB action cameras and a high-sensitivity 10Hz GPS / GLONASS receiver that updates heading and position 10 times per second allowing you to view boat movements smoothly.
Total compatibility with the Garmin Marine Network to share echo sounder images, maps, user data, radar images, camera recordings and images of the innovative Panoptix with the different units connected.
NMEA 2000 and NMEA 0183 connectivity allows you to interface with multiple systems including on-board autopilot, digital switching, VHF, AIS and many more.
The new GPSMAP 923xsv also includes specific functions for sailing such as Laylines, Pre-race Guidance, Race Timer, Starting line and provides new data fields dedicated to the world of sailing such as Rose of the winds, Vectors Heading and COG, Direction, speed of the wind and tide data.
They have an internal ANT + connection to communicate wirelessly with some Garmin instruments, including the quatix® 6 nautical smartwatch, the Garmin Nautix ™ wearable instrument, the gWind ™ Wireless 2 wind transducer and the GNX ™ Wind display.
The xsv version is equipped with an integrated 1 kW CHIRP sonar module, CHIRP ClearVü function and SideVù, the high frequency technology that returns extremely sharp and detailed images of the objects, structures and fish below the boat.
It supports the latest generation Panoptix transducers, which allow you to scan and view in real time everything that happens in front of or under the boat, guaranteeing an exact and extremely realistic perception.
Package contents:
GPSMAP 923xsv chartplotter
Power cord
Bracket mounting kit with knobs
Flush mounting kit with gasket
Protective cover
Interlocking protections for dashboard finishing
GMR 18 HD + (radome antenna)
Assembly kit
Power cable (15 meters)
Network cable (15 meters)
Documentation
