Garmin GT24UHD-TM transducer

  • Code: 010-12908-00
Garmin
(0)
€ 228,55 € 269,00 -15%
add to favorites

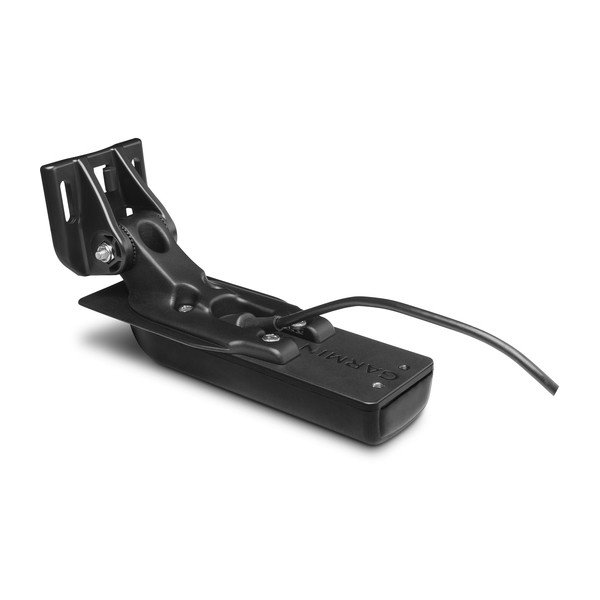

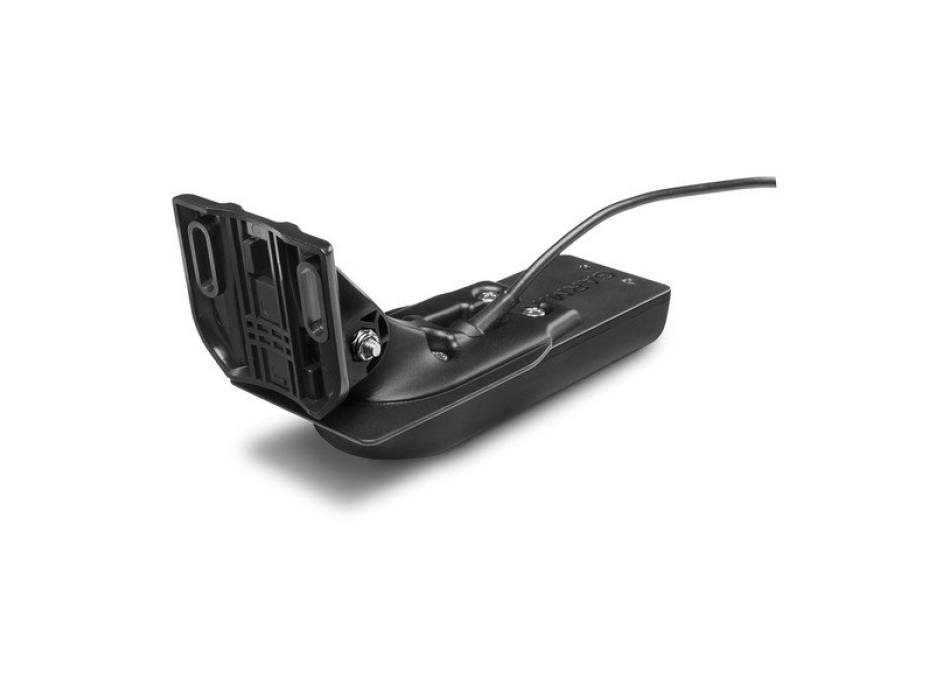

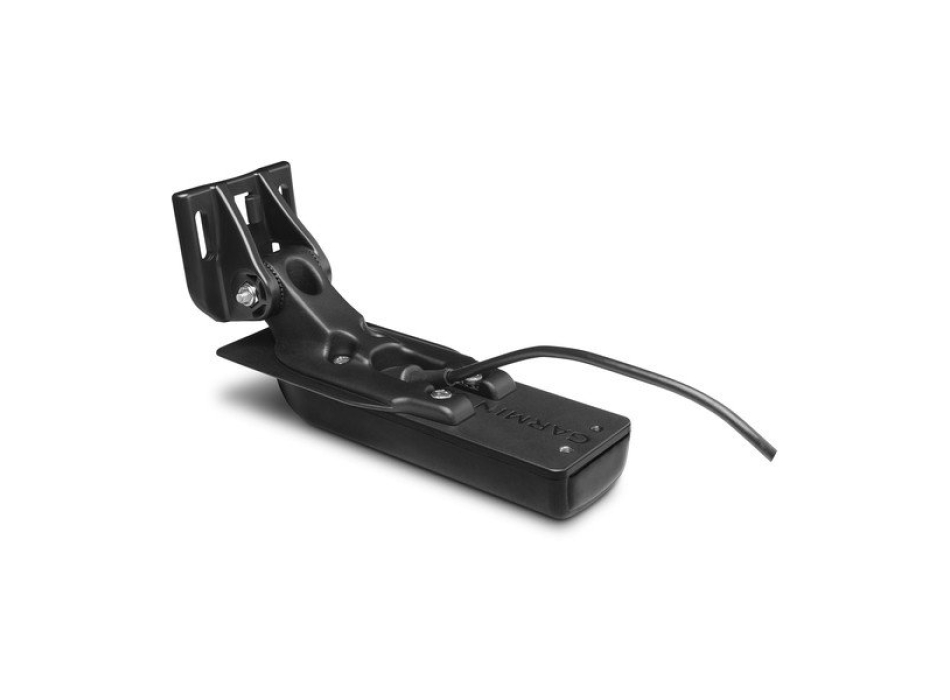

GT24 UHD-TM transducer (8 pin)

Ultra High-Definition Scanning Sonar All-in-one Transducer

Ultra-high definition all-in-one transducer

All-in-one transducer

  • Featuring ultra-high resolution ClearVü technology and traditional CHIRP technology, for an incredibly sharp and extremely clear image
  • Extraordinarily detailed and easy to read target separation
  • View images of fish and structures thanks to ClearVü technology

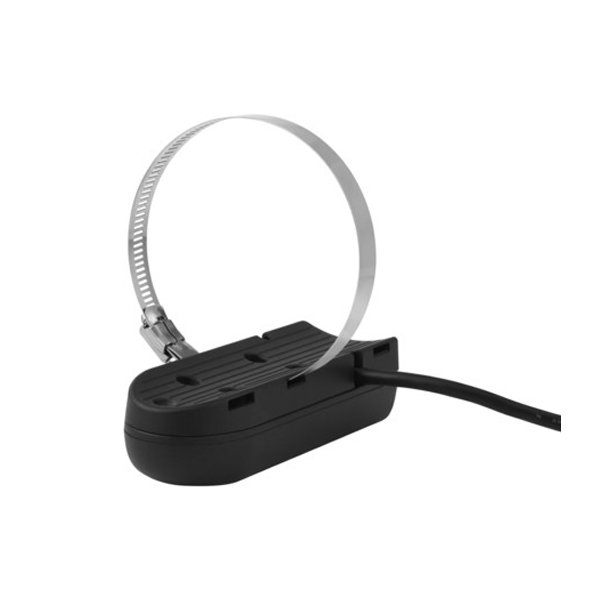

  • Compact and easy to install, also thanks to the double stern support and trolling motor

For an extremely clear view of the bottom

The ultra-high definition GT24 all-in-one transducer delivers images that are so detailed and precise that you can see fish between obstacles and underwater structures. View detailed images thanks to ultra-high definition ClearVü technology and the extraordinarily sharp images of traditional CHIRP 1 technology - thanks to the all-in-one transducer.

High performance

View incredibly detailed images of fish and structures with 800 kHz ClearVü sonar technology. Installation is simplified and easily adaptable to any need, thanks to the included transom or trolling motor supports.

General

FREQUENCY CHIRP High Wide (150-240 kHz); UHD ClearVü CHIRP 800 kHz (760-880 kHz)
FREQUENCY CHIRP Traditional 350 W; ClearVü 350 W
BEAMWIDTH CHIRP: 24 ° -16 °
ClearVü: 0.94 ° x60 ° @ 800 kHz
MAXIMUM DEPTH CHIRP: 800 ft .; ClearVü 200 ft.
DEPTH / SPEED / TEMPERATURE Depth and Temperature
NUMBER OF PIN 8
CABLE LENGTH 20 ft.
SUPPORTED TILT / AFT ANGLES 0 ° -70 ° degree transom
Frequency

Traditional CHIRP: CHIRP (150-240 kHz)

ClearVü UHD: 0.8 MHz (800 kHz) CHIRP: 760-880 kHz

Diet

Traditional CHIRP: 350 W

ClearVü UHD: 350 W

Maximum indicative range

Traditional CHIRP: Adjustable from 16 ° to 24 ° in 1 ° increments

ClearVü UHD: 0.94 ° x60 °

Maximum indicative depth

Traditional CHIRP: 243 m

ClearVü UHD: 60 m

Depth / Speed / Temperature Depth and temperature
Number of pins 8 pin (blue connector)
Cable length 6 m
Supported tilt / stern angles Stern angles from 0 ° to 70 °
D. buongiorno, volevo chiedere quale trasduttore è compatibile con ecoscandaglio Garmin sticker 5 cv oltre al gt 20
R. 05-02-23 Buongiorno, compatibile anche con GT15, GT23, P66DST, con aggiunta anche del cavo adattatore da 8 a 4 PIN: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D. Buonasera ho problemi di lettura arrivati a 50m di acqua da cosa può dipendere dalla potenza del trasduttore. Mi legge solo con motore spento da 50m in su fino a 40m mi legge perfettamente fino a 13 nodi di velocità da cosa può dipendere?
R. 28-07-22 Buongiorno, tutto normale, mi meraviglia il fatto che riesca a leggere bene fino a 13 nodi, solitamente diamo al massimo come lettura in velocità del fondale fino ai ca 5/8 nodi. Cordiali saluti. Luigi Bianchi
D. Salve... È compatibile con echomap70s Garmin?
R. 01-06-22 Buongiorno, purtroppo non compatibile. Cordiali saluti. Luigi Bianchi
D. e' compatibile con echomap plus 72cv?
R. 05-11-2021 Buonasera, purtroppo non compatibile con 72CV Plus, lo è solo con le versioni UHD. Cordiali saluti. Luigi Bianchi
D. Salve si può montare in un garming strike 5 plus
R. 27-01-2021 Buongiorno, non compatibile il GT24 con Striker, solo con echoMAP UHD. Cordiali saluti. Luigi Bianchi
