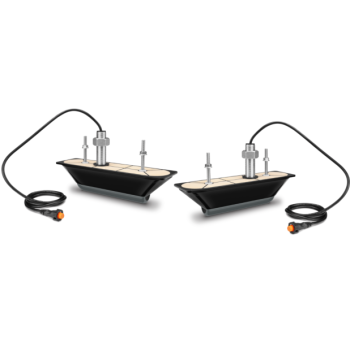

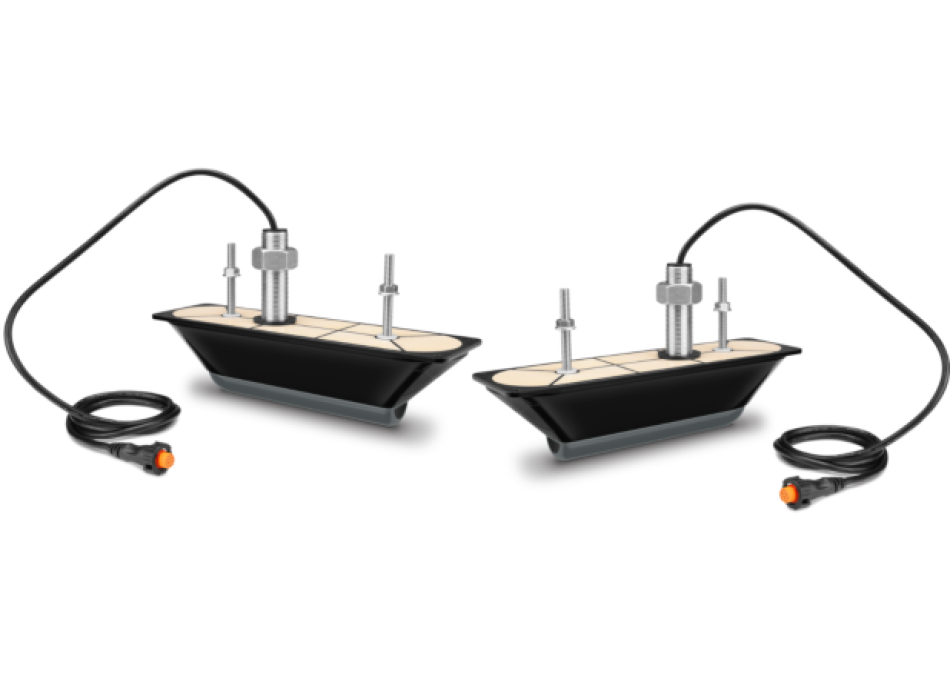

Garmin GT51M-THP transducer pair

  • Code: 010-01966-11
Garmin
(0)
€ 1.565,00 € 1.739,00 -10%
add to favorites
Garmin GT51-THP SideVù thru-hull transducer

These two thru-hull transducers provide ultra-sharp scan images of objects, structures and fish found under the boat. This traditional CHIRP sonar and CHIRP DownVü / SideVü transducers are optimized to provide performance in deep water and harsh conditions.

The CHIRP DownVü / SideVü elements have a power rating of 500 W per element (1,500 W total) and operating frequencies of 260/455 kHz. Traditional CHIRP sonar has a power rating of 600W and operating frequencies of 80-160kHz. Includes a built-in fast response temperature sensor. For hull lean angles of less than 25 degrees.

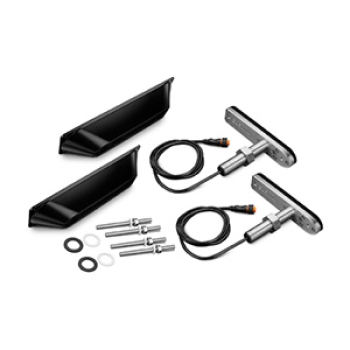

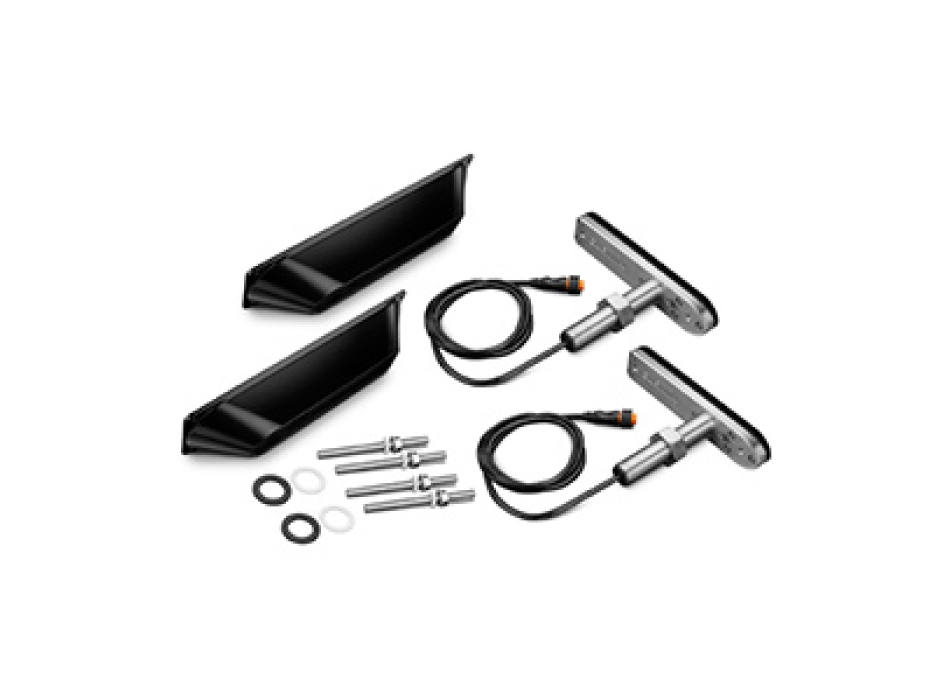

The GT51M-THP includes 12-pin port / starboard transducers with stainless steel axes, fairing block, Y-cable, bushings, mounting components and installation instructions. Follow the instructions carefully to avoid damage to the boat.



Technical specifications

Mid-band CHIRP FREQUENCY (80-160 kHz); ClearVü / SideVü CHIRP 260 kHz (245-275 kHz) & 455 kHz (445-465 kHz)
Traditional CHIRP FREQUENCY 600 W; ClearVü / SideVü 500 W
BEAMWIDTH Traditional: 24 ° -13 °
ClearVü / SideVü: 2.0 ° x51 ° @ 260 kHz and 1.4 ° x29 ° @ 455 kHz
MAXIMUM DEPTH Traditional: 1,800 ft .; ClearVü: 1,000 ft .; SideVü: 750 ft.
DEPTH / SPEED / TEMPERATURE Depth and Temperature
NUMBER OF PIN 12-pin
CABLE LENGTH 5 ft. + 30 ft. y-extension cable
SUPPORTED TILT / STERN ANGLES Up to 25 ° deadrise
D. Salve, la coppia di Gt51 è compatibile con il 9223xsv o ha bisogno di un modulo eco? Il 9223xsv non ha solo una porta per il trasduttore? E se dovessi prendere anche un modulo eco, mi conviene andare direttamente sul 8410xsv? Grazie
R. 05-01-22 Buonasera, la coppia di trasduttori GT51 è compatibile con GPSMAP 923xsv. In caso di acquisto di una box separata, nessun problema perchè andrebbe collegata sulla porta di rete Ethernet. Il 8410xsv ha la caratteristica che consente di collegare contemporaneamente due trasduttori. Cordiali saluti. Luigi Bianchi
