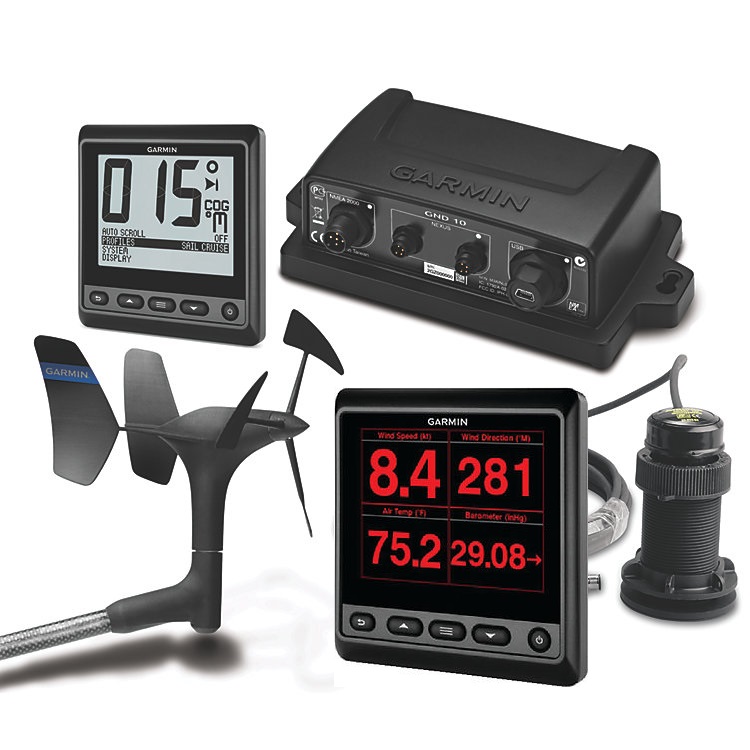

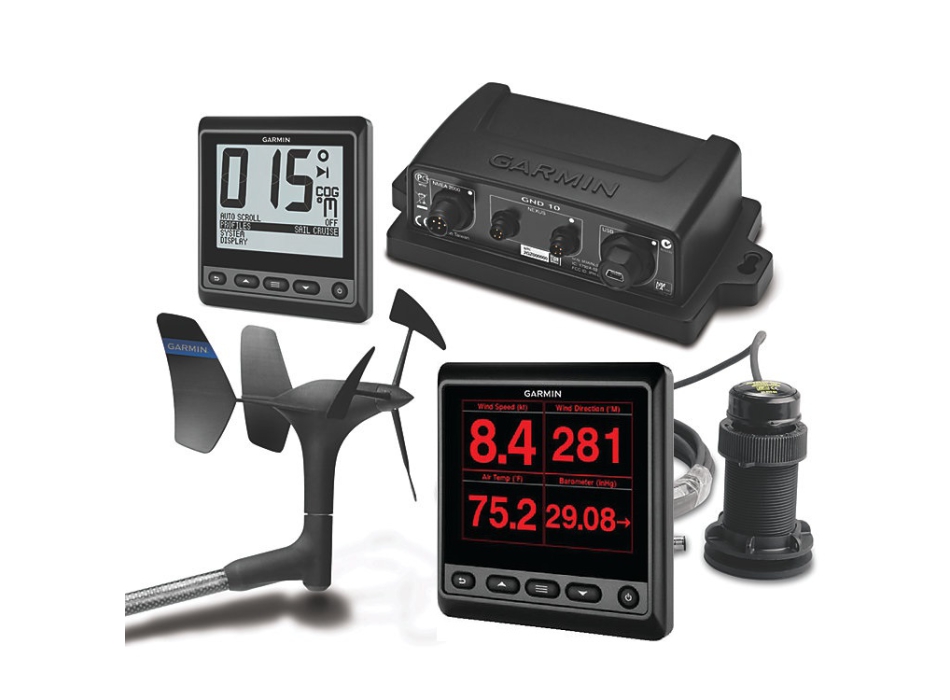

Garmin gWind GMI / GNX Wired Sail pack 52

  • Code: 010-01248-90
€ 1.473,00 € 1.840,00 -20%
Garmin Package gWind Pack V2
GMI 20 display, GNX 20 display, wind transducer with cable and DST 810 eco / log transducer

Innovative GMI 20 control unit
Large and bright 4 "color LCD display
Very high contrast and anti-reflective treatment for the best possible daytime visibility
Maximum night visibility with red / black and green / black colors
Auto-scroll function of navigation data
Recessed or flush installation
Featuring a large, bright 4 ”display and large LCD characters, the GMI 20 is easy to get to and from any angle. This new multifunction display is equipped with the best possible night visibility, with three different color combinations (full color, red / black, green / black) and is perfectly visible in sunlight thanks to the high contrast of its latest generation LCD. .
Thanks to its technological design, the GMI 20 harmonizes and characterizes any dashboard. The GMI 20 allows the display of over 100 navigation data, including: speed, depth, wind, GPS, engine data and much more. Inside the GHC 20 package there are two bezels: “black” for installations with Glass Helm chartplotters and “silver” for installations with 4000/5000/6000/7000 series chartplotters.

GNX 20 Monochromatic Display
GNX 20 4 ”monochrome display superimposes black digits on a white background, with high contrast for clear visibility in any light condition and any reading angle. The GNX 20 is the first glass-bonded LCD display with three different data fields and thanks to the fully customizable profiles, it is possible to view and customize the layout of over 50 data pages. The Auto-scroll function, on the other hand, allows you to view only the data of interest in rotation.
If a different backlight color is desired, the display can be customized by choosing from 7 different colors: red, orange, yellow, green, blue or purple. On the basis of these colors the user can also create a custom one for an optimal visualization of the data.

Wind transducer
Front wind sensing for more accurate data in light wind conditions
Double direction stabilizer
Optical data reading for superior performance at low wind speeds
The GND ™ 10 Black box converts Nexus Network data into NMEA 2000 and allows seamless integration between compatible Garmin chartplotters and Nexus instruments
Nexus - Garmin plug-and-play installation via NMEA 2000
The gWind transducer, thanks to the front wind detection, provides more precise data in light wind conditions, while the dual direction stabilizer offers more reliable data. This type of transducer, unlike the cup transducer, guarantees greater efficiency. Combined with optical reading, this transducer offers superior accuracy at low wind speeds.

An integral part of the system is the GND ™ 10, a plug-and-play black box that converts Nexus Network data into NMEA 2000, thus allowing Garmin users to use Nexus instrumentation and vice versa.



Packaging
GWind transducer
GNX 20
GMI 20
GND 10
Thru-hull transducer DST810
NMEA 2000 cable (2m)
NMEA 2000 T connector
Tree cable (25 m)
Nexus network cable (5 meters)
Bracket for mast
Mounting components
User guide
Specifications Display GMI 20
Dimensions: (H × W × D): 110 x 115 x 30 mm
Weight: 247g
Temperature range: -15 ° to 70 ° C
Waterproof: IPX7
Power Consumption: Maximum 2.5W
Maximum unit voltage: 32 Vdc
NMEA 2000® input voltage: 9-16 Vdc
LEN NMEA 2000: 6 (300 mA at 9 Vdc)

GNX Display Specifications 20
Physical dimensions 110 x 115 x 30 mm (4.33 "x 4.53" x 1.18 ")
Display size, WxH 83 x 60 mm; 101.6 mm diagonal (3.3 "x 2.4"; 4.0 "diagonal)
Display type Standard LCD, monochrome
Weight 230 g (8 oz)
IPX7 waterproof rating
NMEA 2000® certified Yes
NMEA 0183 compatible Yes
Power consumption 0.35 W (day); 0.4 W (night)
Voltage range 9-16 V (from NMEA 2000)
Mounting options Flat or Flush
Glued glass screen Yes
Temperature range From 5 ° to 158 ° F (from -15 ° to 70 ° C)
Compass-safe distance 209 mm (8.25 in.)

Wind transducer specifications
Unit Dimension, WxH: 610mm x 345mm (17.7 "x 11.8")
Weight: 260 grams
Cable length: 25m
Waterproof: yes (IPX6)
Temperature range: -15 ° C to 70 ° C (5 ° F to 158 ° F)
Voltage: 9-16V
Power Consumption: 0.33W
Compass Safe Distance: N / A
Accuracy angle: better than ± 1.5 °
Speed: better than ± 3%
NMEA 2000® Load Equivalency Number (LEN): N / A
Wireless connectivity: no

D. buongiorno sarei interessato all' acquisto di un sistema garmin con 2 display a colori, sensore wind testa d' albero, sensore eco log. Attualmente monta un st60, mi potrebbe fare un preventivo del sistema+installazione? la barca è un 36 piedi si trova al marina di rimini. grazie
R. 14-02-2021 Buonasera, Le Sue intenzioni sono per Garmin o eventualmente rimanere su Raymarine? Lo chiedo perchè, in caso si testasse su Raymarine, sia il sensore di testa d'albero che il cavo, sarebbero compatibili con i nuovi i70S: https://www.painestore.it/raymarine_i70_display Consiglierei di passare in negozio, così possiamo discuterne direttamente. Cordiali saluti. Luigi Bianchi
