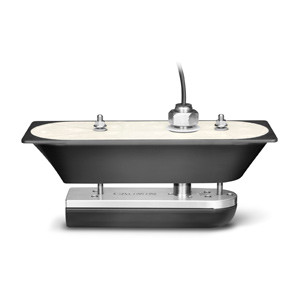

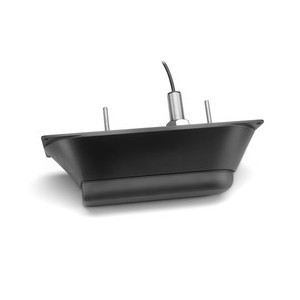

Garmin transducer GT23M-TH Chirp DownVù bronze

  • Code: 010-12404-10
Garmin
(0)
€ 713,05 € 839,00 -15%
add to favorites
GT23M-TH Chirp and DownVü ™ multifunction transducer (8 pin)
Through bronze

The GT23M-TH transducer is perfect for coastal and deep-sea fishing, for those who want an excellent traditional CHIRP sonar and a CHIRP DownVü scanning sonar. This transom mount transducer displays fish arches clearly and sharply with outstanding target separation and crisp structure definition under the vessel.

The 8-pin transducer includes a traditional midband CHIRP sonar (80-160 kHz) and a power rating of 600 W. The CHIRP DownVü element (260/455 kHz) has a power rating of 500 W.

For installation, follow the included instructions carefully to avoid damage to your boat.

Packaging:

Check the list of Compatible devices

Weight: 4.82 lb (2.19 kg)
Cable length: 30 feet (9m)
Number of pins on the connector: 8
Dimensions:
Transducer: 228 x 62 x 41mm
Transducer Bracket: Ø24 x 135mm
Fairing block: 323 x 116 x 64 mm
Frequency:
Traditional: CHIRP 80-160 kHz
DownVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz
Transmission power:
Traditional: 600 W
DownVü: 500 W
Maximum depth:
Traditional: 1,800 feet (548.6 m)
DownVü: 1,000 feet (304.8 m)
Beam width (°) LF / HF (-3dB):
Traditional: 24/13
DownVü:
2.0x51 @ 260
1.4x29 @ 455
Water temperature reading: yes
D. Buongiorno volevo sapere se questo trasduttore posso abbinarlo al mio gpsmap 922xs,grazie Davide
R. 20-01-24 Buongiorno, sì certo, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D. Salve, Mi confermate che il bulbo del trasduttore gt23M TH è in bronzo e non in acciaio? Grazie Marino
R. Buonasera, mi scusi, è un errore, confermo acciaio inox, no bronzo. Correggeremo presto la dicitura. Cordiali saluti. Luigi Bianchi
