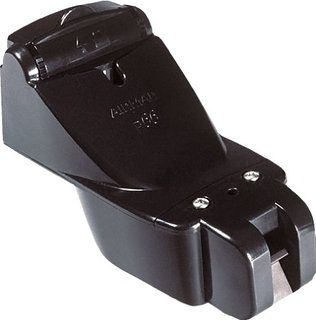

Garmin transducer P66DST from the stern

  • Code: 010-10192-21
Garmin
(0)
€ 177,55 € 209,00 -15%
add to favorites
AIRMARTRANSDUTTORE P66DST for GARMIN 8PIN
600w plastic transducer with 8 PIN Garmin Blue connector

Frequencies: 50-200khz

Dual frequency transducer for transom mount, 600w power, echo, speed and temperature, original Airmar compatible with all Garmin fishfinders with 8 pin blue connector.



The factors to consider when choosing the transducer
To determine the transducer that best suits your needs, consider the following factors:

Material
The first point to determine is the material of which the transducer is made.
The plastic transducer is recommended for fiberglass or metal hulls.
The stainless steel transducer is recommended for aluminum or steel hulls.
The bronze transducer is recommended for fiberglass or wooden hulls.

Expanding wood could damage plastic transducers and cause a leak. Installing a stainless steel transducer in a metal hull requires the use of a fairing, available from retailers.

DO NOT install a metal transducer on a positively grounded boat.

Mounting type
The type of mounting is also very important.
Thru-hull transducers with fairing blocks offer the best performance, especially at high speeds.
Thru-hull transducers are ideal for tow boats where good performance is required and there are no hull protrusions.
Internal transducers are fixed directly inside the hull but the performance is slightly reduced.
Transducer output power

The output power refers to the intensity at which the transducer sends the signals expressed in watts RMS.

More power increases the chances of returning echoes in deep water or in poor visibility conditions. It also allows you to view more details such as small fish and structures.
Generally, the higher the power, the deeper you can reach, as well as achieving maximum target separation by eliminating surface noise.

Frequency
The accuracy with which the fish finder locates the bottom and other objects is also determined by the frequency selected based on the depth. Raymarine Depth transducers have two frequencies: LOW (low) or HIGH (high).

HIGH
The high frequency is used for shallow water and is used to obtain more accurate readings at high speeds. When using this frequency, the transducer scans a smaller area but displays more detail. Fewer unwanted echoes and less noise are usually displayed with higher target definition.

LOW
This frequency is used in deep water. Water absorbs ultrasonic pulses at a slower rate, and larger areas can be covered before the signal becomes too weak. The result is a wider cone angle that allows you to analyze a larger portion of the seabed. However, this also means less target definition and separation and more noise. Although low frequencies allow you to explore the water column more deeply, they may also result in an unclear bottom image.

In general, you should use the high frequency for a detailed image in shallow water and then switch to the low frequency for greater depth. The ideal solution is to display both frequencies on a double screen.

Corners of the cone
The transducer concentrates the transmitted waves in a beam. In theory, the impulses are radiated into a cone that widens with increasing depth. In reality, the shape of the beam varies according to the transducer and generally the pulses are also radiated outwards thus producing the side lobes. The following figures show a representation of the actual path taken by the pulses.

Low frequencies have a wider beam angle than high frequencies
However, for our purpose, we will consider the image of a cone. The signal is strongest along the center line of the cone and gradually decreases as it moves away from the center. Wider angles show a larger portion of the bottom at the expense of resolution, because they disperse the power of the transmitter. A smaller cone can concentrate the transmit power more in a smaller area. The cone angles are wider at low frequencies and narrower at high frequencies.
To summarize, a larger cone can detect not only fish directly under the boat but also surrounding fish with less target separation. A narrower cone concentrates the transmitted energy to more accurately locate small details, such as fish or bottom structure, but examines a smaller portion of water.
D. È compatibile con Garmin striker? Grazie
R. 19-08-24<br /> Buongiorno, sì confermo la compatibilità tramite cavo adattatore:<br /> https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Salve, compatibile con striker 7cv? Grazie
R. 07-07-24<br /> Buonasera, sì certo confermo la compatibilità tramite cavo adattatore cod. 010-12719-00.<br /> https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Salve vorrei acquistare la sonda p66 dst per il mio garmin echomap 52dv , è compatibile ? E nel caso che tipo di adattatore occorre?
R. 04-03-24<br /> Buonasera, purtroppo il 52DV accettava solo trasduttori con freq. 77-200khz, non 50-200khz come la P66, quindi non compatibile.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno, vorrei sapere se è compatibile con garmin striker 7 sv grazie
R. 17-10-23 Buongiorno, confermo la compatibilità mediante cavo adattatore cod. 010-12719-00: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D. Buonasera il trasduttore p 66 viene letto dal Garmin gpsmap 721 xs ?
R. 03-06-23 Buon pomeriggio, certamente sì confermo la compatibilità. Cordiali saluti. Luigi Bianchi
D. Vorrei sapere se è compatibile con Raymarine st 30 round bidata, se e compreso di cavo e i tempi di spedizione per palermo . grazie
R. 06-05-23 Buonasera, non compatibile con Bidata, deve acquistare il P65: https://www.painestore.it/raymarine_p65dst_trasduttore_da_poppa_fili_liberi Cordiali saluti. Luigi Bianchi
D. Salve vorrei montarlo per le uscite a drifting su echomap 92 SV appena comprato da voi,lo strumento riconosce questa sonda?per montarlo ho bisogno di un adattatore da 8 a 12 PIN?
R. 01-11-22 Buonasera, confermo la compatibilità, deve acquistare anche il cavo adattatore da 8 a 12 pin. https://www.painestore.it/garmin_cavo_adattamento_da_12f_a_8m_pin Cordiali saluti. Luigi Bianchi
D. Salve vorrei sapere se è compatibile con Garmin striker 5cv ? Se no, potete dirmi se ne avete uno compatibile? Grazie
R. 31-10-22 Buon pomeriggio, compatibile tramite il seguente cavo adattatore: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D. Buongiorno, ho 2 e homap uhd 92sv con un gt51 da poppa collegati in condivisione tra loro tramite rete marine network. Sarebbe possibile installare il P66DST sull'altro dispositivo e utlizzarli entrambi contemporaneamente date le diverse frequenze che utilizzano? Potrei vususlizzare le due frequenze 50/200 anche separatemente.separatemente? Affiancati a poppa crerebbe problemi? Sono interessato all'acquisto, grazie.
R. 24-04-22 Buongiorno, sì certo è possibile, necessario il cavo adattatore da 12F a 8M: https://www.painestore.it/garmin_cavo_adattamento_da_12f_a_8m_pin Data la diversità di frequenze, i due trasduttori non dovrebbero creare interferenze fra loro. Cordiali saluti. Luigi Bianchi
D. SALVE, COSA OCCORRE PER COLLEGARLO AL 7400XSV?
R. 18-01-22 Buongiorno, non occorre nulla perchè ha già il connettore 8 PIN Blu. Cordiali saluti. Luigi Bianchi
D. Buona sera, la p 66 e compatibile con ecomap92 UHD sv.grazie anticipate.
R. 08-04-2021 Buonasera, sì compatibile mediante cavo adattatore da 12 a 8 PIN: https://www.painestore.it/garmin_cavo_adattamento_da_12f_a_8m_pin Cordiali saluti. Luigi Bianchi
D. Salve possiedo un Furuno navnettztouch2 TZTL12F gradirei sapere se va bene per questo strumento e se lo avete disponibile da spedire subito grazie
R. 29-06-2020 Buonasera, non compatibile questa versione p66DT Garmin con Furuno. Dovrà valutare la versione P66DT per Furuno: https://www.painestore.it/furuno_trasduttore_p66dt_ Disponibili a stock. Cordiali saluti. Luigi Bianchi
D. Salve questo trasduttore è compatibile per il garmin echomap 62
R. 26-06-2020 Buonasera, sì compatibile mediante cavo adattatore cod. 010-12719-00: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin Cordiali saluti. Luigi Bianchi
D. Buongiorno, potrei collegare questo trasduttore ad uno Striker 5? (primo modello presumo, senza la linea blu) grazie
R. Buongiorno, si è possibile, aggiungendo il commutatore: https://www.painestore.it/garmin_cavo_adattamento_da_8_a_4_pin A disposizione, porgo cordiali saluti barbara/PAINE SNC
