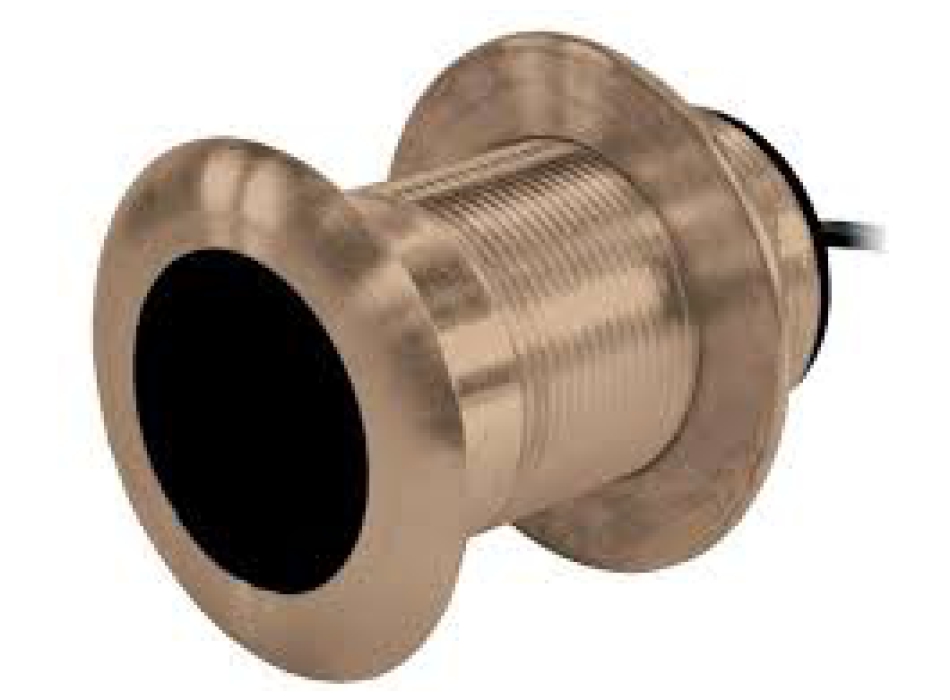

Garmin Trasd. B60 12 Degrees Tilt through bronze

  • Code: 010-10982-21
Garmin
(1)
€ 359,00 € 399,00 -10%
add to favorites
Garmin Transducer B60 Bronze Thru 12 Degree Tilt

Bronze 12 tilt thru-hull transducer 600 watt power Depth / Temp 8pin freq. 50-200 khz.

This entry level tilt bronze transducer fits 8-15 degree tilt angles without fairing.

An excellent choice for fiberglass and wood hulls, this 600W 8-pin transducer has a depth of 800-1,200 feet (244-366 meters); an operating frequency of 50-200 kHz; and a beam width of 45-12 degrees.



General
FREQUENCY 50/200 kHz
FREQUENCY 600 W
BEAMWIDTH 45 ° / 12 °
MAXIMUM DEPTH 800-1,200 ft.
DEPTH / SPEED / TEMPERATURE Depth and Temperature
NUMBER OF PIN 8-pin
CABLE LENGTH 33 ft.
SUPPORTED TILT / AFT ANGLES 8 ° -15 ° degree deadrise

Caratteristiche

Sei interessato ad una offerta privata?
D. buongiorno, vorrei sapere come viene montato questo trasduttore visto che non ha nessun punto bianco per poterlo direzionare. Grazie Cristiano
R. 11-11-24<br /> Buonasera, nella parte interno scafo, è presente una freccia che indica appunto KEEL, ovvero chiglia. <br /> Cordiali saluti. <br /> Luigi Bianchi
D. Buona sera, volevo sapere se la sonda garmin b60 (CODICE: 010-10982-21) è compatibile con un simrad go12 xse e se serve un adattatore. Nel qual caso sia compatibile e serva l’adattatore, le chiedo gentilmente di indicarmelo Grazie mille
R. 04-04-24<br /> Buonasera, assolutamente non compatibile.<br /> Deve acquistare la versione per Simrad SS60:<br /> https://www.painestore.it/simrad_lowrance_trasd_b60_12_gradi_tilt_passante_acciaio<br /> Cordiali saluti.<br /> Luigi Bianchi
