-15%

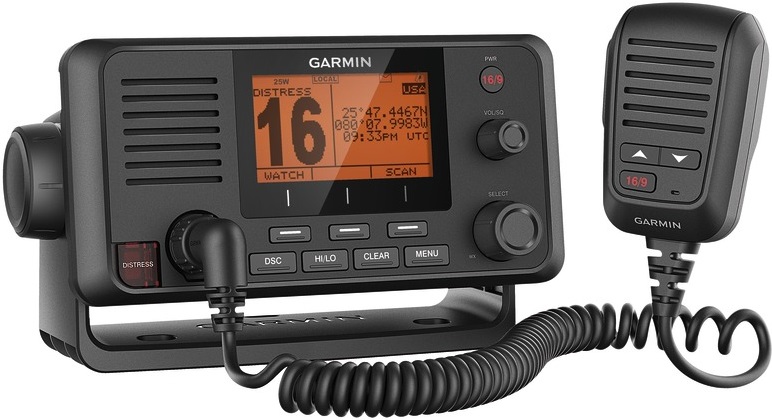

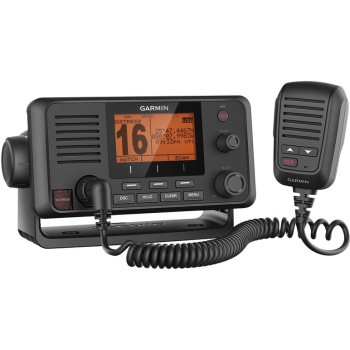

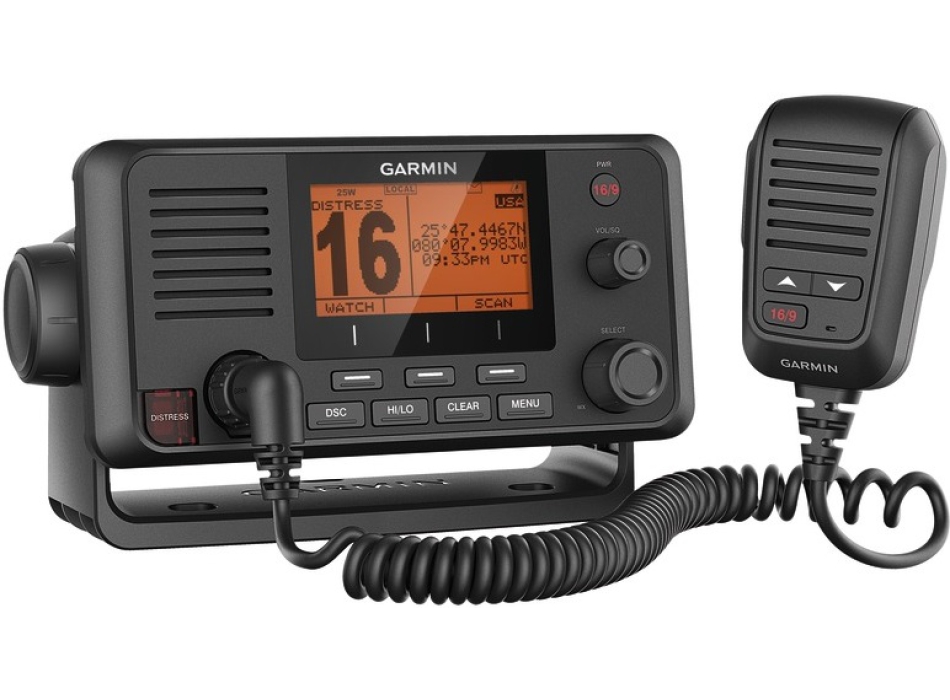

Garmin VHF 215i with AIS and GPS

  • Code: 010-02098-01
€ 713,05 € 839,00 -15%
Garmin VHF 215i built-in AIS
New version with built-in GPS


Stay in touch while browsing
Displays Automatic Identification System (AIS) data on the chartplotter
Standard Class D Digital Selective Calling (DSC) functionality (distress call and direct call with user-programmed MMSI)
Megaphone function for greater safety on board
Transmission power up to 25W with integrated GPS
All international VHF channels included

Communication is essential at sea and thanks to the VHF 215i AIS you can keep in touch with the coast and with other vessels in your area.

Browse in total safety
In an emergency situation, a reliable communication apparatus is of paramount importance. The Garmin 215i AIS VHF, robust, compact, waterproof and with DSC (Digital Selective Calling) system, guarantees excellent transmission and reception quality.
It also allows you to view class A and B AIS (Automatic Identification System) data, identification information and data relating to the position, course and speed of surrounding vessels within the range of the VHF on your chartplotter.

Unlimited connection
Easy to install and use, the new VHF 215i AIS connects via the NMEA 2000 network to compatible chartplotters and multifunction displays via the NMEA 2000® network. The new VHF 215i AIS is equipped with DSC Class D selective digital calling, for emergency calls and direct calls with user-programmed MMSI, to be safe in any situation. The VHF 215i is also compatible with the second GHS 11i radio station.

Communicate in style
The new design matches perfectly with the latest GPSMAP®722 / 922/1222 Touch, GPMAP 1022/1222, GPSMAP 7400 and GPSMAP 8400 chartplotters and multifunction displays for a console in full Marine style.

Packaging:
VHF 215i AIS
Removable microphone
Power cord
Mounting bracket
Protective cover
Flush installation kit
Microphone support
Documentation
TECHNICAL FEATURES
Unit dimensions, HxWxD: 9.8 x 19.7 x 14.9 cm
Weight: radio without microphone 1.2 kg; microphone 0.25 kg
Waterproof classification: IPX7
Temperatures: operational from -15 ° C to 70 ° C
Compass safety distance: 75 cm
NMEA 2000: yes
NMEA 0183: yes
DSC (Digital Selective Calling): Class D
Frequency: All international, Canadian and US navigation channels; 10 NOAA weather channels
Operating voltage: 12.0Vdc
Power consumption: standby 350 mA; reception 600 mA; transmission from 2.0 A to 6.0 A (from 1 W to 25 W)
Frequency range: 156.050 to 163.275 MHz (including WX channels)
Hailer output power: 20 W at 4 Ω
Hailer siren impedance: 4 Ω
External speaker impedance: 4 Ω
Antenna connector: S0-239 (50 Ω)
Maximum antenna gain: 9 dBi

D. Buonasera, il dispositivo Garmin VHF 215i con AIS e GPS è compatibile con il chartplotter ECHOMAP Plus 72cv per visualizzare i dati AIS su mappa. Grazie
R. 04-11-2021 Buongiorno, certamente sì, confermo la compatibilità. Necessario anche lo starter kit NMEA 2000: https://www.painestore.it/garmin_nmea_2000_starter_kit Cordiali saluti. Luigi Bianchi
D. Buongiorno , la programmazione del codice MMSI può essere fatta successivamente all’acquisto da parte mia oppure è necessario comunicare il codice al momento dell’ordine ? Grazie
R. 08-10-2021 Buon pomeriggio, la programmazione può essere fatta tranquillamente successivamente. Cordiali saluti. Luigi Bianchi
D. Buon giorno volevo sapere se questo vhf è compatibile con il mio chartplootter 4012. Grazie
R. 20-07-2020 Buongiorno, confermo la compatibilità. Cordiali saluti. Luigi Bianchi
