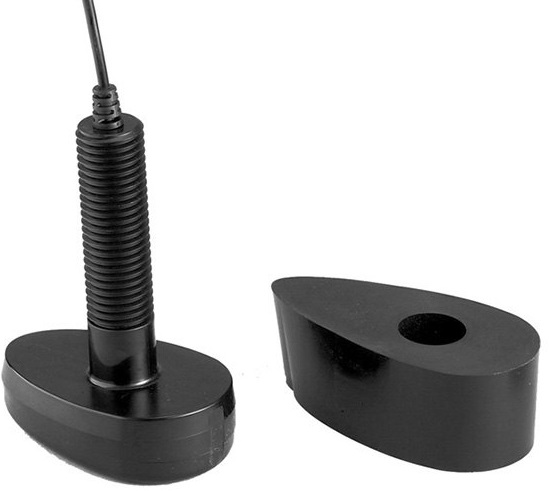

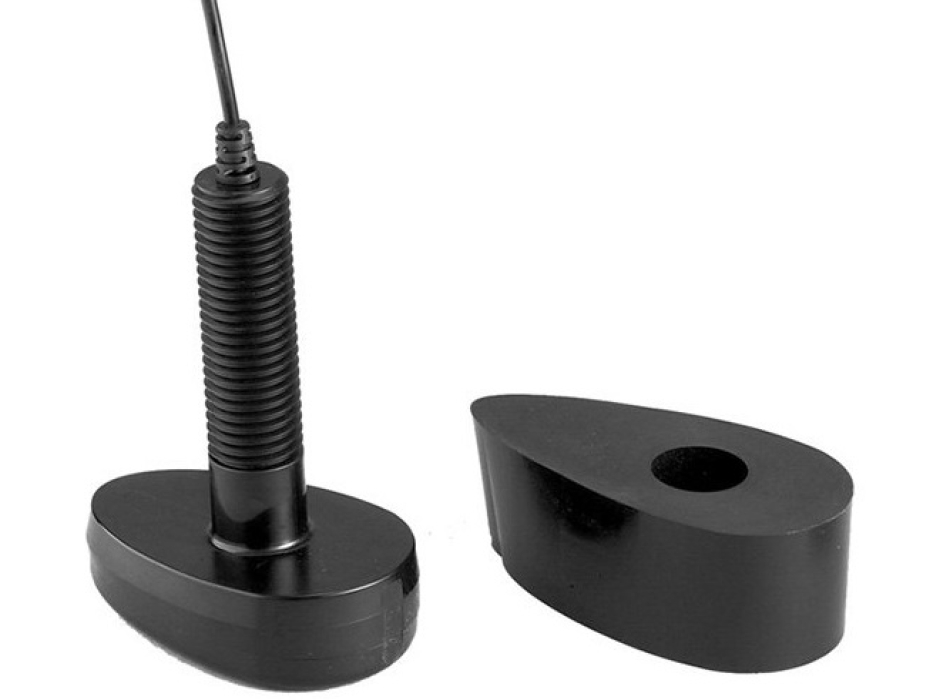

Humminbird CHIRP DS Thru-Hull Transducer for HELIX
Humminbird Lexan transducer for through hull installation.
This model includes a built-in temperature sensor for accurate data for a more productive fishing trip.
Dual Spectrum CHIRP plastic thru-hull transducer suitable for Helix Dual Spectrum CHIRP 2D Sonar models. High frequency beam and wide cone, CHIRP range 150-220kHz and maximum depth up to 360m. Includes temperature sensor, rugged composite construction and 6m cable.
Technical features
Compatible with: HELIX 5 CHIRP G2 - models equipped with GPS only, HELIX 7 CHIRP G2 / G3 - models equipped with GPS and CHIRP DI G2, HELIX 7 CHIRP G2N / G3N - All models, HELIX 8 CHIRP G3N, HELIX 8 CHIRP G4N - All models, HELIX 9 CHIRP G2N / G3N / G4N - All models, HELIX 10 CHIRP G2N / G3N / G4N - All models, HELIX 12 CHIRP G2N / G3N / G4N - All models, ICE HELIX CHIRP G2 - All Models (Open Water Mode) Side Imaging ™ and Down Imaging ™ units can support this transducer as a 2D sonar transducer only.
Cable length: 30 feet
Side Imaging ™ and Down Imaging ™ units can support XPTH 9 HW T as a 2D sonar transducer only. This transducer does not support Side Imaging or Down Imaging.
Dual spectrum CHIRP frequencies: Full: 150-220kHz, Narrow: 180-240kHz, Wide: 140-200kHz
Dual spectrum CHRIP Maximum depth: 1200 feet (365 m)
Dimensions: L 4.0 "x W 2.5" x D 1.2 "- Rod length 4", Rod diameter 1 "
