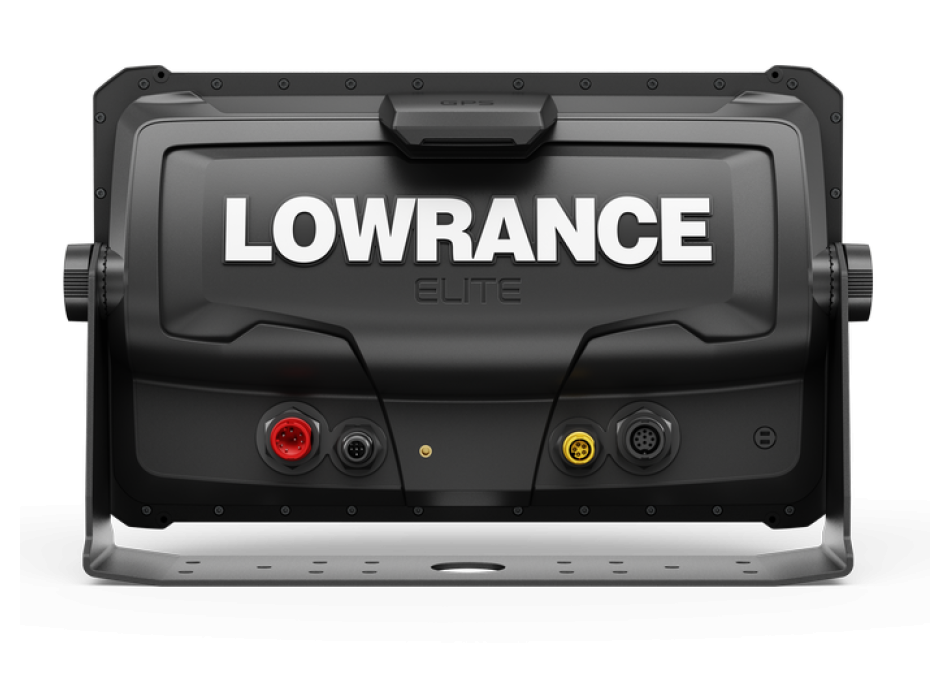

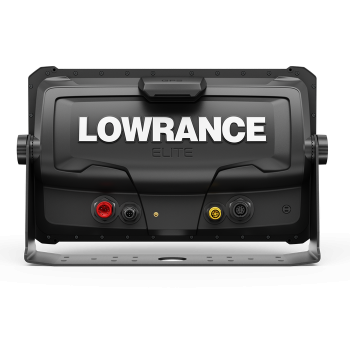

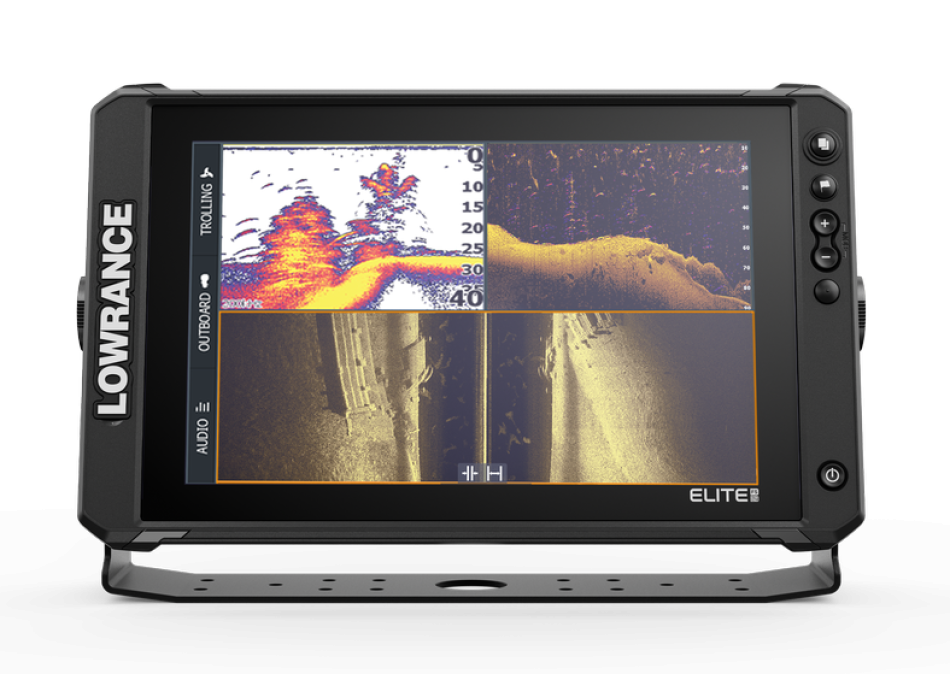

Lowrance Elite 12FS eco/GPS TouchScreen

  • Code: 000-16440-001
Lowrance
(0)
€ 2.279,00 € 2.622,00 -13%
CHOOSE THE TRANSDUCER MODEL
you chose:
add to favorites
Lowrance Elite 12 FS Mid/High/Down/SideScan GPS

Elite FS 12
The new Fishing System (FS) Elite gives you access to the full range of Lowrance fish-finding tools, including ActiveTarget live sonar, Active Imaging and compatibility with a wide range of mapping options, to make the most of your time on the water.

The Elite Fishing System (FS) combines the power of proven, new Lowrance fish-finding tools with a more affordable display that is easier to use and install. From ActiveTarget live sonar and ultra-high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging, to compatibility with a wide range of mapping options, Elite FS has the tools you need to find and catch more fish.

High-resolution multi-touch screen
Our best-in-class Elite Series display, a multi-touch flat glass panel with anti-glare coating, offers excellent visibility in all lighting conditions. A single user-programmable button lets you quickly select your most used and vital interactions.



Fish big with proven Lowrance sonar

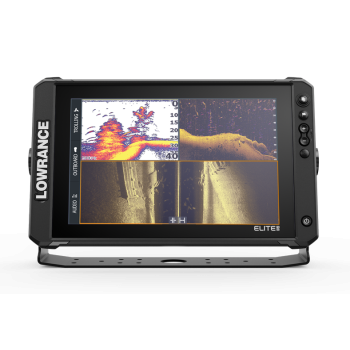

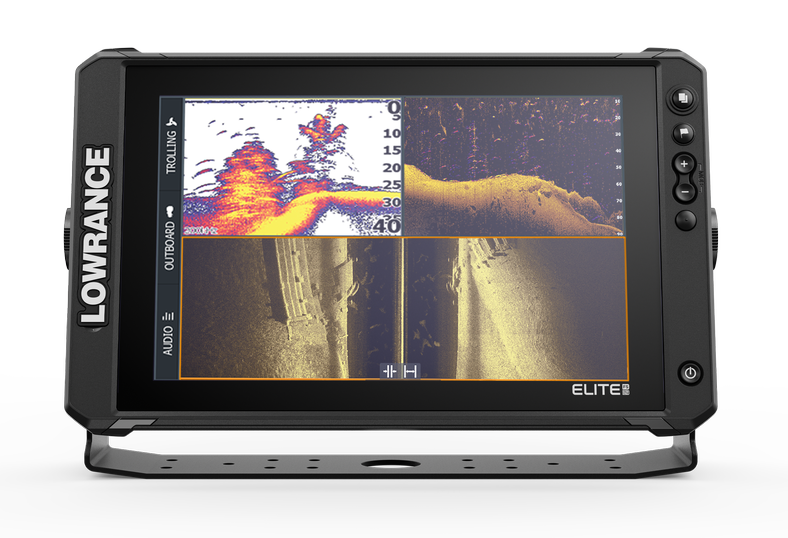

With Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal, anglers can see structure and cover in a new level of detail, at a range never before available with other structure imaging technologies. Get the best of CHIRP sonar and DownScan Imaging on one screen with exclusive FishReveal intelligent target viewing, which lets you clearly distinguish fish from structure and cover on highly detailed DownScan images.

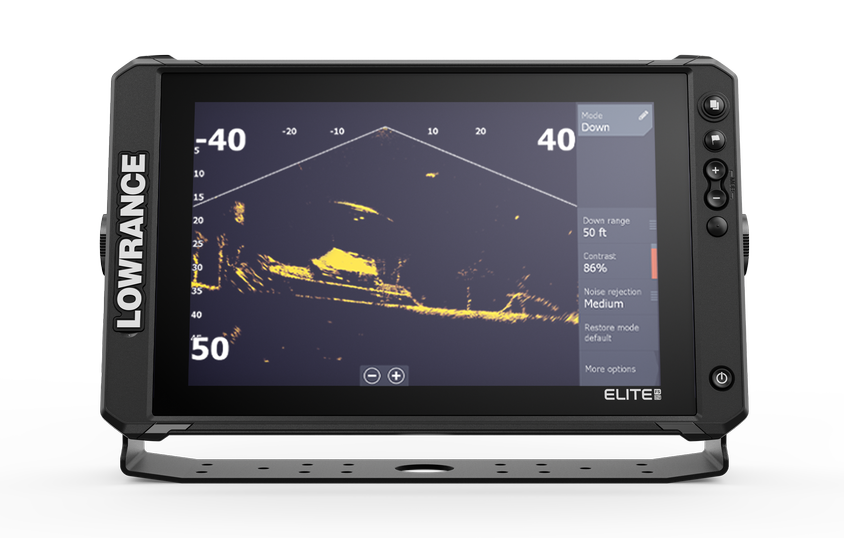

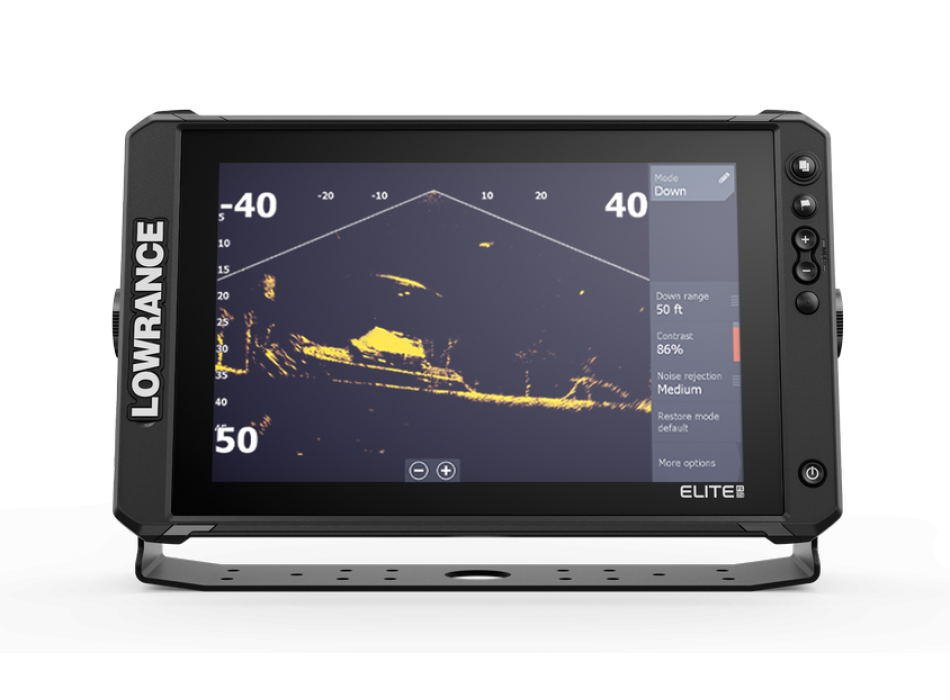

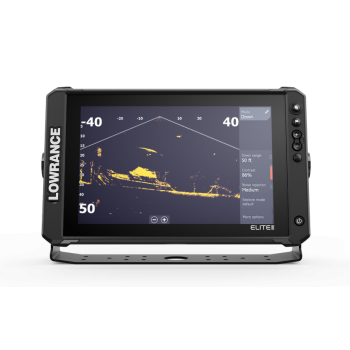

Find fish in real time with new ActiveTarget Live sonar
Fishing is more targeted when you know exactly what fish are doing – in real time – with ActiveTarget Live sonar. Watch fish move in high resolution, spotting them as they swim in and around structure. See their reaction to your bait in real time, and you’ll know if your current technique is right or if it’s time to change it up.

Multiple map options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of cartography options, including C-MAP, Navionics and more.
WIDE CHOICE OF CARDS
Upgrade your included worldwide basemap with a wide range of C-MAP® charts, allowing you to spend more time catching fish and less time finding them. Plus, you can activate Genesis® Live for real-time mapping. Also compatible with Navionics® and other chart providers.

C-MAP DISCOVER®
C-MAP® DISCOVER™ offers you a wide range of coverage and all the essential features to help you get the most out of your time on the water. DISCOVER™ gives you the best of C-MAP high-resolution bathymetry with integrated Genesis® data, plus Full Vector Charts, Custom Depth Shading, Tides & Currents and free Easy Routing™ subscription.*

Genesis® Live
With the ability to create 6-inch contour maps of your favorite fishing areas or unfamiliar waters in real time, Genesis Live gives you all the detail you need to discover and reach great fishing spots faster.

C-MAP® REVEAL® Charts
Equipped with a shaded relief system, they offer features such as bottom imagery detection, aerial photography, satellite imagery and the introduction of dynamic raster charts, which add to the key C-MAP features already available in DISCOVER™, such as full vector graphics, custom depth shading, tides and currents and free Easy Routing™ subscription.*

Main functions
ActiveTarget Live Sonar Ready
Active Imaging 3-in-1 Ready
FishReveal
Includes a worldwide basemap, plus a wide range of cartography options, including C-MAP, Navionics and more
C-MAP Easy Routing Features, Navionics Autorouting
C-MAP Genesis Live on-screen cartography
High-resolution multi-touch touchscreen
Built-in wireless, NMEA 2000 and Ethernet connectivity
Full touchscreen control of Power-Pole anchors and Ghost electric motor
Main functions

Screen
Screen size 12" IPS
Screen resolution 1280x800
Screen brightness >1200 nits
Multi-touch touch screen
Keyboard Pages, waypoint, zoom, power, (1) user programmable quick access keys
Viewing angles 85° top/bottom, 85° left/right

Sonar
Sonar Compatibility
Integrated:
CHIRP, Broadband, Active Imaging™ HD DownScan*, Active Imaging™ HD SideScan*, Active Imaging™ DownScan, Active Imaging™ SideScan
*requires S3100 module
Compatible with:
ActiveTarget® 2, ActiveTarget®, S3100, SonarHub®, StructureScan®, StructureScan®HD, StructureScan®3D, LiveSight (requires PSI-1 module)
Sonar Frequencies
CHIRP High CHIRP - Medium CHIRP - Low CHIRP - (depending on transducer)
Broadband 50 kHz - 83 kHz - 200 kHz (depending on Broadband transducer)
Active Imaging 800 kHz - 455 kHz
Active Imaging HD (Via additional S3100 module)
DownScan: 700 kHz CHIRP - 1200 kHz CHIRP
SideScan: 455kHz CHIRP - 1075kHz CHIRP

Multifunction screen
AIS chart overlay.
Target vessel details.
Autopilot
Outboard Pilot
Ghost® Trolling Motor
Recon Trolling motor (software dependent)
MotorGuide Xi5/Xi3 Trolling Motor (requires Motorguide PinPoint Gateway)
Cartography included
World Basemap

Supported mapping
C-MAP® REVEAL™
C-MAP® DISCOVER™
C-MAP® Genesis
Navionics (Gold, NAV+ Platinum+)
Lowrance Regional Mapping Partners
GPS 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

Multimedia
SonicHub
SonicHub2
FusionLink products
Any NMEA 2000 compliant marine audio products
Compass safety 2.1 ft (0.65 m)
Waypoints, routes, tracks
3000 Waypoints - 100 Routes - 100 Trails with up to 10,000 points per trail

Interface and connectivity
NMEA 2000® 1x Micro-C
Ethernet ports 1 x 100Mbit
Card reader 1 micro SD card up to 32GB
Wi-Fi® Internal 802.11b/g/n
Bluetooth® 4.0 with support for Bluetooth® classic

Electrical
Supply voltage 12 V DC (10.8 - 17 V DC)
Maximum power consumption 2.5A @ 13.8VDC with backlight on full
Recommended fuse rating 3A

Physicist
Weight 2.3kg (5.1 lbs)
Mounting type
Gimbal Bracket or Dash Flush Mount
Environment Operating temperature range -15°C to 55°C (5°F to 131°F)
Storage temperature range -20°C to 60°C (4°F to 140°F)
IPX7 waterproof level with card door closed
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Vibration shock 100,000 cycles of 20 G
