Lowrance Eagle 9 GPS/eco display 9"

  • Code: 000-16231-001
Lowrance
(1)
€ 619,00 € 730,00 -15%
CHOOSE THE TRANSDUCER
you chose:
add to favorites

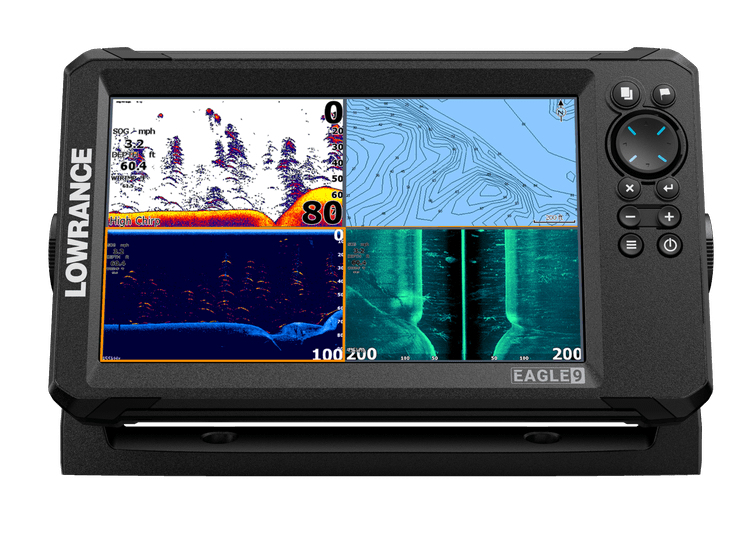

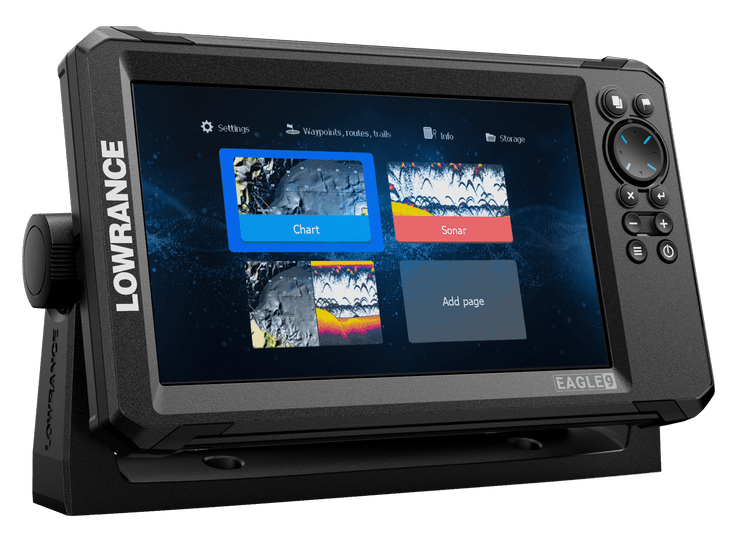

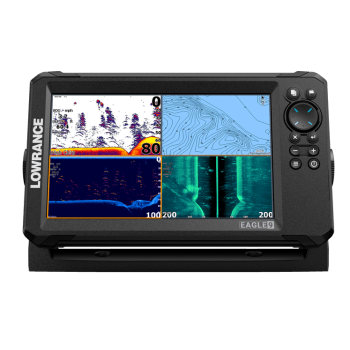

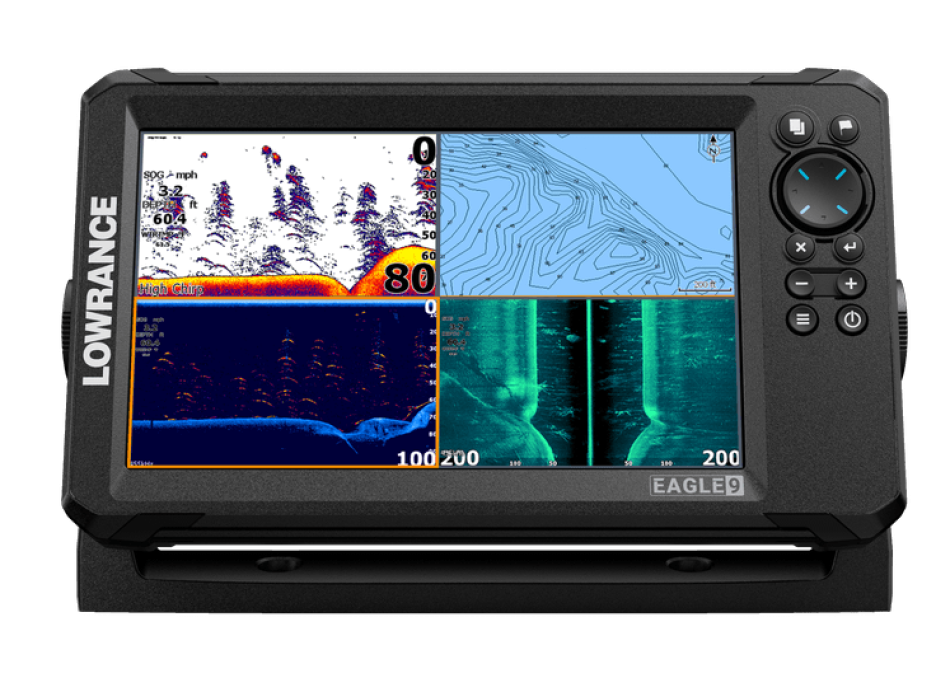

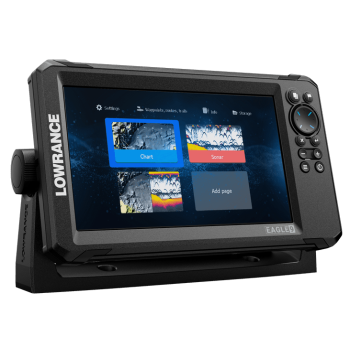

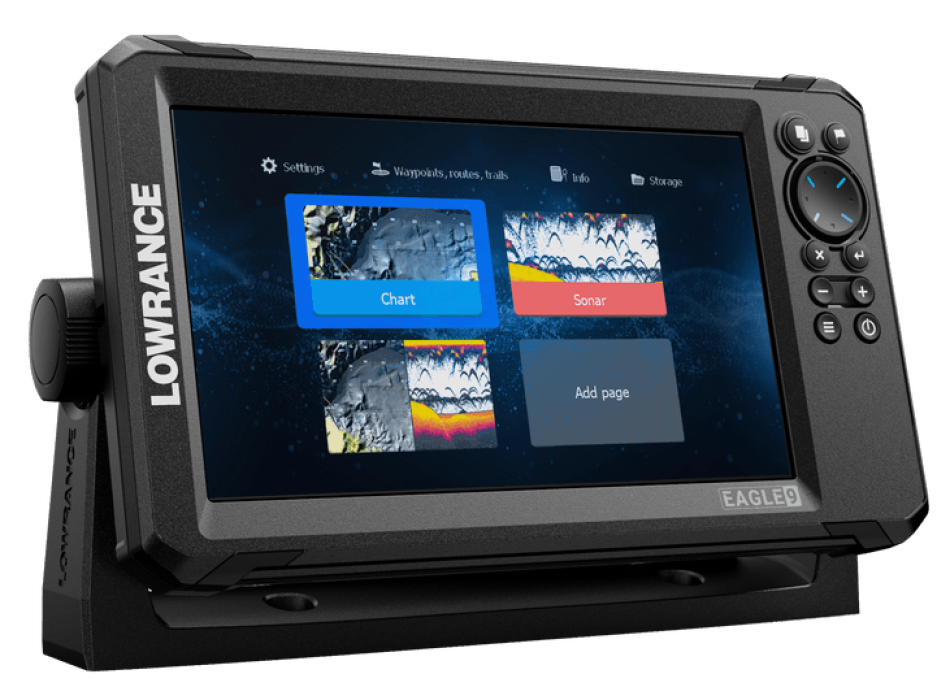

Lowrance Eagle 9 eco/GPS Cartographic Display 9"
Available in three versions:
Eagle 9 without transducer
Eagle 9 with 50-200Khz transducer and HDI
Eagle 9 with Tripleshot Down and SideScan transducer

The all-new HOOK 9 Eagle makes fishing easier, delivering exceptional performance with proven fishfinding tools, including self-adjusting sonar, DownScan Imaging™, improved deep-water performance with the 50/200khz model, and now FishReveal™, which makes it easier to see fish by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ in one screen.
Whether you're fishing a local spot or unfamiliar waters, you'll be able to find the best fishing spots with detailed C-Map charts or uncharted waters, in real time, thanks to Genesis Live.
Also available in the TripleShot version with the three echo functions Chirp Standard, DownScan and SideScan with side view.

FISHREVEAL™

FishReveal™ combines DownScan Imaging with CHIRP, making it easier than ever to distinguish fish from vegetation. Eagle means eagle. And it is precisely thanks to its sight that the eagle dominates.


CHIRP SONAR
CHIRP sonar offers high-resolution views of individual fish, even when they are close to the bottom or swimming in dense schools.




DOWNSCAN IMAGING™
DownScan Imaging helps you more easily identify how fish move through their environment by providing images of rocks, vegetation and other underwater structures located directly beneath your vessel.




NEW IPS SCREEN
Eagle features an IPS screen that improves resolution, clarity and visibility, even when wearing polarized sunglasses in direct sunlight




NEW COLOR PALETTES
A new range of color palettes allows you to tailor the display for better visibility, even in varied conditions




Specifications

Display

Size 9" (228mm)
Resolution 1024x600
Type IPS
Antifog Bonded LCD
Viewing angles 85th all
Backlight LEDs

Networking

SD Card Storage Micro SD Card(32GB Max)

Power

Local Supply 12 VDC
Consumption local supply 650mA, 230mA at 12VDC (backlight full/off)
Recommended Fuse Rating 5A

Interface

Interface Keypad:9-way directional keypadZoom +/-ExitEnter/MenuWaypoint/CursorPower/LightPages

GPS

Correction SBAS
Time to first fix 45 s
GPS GPS / SBAS

Environment

Humidity 66C at 95% for 48hrs
Temperature operation "-15°C to +55°C (5° F to 131° F)
Temperature storage "-20°C to +60°C (4°F to 140°F)
Protection IPX7 with card door closed

Mechanical

Weight 0.90kg (lb)
Size 274mm(11") x 162mm(7")
Mounting Panel mount or bracket
Material CYCOLOY C1200HF (PC & ABS BLEND)
Color Black
Cable Inlet 1 - 2 pin pwr conn / 1 - 8 pin sonar connecto

Caratteristiche

Sei interessato ad una offerta privata?
D. Si riesce a in ter fa sciare con un honda 250 del 2024
R. 08-11-24<br /> Buonasera, purtroppo gli Eagle non si interfacciano con nessun altro tipo di strumenti, non hanno porte di comunicazione NMEA.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. buongiorno sarei interessato a questo prodotto e pratico carpfishing che trasduttore mi consigliate x la migliore prestazione di questo eco? Grazie in anticipo cordiali saluti
R. 22-09-24<br /> Buongiorno, per questo tipo di pesca, consiglio di attendere ancora qualche settimana perchè ci arriveranno i nuovi Eagle Eye, pensati proprio per utilizzo in acqua dolce.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. Buongiorno devo sostituire scandaglio lawrence hds 9 vorrei sapere quali modelli sono compatibili con i cavi di connessione Ho bisogno di un modello abbastanza economico semplice grazie
R. 29-07-24<br /> Buonasera, la soluzione più economica a mio avviso è un Elite 9FS: https://www.painestore.it/lowrance_elite_9fs_eco/gps_touchscreen<br /> La soluzione che ha prospettato lei è più economica, ma risulterebbe un "passo indietro" rispetto a quello che aveva lei.<br /> Cordiali saluti. <br /> Luigi Bianchi
Display from 7 "to 12"
Products that may be of interest to you

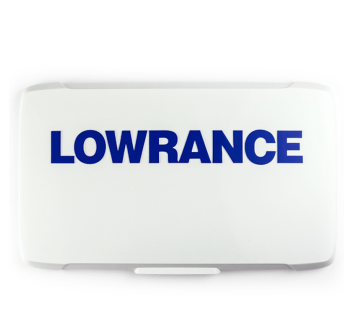

Lowrance Cover HOOK2 / REVEAL 5 display protection Painestore
