Lowrance Eagle 7 GPS/echo display 7"

  • Code: 000-16230-001
Lowrance
(1)
€ 419,00 € 511,00 -18%
CHOOSE THE TRANSDUCER
you chose:
add to favorites

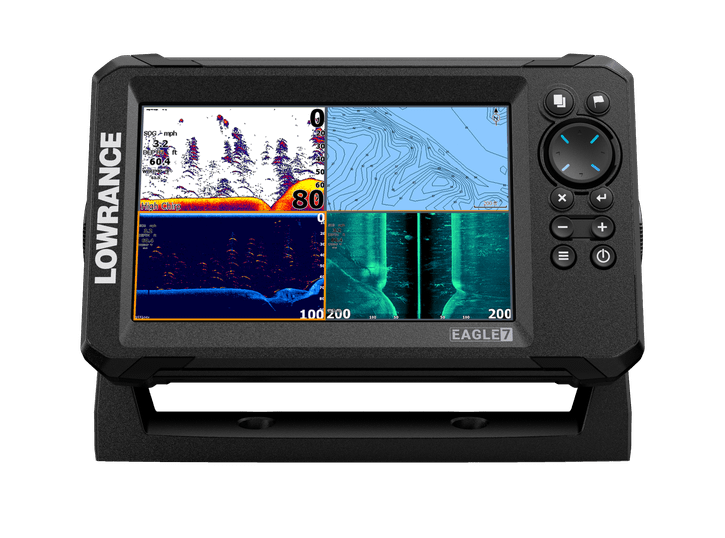

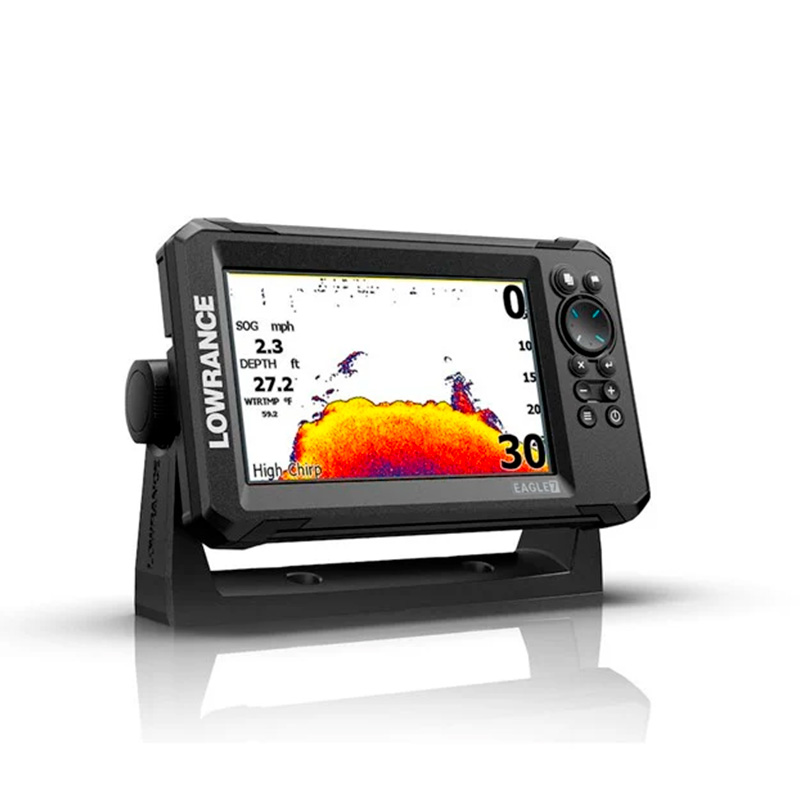

Lowrance Eagle 7 eco/GPS Cartographic Display 7"
Available in four versions:
Eagle 7 without transducer
Eagle 7 with 83-200Khz transducer and HDI
Eagle 7 with 50-200Khz transducer and HDI
Eagle 7 with Tripleshot Down and SideScan transducer

The all-new HOOK 7 Eagle makes fishing easier, delivering exceptional performance with proven fishfinding tools, including self-adjusting sonar, DownScan Imaging™, improved deep-water performance with the 50/200khz model, and now FishReveal™, which makes it easier to see fish by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging™ in one screen.
Whether you're fishing a local spot or unfamiliar waters, you'll be able to find the best fishing spots with detailed C-Map charts or uncharted waters, in real time, thanks to Genesis Live.
Also available in the TripleShot version with the three echo functions Chirp Standard, DownScan and SideScan with side view.

FISHREVEAL™

FishReveal™ combines DownScan Imaging with CHIRP, making it easier than ever to distinguish fish from vegetation. Eagle means eagle. And it is precisely thanks to its sight that the eagle dominates.


CHIRP SONAR
CHIRP sonar offers high-resolution views of individual fish, even when they are close to the bottom or swimming in dense schools.




DOWNSCAN IMAGING™
DownScan Imaging helps you more easily identify how fish move through their environment by providing images of rocks, vegetation and other underwater structures located directly beneath your vessel.




NEW IPS SCREEN
Eagle features an IPS screen that improves resolution, clarity and visibility, even when wearing polarized sunglasses in direct sunlight




NEW COLOR PALETTES
A new range of color palettes allows you to tailor the display for better visibility, even in varied conditions




Specifications
Screen Brightness >1000 NITS
GPS 1 Hz GPS GLONASS WAAS EGNOS MSAS
Warranty Period 1 Year + 4 additional years of upgrade options. Totaling 5 years
Weight 1.25 lb (0.57 kg)
Power Consumption max 1.25A @ 13VDC with backlight on full
Power Consumption typical 1.25A @ 13VDC with backlight on full
Power Consumption min 1.25A @ 13VDC with backlight on full
Shock Vibration 100,000 cycles of 20 G
Compass Safe 12" (300mm)
Supply Voltage 12v DC (10.8-17VDC)
Waypoints, Routes, Tracks 3000 Waypoints 100 Routes 100 Trails
Time to First Fix 30s
Storage Temperature Range 4°F to 140°F (-20°C to 60°C )
Operating Temperature Range 5°F to 131°F (-15°C to 55°C )
Recommended Fuse Rating 5A
Humidity 60°C, 95% relative humidity (RH) for 18 hours
Viewing Angles 80° top/bottom, 85° left/right
Display Resolution 800 x 480
Dimensions W x H x D 9.31" (236.4 mm) x 6.46" (164.2 mm) x 4.42" (112.3 mm)
Charts supported C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+)C-MAP GenesisGenesis LiveC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners(No Photo/Satellite Overlay)
Cartography included C-Map World Base Map
Correction DGPS, WAAS
Approvals Compliance FCC, Industry Canada, Radio Equipment Directive, ACMA, RSM
Mounting Type Gimbal Bracket Front Dash Flush Mount
Sonar Compatibility Integrated: CHIRP Broadband DownScan
Waterproof rating IPX7 with card door closed
Interface Keypad: 8-way directional keypad Zoom +/- Exit Enter/Menu Waypoint/Cursor Power/Light Pages
SD Card Storage Micro SD Card(32GB Max)
Backlight Color Pure White LED


Caratteristiche

Sei interessato ad una offerta privata?
D. Buongiorno, prima dell'acquisto vorrei sapere se per questo ecoscandaglio è obbligatorio acquistare una micro SD con le carte nautiche aggiornate. Nel caso se potete indicarmi quella compatibile con questo strumento. Ringrazio e rimango in attesa. Saluti Pietro Bartoli
R. 30-08-24<br /> Buon pomeriggio, sì certo è vivamente consigliato, per avere tutti i dettagli sia costieri che batimetrici.<br /> Compatibile sia con Navionics+ che C-MAP Discover:<br /> https://www.painestore.it/navionics_regular_micro-sd/sd_card<br /> https://www.painestore.it/c-map_cartografia_discover_sd-microsd<br /> Cordiali saluti.<br /> Luigi Bianchi
Display from 7 "to 12"
Products that may be of interest to you

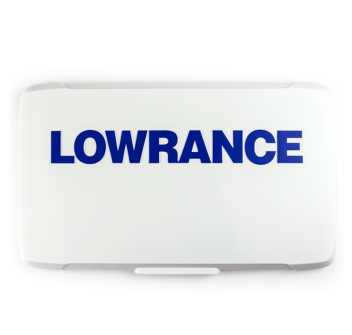

Lowrance Cover HOOK2 / REVEAL 5 display protection Painestore
