MeP CO.N.10M-S BROAD 50 -MS

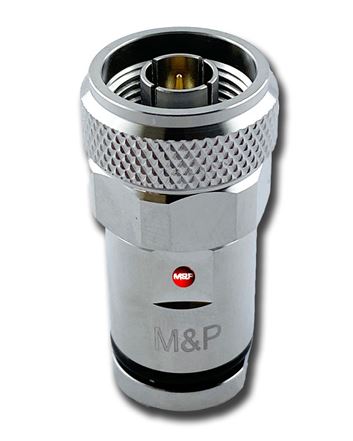

M&P Messi and Paoloni Watertight connector for 10.3 mm cable
"N" MALE TO WELD
Compatible with:
AIRBORNE 10 | BROAD PRO50 C | EXTRAFLEX BURY |
HYPERFLEX 10 | RG 213 PLUS | ULTRAFLEX 10 |
Why choose this connector ?
• Compression design with double rubber gasket, which double protects against water infiltration, humidity or condensation.
• Dramatic suppression of background noise, improvement in shielding efficiency and insertion losses.
• The assembly and welding instructions included in the package (no need to weld the braid).
• Surfaces are treated with a special corrosion resistant and hypoallergenic alloy called Smart3-Alloy ® .
• Thanks to the new pin, excess tin and the consequent heat that would cause uncontrollable alterations to the dielectric and damage to the cable properties is prevented. Using standard connectors, soldering exposes the dielectric to severe thermal stress.
NOTE:
1. The price is for ONE connector only.

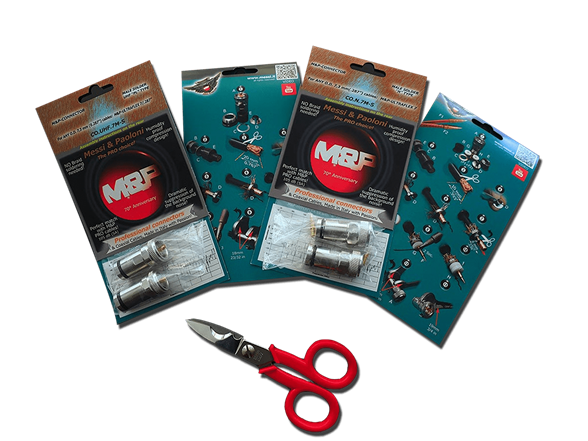

2. There are two pins in the package: a smaller one for solid conductor and a larger one for stranded conductor.
3. For the AIRBORNE 10 we have made a special assembly video, as it has a polyethylene sheath (more robust than the PVC ones). The latter requires two longitudinal cuts to easily insert a component into the sheath.
