Dragonfly

01/03/2013

Finally CHIRP technology even on small fishfinders

General Specifications

Dimensions
View Dimensions Diagram
Nominal supply voltage
12v
Operating voltage range
10.8 - 15.6v
Power consumption at full brightness
8 watts
Connections
Power / transducer combined input
Standard waterproofing
IPX 6 and IPX 7
Display size
5.7 "(4: 3 aspect ratio)
Display resolution
VGA (640 x 480)
Brightness
1500 nits
GPS and Cartography
GPS 50 Channel Internal
Chart Compatibility
Navionics Silver, Gold and HotMaps
Waypoints 3000
Tracks 15 tracks of up to 10,000 trackpoints
MicroSD Chart Media

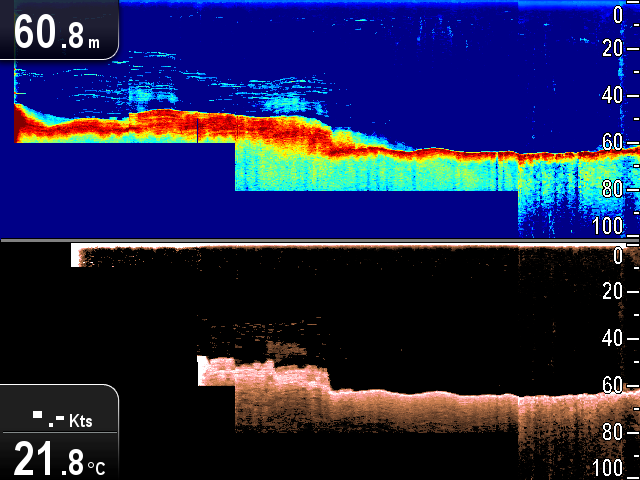

Sonar
Sonar Type CHIRP Sonar
Sonar Channels 2
CHIRP Sonar Frequency Range 200kHz

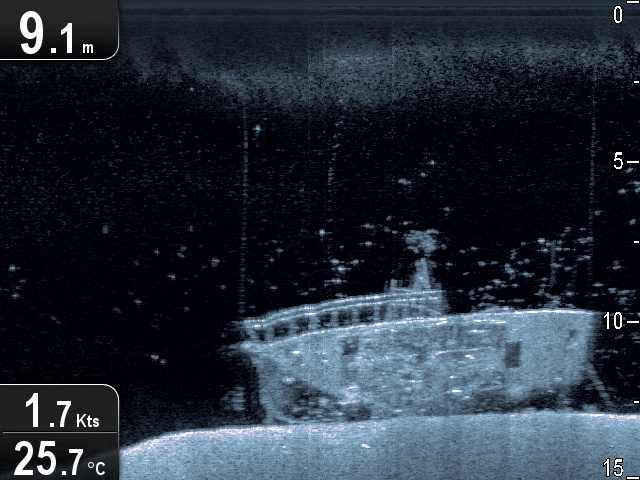

CHIRP DownVision Frequency Range 350kHz
Depth Range
CHIRP DownVision and
CHIRP Sonar imagery 600ft
