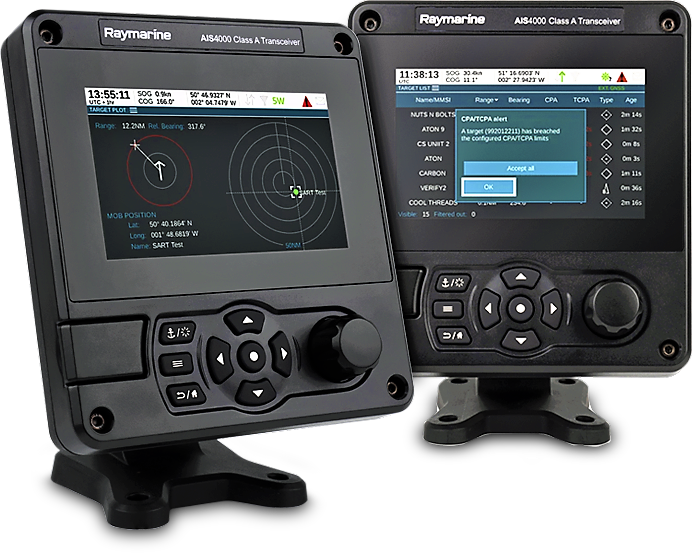

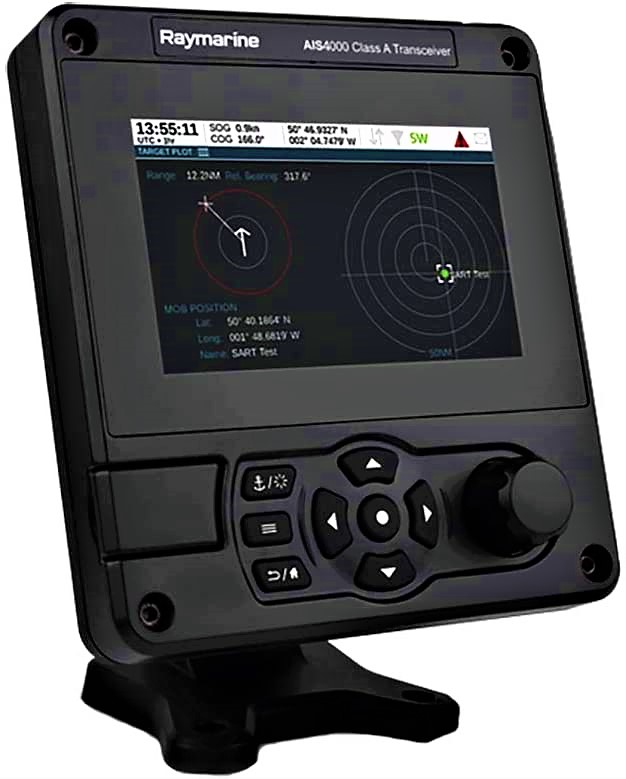

Raymarine AIS 4000 Class A Transceiver

  • Code: E70601
€ 3.399,00 € 3.897,90 -13%
Raymarine AIS 4000 Class A Transceiver

Designed for commercial vessels, luxury yachts and deep water SOLAS navigation. The AIS4000 Automatic Identification System (AIS) transceiver provides robust Class A AIS network capabilities and is designed to withstand extreme weather conditions, shock and vibration of any class of vessel.

The AIS4000 boasts a high definition color display for quick access to integrated charts, alarms and tracking. Additional support for wired and wireless networks with onboard systems makes the AIS4000 a great SOLAS device and certified Class A transceiver for inland waterways.

ADVANCED CLASS A AIS CAPABILITIES
The AIS4000 is a transceiver equipped with an automatic identification system, certified for SOLAS and inland waterways applications.

  • Fourth generation AIS technology for improved performance in terms of speed, range and processing
  • Color target display with optional C-MAP ENC mapping
  • Integrated Man Overboard/PLB warning and tracking system
  • CPA/TCPA data and alarms

RESISTANT, BRIGHT AND EXTREMELY EFFICIENT
The feature-packed AIS4000 takes Class A transceivers to a new level of capability.

  • 5" color display, 800 × 480
  • Built-in Wi-Fi
  • NMEA 2000
  • Intuitive and easy to use interface

ROBUST AND VERSATILE
Designed for extreme conditions, the AIS4000 is at home on any vessel.

  • Certified to the highest industry standards for waterproof, shock and vibration
  • Compact enclosure with NMEA2000 and NMEA0183 connectivity
  • Junction box included for extended on-board sensors and ECDIS connectivity
  • Multiple ceiling, bulkhead, table and surface mounting options

TECHNICAL SPECIFICATIONS
  • Dimensions 152mm × 165mm × 70mm
  • Weight 1kg
Electrical Specifications
  • Power supply 12 to 24 V DC
  • Current consumption 0.5A at 12V (6W)
Connectors
  • VHF antenna connector
  • GNSS antenna connector
  • Power Two-pin connector (cable provided)
  • Alarm relay and serial interfaces 18-pin connector (cable supplied)
  • Serial input 14-pin connector supplied (cable supplied)
  • NMEA 2000 NMEA 2000 micro connector
Data Communication Interface
  • Bidirectional NMEA 0183 (IEC61162-2) ports 3
  • Bidirectional NMEA 0183 (IEC61162-1) ports 3
  • Entering DGPS correction data (ITU-R M.823-2) 1
  • Alarm relay output 1
  • NMEA 2000 1
  • Wi-Fi 802.11 b/g/n
  • Pilot port 1 (optional)
Compliance with standards
  • AIS regulations IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0
  • Serial data interface standard IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2
  • Environmental standard IEC 60945 Ed 4.0
  • GNSS performance standards IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0
  • Product safety IEC 60945 Ed 4.0
VHF receiver
  • Transmitter 1
  • Receiver 3
  • Frequency From 156.025 to 162.025 MHz
  • Output power 1W or 12.5W (auto)
  • Channel bandwidth 25 kHz
  • Channel phase 25 kHz
  • CMSK-TDMA modulation mode
  • Bit rate 9,600 bits/sec
  • Receiver sensitivity -107 dBm at 20% PER
GNSS Receiver and Transceiver
  • 72 channels
  • GNSS Systems Supports dual parallel operation, GPS and GLONASS BeiDou modes
  • IEC61108-1 Compliant
  • IEC61108-2 Compliant
  • GNSS antenna supplied
User interface
  • 5" color LCD display, 800x480
  • Rotary encoder for selection and access
  • Menu Four keys and four direction keys
  • microSD™ slot for software updates and cards
Environmental Specifications
  • Waterproof Rated to IPX6 and IPX7 for water infiltration
  • IEC 60945 Category "Protection"
  • Operating temperature From -15°C to +55°C
