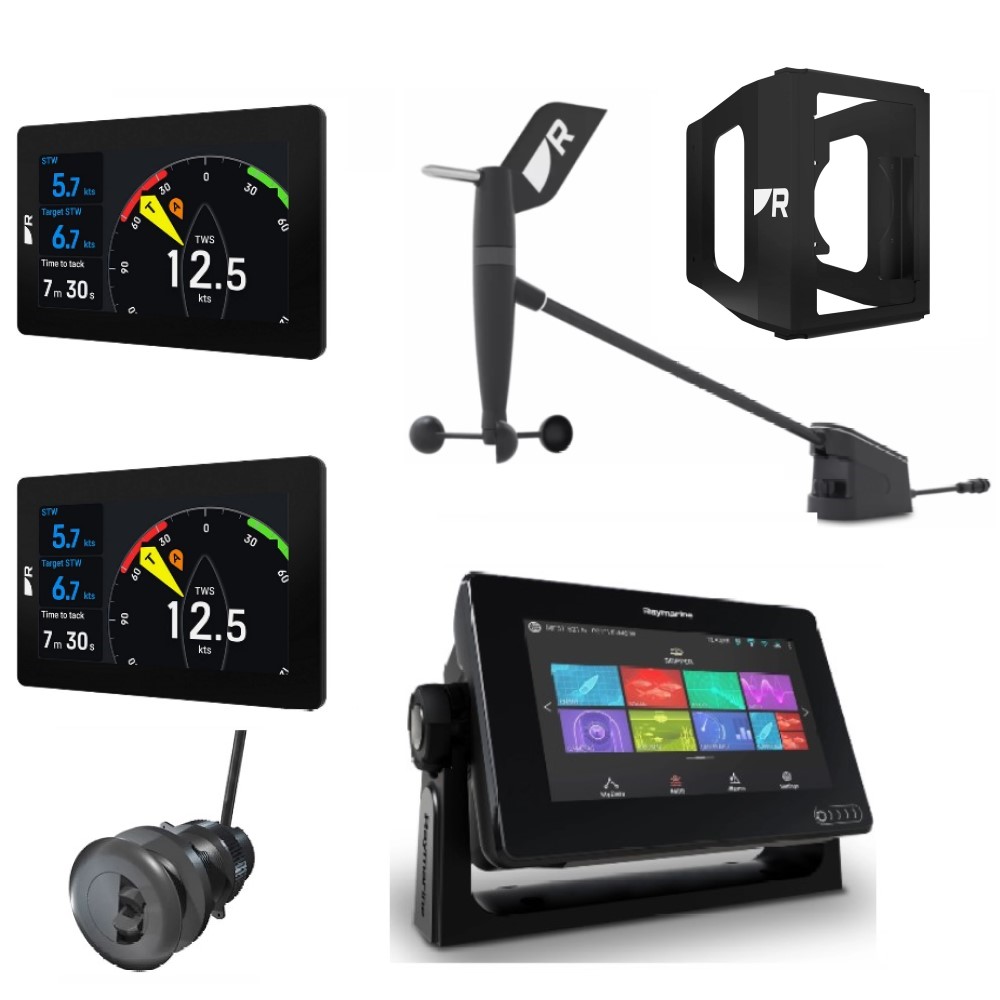

Raymarine dual ALPHA display kit with Axiom Pack

This exclusive "all inclusive" kit, available with 2 Alpha Displays of 7 or 9", Axiom Display 7", new Wind RSW sensor and Speed/Temp transducer DST810
  • Code: E70649PK1
Raymarine
(0)
€ 4.999,00
CHOOSE THE MODEL
you chose:
add to favorites

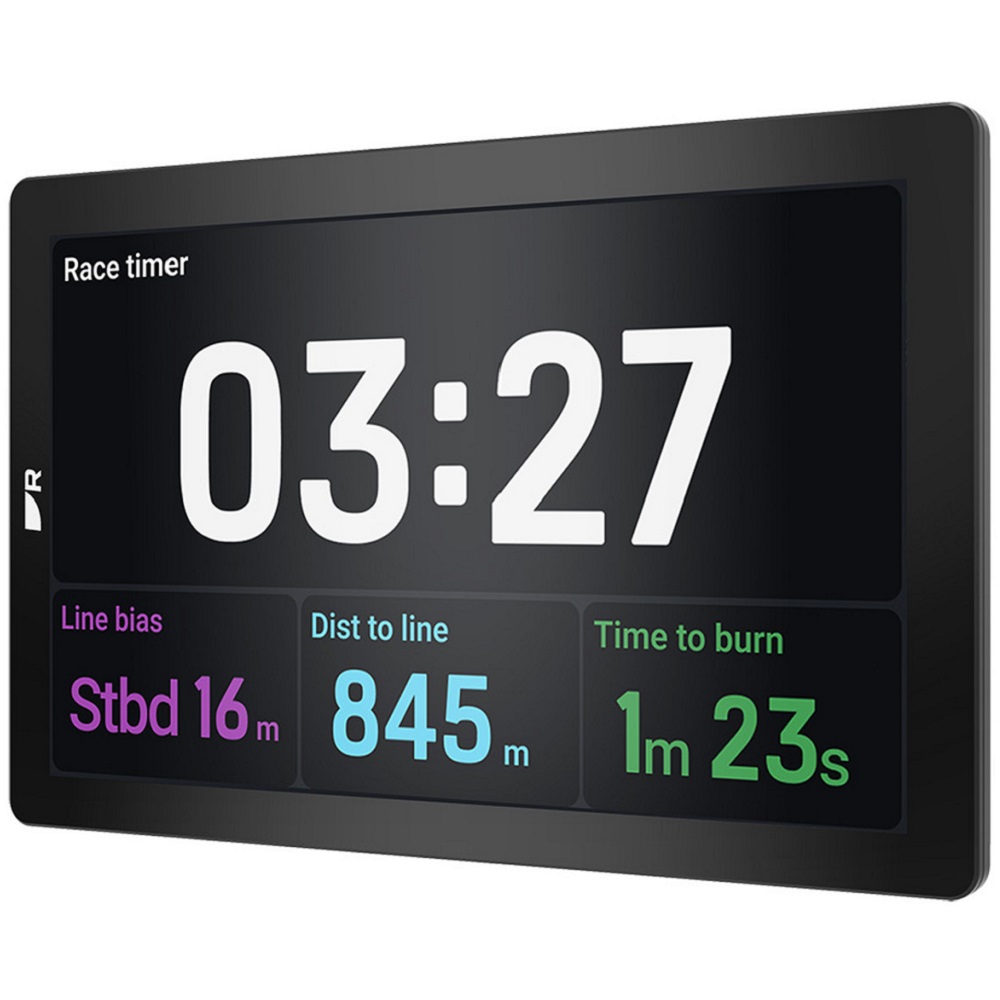

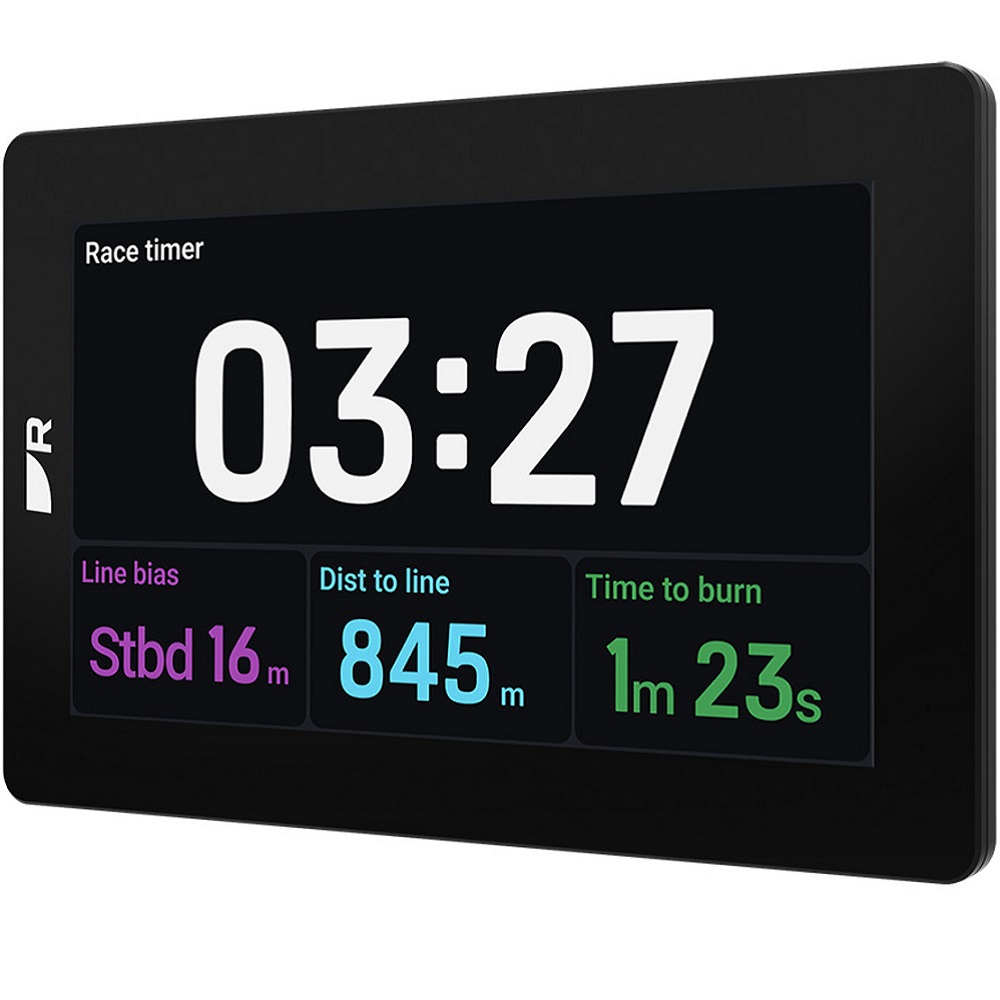

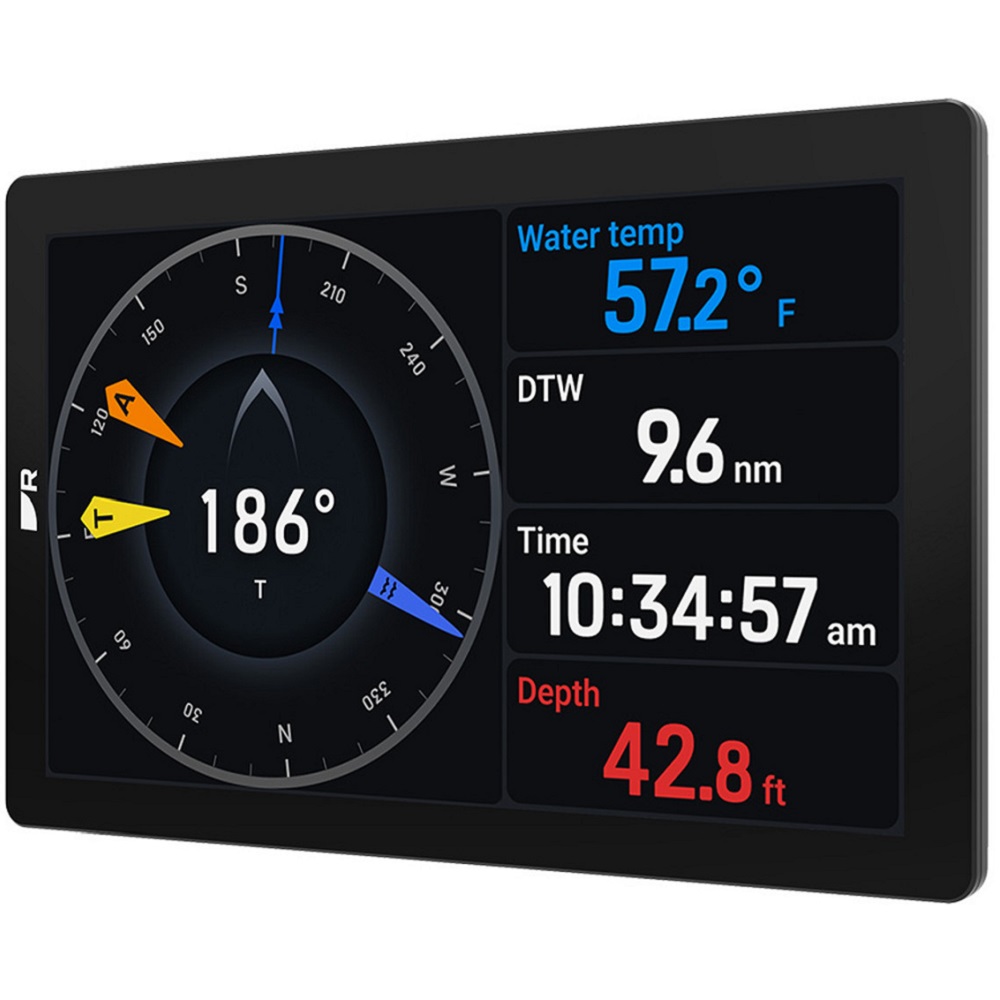

Raymarine Alpha Performance Data Display Touchscreen 7" and 9"

Designed for dash or mast mounting, the Alpha Series is controlled and customized via touchscreen, or remotely from a Raymarine Axiom chartplotter. Alpha Series displays can be mounted vertically or horizontally and require only a single data cable. and nutrition.


Our most versatile displays for data visualization. High-brightness touchscreen instruments with wide viewing angles provide excellent visibility from anywhere on board. Alpha's extensive data dashboard options and widgets make it easy to interpret at a glance. keep an eye on all the most important navigation and engine data.




AXIOM WITH ALPHA DISPLAY
Alpha Performance displays are complementary tools to the
Raymarine Axiom chartplotters, so they can receive data
only when paired with an Axiom Display.
All it takes is a simple RayNet Ethernet cable between Axiom and the display
Alpha allows Alpha to access connected transducers of
Axiom and NMEA2000/SeaTalk NG devices.

Once paired with an Axiom network, you can customize and
configure your Alpha display in a powerful tool
navigation and engine data.

Main Features:

Tactical awareness
Intuitive graphic displays to improve tactical awareness and facilitate decision making on the water.

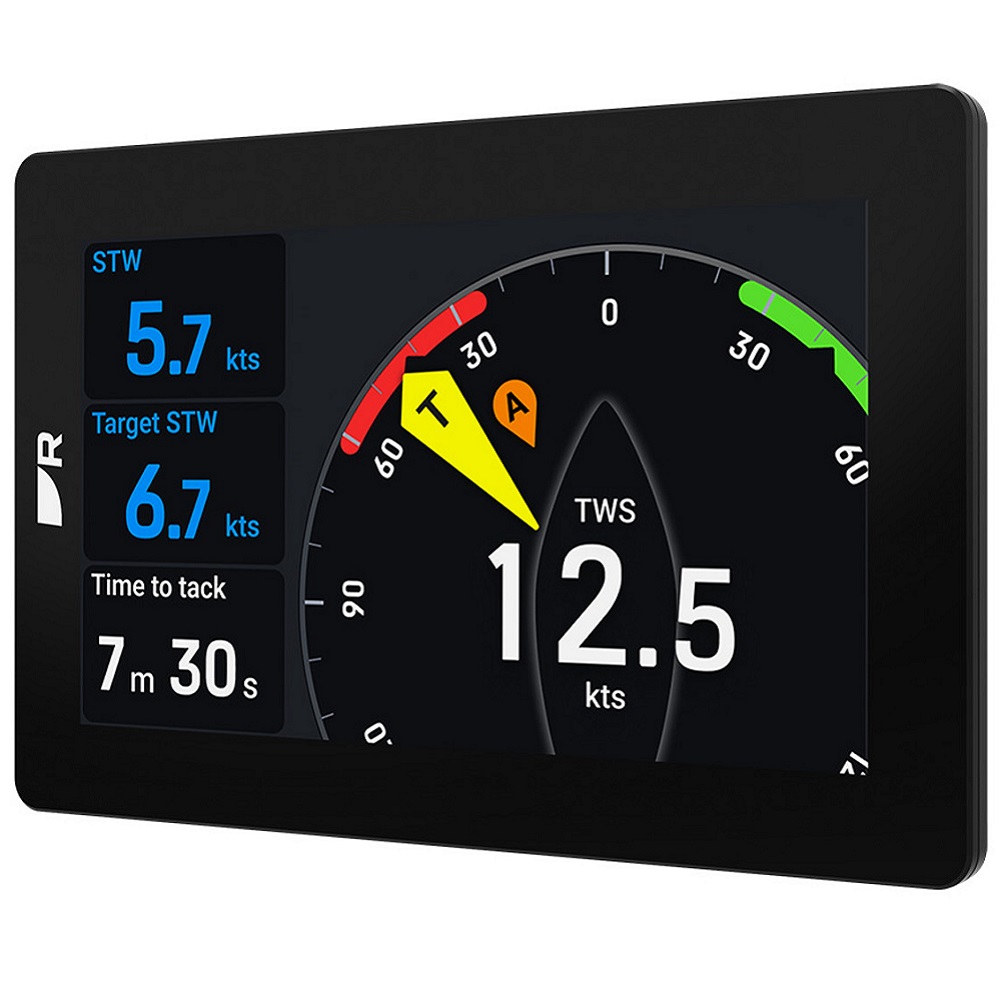

Display Target SailPoint
SailPoint™ mode gives you a visual reference of your target wind angle, so you can achieve maximum VMG when sailing upwind or downwind.
Dynamic wind display showing auto zoom
Dynamic wind display includes automatic zoom on the most important section of the instrument display based on wind direction.
PHYSICAL CHARACTERISTICS
Alpha 7" Display Width - 120.1 mm (4.72 in)
Alpha 9" display - 148.9 mm (5.86 in)
Alpha 7" Display Height - 188.4 mm (7.42 in)
Alpha 9" display - 235.9 mm (9.29 in)
Alpha 7" Display Thickness - 32 mm (1.26 in)
Alpha 9" display - 34 mm (1.34 in)

DIET
Rated voltage 12/24 V DC
Operating supply voltage 10.8V to 32V DC
Power Consumption 7" Alpha Display - 10 W (maximum)
Alpha 9" display - 12 W (maximum)

NET
Axiom Alpha Performance displays require an Axiom chartplotter to operate.
Data Connection 1 x Daisy Chain Connector, 1 x RayNet Power / Ethernet Connector

ENVIRONMENTAL SPECIFICATIONS
Operating temperature range -25°C to +55°C (-13°F to +131°F)
Storage Temperature -30°C to +70°C (-22°F to +158°F)
Relative humidity 93% max.
IPx6 and IPx7 waterproof

PACKAGE CONTENTS

Caratteristiche
