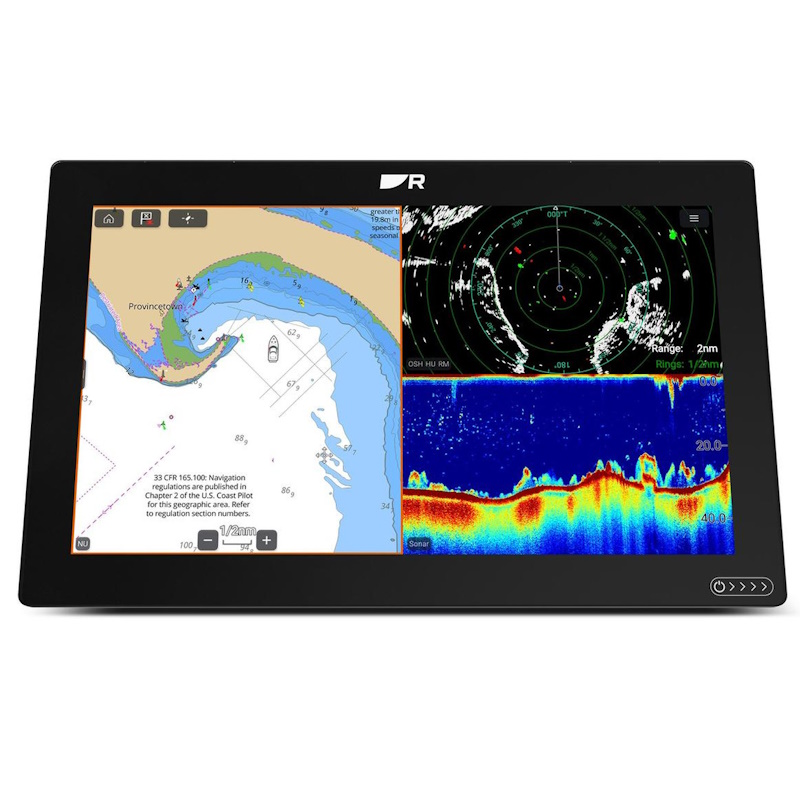

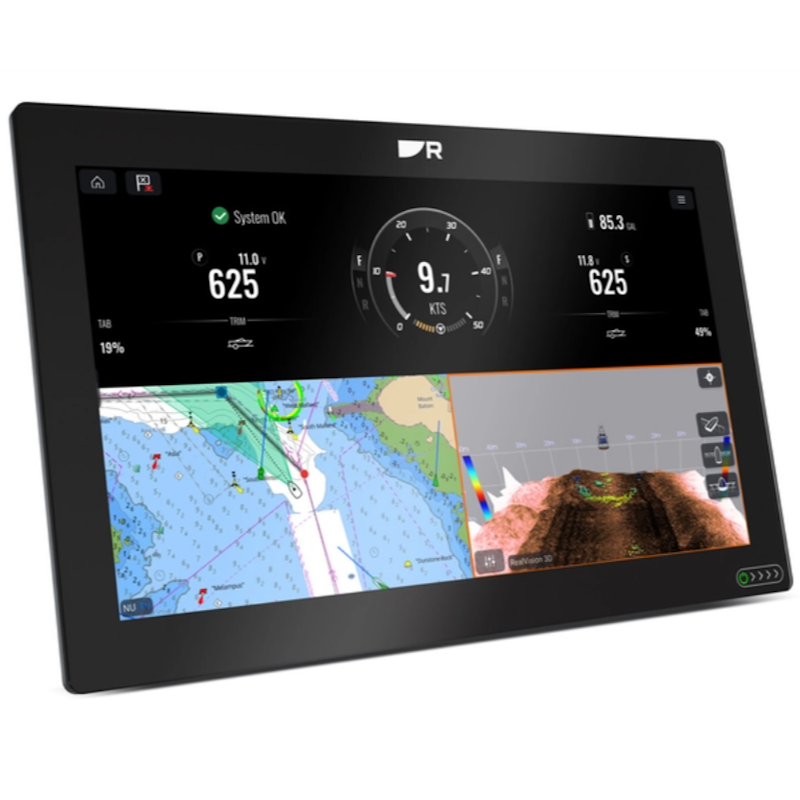

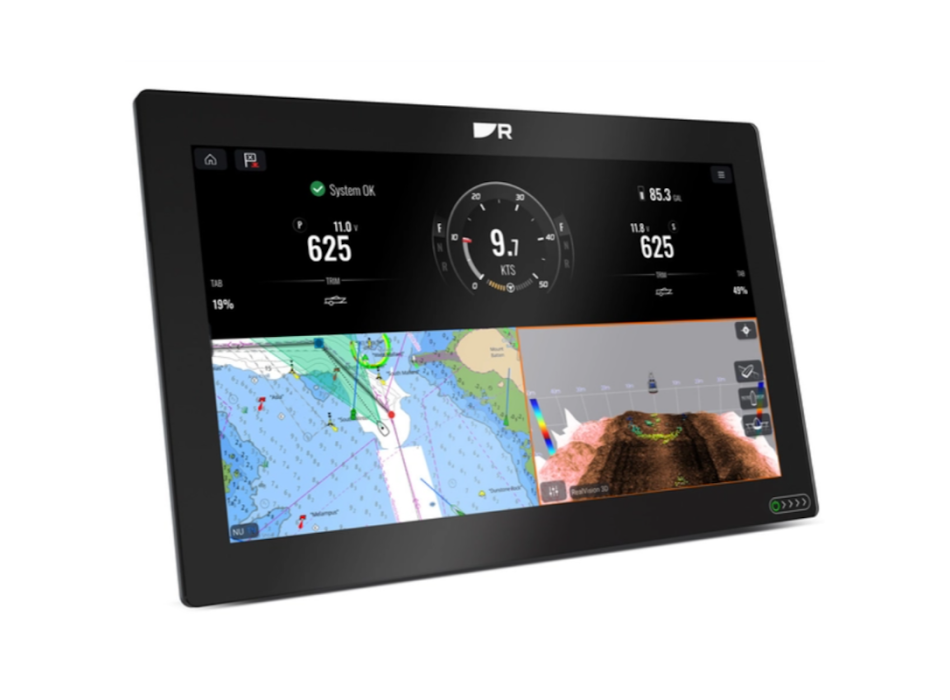

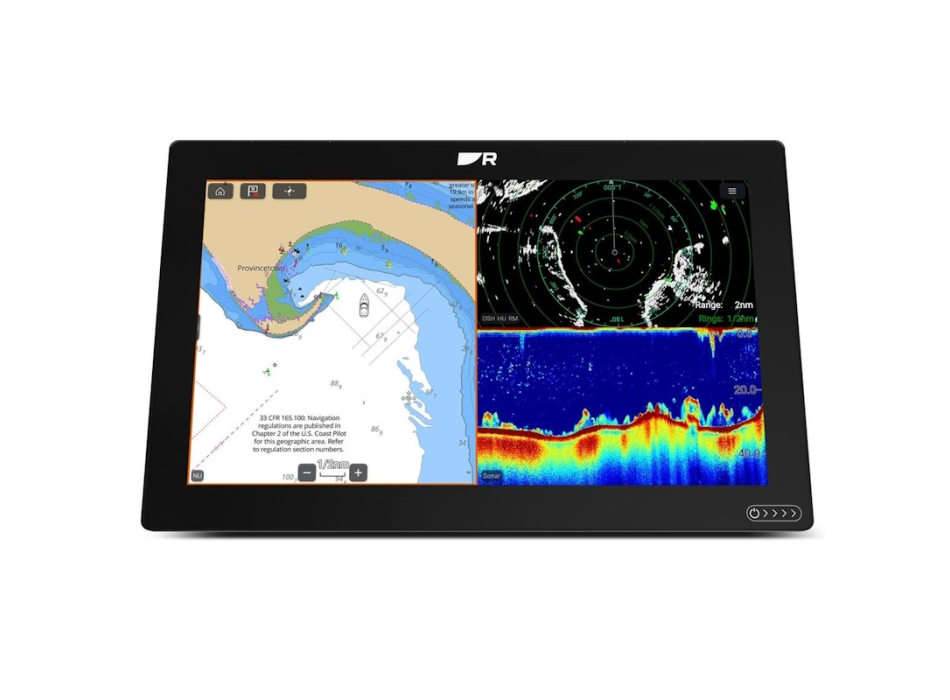

Raymarine AXIOM2 XL 24 24” Glass Bridge

  • Code: E70664
€ 15.899,00 € 18.293,90 -13%
Raymarine AXIOM2 XL 24
24” Glass Bridge Multifunction Display
The new flagship product AXIOM 2 XL

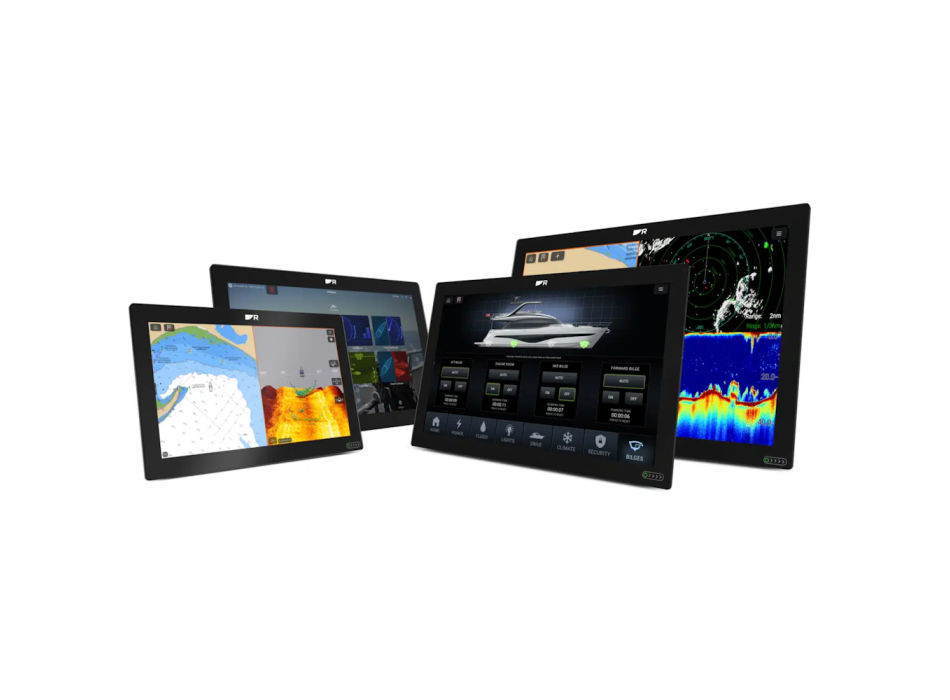

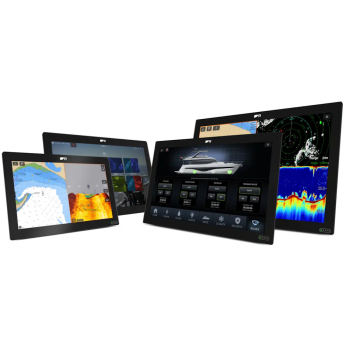

Top-of-the-line 16, 19, 22 and 24-inch Glass Bridge chartplotters, with advanced networking and video integration features.

A BROAD VIEW
Axiom 2 XL, the flagship of the Axiom range, offers great performance such as a map display, a refined large format navigation screen, and the security of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays can be installed on both outdoor dashboards and indoor command stations. Axiom 2 XL is the premium multifunction display for commanders who demand the best with a powerful 6-core processor, expanded connectivity and ultra-bright HydroTough displays.


POWER THAT GOES BEYOND THE LIMITS
Axiom 2 XL chartplotters do everything faster. Move and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar, autopilot and video modules integrated seamlessly with the intelligent LightHouse operating system.

READY FOR ALL CONDITIONS
Axiom 2 XL's unique HydroTough™ nanotechnology repels water for reliable touchscreen control, beautiful colors and excellent visibility in bright sunlight.

REMOTE CONTROL
Navigate with ease thanks to the Axiom 2 XL's touchscreen
or keep track of your course with the remote keypad
optional RMK-10. The RMK-10 gives you control over
distance of all the Axioms present on the board.


ENVIRONMENTAL SPECIFICATIONS
Operating Temperature -25°C to +55°C (-13°F to 131°F)
Storage temperature –30°C to +70°C (-22°F to +158°F)
Relative Humidity Up to 93% at 40°C (104°F)
Waterproof class IPx6, IPx7

PHYSICAL CHARACTERISTICS
Dimensions
Axiom 2 XL 16: Height: 248.22 mm (9.77 in), Width: 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in)
Axiom 2 XL19: Height: 289.44 mm (11.40 in), Width: 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)
Axiom 2 XL 22: Height: 326.33 mm (12.85 in), Width: 533.56 mm (21.00 in), Depth (including cables): 180.75 mm (7.12 in)
Axiom 2 XL 24: Height: 386.84 mm (15.23 in), Width: 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)

Weight
Axiom XL 16: 5.9 kg (13 lbs)
Axiom XL 19: 7.6 kg (16.76 lbs)
Axiom XL 22: 9.9 kg (21.83 lbs)
Axiom XL 24: 11.3 kg (24.9 lbs)
USB connection USB-A: touch input, USB-B: touch output
Micro B USB accessory connection
GPS antenna connection TNC type connector
External Storage Remote card reader required
RayNet PoE Ethernet connection (10/100/1,000 Mbit/s) x 3
HDMI Connections HDMI in, HDMI out
NMEA 2000 connection DeviceNet connector
Audio Output Left and right RCA connectors via power/video/audio cable.
NMEA 0183 support Via NMEA2000 with NMEA 0183 / NMEA 2000 converter (part number A80721)
Analog Video Connections 2 composite BNC connectors (alarm/video connector 1, power/data/video cable 2)
Wireless connections Bluetooth: V4.0, Wi-Fi: dual band (2.4 GHz and 5 GHz) 802.11/b/g/n
External alarm connection 2 free wires
64 GB internal solid state memory
