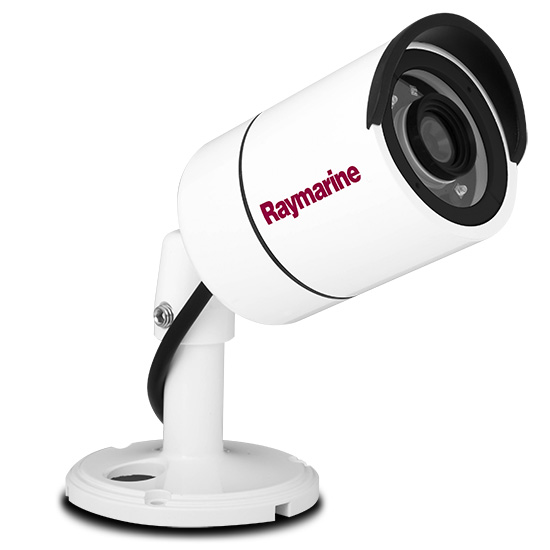

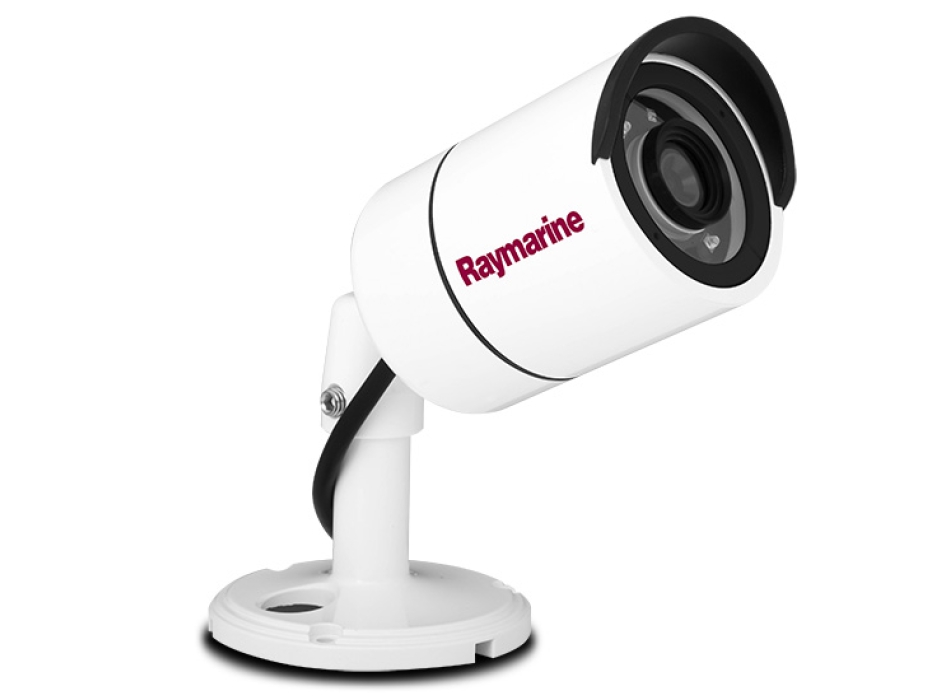

Raymarine CAM 210 IP Camera
CAM210 IP marine camera Robust high definition network camera for day and night vision suitable for all above deck applications. The camera integrates a protective cover for maximum visibility and offers a compact design for easy installation anywhere on the boat.
Plug-and-play integration with Raymarine Lighthouse II equipped multifunction displays
Power over Ethernet (PoE) or direct 12 VDC power supply
High-brightness IR LEDs to operate in total darkness
Digital Defog processing improves image capture in adverse weather conditions (such as pollution, fog or smoke)
Intelligent IR technology for clear video images at night in all conditions
GENERAL SPECIFICATIONS
System
CPU RISC ARM9 32-bit CPU up to 432 MHz
Flash / SDRAM 128 MB / 128 MB
Room
Image sensor 2.0 megapixel 1 / 2.8 "SONY progressive scan, CMOS (Exmor)
Total pixels 1952 (H) x 1116 (V) 2.18 megapixels
Effective pixels 1944 (H) x 1104 (V) 2.15 megapixels
Contrast S / N More than 50 dB
Minimum Illumination 0Lux (IR On)
IR distance 20 m
Day and night ICR
Lens 6.0 mm megapixel lens
Field of view Diagonal = 63.6 ° +/- 3 degrees
Horizontal = 33.1 ° +/- 3 °
Vertical = 53.3 ° +/- 3 °
Video
Video compression H.264 High Profile to 4.0, MJPEG - Image quality: 3 steps
Resolution Up to 1920 x 1080 (Full HD)
H.264 frame rate up to 30 fps with 1920x1080 | MJPEG up to 30 fps with VGA resolution
Video Streaming Support multiple streaming with H.264, MJPEG
Adjustable frame rate
CVBR / CBR in H.264
Day and night image settings
Automatic white balance
Automatic exposure
Privacy filter
Effects - Color, Sharpness, Mirror / V-Flip
System integration
Security Password protection, user access log, HTTPS encryption
Supported protocols HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent video Motion detection up to 1920x1080 with 4x3 blocks
Physical characteristics
Power supply DC 12 V / 1.5 A, PoE (Power over Ethernet): 802.3af
Consumption Max. 3.3 W, Max. 5.3 W with IR
Net weight 900 g
Power LED, network connection
Dimensions 83.8mm (Width) x 155mm (Height) x 178.1mm (Depth) including bracket
General operating temperature 0 ° C to 40 ° C (32 ºF to 104 ºF)
Storage temperature -10 ° C to 50 ° C (14 ºF to 122 ºF)
