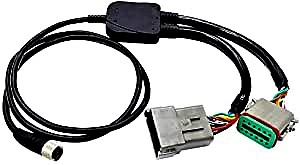

Raymarine Caterpillar engine cable
Using the
ECI-100 , it is now possible to connect with all Caterpillar Engine installations including engine displays, color MPD, MPD or mini MPD.
This allows you to view the following engine data on a connected Raymarine multifunction display and access full autopilot steering control over an IPS or Aquamatic system. Check compatible engines
Supported by J1939 to NMEA 2000 Bridged Data- % of engine load
- RPM
- Fuel rate
- Alarms
- Engine hours
- Oil and coolant temperature
- Oil / coolant / fuel delivery pressure
- Increase
- Alternator voltage
- Transmission oil temperature and pressure
- Tank Levels
Data supported by NMEA 2000 to NMEA 2000 Bridged
- Engine speed, incline and boost
- Oil temperature and pressure
- Engine hours
- alternator
- Fuel rate
- Coolant pressure
- Fuel pressure alarms
- Load and torque
- Transmission oil temperature, pressure and alarms
- Fuel used for the trip, fuel rate
- Tank Levels
Connected the ECI-100 to a Seatalk NG terminated backbone with an appropriate MFD. Follow the setup procedure
manual motor identification in the MFD manual (a, c, e, eS, gS). Note: Legacy MFDs cannot be used to configure multimotor systems with individual ECIs. Note: If the ECI-100 was previously used on another type of engine, it will need to be reset or use a new ECI-100. - A tool is required to reset the ECI; contact Raymarine Product Support for more information.
Compatible Caterpillar engines
All CAT Engine installations including engine displays, color MPD, MPD or mini MPD The color MPD (Marine Power Display) is compatible with all electronically controlled CAT marine engines currently available from the C7 series to the 3500 series. MPD display is compatible with CAT series 3126B to 3500B only CAT systems with individual MPDs for each engine can be supported. Engine systems without a dedicated MPD are not supported. The CAT Messenger display is not compatible or supported.
