Raymarine Linear / Hydraulic Actuator TY 2 - 12 / 24v

  • Code: E12207
€ 3.799,00 € 4.385,90 -13%
CHOOSE THE MODEL
you chose:
Raymarine Linear / Hydraulic Actuator TY 2 - 12 / 24v
Type 2 12/24 volts

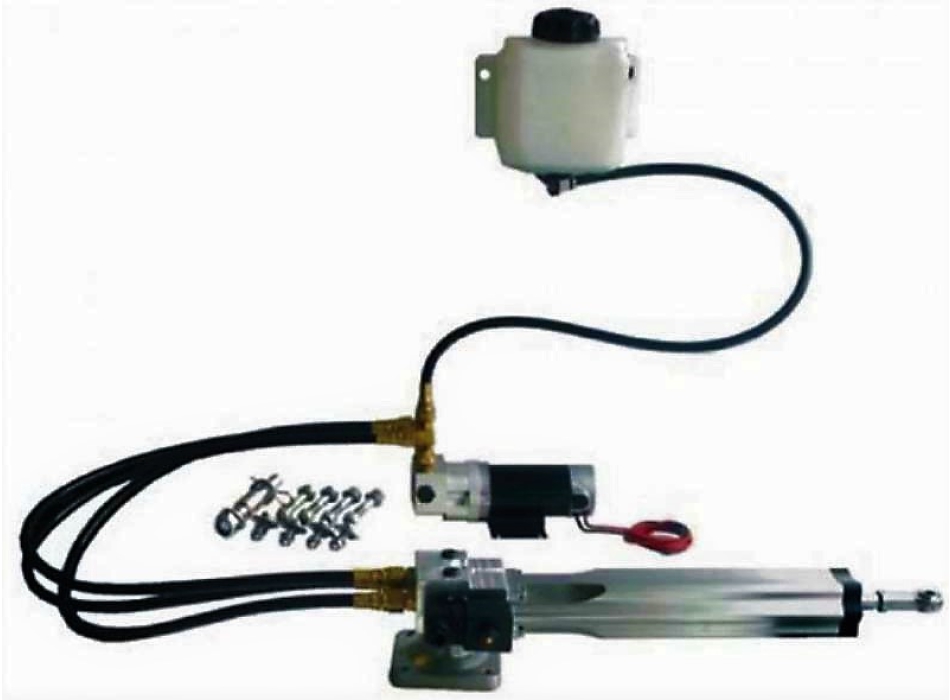

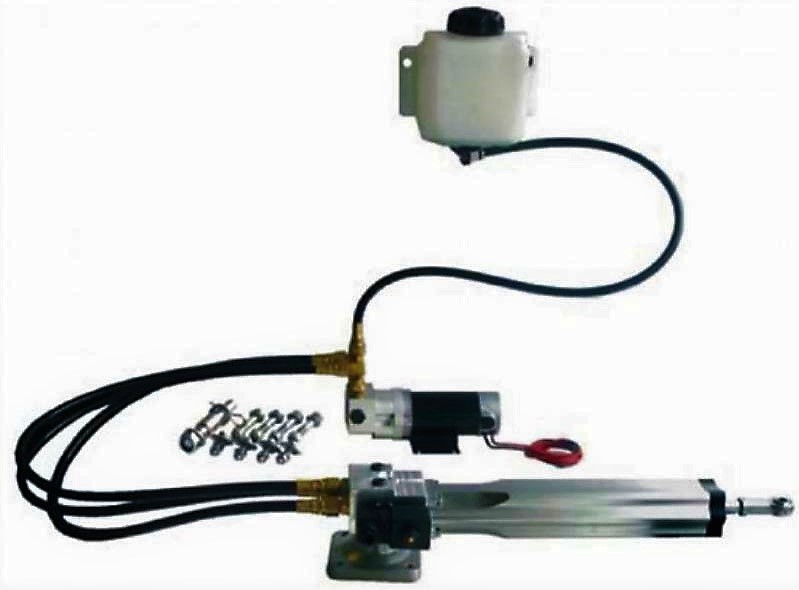

Raymarine hydraulic linear actuators

Intended for large boats with mechanical steering (over 20000kg), our actuators include a reversible pump, a tank and a
hydraulic cylinder.
The linear actuator connects to the rudder shaft via an independent arm. You may need to ask the wheelhouse manufacturer for some accessories for
installation. The wheelhouse must be able to be fed back from the helm.


The linear actuator connects to the rudder shaft via an independent arm. It may be necessary to request some accessories from the wheelhouse manufacturer for installation.
Installation by Raymarine authorized personnel is recommended.
The wheelhouse must be able to be fed back from the helm.


TECHNICAL SPECIFICATIONS
  • Maximum boat displacement 22000 kg
  • Maximum thrust 585 kg
  • Maximum length of actuator 254 mm
  • Band-to-band time 10 seconds
  • Maximum torque 1270 Nm
  • Corepack ACU-400
