Raymarine linear actuator T1 12V

  • Code: M81130
€ 2.166,00 € 2.494,90 -13%

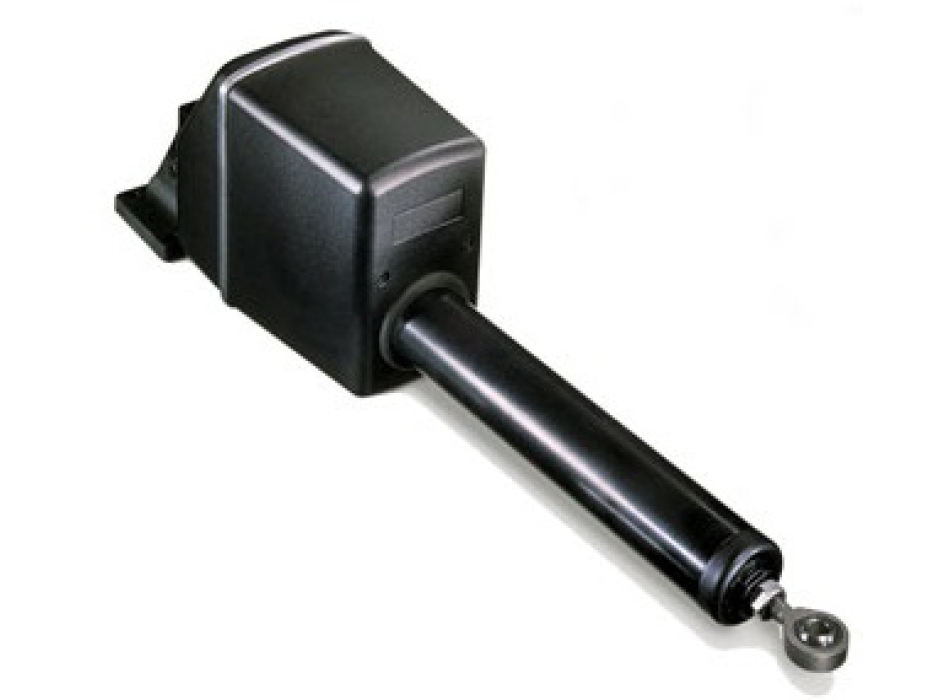

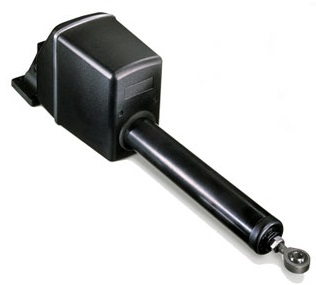

Raymarine Mechanical Linear Actuator
Type 1 12 volts

Raymarine mechanical linear actuators

Raymarine linear mechanical actuators, the most used for sailboats, are powerful, silent and with an optimal rudder movement speed. Mounted below deck, they move the rudder axis directly by acting on the predisposed arm (recommended installation) or on the sector.

The linear actuator connects to the rudder shaft via an independent arm. It may be necessary to request some accessories from the wheelhouse manufacturer for installation. The wheelhouse must be able to be fed back from the helm.





TECHNICAL SPECIFICATIONS
  • Actuator: Type 1 12V M81130
  • Maximum boat displacement: 11000 kg
  • Maximum thrust: 295 kg
  • Maximum actuator length: 300 mm
  • Maximum torque: 735 nm
  • Consumption: 18-36 W
  • Corepack: ACU-200

D. Buon giorno guardando le caratteristiche di questo attuatore che assorbe max 36w = 3A , può essere usato con l'ACU 100 che funzione fino a 7A?
R. 24-03-25<br /> Buonasera, in teoria se facciamo una valutazione considerando l'assorbimento tipico come descritto sul manuale, sembrerebbe compatibile. Tuttavia in realtà non è così, perchè poi in condizioni di massimo sforzo, può arrivare fino oltre i 10 Ampere. Quindi compatibile solo con ACU-200, non con ACU-100, oltretutto gli ACU-100 non hanno l'uscita Clutch per attivare la frizione dell'attuatore.<br /> Cordiali saluti.<br /> Luigi Bianchi
D. ciao, ho una barca sulla quale era montato una autohelm 6000 con questo attuattore , non funziona, ma il sistema ha funzionato fino a pochi anni fa, dicono con soddisfazione. Comperando questo attuatole lineare (che andrebbe a sostituire quello gia montato che non funziona) cosa mi consigli di comperare come autopilota compatibile? che altro dovrei procurarmi?
R. 14-01-2021 Buongiorno, consiglio di acquistare il kit completo che comprende sia l'attuatore che tutta la parte elettronica: https://www.painestore.it/autopilota_ev-200_lineare_meccanico Posso proporre il tutto a 2.900,00 euro. Potrebbe indicarmi precisamente il modello della Sua imbarcazione e soprattutto il dislocamento? Grazie. Cordiali saluti. Luigi Bianchi
