Raymarine linear actuator T2 12V

Code: M81132

(0)

€ 2.382,00 € 2.738,90 -13%

quantity

add to favorites

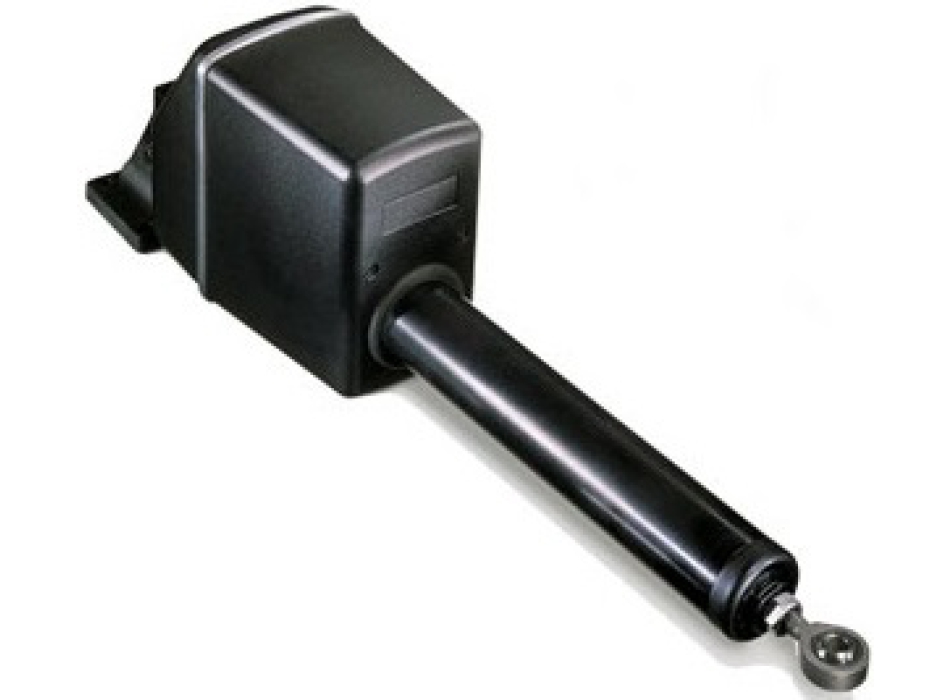

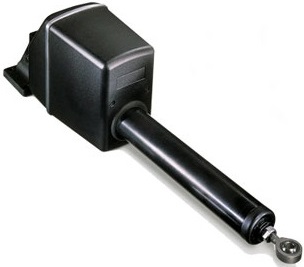

Raymarine Mechanical Linear Actuator
Type 2 12 volts

Raymarine mechanical linear actuators

Raymarine linear mechanical actuators, the most used for sailboats, are powerful, silent and with an optimal rudder movement speed. Mounted below deck, they move the rudder axis directly by acting on the predisposed arm (recommended installation) or on the sector.

The linear actuator connects to the rudder shaft via an independent arm. It may be necessary to request some accessories from the wheelhouse manufacturer for installation. The wheelhouse must be able to be fed back from the helm.

Technical features
Actuator: Type 2 12V M81132
Maximum boat displacement: 20,000 kg
Maximum thrust: 480 kg
Maximum actuator length: 400 mm
Maximum torque: 1660nm
Consumption: 48-72 W
Corepack: ACU-400
