Raymarine VHF Ray 53 GPS

  • Code: E70524
€ 440,00 € 506,30 -13%

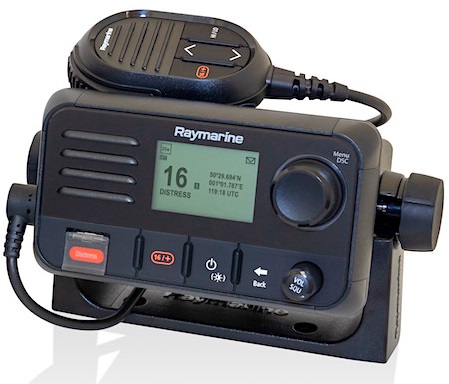

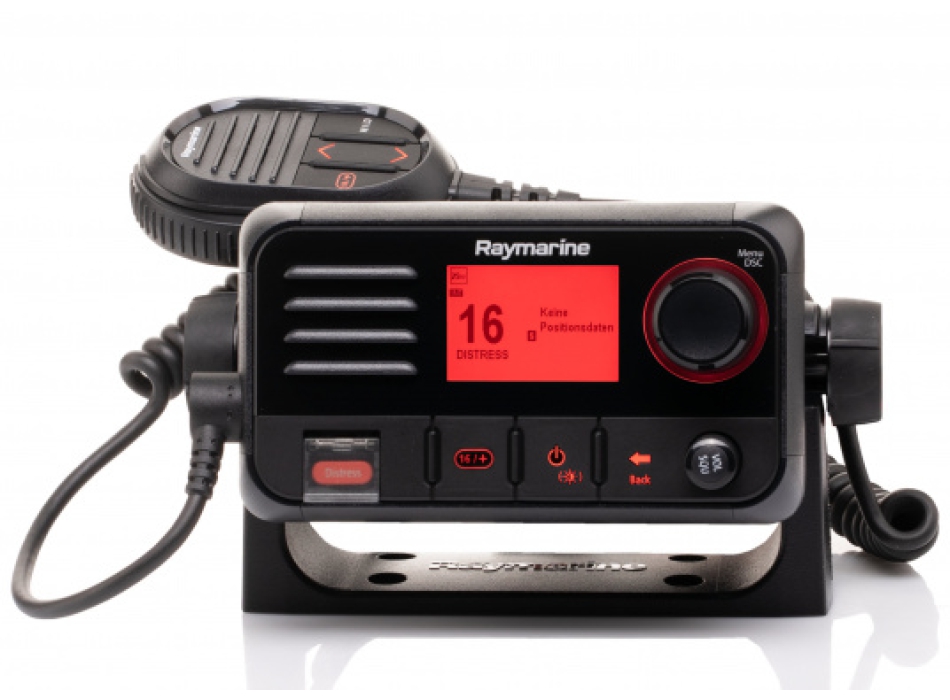

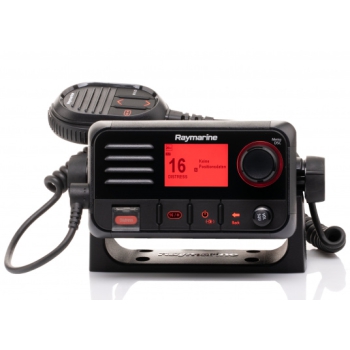

Raymarine VHF Ray 53 with integrated GPS
NEW VERSION - VHF approved - Power 25 watts

Announcements! Ray53 compact VHF radio

Feature-rich, ultra-compact design
The Ray53 radio has a large display with easy-to-read digits and icons visible day and night. The Ray53 radio is equipped with both a noise canceling microphone and a high quality speaker. The Ray53 radio features Class D Digital Selective Calling (DSC) with easy-to-use controls and an intuitive menu system. You will become a Ray53 expert in no time!
The Ray53 radio is equipped with NMEA2000 and NMEA0183 standard network connection for simple connection to on-board systems and integrates seamlessly with Raymarine LightHouse II multifunction displays for advanced DSC functions. The Ray53 radio also offers mounting flexibility. Use the supplied bracket to attach the radio to any console, bulkhead or ceiling mount. The radio can also be flush mounted using its convenient front attachment points. The Ray53 radio boasts a wide range of standard features including NOAA weather alarms, dual-watch, tri-watch, scan, selective scan and much more.


Features:
Integrated WAAS GPS receiver with 72 channels thanks to the internal GPS sensor
Extremely compact design to save space on the dashboard
High power transmitter for uncompromising performance and extremely reliable VHF functionality
Full size controls and displays perfectly visible and easy to use
The sleek black bezel matches perfectly with Raymarine's MFD and Glass Bridge displays
Network connection with NMEA2000 and NMEA0183 standards for simple connection with on-board systems

Technical specifications:
Size (HxWxD) Main Unit Height -inc bezel = 88.5mm (3.5 in)
Width - inc bezel = 168mm (6.6 in) max
Depth 173.75mm (6.8 in) max excl rear cables
Weight Main Unit 1.7 Kg (3.74 lbs)
Environmental Specification
Water Integrity Complies with IPX6 & IPX7
Complies with EN60945
Operating Temperature Range -20 ° C to 60 ° C
Storage Temperature Range -25 ° C to 70 ° C
Humidity up to 95%

Electrical Specification
Communications Port NMEA 0183 (version 4.01); NMEA2000 (version 3.0)
Nominal Supply Voltage 12V DC. Reverse polarity and over voltage protected
Operating Voltage Range 9V DC to 16V DC
Current Consumption Less than 6A at High Power (13.6V)
Standby: 600 mA
Receive: 2 Amps

Transmitter Specification
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 - 157.425 MHz
155.500 to 161.425 MHz Private channels
Frequency Stability +/- 1.5 ppm
Channel Spacing 12.5 kHz
Power Output High Power = 25 Watts
Low Power = 1 Watt
Spurious emmission Better than -36 dBm at 25W (Less than 0.25 µW)
Maximum Deviation +/- 5kHz
Port impedance antenna 50 ohms typical
Receiver Specification
Receiver Type Double Conversion Super Heterodyne
Channels All available US, International and Canadian VHF marine bands
Frequency Range 156.000 - 157.425 MHz
155.500 to 161.425 MHz Private channels
Sensitivity: Better than 1 microvolt EMF @ 20dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum & Noise Better than -40 dB
Audio Distortion Less than 10%
Receiver Sensitivity Distance -119 dBm (0.25uV) @ 12 dB SINAD ← Typical
Local -110 dBm (0.7uV) @ 12 dB SINAD ← Typical
Adjacent Channel Selectivity More than 70 dB
Spurious Response Rejection More than 70 dB
Inter Modulation Rejection More than 70 dB

Speakers
Base Station Speaker Power Output 2.5W (8Ω)
Fistmic Speaker Power 1W (16Ω)
External Speaker Power 5W (4Ω) / 2.5W (8Ω)

D. Buongiorno, esiste in versione bianca? Grazie
R. 20-04-23 Buongiorno, purtroppo no, solo nero. Cordiali saluti. Luigi Bianchi
D. Buongiorno. Dovrei cambiare la radio vhf. Ma non ho il patentino per il DSC. Posso utilizzarla lo stesso momentaneamente senza il DSC ? Dovrei chiare anche l ' antenna per il vhf E per il GPS integrato non serve l ' antenna ? Grazie
R. 22-02-23 Buonasera, certo, Lei può utilizzare i VHF con DSC solo con il patentino RTF, a patto che il VHF sia inibito per l'invio di chiamate in DSC. Non è necessaria l'antenna gps, per quella del VHF dovrebbe indicarmi il modello di barca, se vela o motore. Cordiali saluti. Luigi Bianchi
D. Su questo prodotto si applica anche la promozione PS7 ?
R. 07-10-22 Buongiorno, sì certo, confermo. Cordiali saluti. Luigi Bianchi
