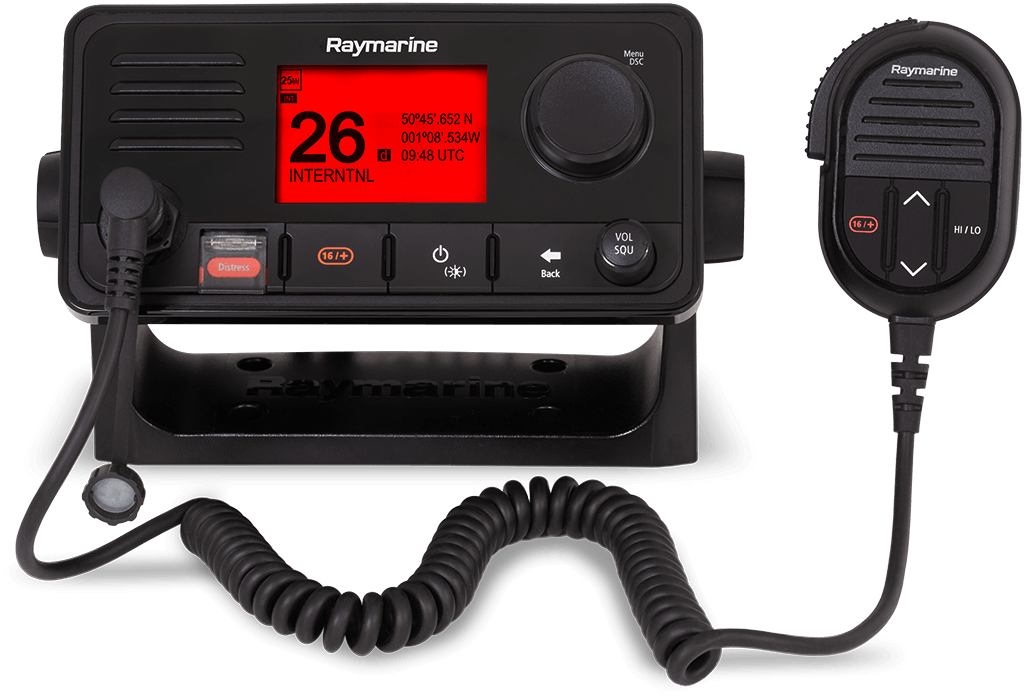

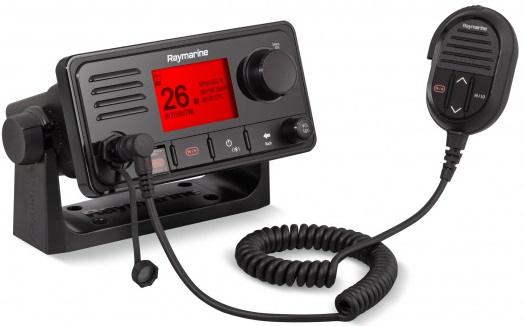

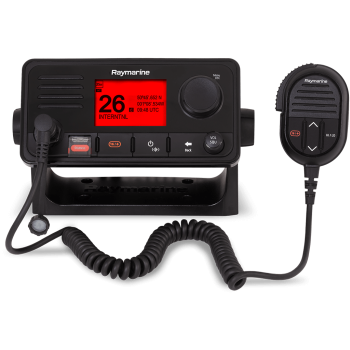

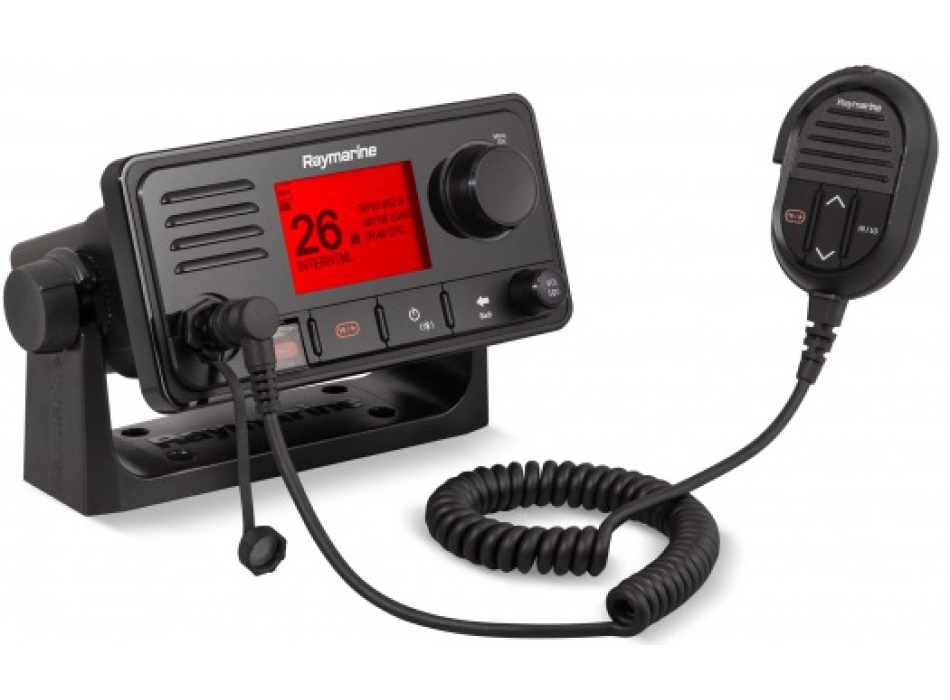

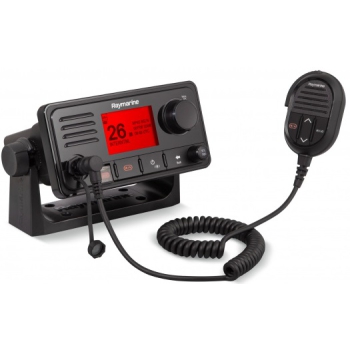

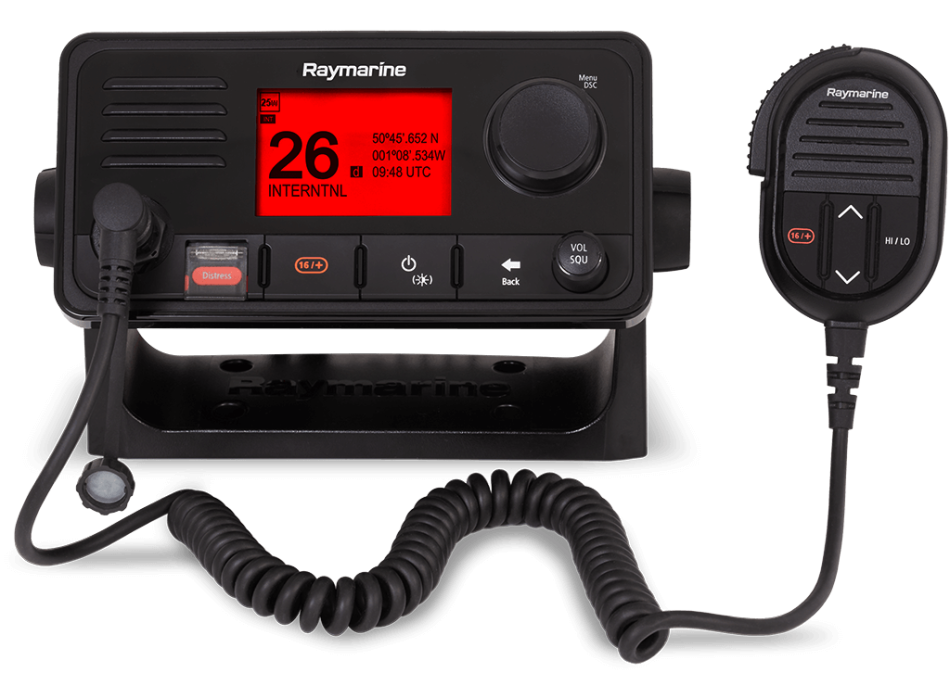

Raymarine VHF Ray 73 with AIS and GPS

  • Code: E70517
Raymarine
(0)
€ 789,00 € 908,90 -13%
add to favorites
Raymarine VHF Ray 73 AIS and GPS
VHF approved - Power 25 watts with built-in GPS


The Raymarine Ray73 radio is a communication center for your boat with features such as integrated VHF, AIS receiver and megaphone. Integrated into our full size marine radio chassis, the Ray73 features large controls and a large screen for easy offshore operation. The Ray73 also supports optional wired or wireless RayMic controls for true multi-station control and intercom functionality. When connected to an optional fog horn, the Ray73 can generate automatic fog horns and act as a speaker system.

Main features
Full size marine VHF with selective digital calling
The integrated AIS receiver provides target data for chartplotters, radars and instruments
Fog warning functions and optional fog horn speaker (M95435)
Wired or wireless expansion with optional RayMic microphone stations
Integrated GPS / GNSS receiver with a connection point for an optional external antenna
NMEA2000 and NMEA0183 networks for integration with on-board systems
Connecting the optional passive remote speaker audio output (A80542)
Surface and trunnion mount kit included
Designed to complement the Axiom family of multifunction displays
ENVIRONMENTAL SPECIFICATIONS
Operating temperature From -20 ºC (-4 ºF) to +60 ºC (140 ºF)
Storage temperature From -25 ºC (-13 ºF) to +70 ºC (158 ºF)
Relative humidity 95%
IPx6 & IPx7 waterproof
Connections 1 NMEA 0183 | 1 SeaTalkng ® | NMEA 2000 | 1 front Fistmic connection | 1 rear connection for second station | 1 audio (RCA) | 1 GNSS (GPS) antenna (TNC

POWER SUPPLY
Nominal supply voltage 12 V DC (Reverse polarity and overvoltage protection)
Operating voltage range 9VDC to 16VDC
Current consumption Less than 6 A at maximum power (13.6 V)
Wait: 600 mA
Reception: 2 A
Megaphone: 3A (8 Ω) / 6A (4 Ω)

TRANSMITTER
Channels All US, International and Canadian VHF marine bands
Frequency range 156.000 to 157.425 MHz / 155.500 to 161.425 MHz (Private channels)
Frequency stability +/- 1.5 ppm
Channel spacing 12.5 kHz
Power output Low power - 1 W | High power - 25W
Spurious emissions. Better than –36 dBm at 25 W (less than 0.25 µW)
Maximum deviation +/- 5 kHz
Antenna impedance 50 Ohm (typical)

RECEIVER
Receiver type Double conversion superheterodyne
Channels All US, International and Canadian VHF marine bands
Frequency range 156.050 to 163.275 MHz / 155.500 to 161.425 MHz (Private channels)
Sensitivity Better than 1 microvolt EMF at 20 dB SINAD
Squelch Sensitivity Less than -2 dBµ EMF
Hum and noise Less than –40 dB
Audio distortion Less than 10%
Receiver Sensitivity Distance - 119dBm (0.25uV) @ 12dB SINAD (typical)
Local - 110 dBm (0.7 uV) @ 12 dB SINAD (typical)
Adjacent channel selectivity Greater than 70 dB
Spurious Noise Rejection Greater than 70 dB
Intermodulation Rejection Greater than 70 dB

GNSS (GPS)
Channels 72
Cold start <2 minutes
IC Receiver Sensitivity -167 dBm (Tracking) / -148 dBm (Acquisition)
GNSS GPS Compatibility | GLONASS | * Beidou
SBAS Compatibility WAAS | EGNOS | MSAS
Special Features Active jamming and interference reduction
Operating frequency GPS L1 C / A | GLONASS L10F | Beidou B1
Automatic signal acquisition
Automatic almanac update
WGS-84 geodetic data (alternatives available via Raymarine multifunction display)
Refresh rate 10 Hz (10 times per second concomitant GNSS)
Internal Antenna: ceramic chip mounted near the top of the unit
External: passive antenna connection via TNC connector
Position accuracy Without SBAS: <= 15 meters 95% of the time | With SBAS: <5 meters 95% of the time
D. Buongiorno , ho strumentazione raymarine i 70 e plotter raymarine hybrid touch e7 , l’ais presente nel VHF si può interfacciare con plotter e strumentazione ? Grazie
R. 14-05-23 Buongiorno, sì certo compatibile sempre con collegamento in SeaTalkNG. Cordiali saluti. Luigi Bianchi
D. Buona sera, gentilmente il prodotto è disponibile o bisogna attendere per la fornitura ? Grazie cordiali saluti m
R. 26-04-22 Buongiorno, confermo disponibilità a nostro stock di un pezzo al momento. Cordiali saluti. Luigi Bianchi
D. Buonasera Avrei bisogno di sapere se questo VHF/AIS è tipo A o B. Riceve e trasmette la propria posizione a tutti? Permette di vedere gli altri apprati AIS intorno? Quante antenne e quali ha bisogno di aver collegate? Potete indicarmi le misure gentilmente? Grazie
R. Buonasera, l'AIS incorporato nei VHF è solo ricevente, quindi nessuno dei due A o B, permette quindi solo di vedere le barche che hanno sistemi A o B. Necessita solamente dell'antenna di bordo. Potrà trovare tutti i dati tecnici al seguente link: http://www.raymarine.it/radio-vhf/ray73/ Cordiali saluti. Luigi Bianchi
