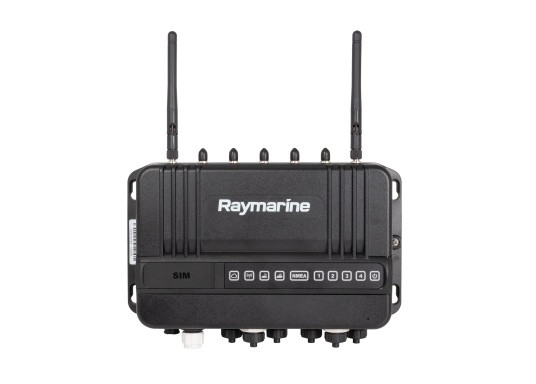

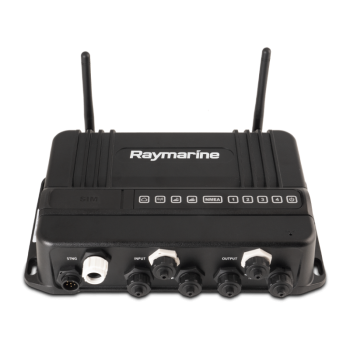

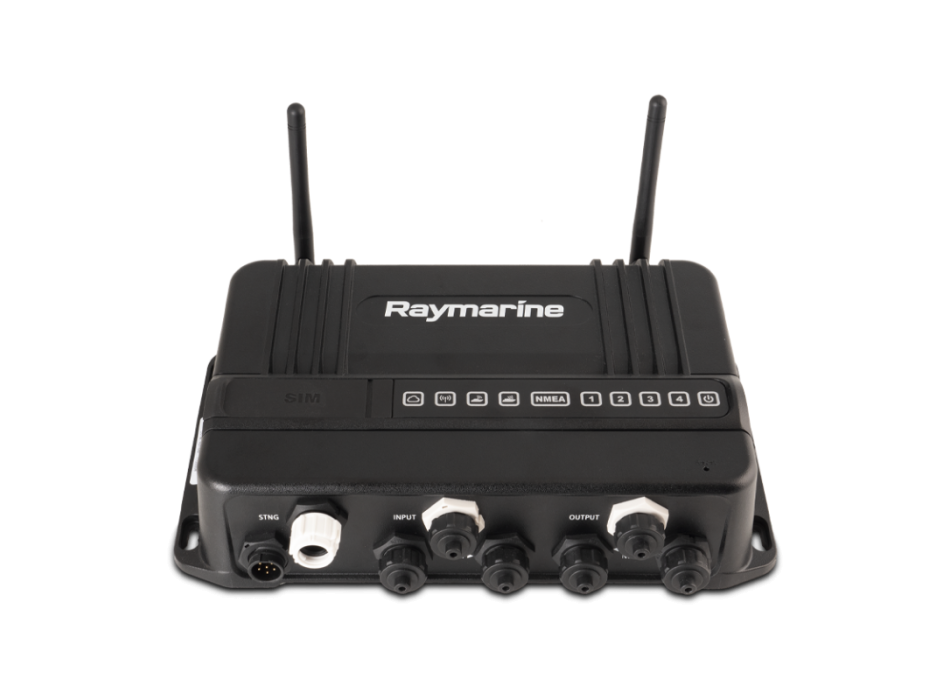

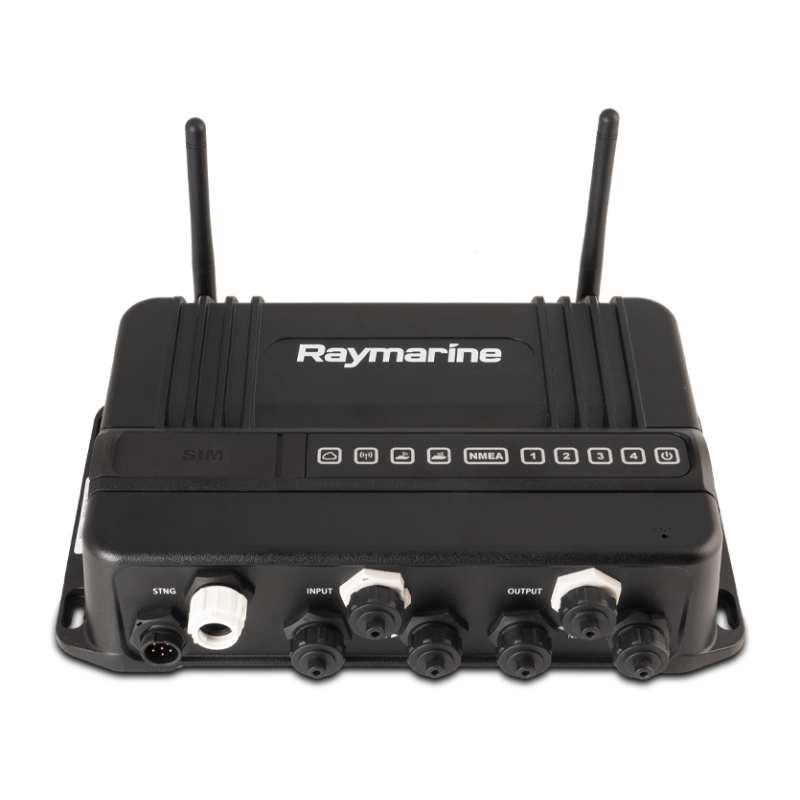

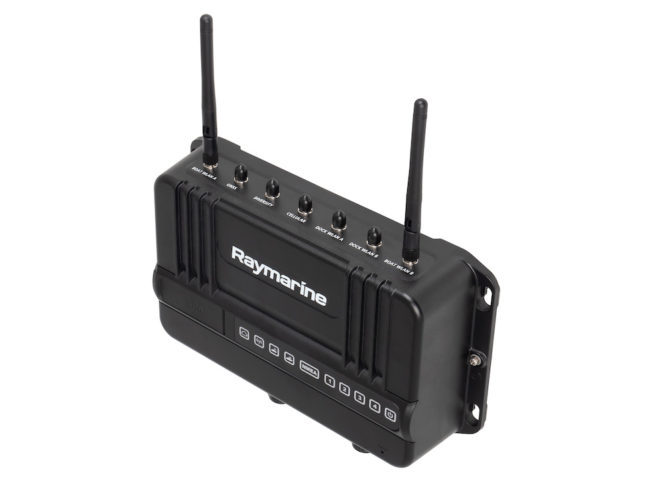

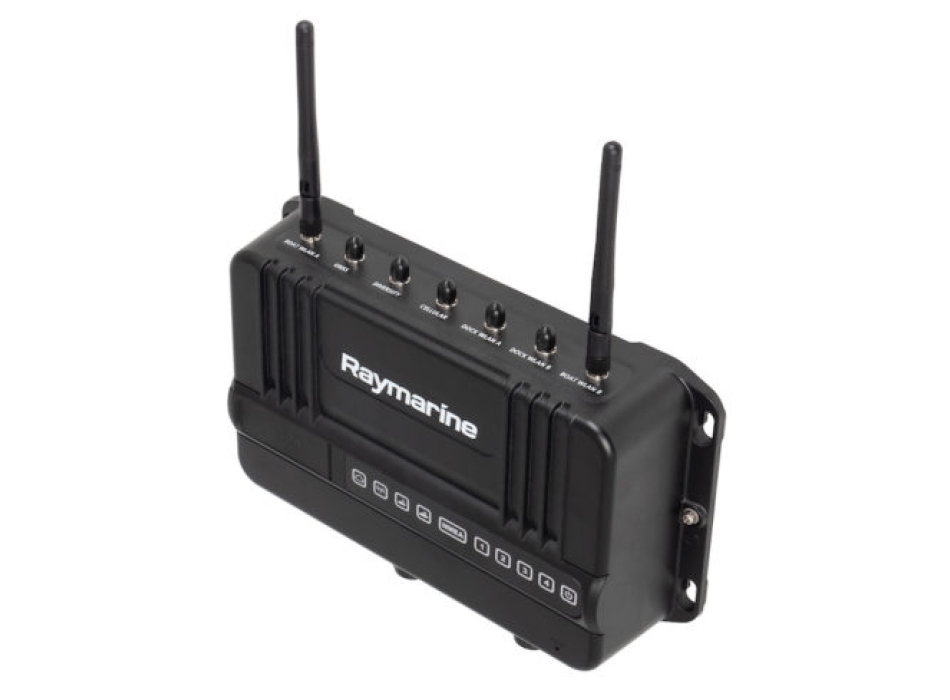

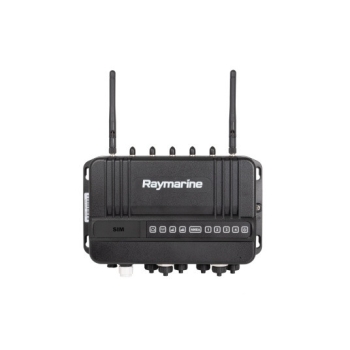

Raymarine YACHTSENSE ™ LINK

Internet on board, View the position of your boat, Remote Digital Switching, View NMEA 2000 data remotely with YACHTSENSE ™ LINK
  • Code: E70640
Raymarine
(0)
€ 1.373,00 € 1.579,90 -13%
add to favorites
Raymarine YACHTSENSE ™ LINK
With Raymarine Internet on board

MOBILE NAUTICAL ROUTER

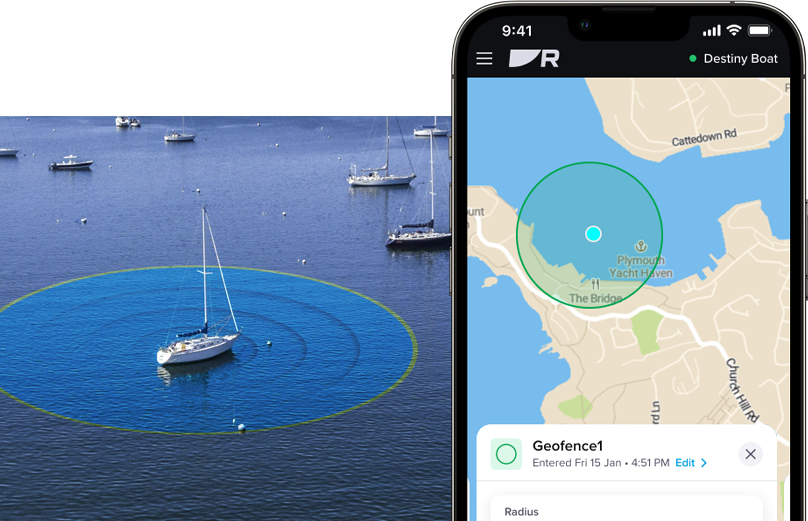

YachtSense Link is a marine multipurpose mobile router featuring Raynet Ethernet ports, mobile broadband connectivity and onboard Wi-Fi. YachtSense Link allows crew and family to connect Axiom® displays, phones, tablets and PCs to a single onboard network. YachtSense Link automatically switches between the marina's Wi-Fi network and the mobile network to ensure connection at any time. Combine YachtSense Link with the Raymarine mobile app for remote access to the Raymarine network and enjoy the added security of the GeoFence remote vessel monitoring system. YachtSense Link also features low voltage input and output channels for controlling and monitoring onboard electrical devices such as pumps, batteries, lighting and more.

Technical specifications

Nominal supply voltage: 12 Vdc / 24 Vdc
Operating power supply voltage: 8 Vdc to 32 Vdc

Physical specifications
Dimensions (W x H x D): 242.00 mm (9.53 in) x 162.20 mm (6.39 in) x 63.00 mm (2.48 in)
Weight: 1.03 kg (2.26 lb)
On-board Wi-Fi wireless network specifications: Wi-Fi access point frequencies: 2.4 GHz (2412 MHz to 2472 MHz 2422 MHz to 2462 MHz): 13.28 dBm
Dockside WLAN: Wi-Fi connection frequencies: 2.4 GHz: (2412 MHz to 2472 MHz / 2422 MHz to 2462 MHz): 14.79 dBm 5 GHz (5150 MHz to 5350 MHz / 5470 MHz to 5725 MHz): 14.94 dBm
5.8 GHz (5725 MHz to 5875 MHz): 13.74 dBm
Mobile (cellular) connection: 2G / 3G / 4G frequencies: LTE-FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 LTE-TDD: B38 / B39 / B40 / B41 WCDMA: B1 / B2 / B4 / B5 / B6 / B8 / B19 GSM: B2 / B3 / B5 / B8
D. Interessato a valutare un sistema che consenta di accedere a Internet a bordo sia in porto che in mare (?) / alla fonda (?). Sfrutta la connessione di eventuali device autonomamente dotati di connessione (iPhone o iPad)?
R. 13-11-22 Buonasera, certamente il miglior prodotto che possa dare Internet a bordo, è il Peplink: https://www.painestore.it/max_br1_pro_5g Cordiali saluti. Luigi Bianchi
