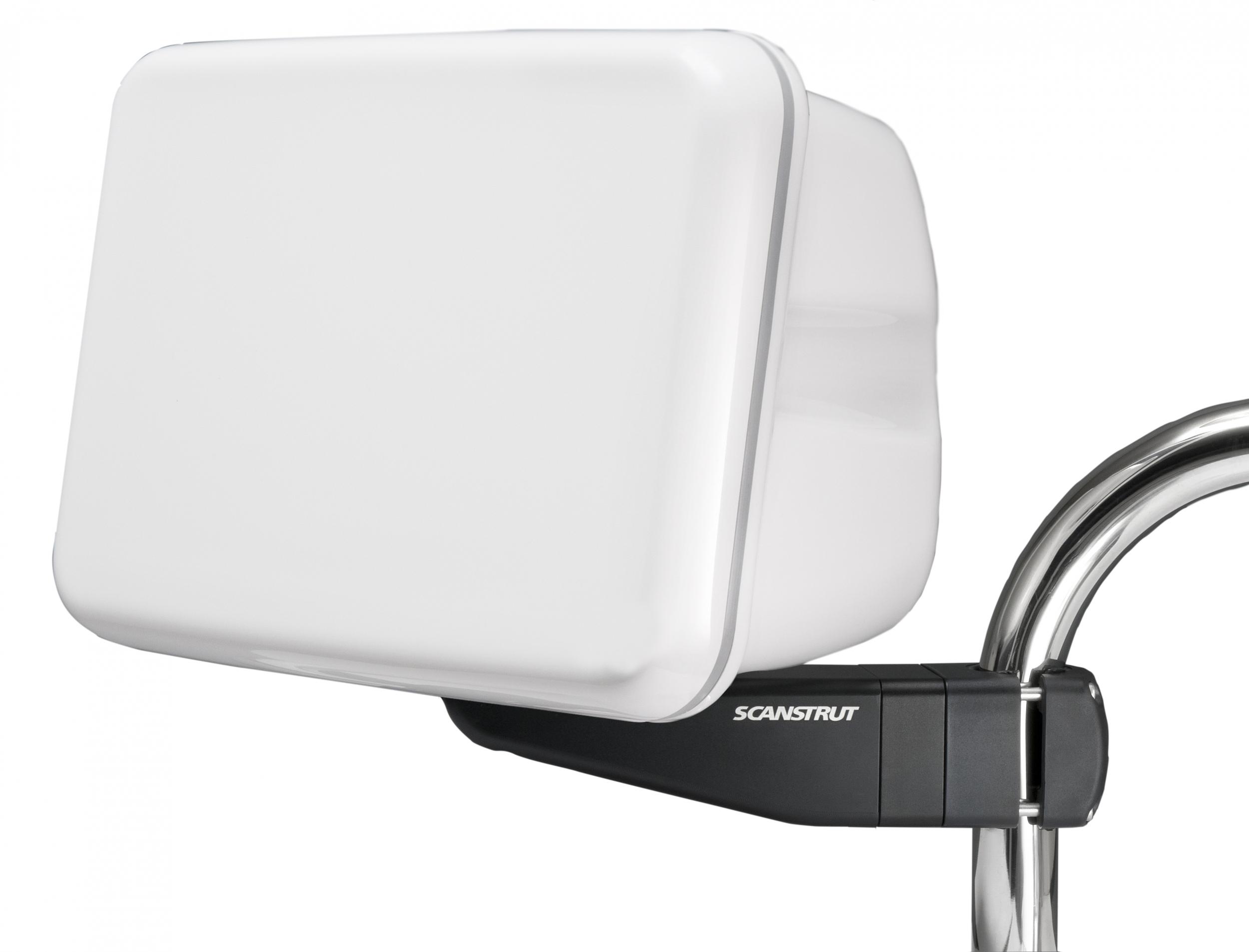

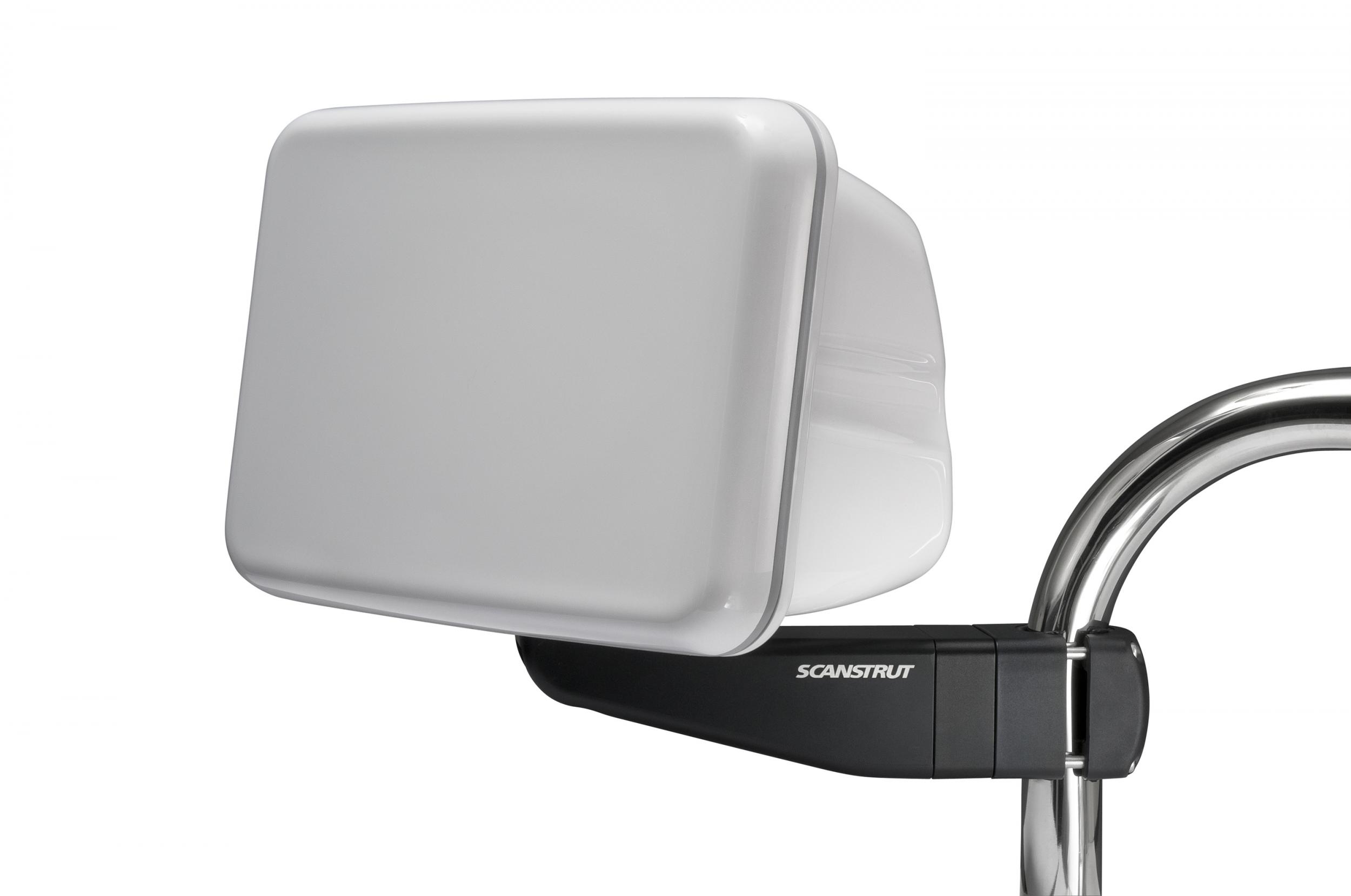

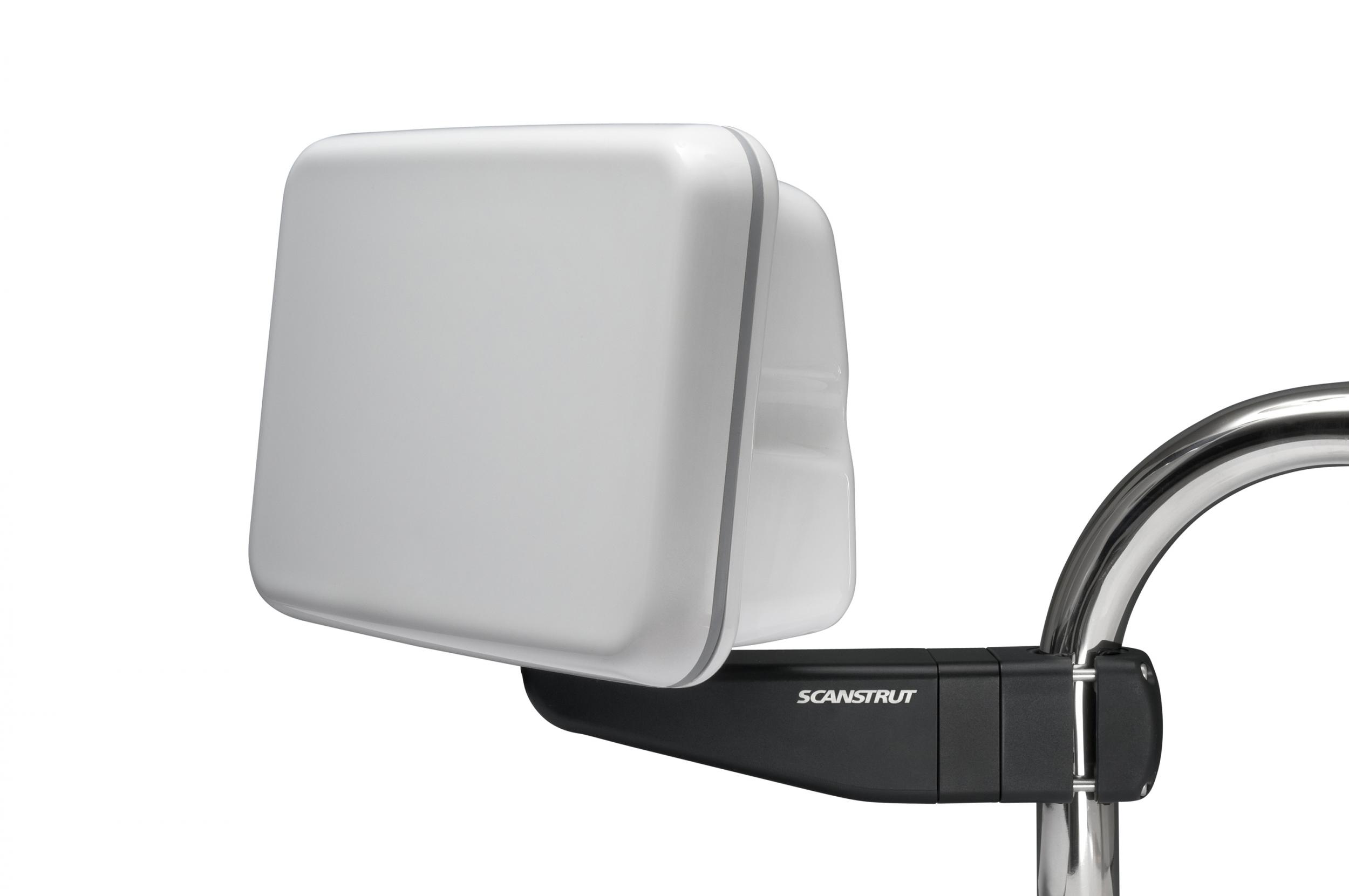

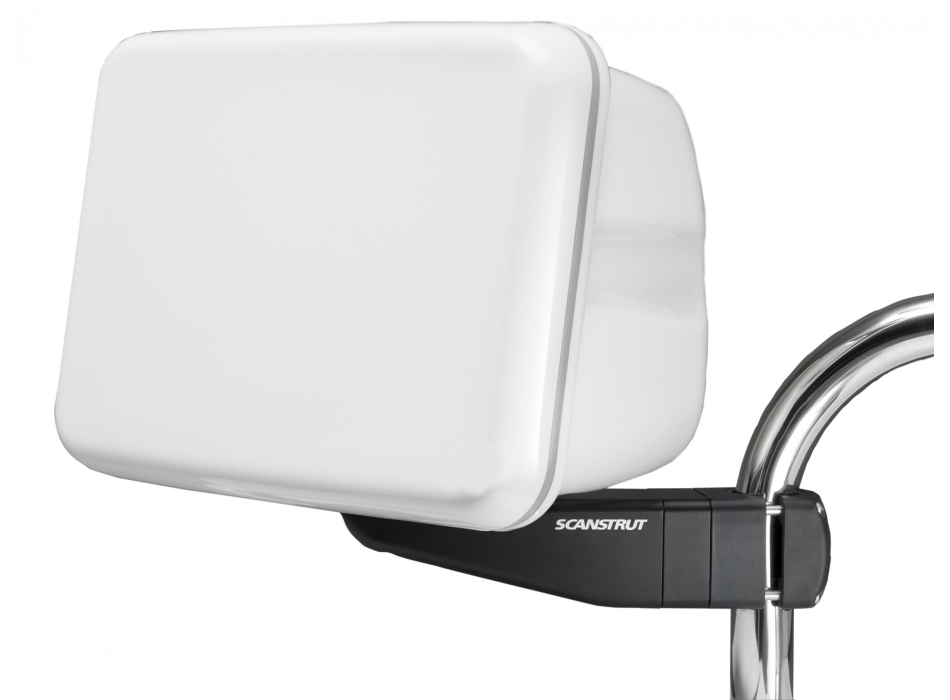

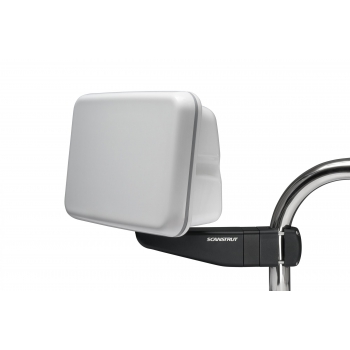

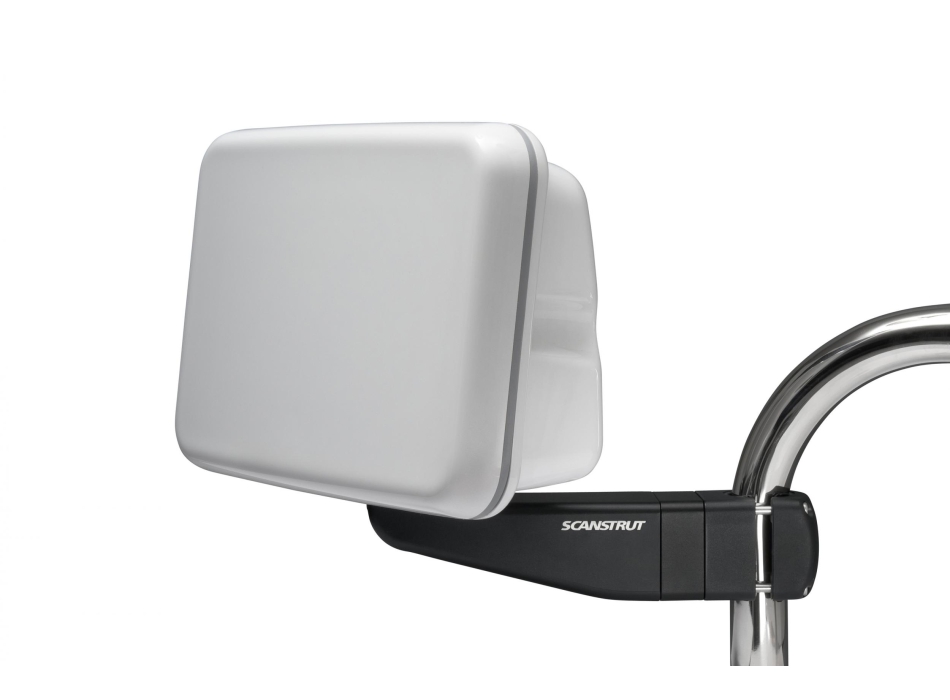

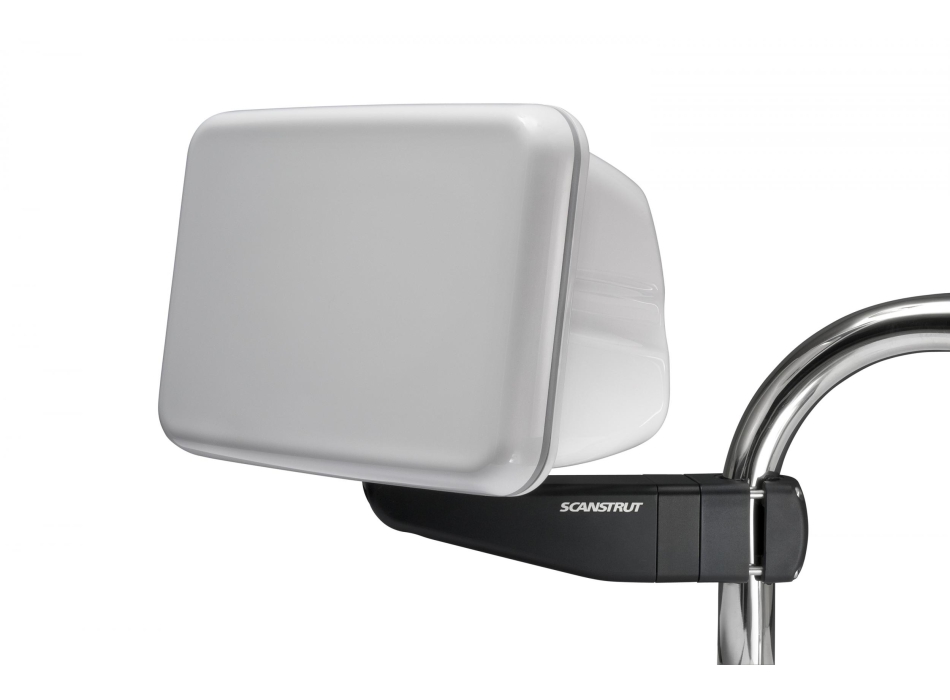

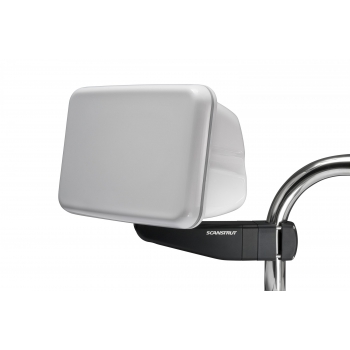

Scanstrut Arm POD support for Multifunction Display installation on lateral tubular
Choose the POD model from the drop-down menu

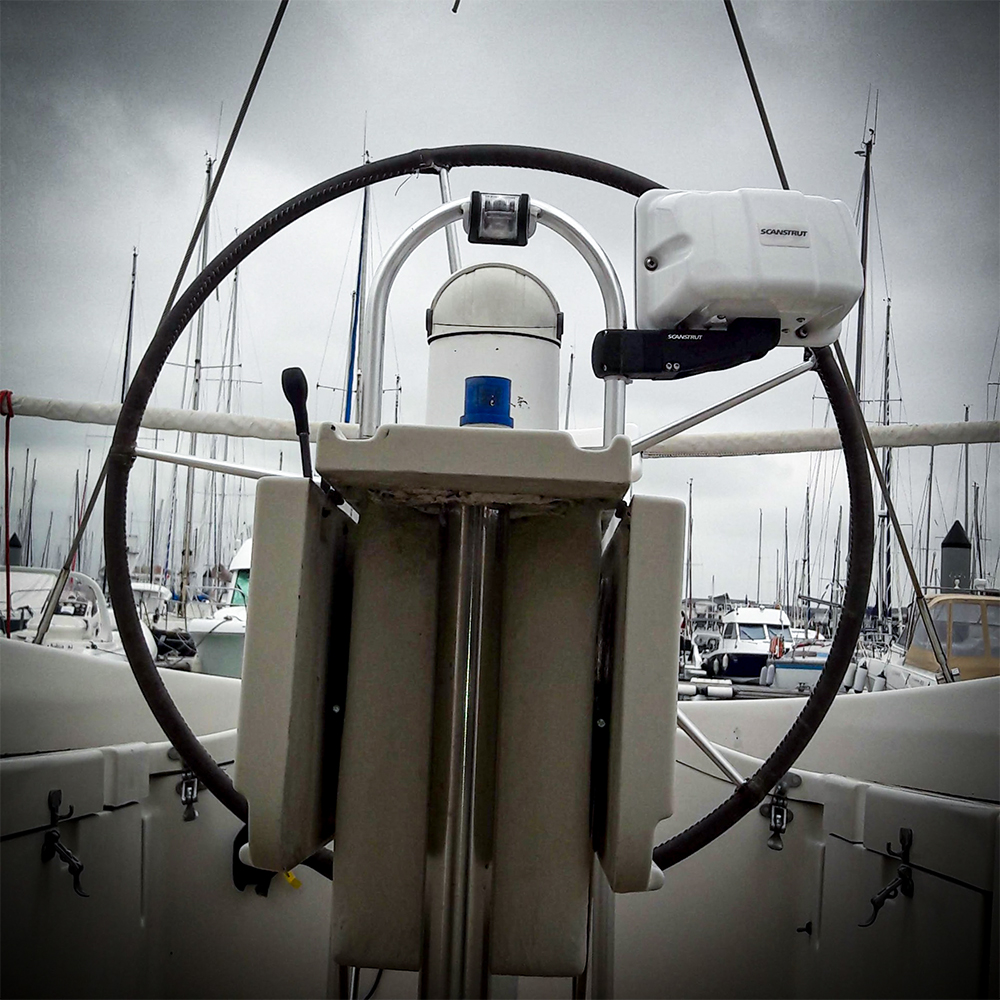

The Scanstrut Rail Pod allows you to install your MFD on any standard or curved tube. Internal waterproof cable routing allows cables to be routed seamlessly through the bottom of the pod. This gives you the cleanest and most intuitive way to mount your MDF right where you need it most.
The fixings fit back to front, cut the injection molded ABS container into the front of the Pod.
This design allows for quick and safe installation and repeated maintenance.
The pod seal is made of high tear-resistant silicone; it has a very high resistance to heat and UV rays, so you can be sure that it will not deteriorate over time.
As standard, you will receive your uncut Scanpod. For a small surcharge, you can request the pre-cut POD.
Fits pedestal tubulars from 25mm to 33.7mm (0.98 "to 1.33").
The viewing angle can be set at the time of installation. The cables are routed internally through the clamp and onto the rail.
FOR STANDARD DISPLAY AND INSTRUMENTS:
• The range is suitable for 6 "- 9" displays
CHECK COMPATIBILITY
SPR-7-AM
Garmin : EchoMap 7 Series, GPSMAP 723, GPSMAP 743xsv
Lowrance : Elite 7, Elite 7 Ti / Ti2
Raymarine : A50 / 50d, A57d, A65 / A67 / A68, A70 / 70d, A75 / A77 / A78, Axiom 7, Axiom 7+, E7 / E7D, Element 7 HV
Simrad : Go7 XSR
SPR-7S-AM
Garmin : Echomap Plus 6, Echomap Plus 7, ECHOMAP UHD 6 ", ECHOMAP UHD 7", GPSMAP 720 / 720s, GPSMAP 722 / 722xs, GPSMAP 740 / 740s, GPSMAP 7407/7607, GPSMAP 750 / 750s, GPSMAP 751xs / 721xs, Striker 5, Striker 7, Striker Plus 5, Striker Plus 7, STRIKER Vivid, 5cv, STRIKER Vivid 7cv
Lowrance : Elite 5 / Mark 5 / Elite 5Ti, Elite 7, Elite 7 Ti / Ti2, HDS-5 / HDS-5m / HDS-5x, HDS-7 / HDS-7m, HDS-7 Carbon, HDS-7 Gen 3 , HDS-7 LIVE, HDS-7 (m) Gen2 Touch, HOOK 7 / 7x, HOOK Reveal 7 "
Simrad : AP48, Cruise 5, Go5 XSE, Go7 (without flush mount), NSS-7, NSS-7 evo2
B&G : Vulcan 7 (without flush mount), Zeus Touch 7, Zeus2 7
Furuno : GP-1871F
SPR-8-AM
Garmin : EchoMAP 74sv, 73sv, 74dv, 73dv, EchoMap 9 Series, EchoMap CHIRP 75dv / 75sv, EchoMap CHIRP 95sv, Echomap Plus 9, ECHOMAP UHD 9 ", GPSMAP 7408/7608, GPSMAP 820 / 820xs, GPSMAP 840xs, GPSMAP 922 / 922xs, GPSMAP 923, GPSMAP 943xsv, Striker Plus 9, STRIKER Vivid 9sv
Humminbird:, 800 series, 900 series, Helix 7
Lowrance : Elite 9 Ti / Ti2, Elite FS 7, HDS-7 Gen 3, HDS-8 / HDS-8m / Gen 2, HDS-9 Carbon, HOOK 9 / 9x, HOOK Reveal 9 "
Northstar:, Explorer 6, M84
Raymarine :, Axiom 9, Axiom 9+, C Series - C70, C95 / C97, E95 / E97, Element 9 HV, ES 75/77/78
Simrad :, Cruise 7, Cruise 9, GB40 10 "Monitor, Go7 (with flush mount), Go9 XSE, NSS-8, NSS7 evo3, NX40
B&G :, Nemesis 9, Vulcan 7 (with flush mount), Vulcan 9, Zeus Touch 8, Zeus3 7, Zeus3 9, Zeus3s 7, Zeus3s 9
Furuno : GP-1870, GP-1971F, O-Chart 5 / 5F, O-Chart 7 / 7F
