Scanstrut Helm POD support for Navigation Tools
Choose the POD model from the drop-down menu

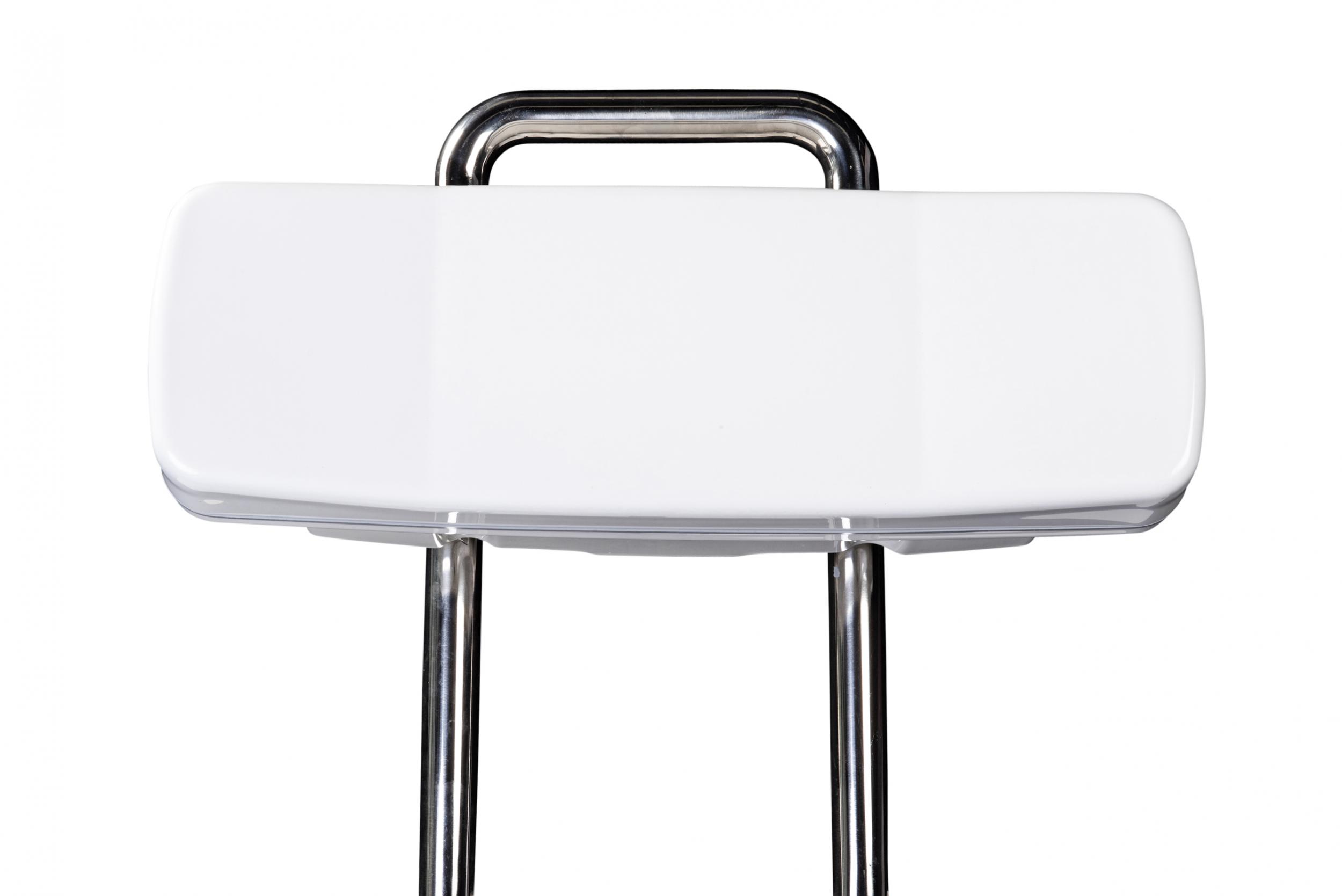

With exciting new design features, the Scanstrut Helm Pod is the perfect choice for navigation instrument display configurations to install on tubular wheelhouses
With options to fit standard radar displays, chartplotters and navigation instruments, the choice is yours!
FOR STANDARD DISPLAY AND INSTRUMENTS:

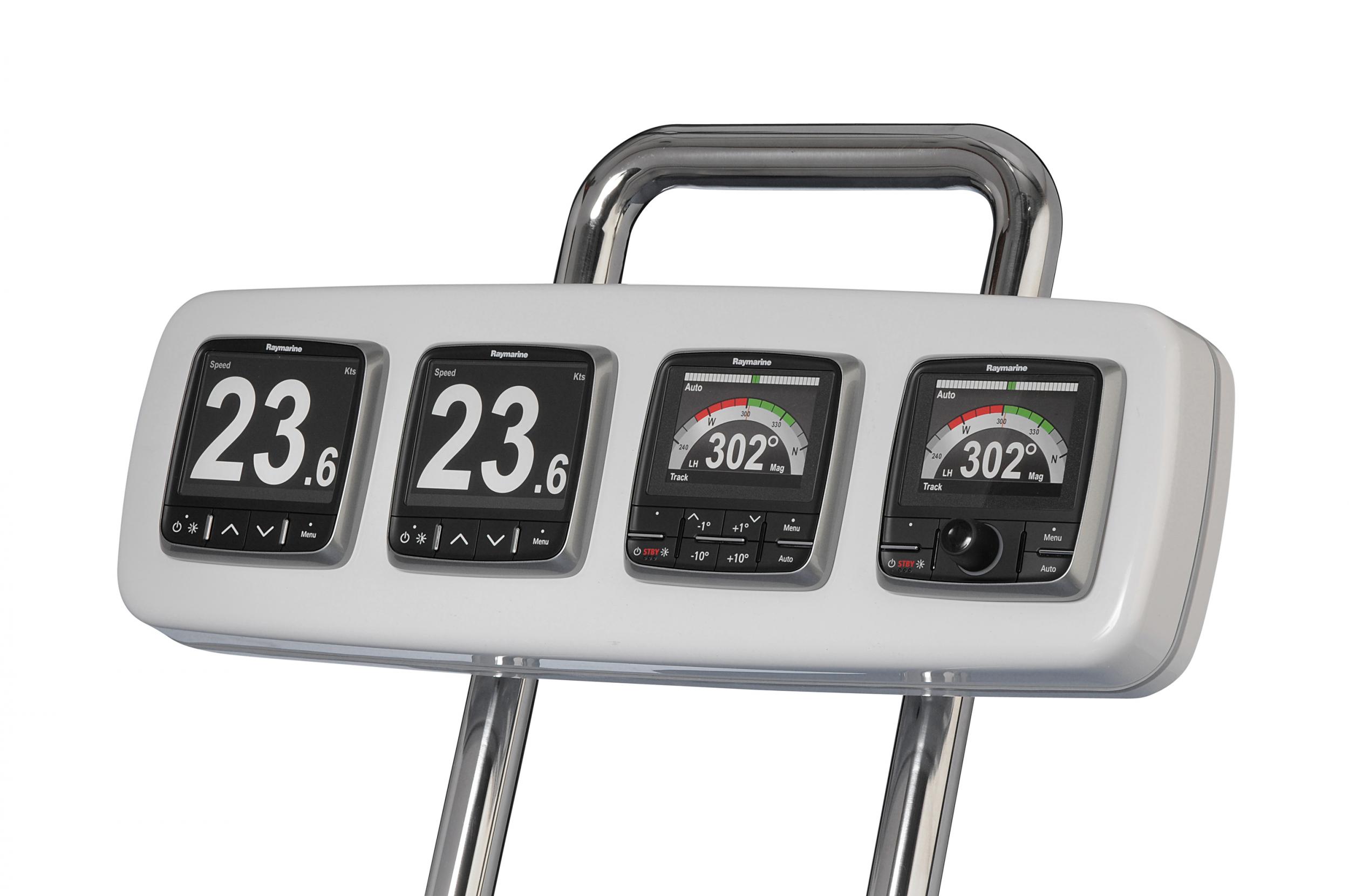

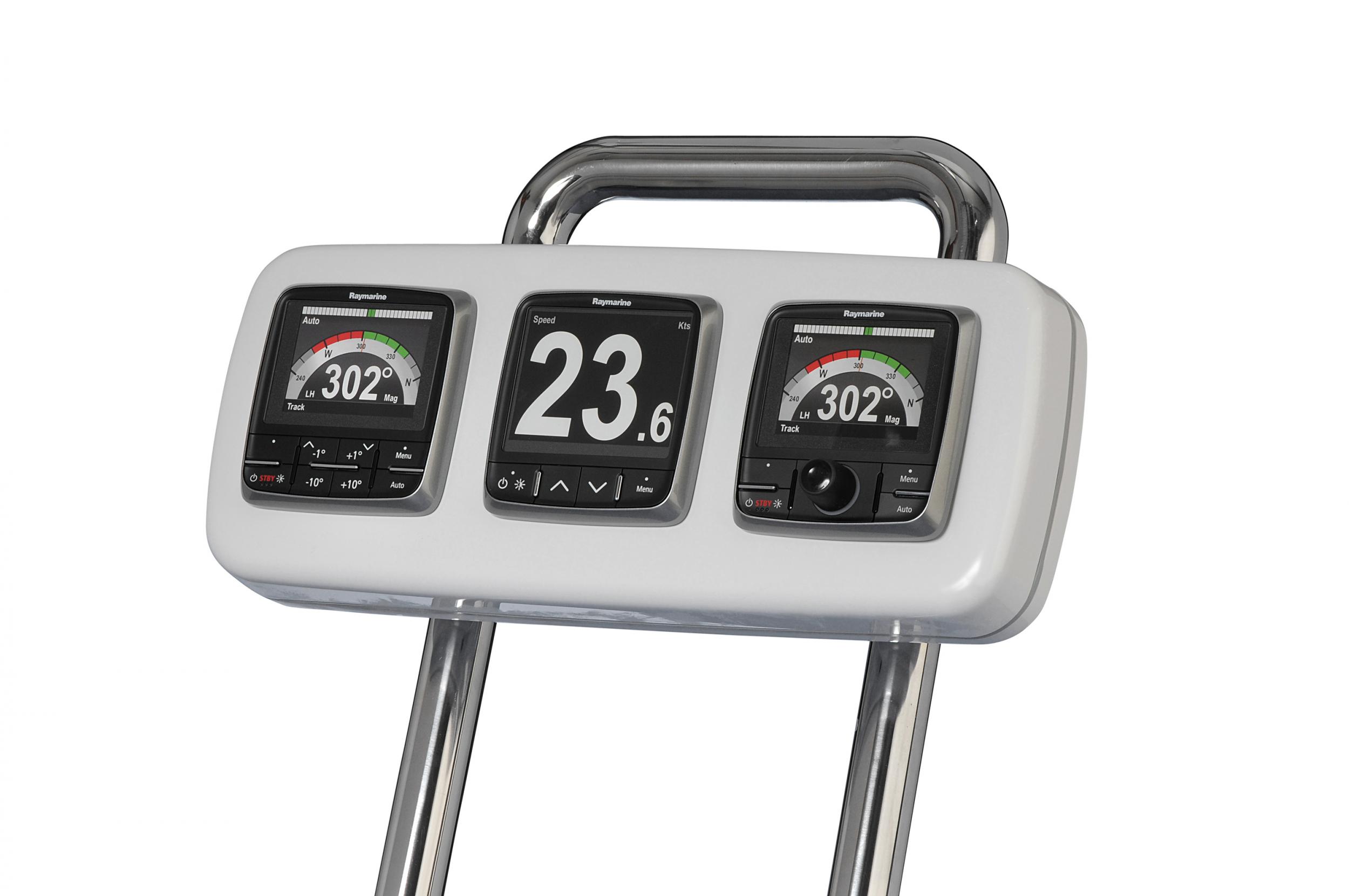

• Can accommodate 3 or 4 standard instruments (eg ST60)
• NEW compact version now available
FEATURES: UNIVERSAL RUDDER FIXING
For rails from 25 mm to 33.7 mm (0.98 "- 1.33") in diameter. Using a unique locking system, Deep Pods can accommodate track widths from 178mm (7 ") upwards. *
SAFE AND WATERPROOF INSTALLATION
The saddle system supports the stainless tube which allows a secure and rigid fit on any pedestal and also ensures a watertight seal at the cable entry.
DRILL-FREE FIXING KIT
Custom U-bolts fit over the rail and through the saddles in the back of the capsule, eliminating the need for awkward and time-consuming drilling of the stainless rail.
SIMPLE INSTALLATION AND ASSISTANCE
The fasteners adapt from the back to the front by cutting their threads into injection molded ABS inserts designed into the front of the pod. This design allows for quick and safe installation and repeated maintenance.
INCREASED PROTECTION
The pod seal is made of high tear-resistant silicone, has a very high resistance to heat and UV rays, so you can rest assured that it will not deteriorate over time.
SUPPLIED NOT CUT
As standard you will receive your uncut Scanpod. For larger orders, a factory cutting service is available.
NEW PRODUCT SPH-4XI-W Rudder pod for 4 standard instruments / 2 standard instruments + 1 7 "screen.
