Scanstrut Integrated Compressor ATMOS / SC-AOB-A2
Revolutionize your sailing experience. Scanstrut's integrated air station is here to maximize your quality time on the water.
ATMOS, by Scanstrut, will revolutionise your family's boating experience. This beautifully designed, integrated air station is here to maximise quality time on the water.
With the push of a button, ATMOS is ready to inflate your paddleboards, towables and more – just set the desired pressure and let ATMOS do all the hard work.
Harnessing Scanstrut’s outdoor technology DNA, this is a waterproof onboard air system, designed to withstand the harsh marine environment.
Innovative two-stage pump
ATMOS with Brushless Technology - Unleash the power, efficiency and reliability of our innovative two-stage pump system designed to meet the demanding demands of the marine environment. The first stage features a highly efficient fan motor, followed by a robust piston pump, both specifically designed for the demanding demands of the marine environment. ATMOS, combines both pumps into one easy-to-use, waterproof onboard air station, automatically switching at 1.1 PSI from HVLP to HPLV pump.
Stage 1: High Volume, Low Pressure (HVLP):
Designed to move large volumes of air with minimal pressure. They are typically used to inflate larger inflatable items such as kayaks, large tubes and swim platforms as they can quickly inflate the item to the desired pressure.
Phase 2: High Pressure, Low Volume (HPLV):
Designed to generate a high level of pressure with a low volume of air. Perfect for inflating smaller toys such as SUPs, inflatable kayaks and tubes that require a higher level of pressure for optimal performance.
DESIGN

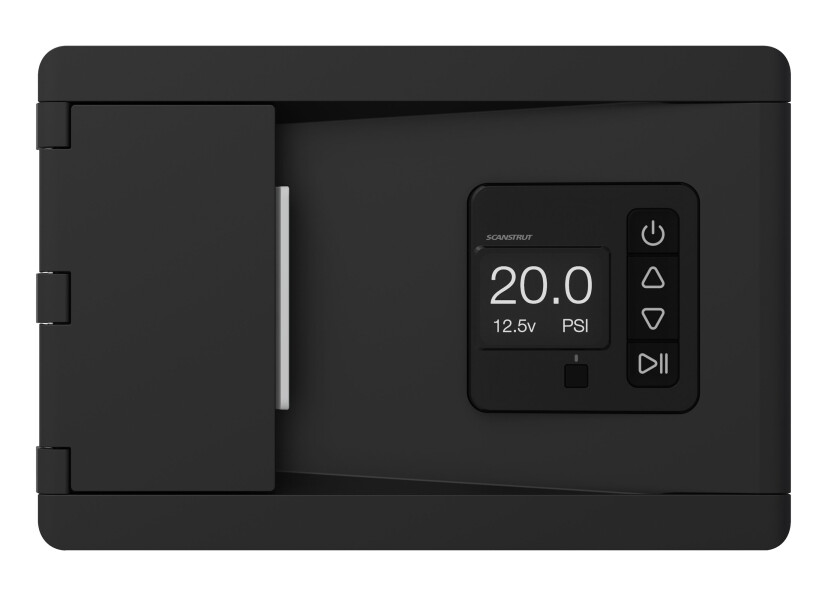

The front
Take control with our TPE Soft Touch buttons and state-of-the-art LCD display. Specially designed for the demanding marine environment, the buttons feature a non-slip texture that provides a tactile surface, even with wet hands, and the bright, wide-angle display means you can get a great view from anywhere on the boat, even on the brightest days. The display also features a useful Live Voltage display, so you can easily keep track of the health of your boat’s battery.
The back

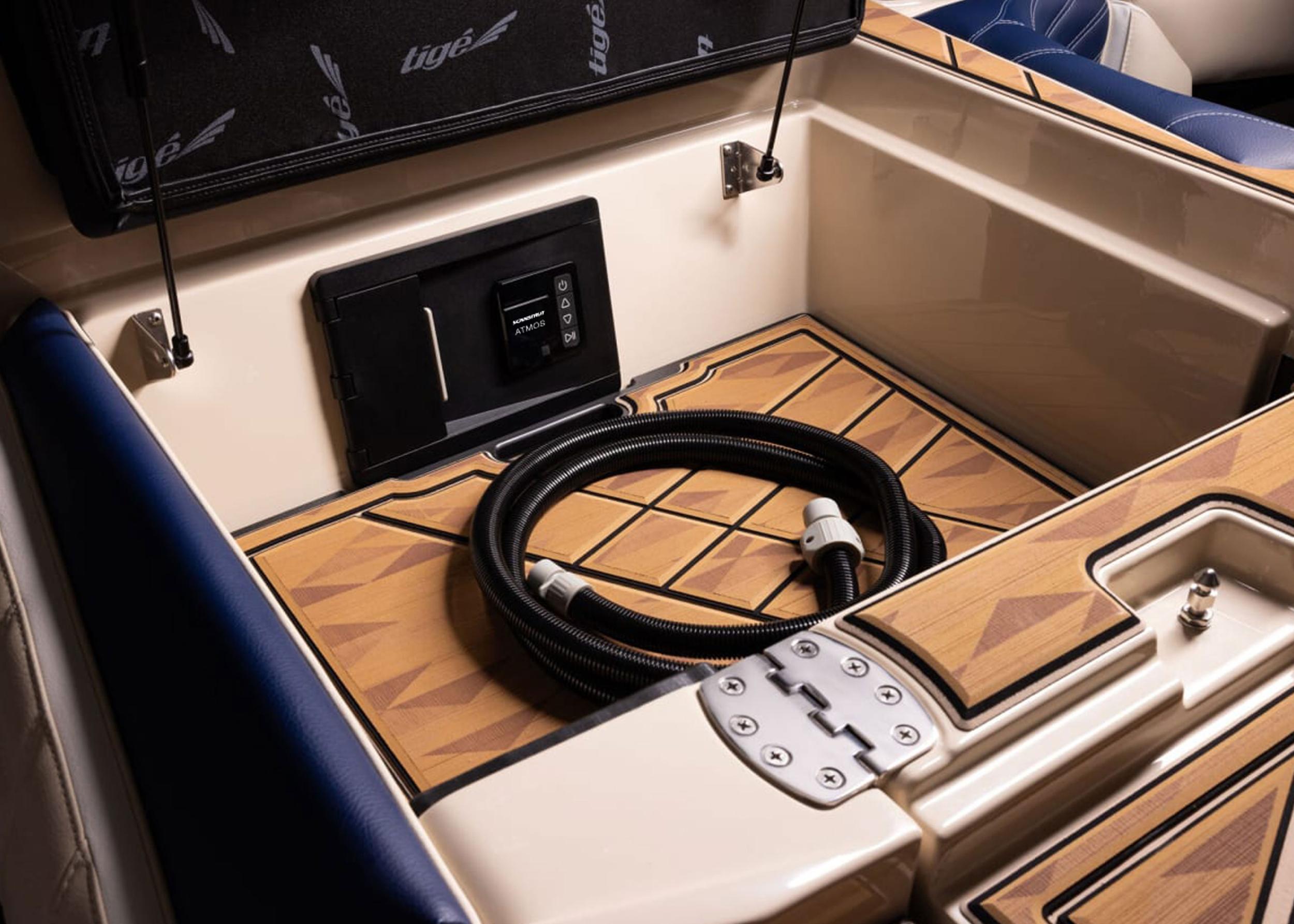

Easily integrate ATMOS into your boat with its compact, shallow design. The versatile AirStation can be installed in a variety of locations, including seats, consoles, or near the swim platform, making it convenient and accessible wherever you need it. Easily installs into any panel using 10 self-tapping screws, with a foam gasket included to ensure a secure, waterproof fit.
The side
The minimum cavity depth required is 110mm/4.33", and can be installed at an angle of +10º to -30º from vertical. The power cord length is 500mm (20") with a wire gauge of 2.0mm2 (14AWG); please note there are no end-user serviceable parts.
